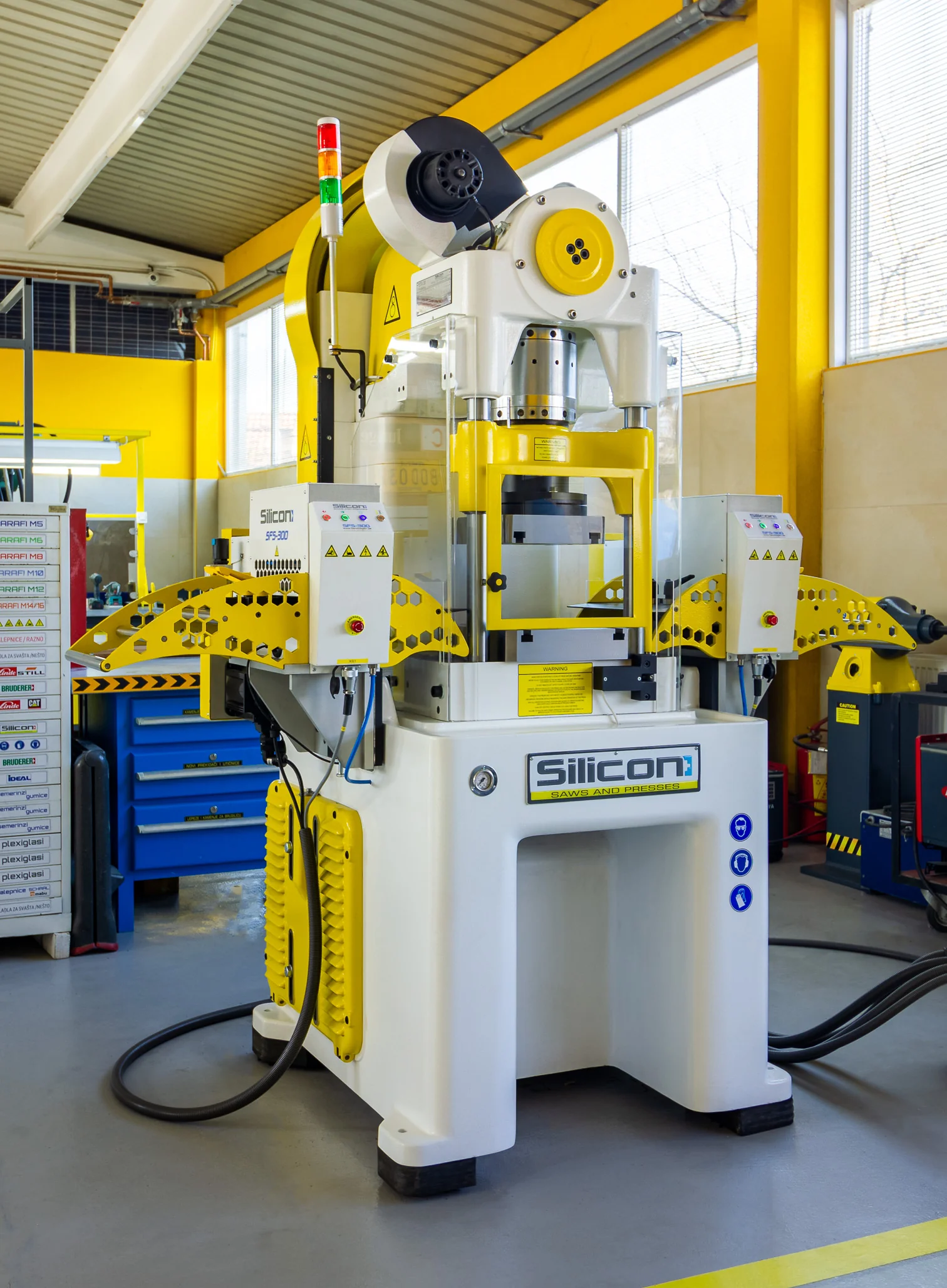

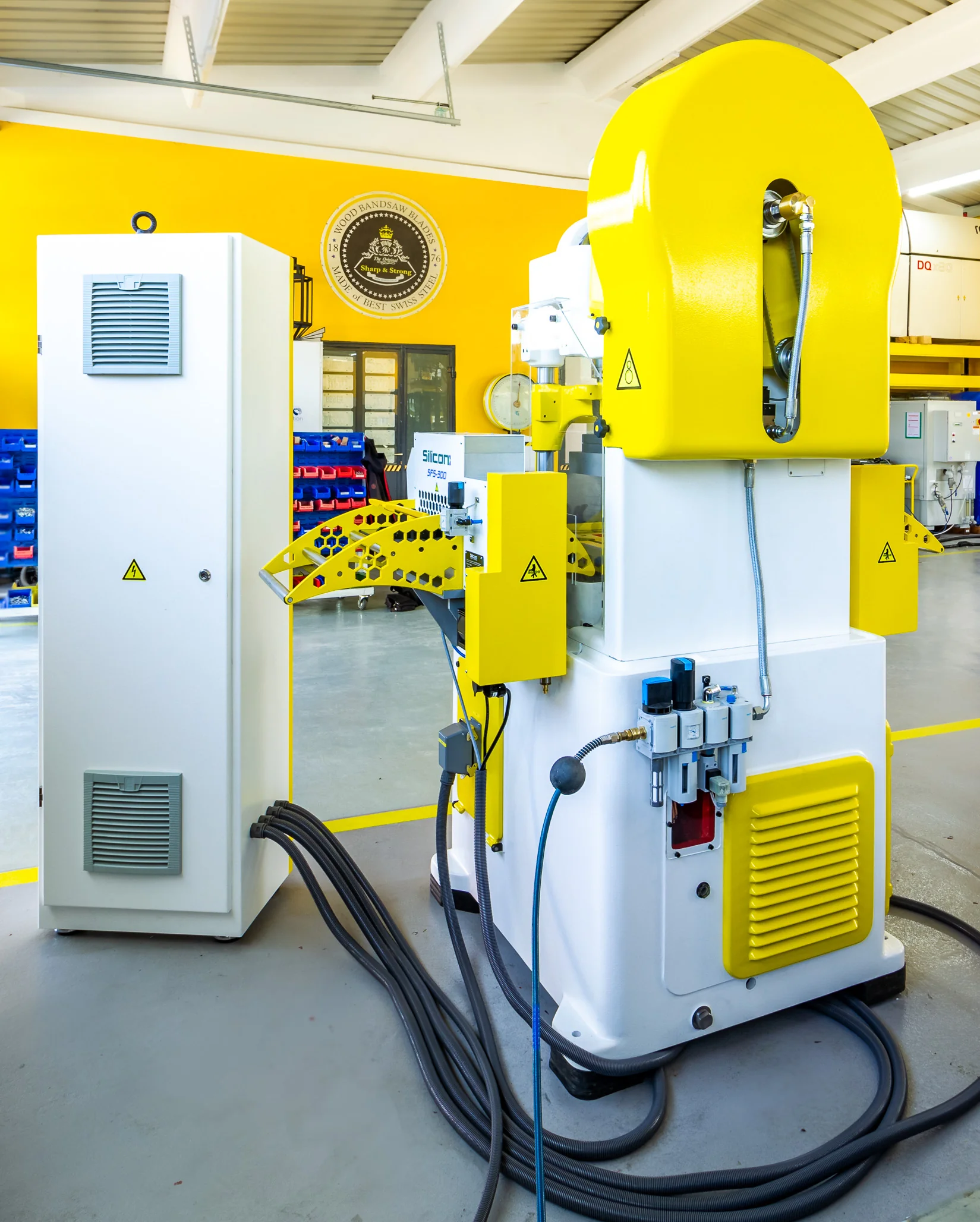

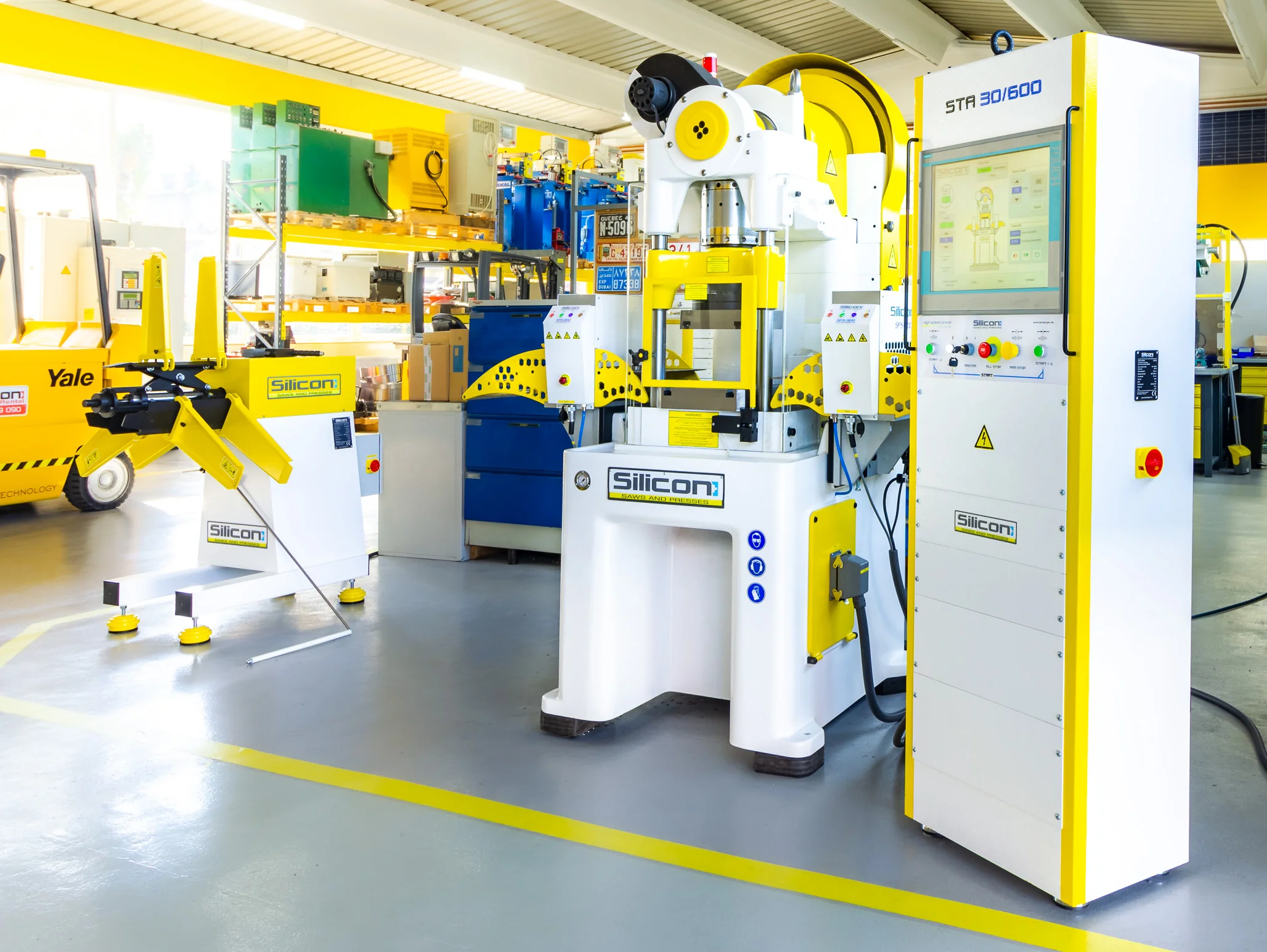

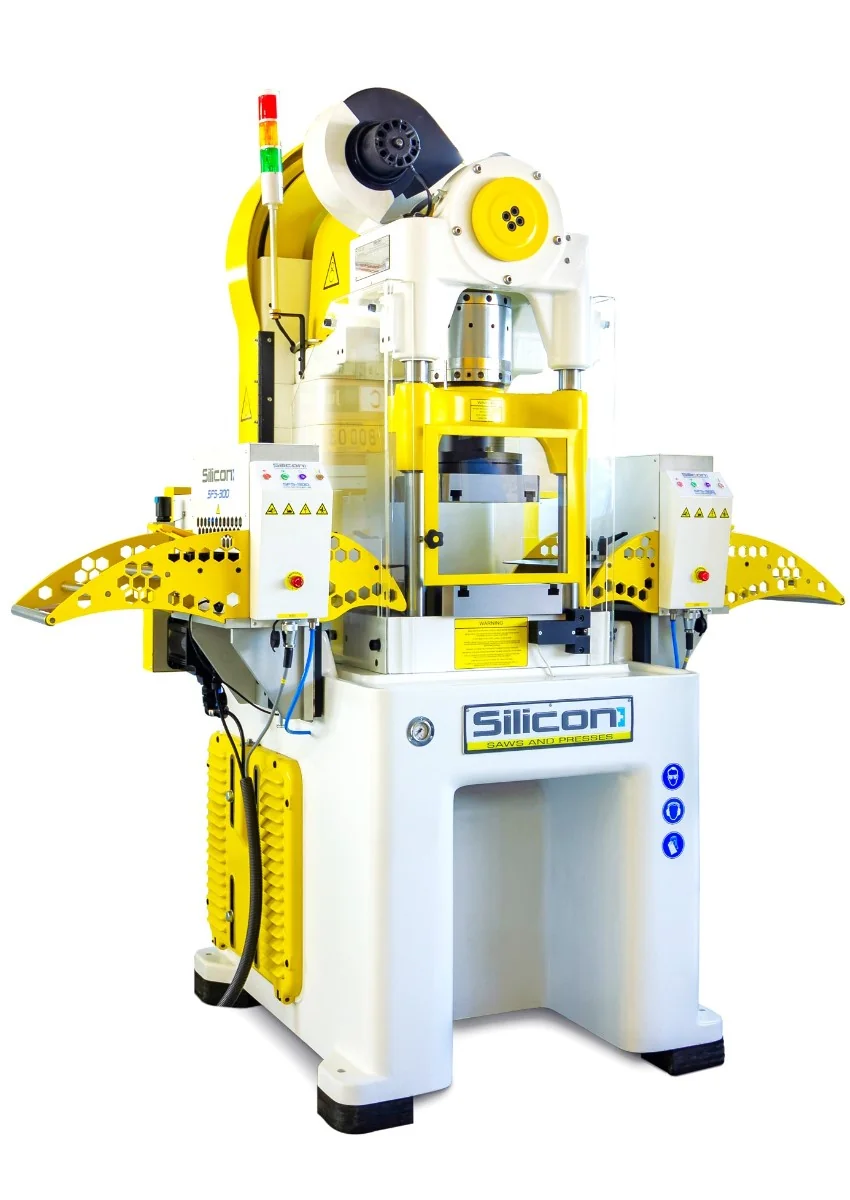

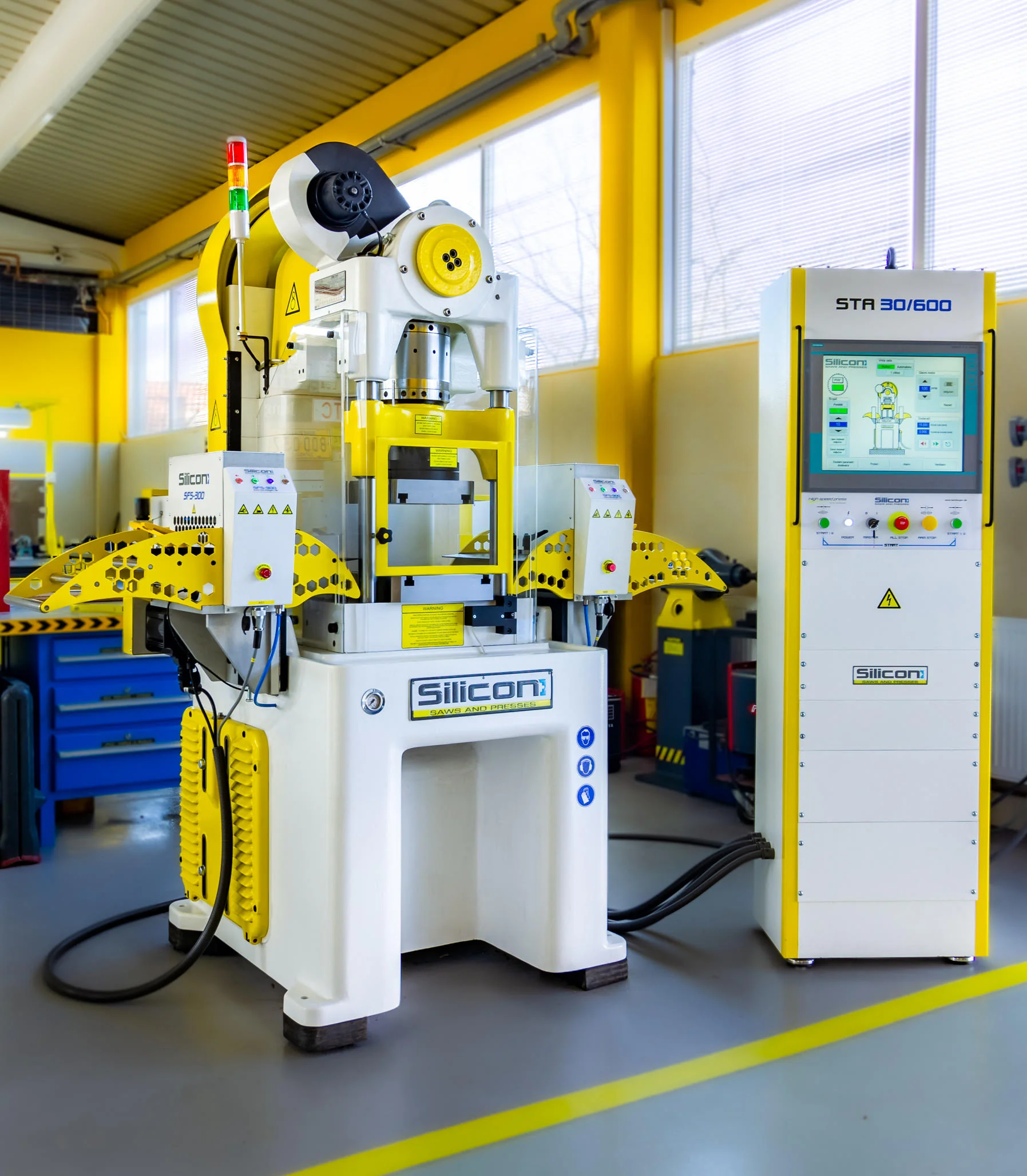

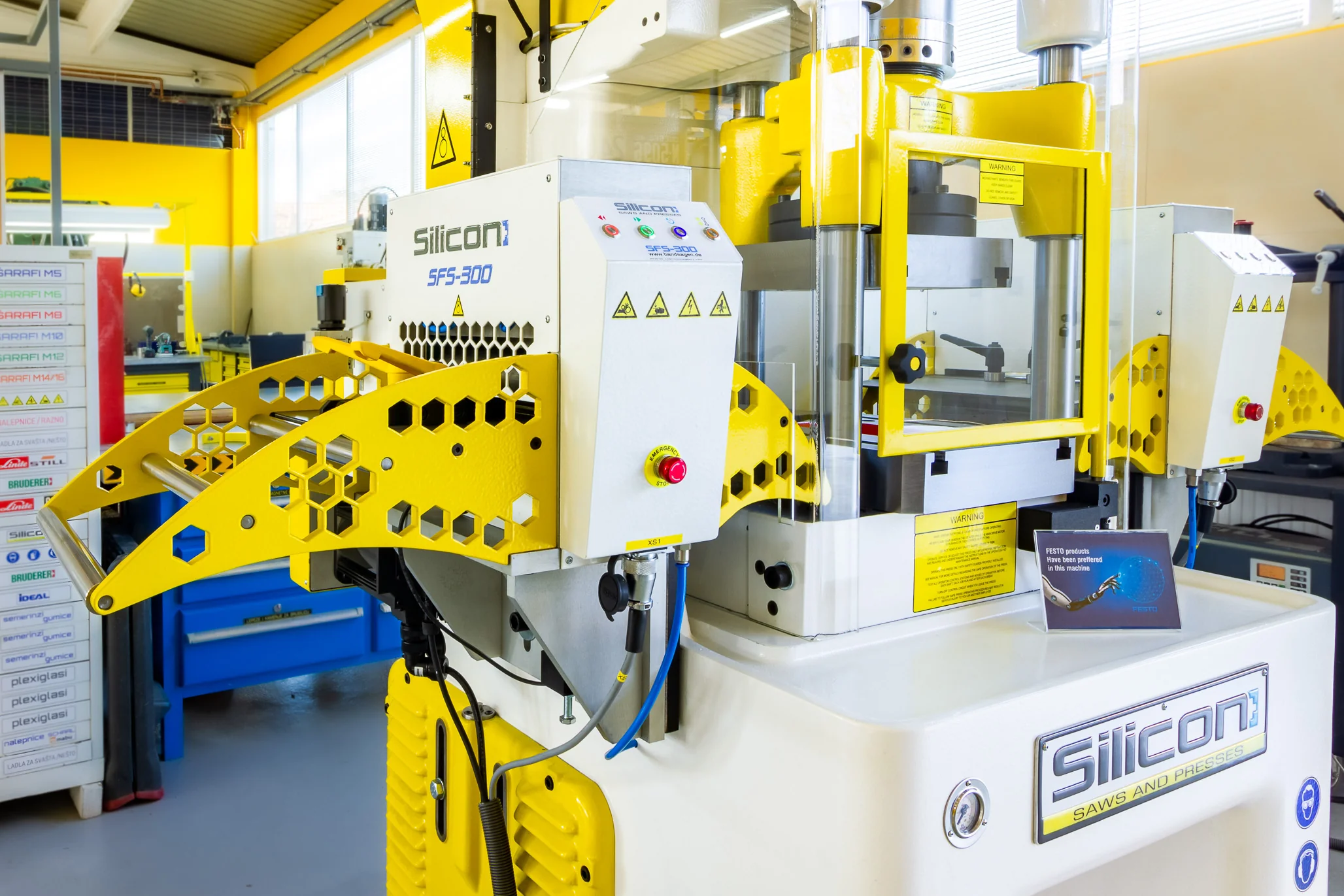

Silicon+ STA 30 with Twin Servo Ref. 33726
High Speed Automatic Press • 2026 • ID: 33726
Technical Specifications
High Speed Automatic Punching Press.
Machine with CE certificate and EUR1 certificate of European origin.

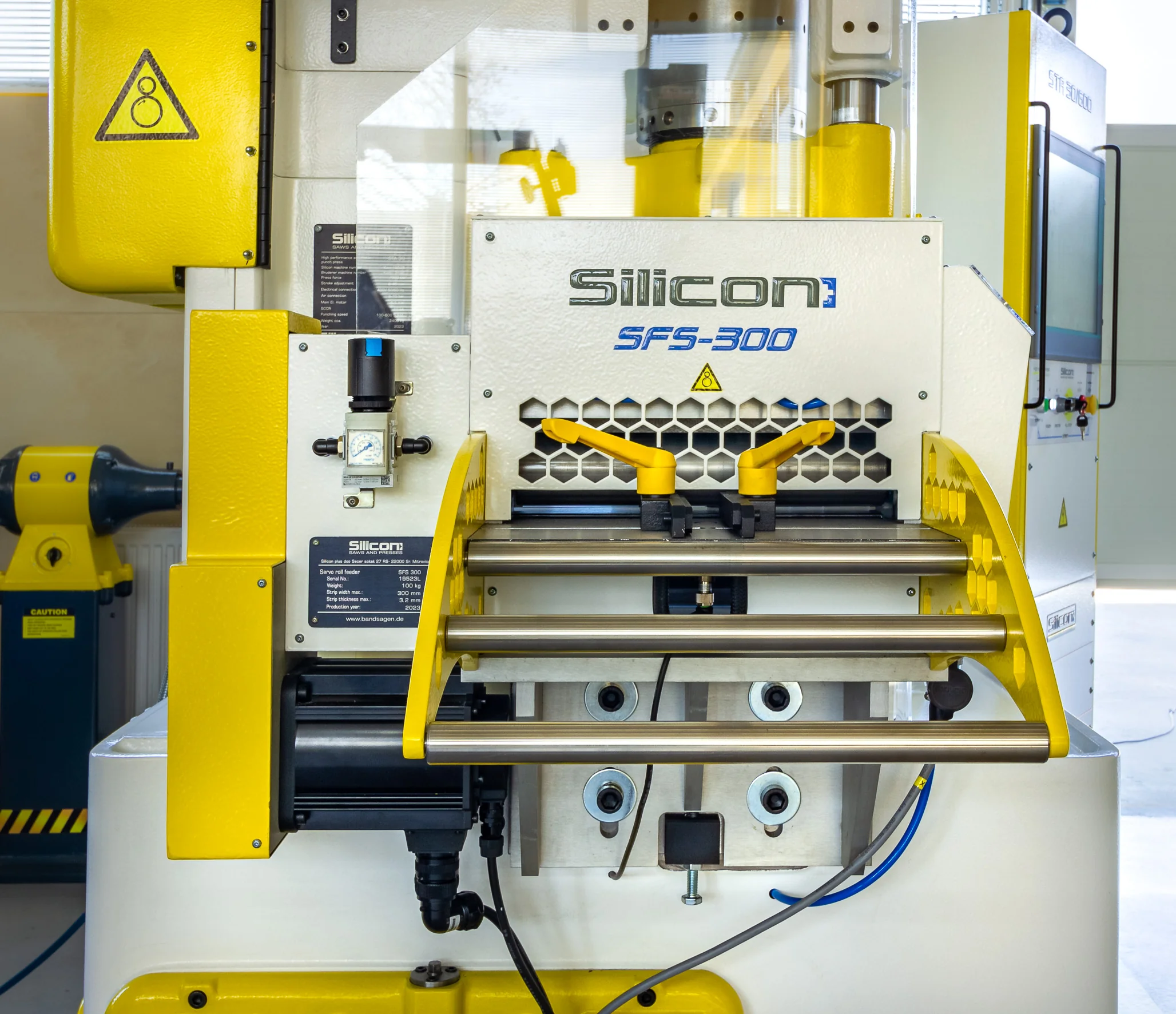

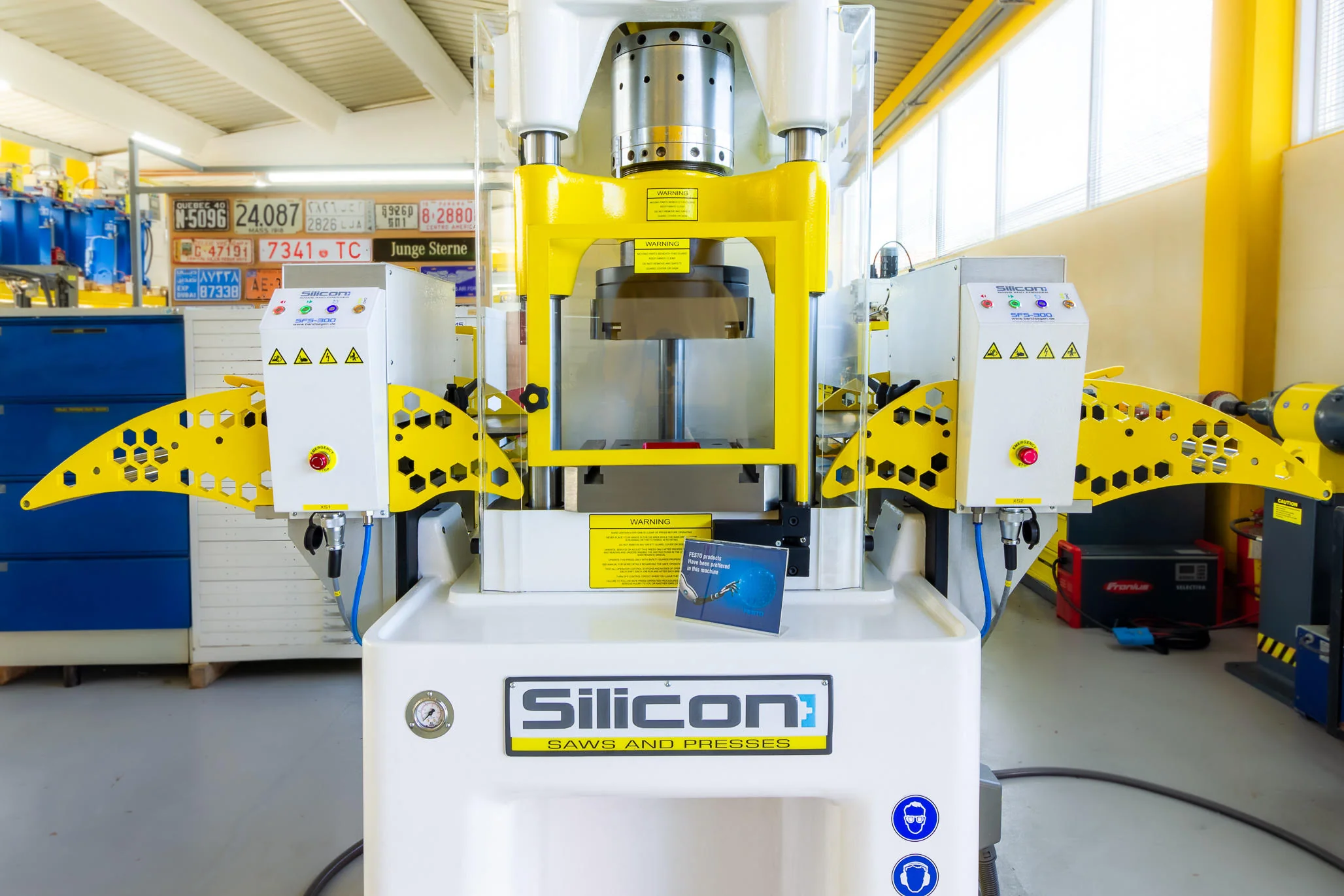

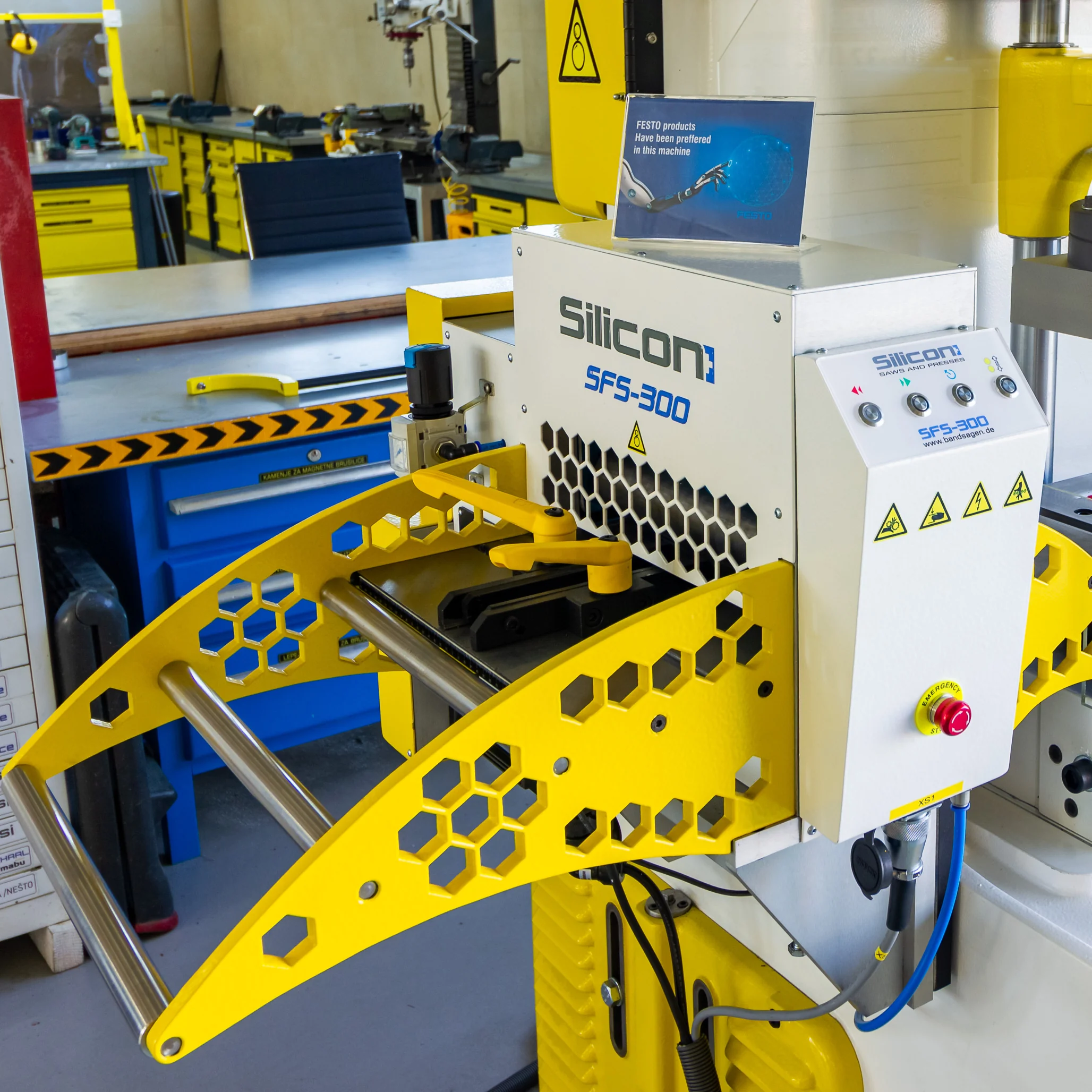

Equipped with twin synchronized Silicon SFS servo feeders for strip.

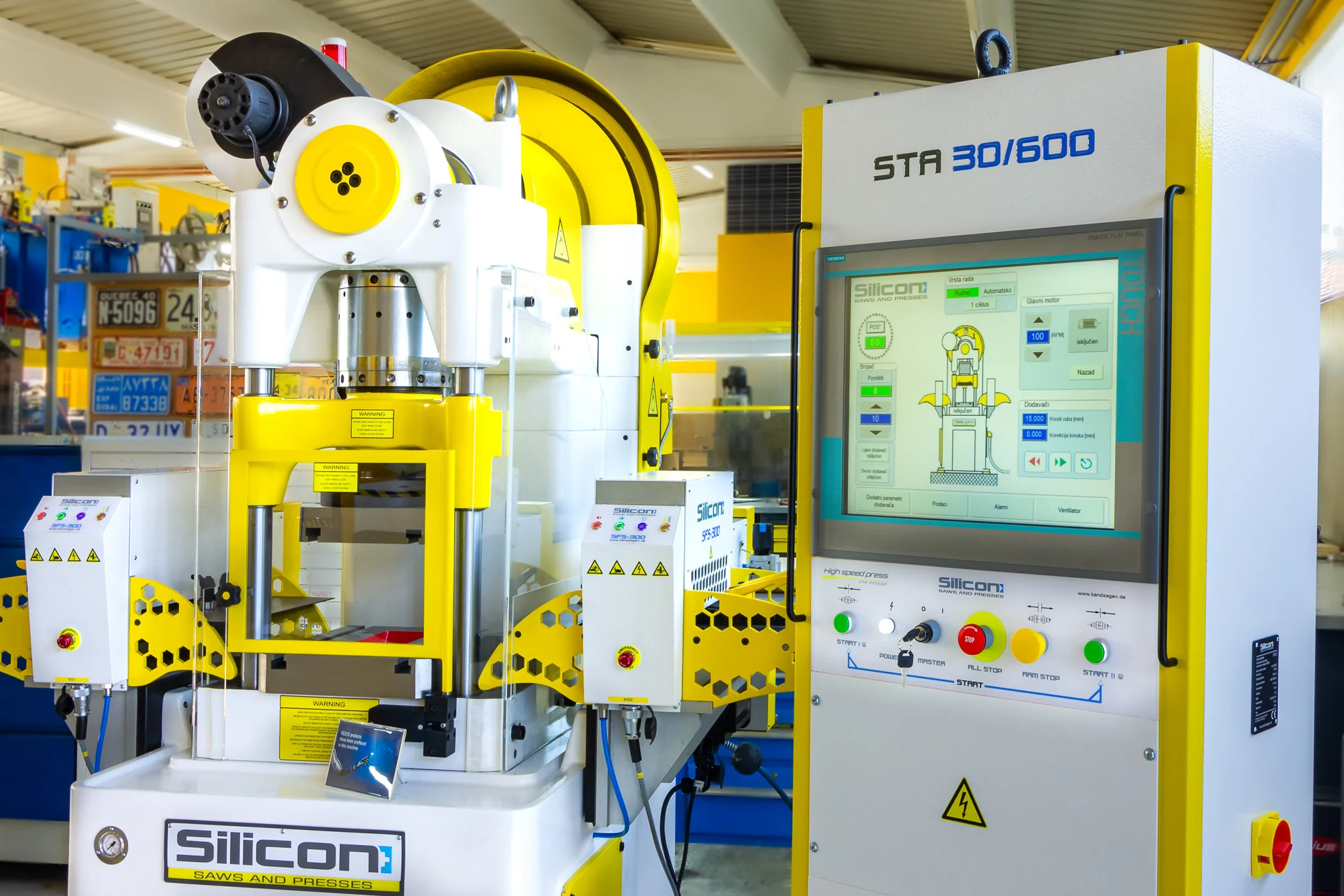

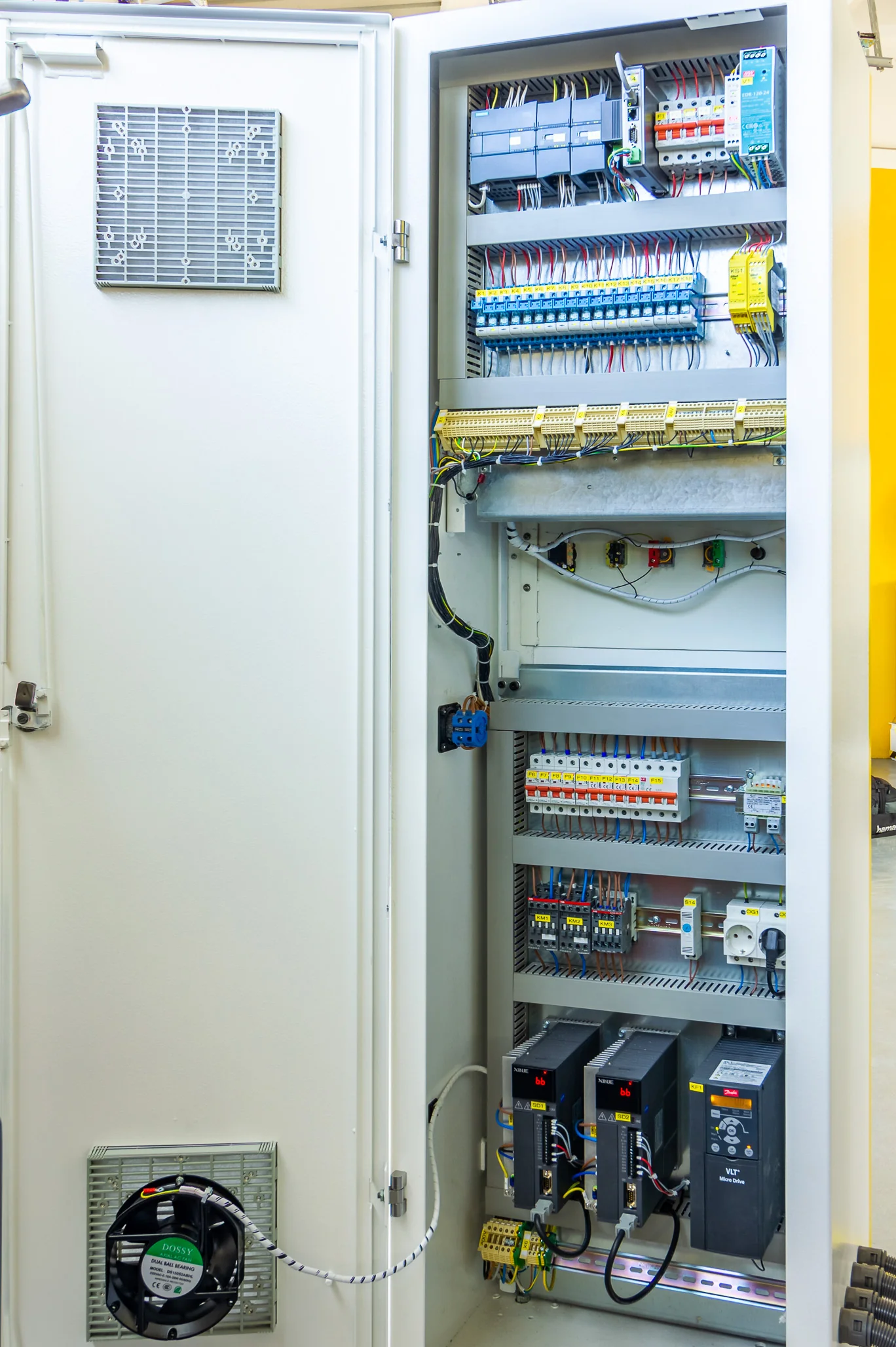

Siemens PLC touch screen logical interface control.
Numerically controlled stamping process (CNC).
With stroke and speed counter, programmable length, auto stop.
Three working modes: Manual, One stroke and Automatic.
Pneumatic clutch and brake.
Operator’s instruction manual in English.
Stroke power: 300 [KN] (30 [tons]).
Adjustable stroke: 8-40 [mm].
Table: 540 x 300 [mm].
Adjustable speed 100 – 600 strokes per minute up to 10 in one second.
Maximum strip width: from 100 mm up to 300 [mm].
Maximum strip thickness 3.00 [mm].
Unlimited feed pitch and recipe menu for saving stamping parameters.
Servo Feed models available for order: SFS 100, SFS 200 and SFS 300.
Central lubrication.
Power consumption 5.5 [kW] + 2x Servo 2.3 [kW].
Technical Air 5-10 [bar].
Warranty: 1 year.
Two feeders are used when you need to stamp very thin, soft strip or very heavy strip, to secure precise feeding.
All specifications non-binding , subject to change without notice.
