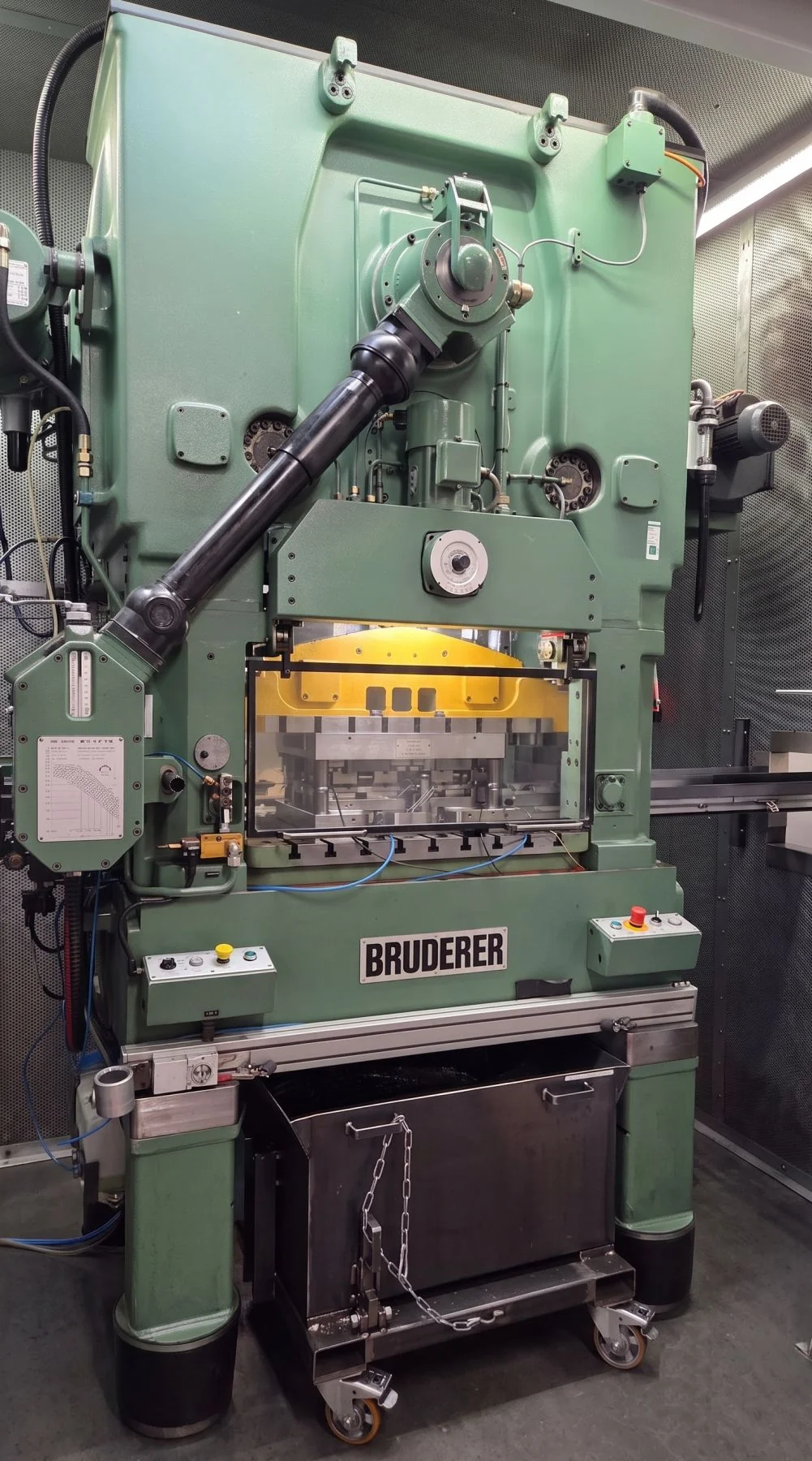

    BRUDERER BSTA 50 UL 1
    BRUDERER BSTA 50 UL 2
    BRUDERER BSTA 50 UL 3
    BRUDERER BSTA 50 UL 4
    BRUDERER BSTA 50 UL 5
    BRUDERER BSTA 50 UL 6
    BRUDERER BSTA 50 UL 7
    BRUDERER BSTA 50 UL 8
    In Stock
    Presses
    Used

    BRUDERER BSTA 50 UL Ref. 36826

    High Speed Automatic Stamping Press • 1995 • ID: 36826

    The BSTA 50UL is a Bruderer high-speed precision stamping press rated at 500 kN (50 tons) nominal force, engineered for continuous progressive-die production at variable stroke rates from 100 to 1,120 strokes per minute. The press is equipped with a Bruderer BBV 202/120 strip feeder, delivering strip widths up to 203 mm and handling material thicknesses up to 4 mm. Adjustable stroke is 16 and 51 mm, with strip inlet height adjustable across a 50–140 mm range to accommodate varying tooling and material profiles.

    Call Us

    Technical Specifications

    Nominal force:500 kN (50 tons)

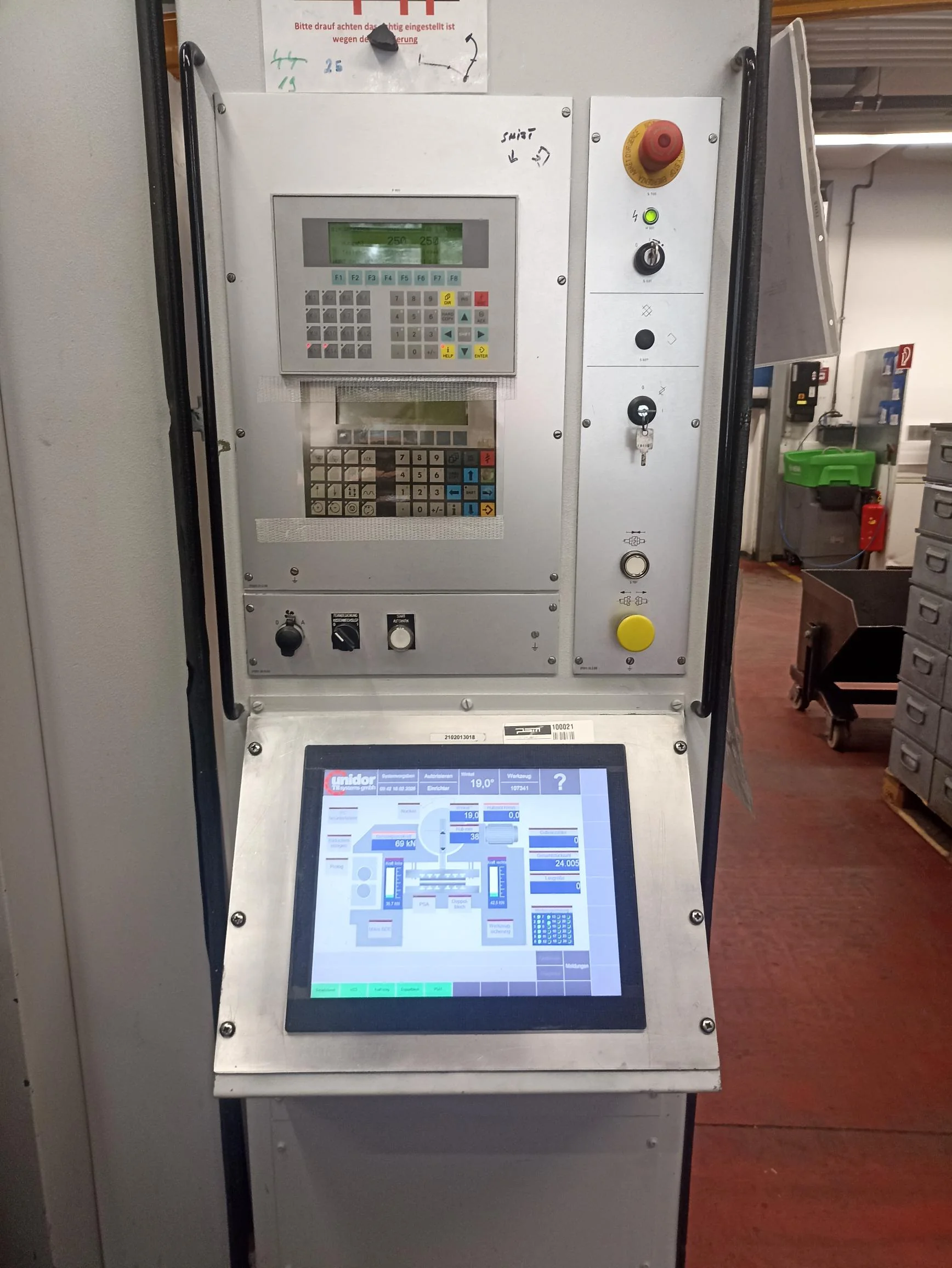

    Tool monitoring:Unidor
    Stroke rate:100–1120 strokes per minute (variable)
    Strip feeder:Bruderer BBV 202/120
    Adjustable stroke:16–51 mm
    Tool max length950 mm
    Main drive:22 kW
    Power supply:400 V / 50 Hz
    Table area:940 x 580 mm
    Strip inlet height (adjustable):50–140 mm
    Max. strip width:203 mm
    Max. material thickness:4 mm
    Machine dimensions:3100 x 2700 x 1800 mm
    Weight:approx. 8,150 kg
    Operating hours (main drive):42,416 h
    Sound-insulating cabin available on request

    Related Machines

    BRUDERER BSTA 50 EL CNC
    In Stock

    1991 • TWIN 2 X Bruderer feeder BBV 202/120, SPM 100-1000,

    BRUDERER BSTA 50 EL CNC

    BRUDERER BSTA 50HL
    In Stock

    1990 • Bruderer feeder BBV 195, SPM 100-1000, Under power

    BRUDERER BSTA 50HL

    BRUDERER BSTA 500-110B
    In Stock

    2008 • BSV 75T, 750 SPM

    BRUDERER BSTA 500-110B

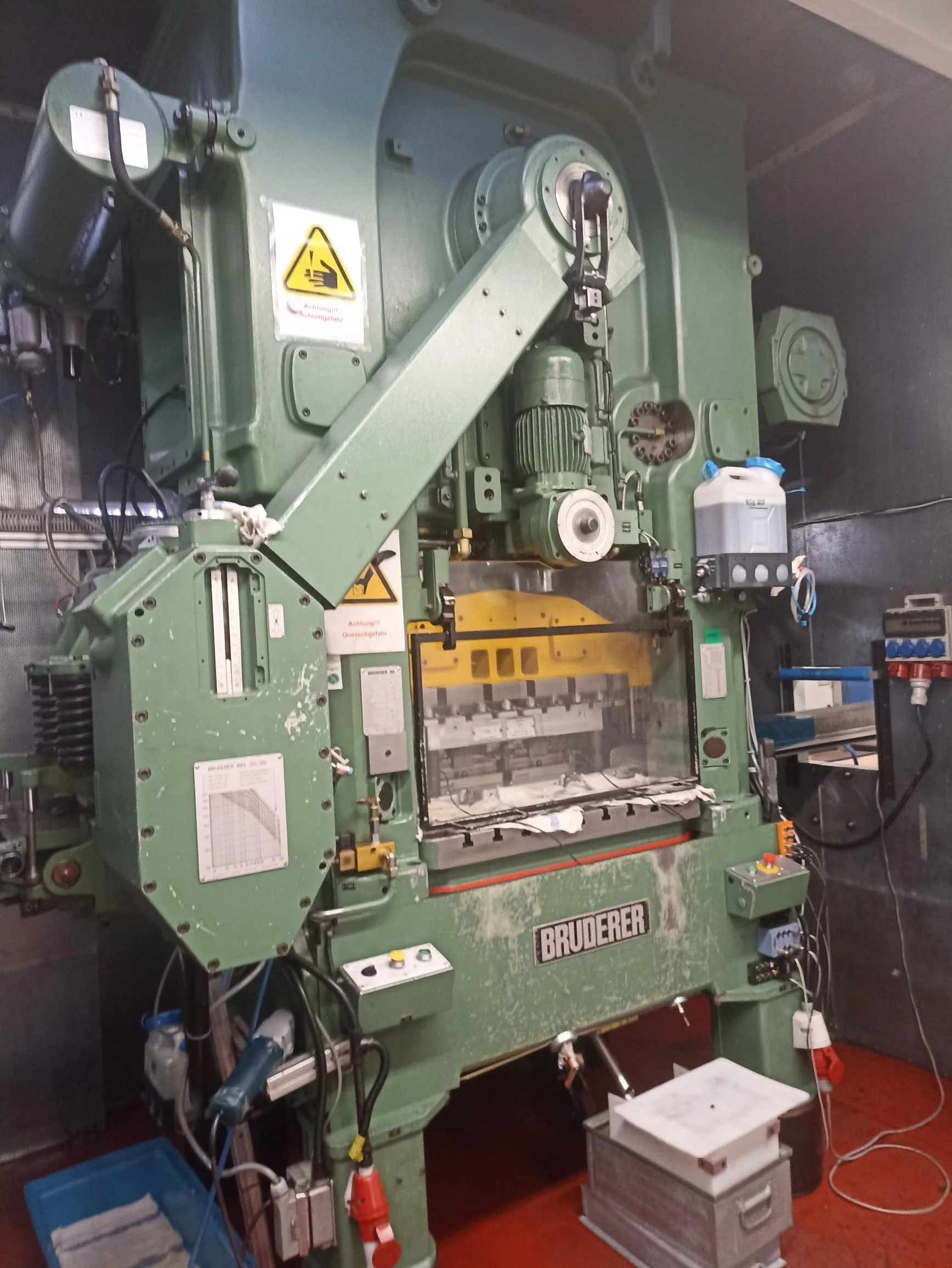

    BRUDERER BSTA 80 H
