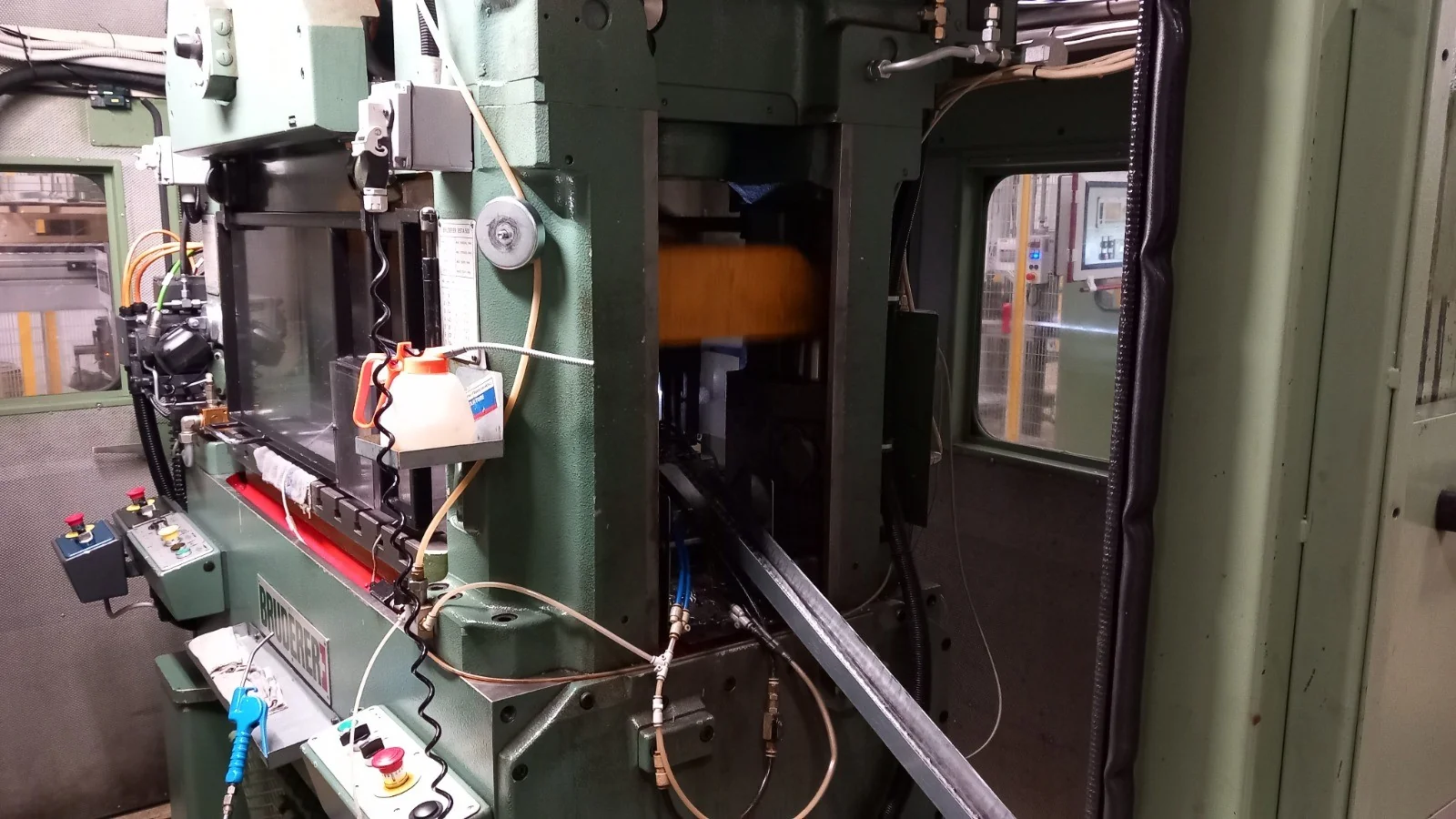

    Bruderer BSTA 500-110B 8
    Bruderer BSTA 500-110B 9
    Bruderer BSTA 500-110B 10
    In Stock
    Presses
    Used

    Bruderer BSTA 500-110B

    High Speed Automatic Stamping Press • 2008 • ID: 37026

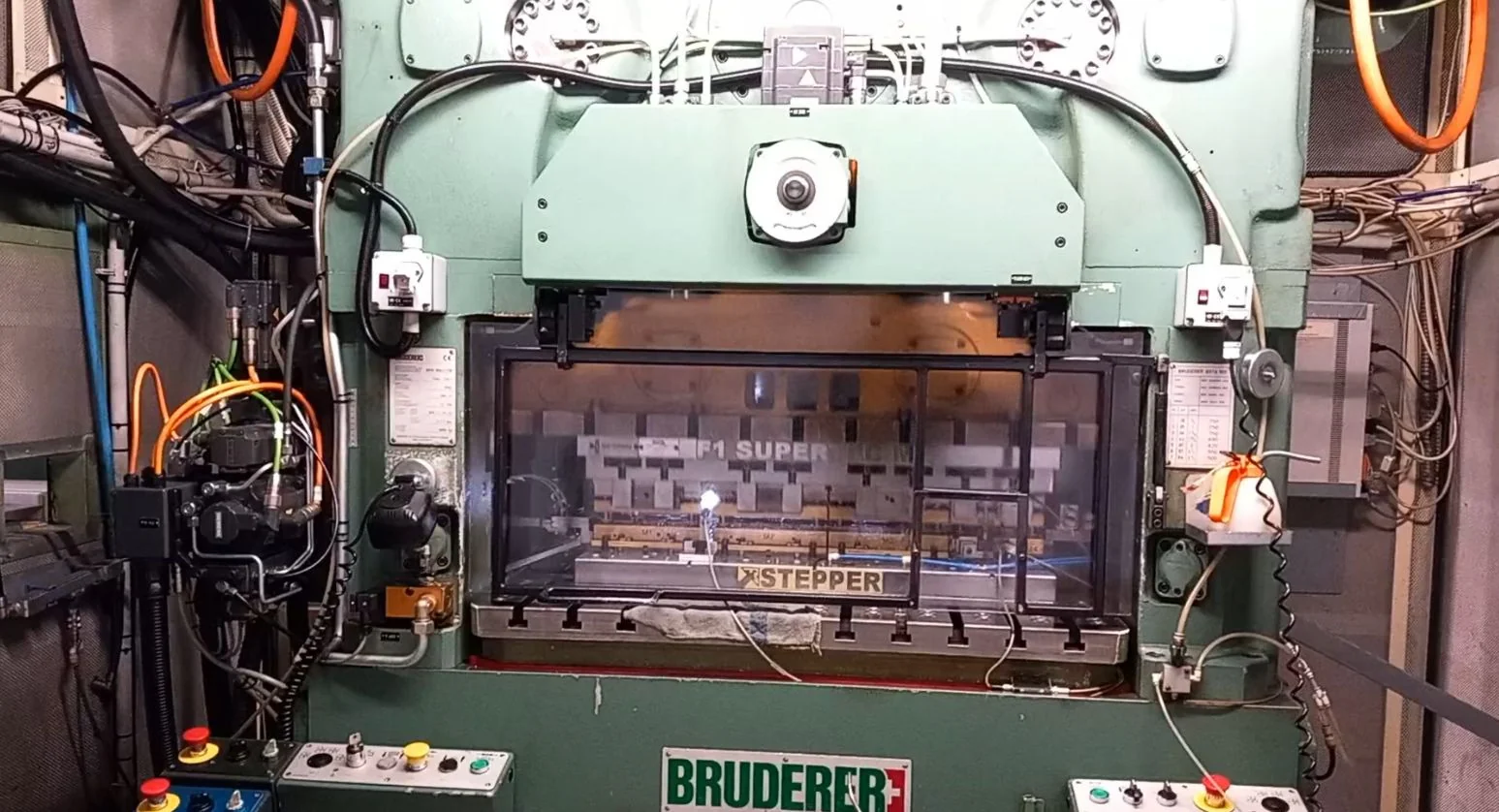

    The Bruderer BSTA 500-110B is a 500 kN Swiss-built high-speed stamping press, fitted with a BSV 75T double servo feeder for precision two-track strip feeding. Capable of up to 750 strokes per minute with B2 touch-screen control.

    Call Us

    Technical Specifications

    Nominal force:500 kN (50 tons)
    Year of manufacture:2008
    Stroke rate:100–750 spm (variable)

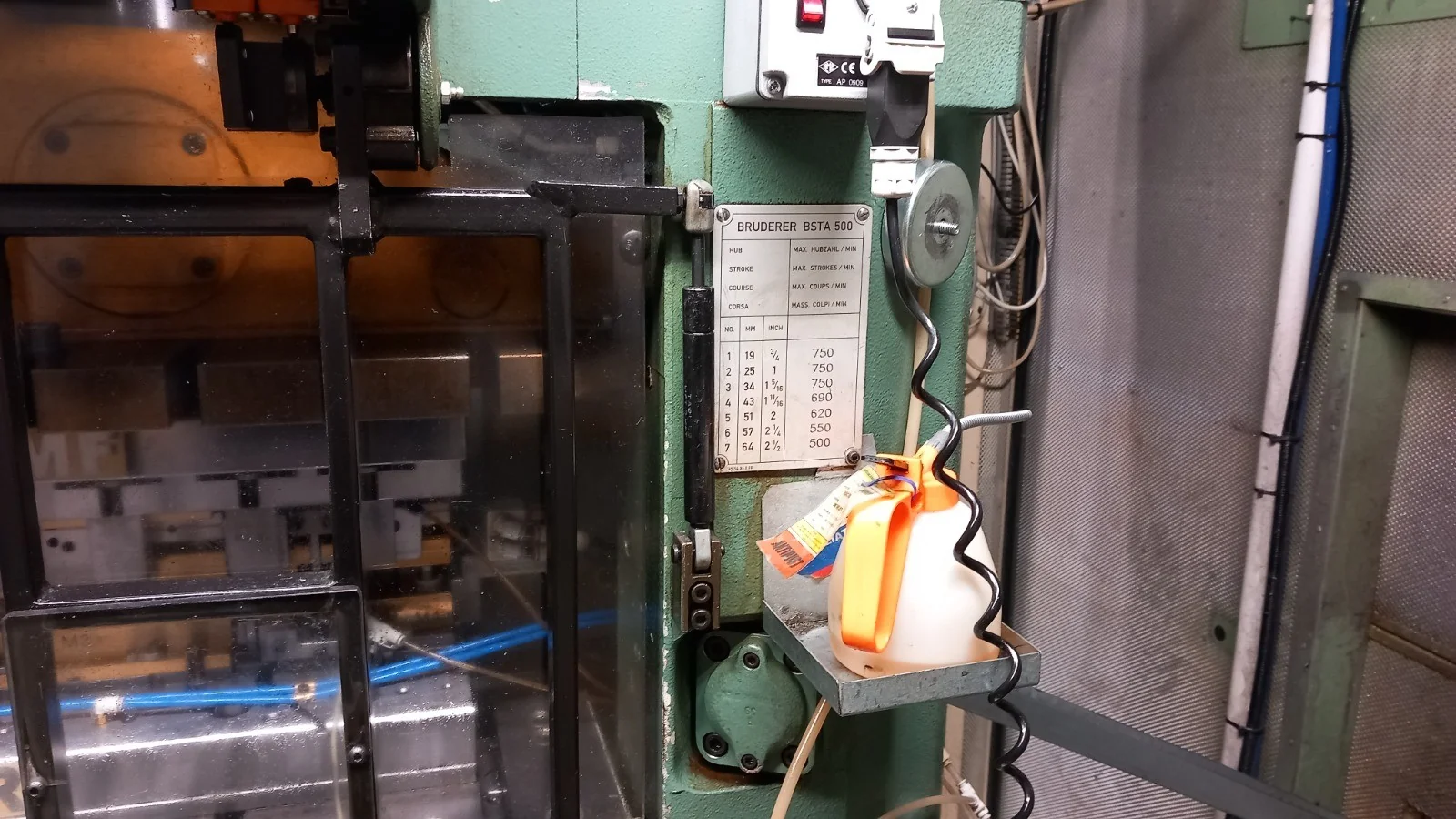

    Adjustable stroke:19 / 25 / 34 / 43 / 51 / 57 / 64 mm
    Ram height adjustment:64 mm
    Press table area:1080 x 650 mm

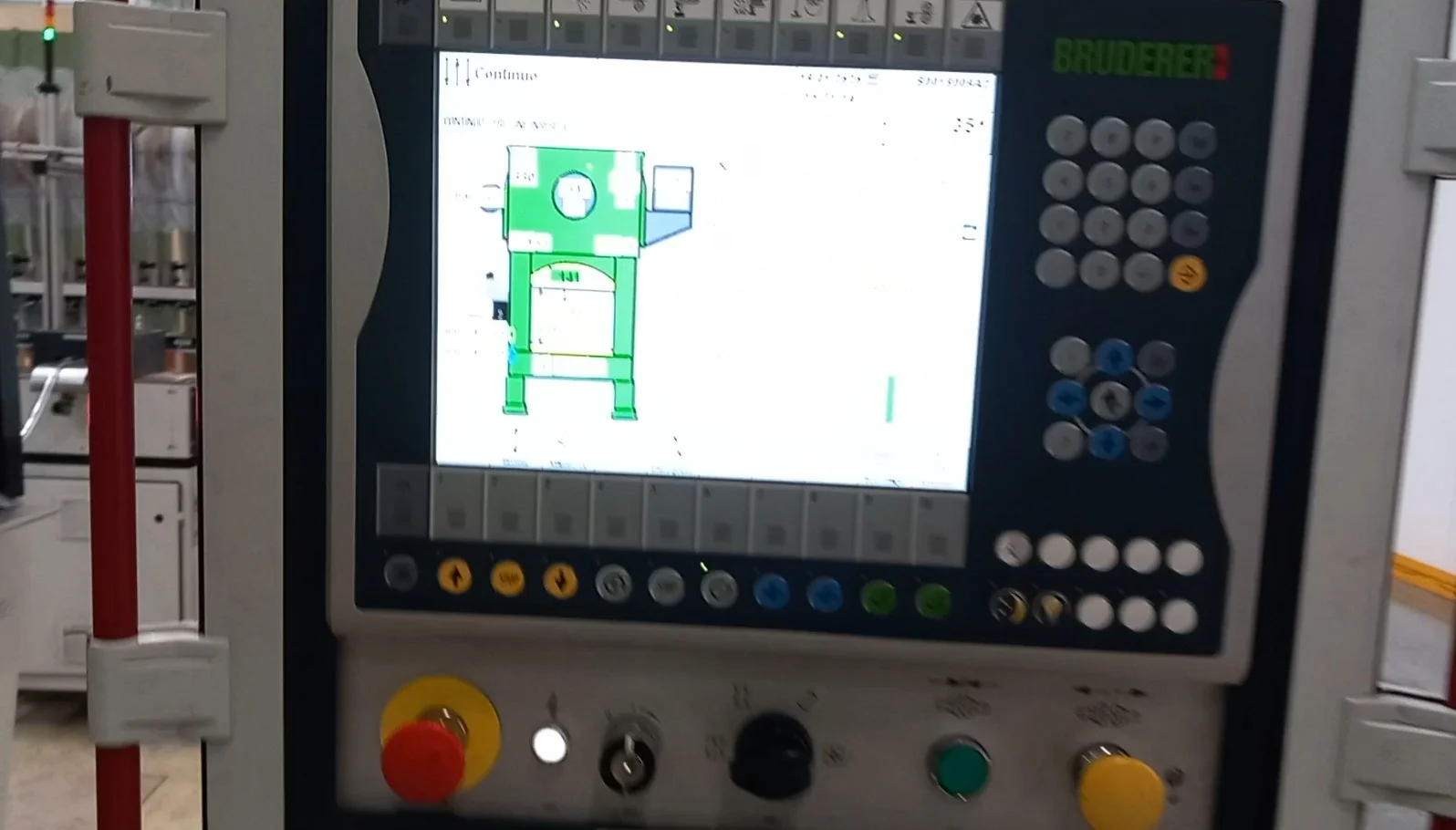

    Control:B2, IPC-based touch-screen press control, programmable memory for fast retooling

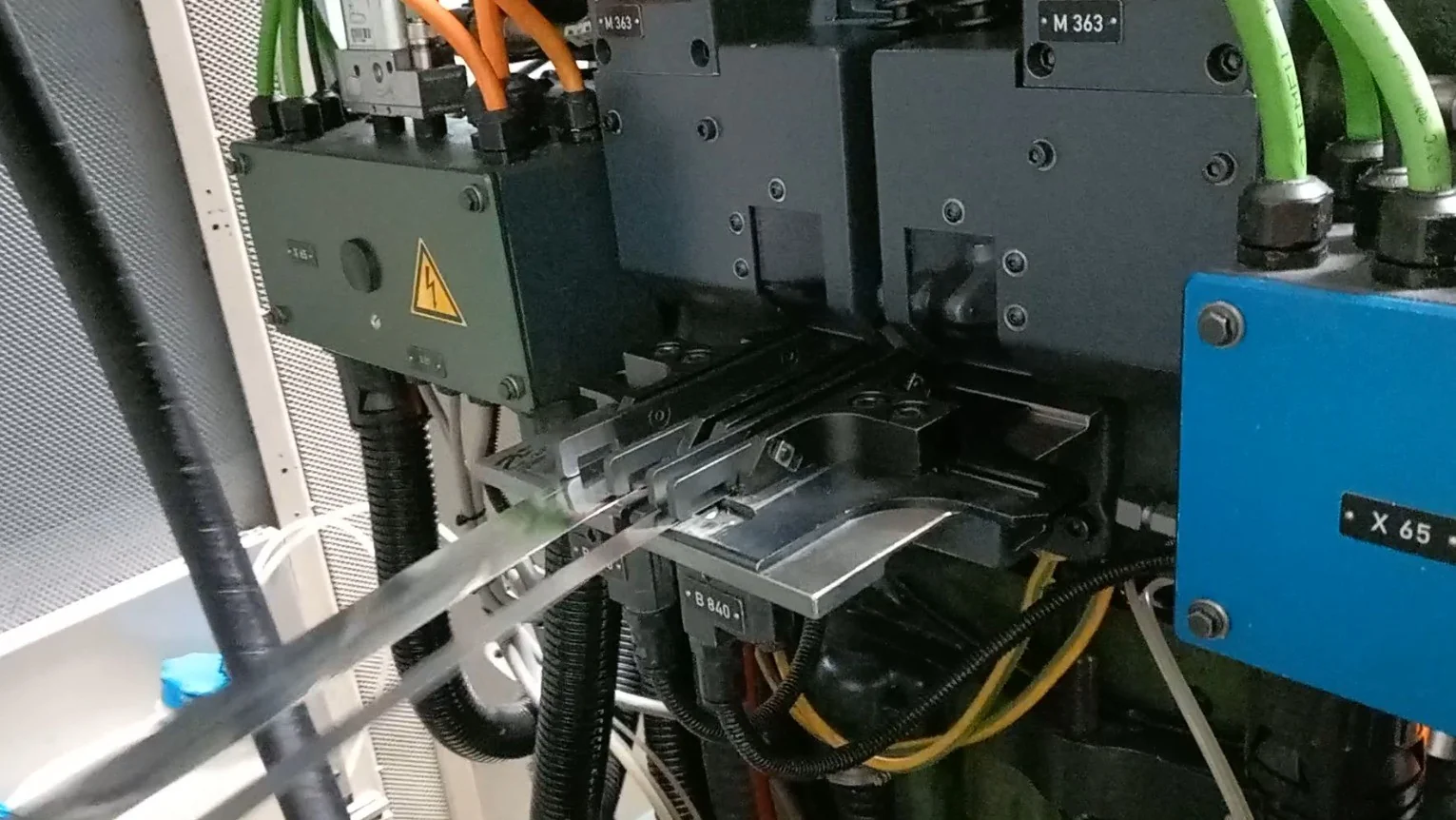

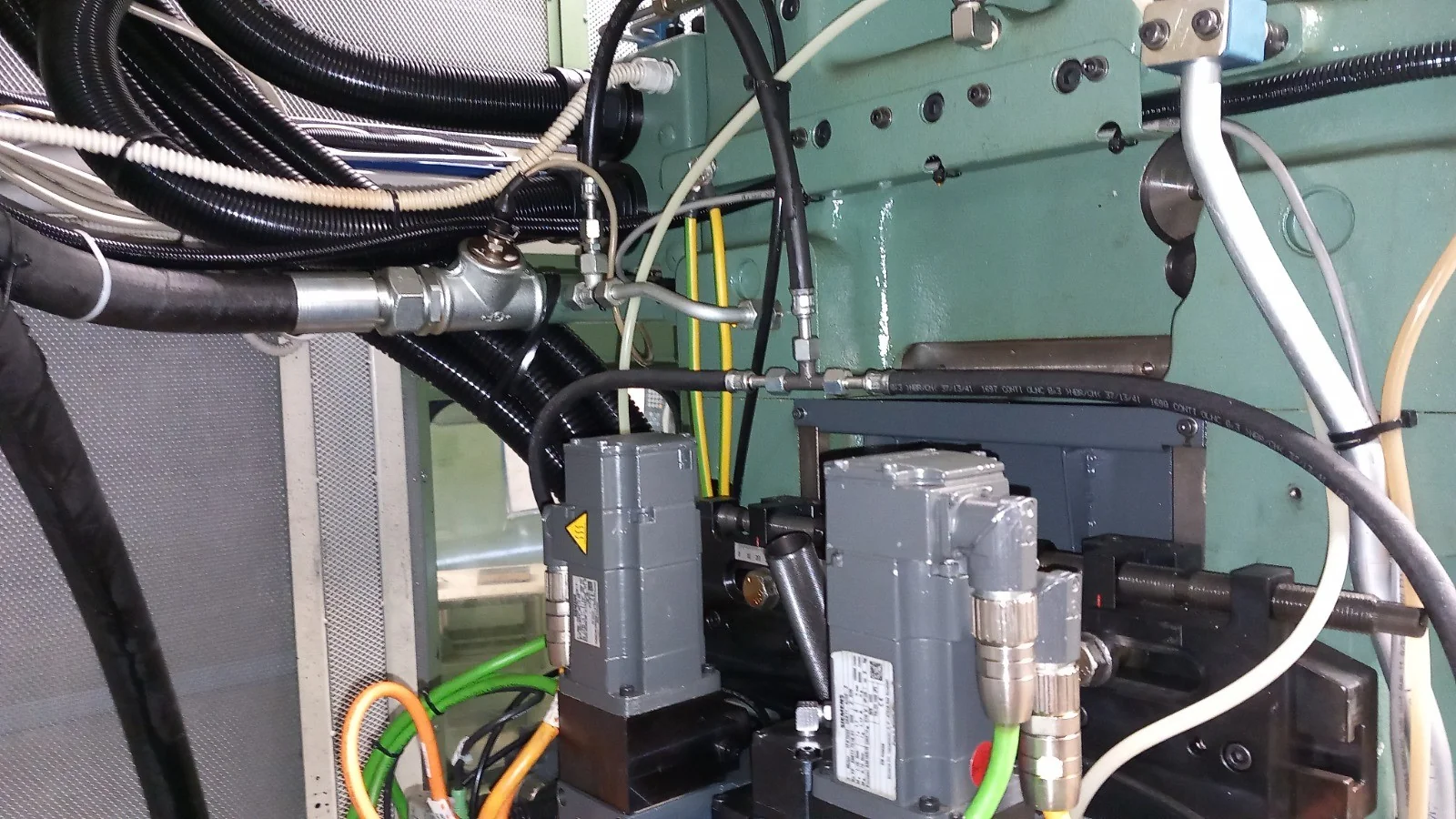

    BSV 75TDOUBLE SERVO FEEDER
    Type:tandem dual-feed servo unit, independently controlled tracks
    Max. strip width:70 mm per track
    Max. material thickness:2 mm
    Feed length:variable, freely programmable
    Feed angle:variable
    Pilot release angle:variable
    No clamping/gripper bars — strip held by driven feed rollers during stamping
    Designed for parallel advancing of two strips or feeding pre-profiled/pre-stamped strip
