    BRUDERER BSTA 80 H Ref. 36926

    High Speed Automatic Stamping Press • 1994 • ID: 36926

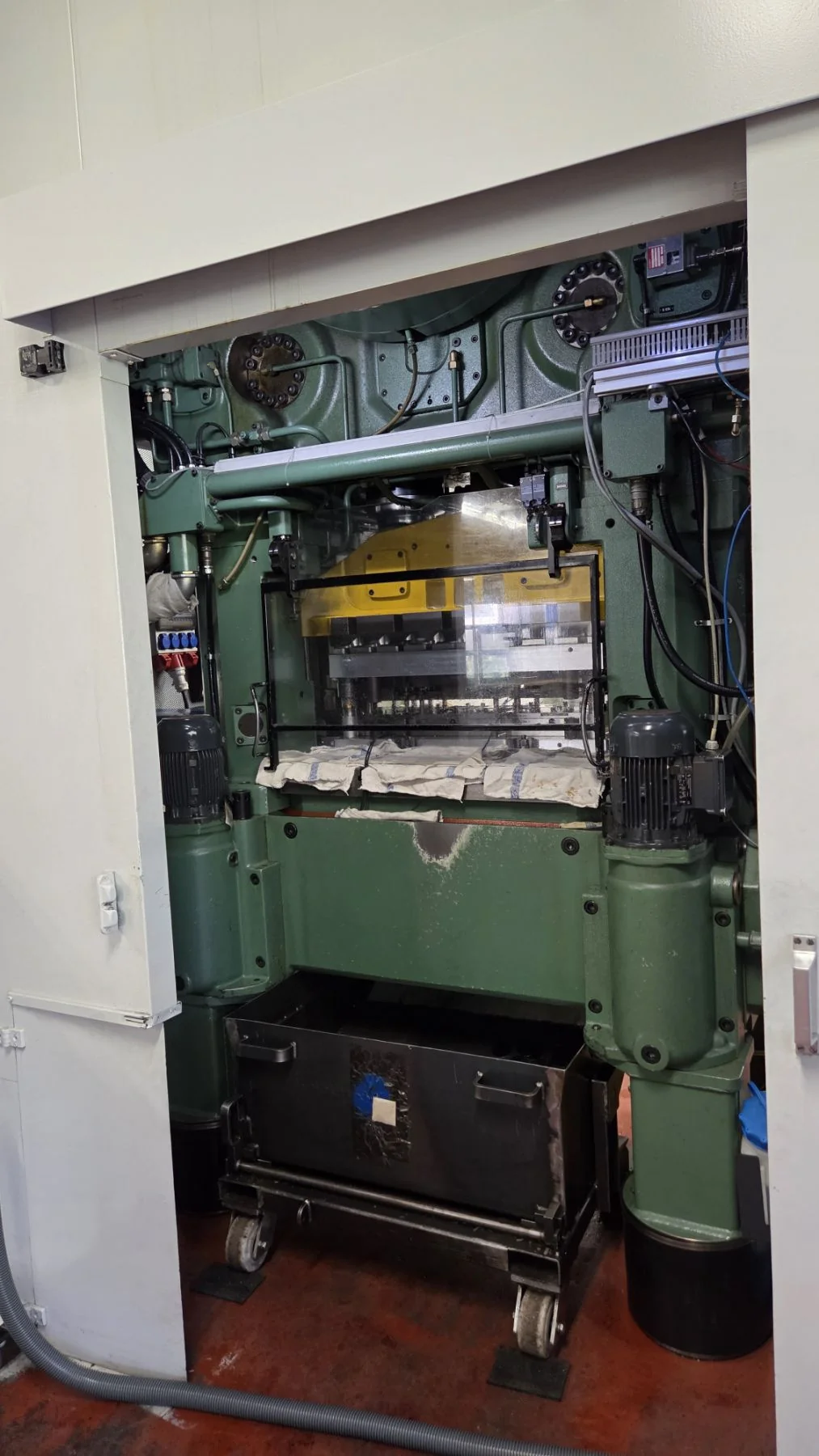

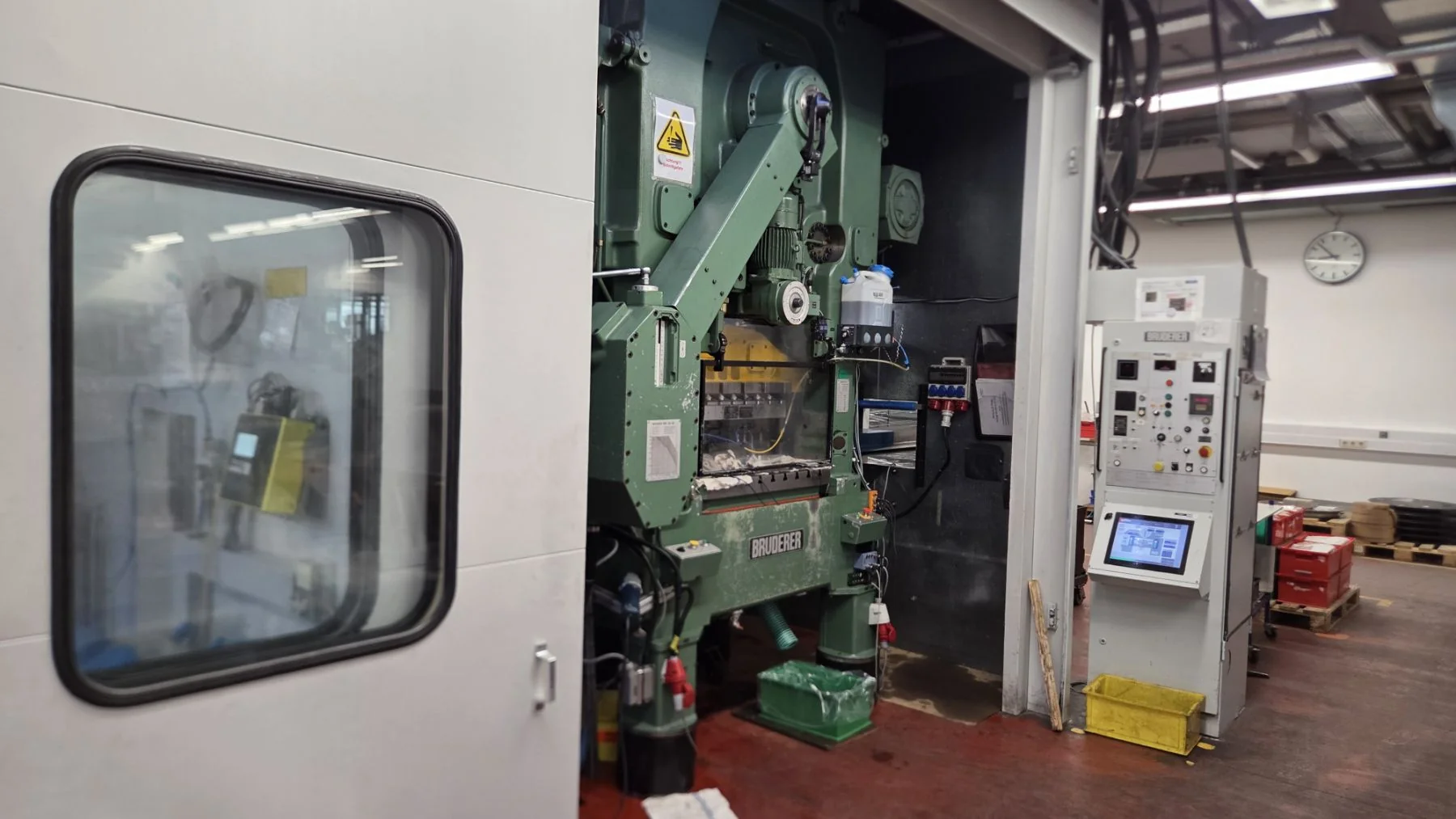

    The Bruderer BSTA 80H is an 80-ton high-speed stamping press built for heavy-duty progressive-die production, fitted with a BBV 320/200 strip feeder and Unidor tool monitoring. In stock in Pforzheim, ready for inspection.

    Call Us

    Technical Specifications

    Nominal force:800 kN (80 tons)
    Tool monitoring:Unidor
    Stroke rate:100–1,000 spm

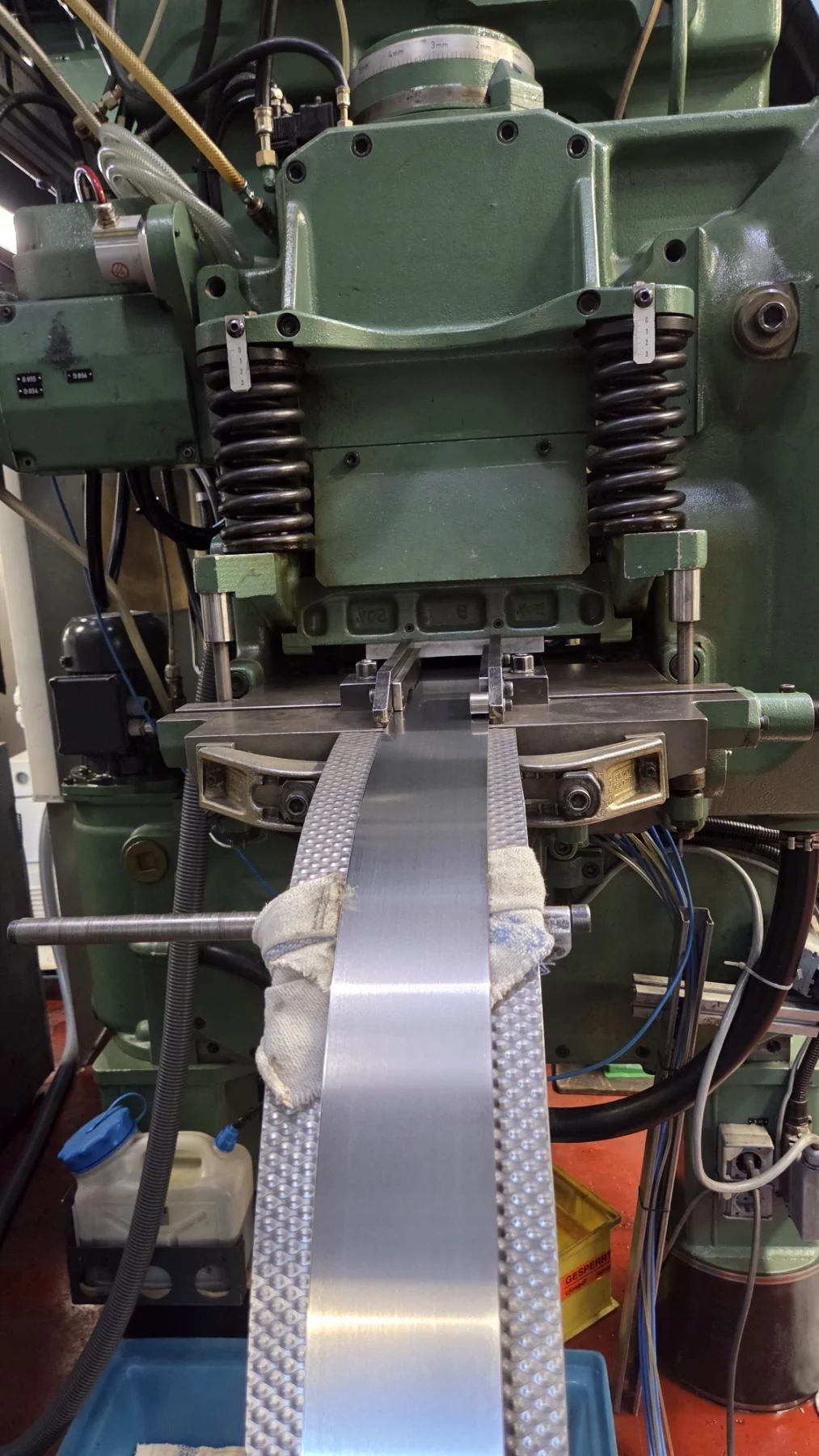

    Strip feeder:Bruderer BBV 320/200
    Adjustable stroke:16–63 mm
    Clamping plate area:970 mm
    Main drive:43 kW
    Power supply:380 V / 50 Hz
    Ram area:760 x 510 mm
    Table area:950 x 910 mm
    Strip inlet height (adjustable):80–180 mm
    Max. strip width:360 mm
    Max. material thickness:3 mm
    Machine dimensions:2834 x 1742 x 3460 mm
    Weight: approx.15,550 kg
    Operating hours (main drive):approx. 28,067 h
