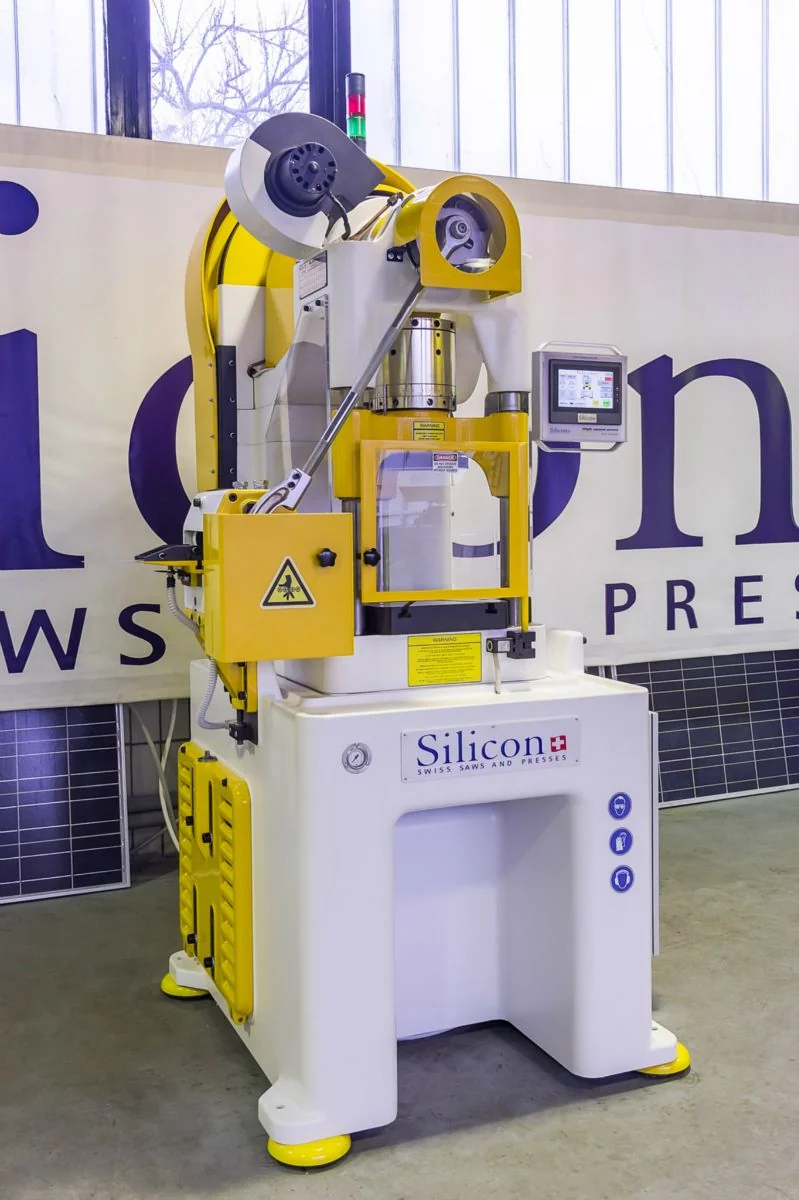

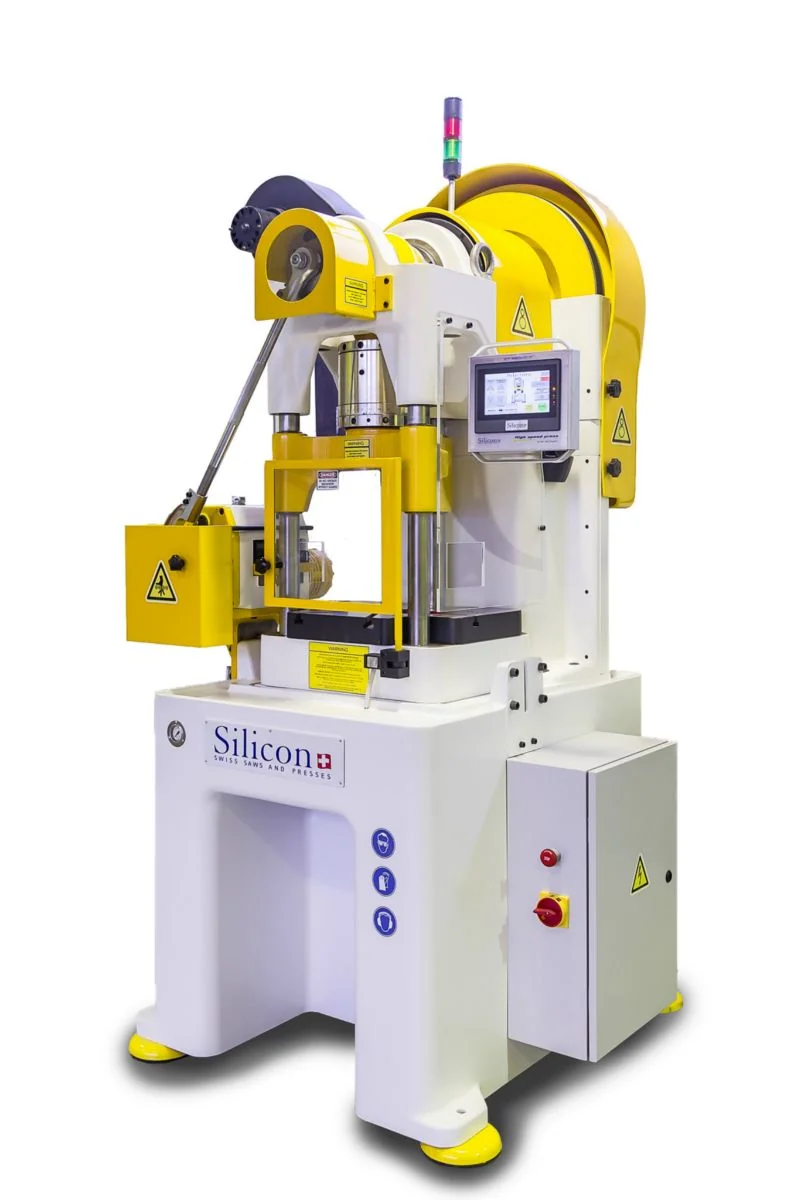

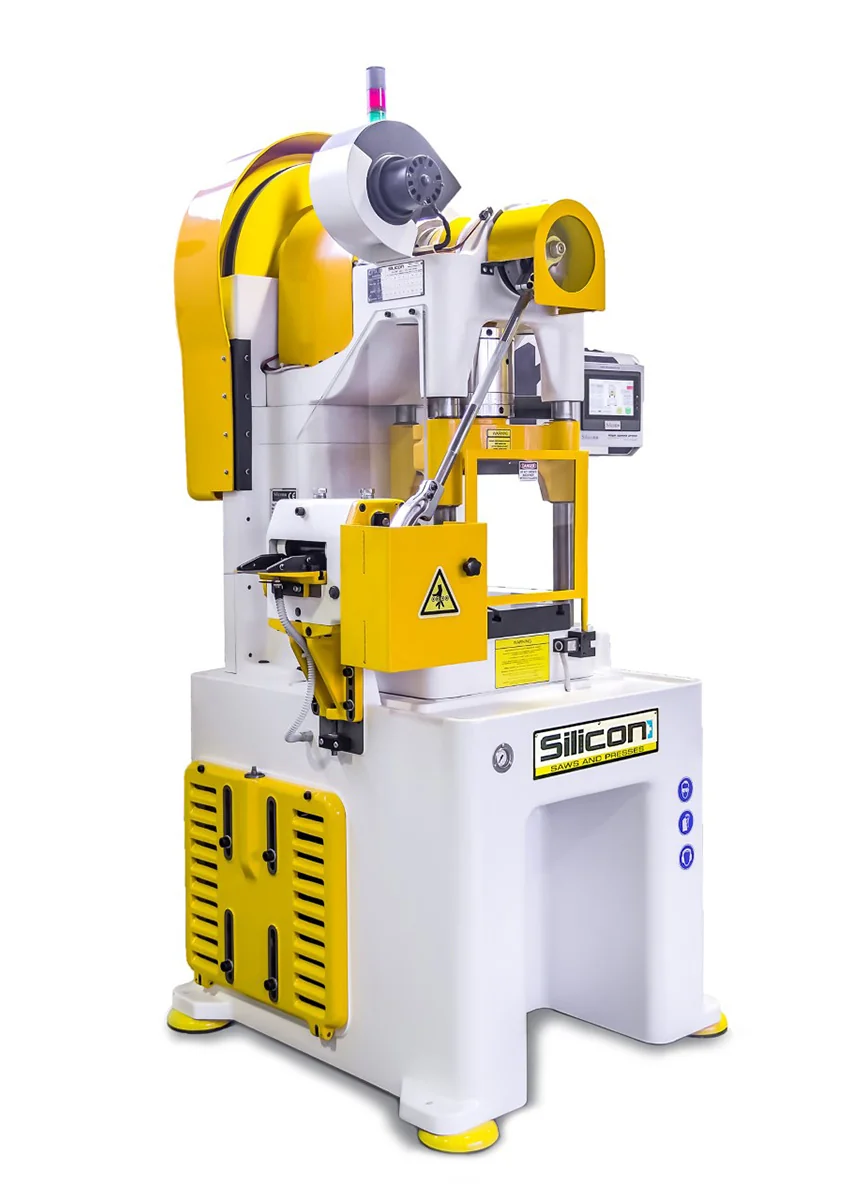

Silicon+ STA 30 Ref. 33526
High Speed Automatic Press • 2026 • ID: 33526
Technical Specifications
High Speed Automatic Punching Press
Machine with CE certificate and EUR1 certificate of European origin

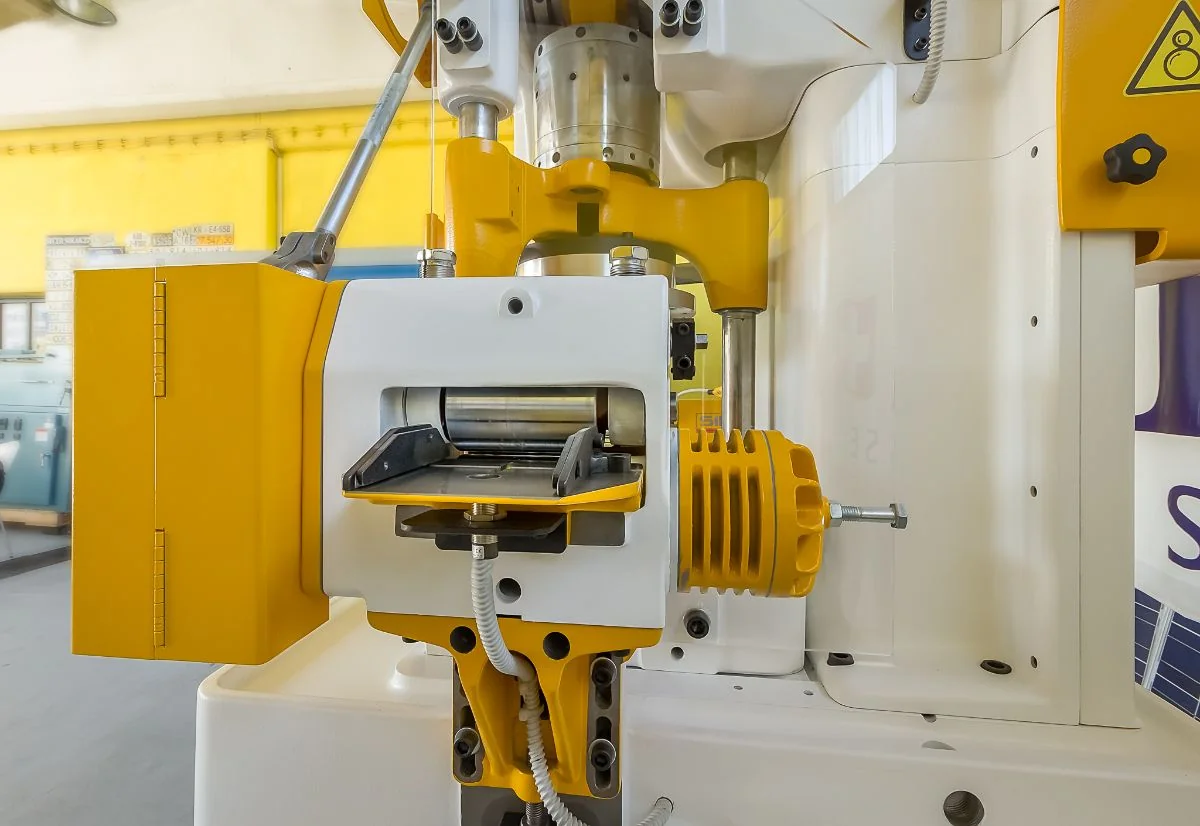

Equipped with synchronized roll feed for strip width from 5 mm – 150 mm

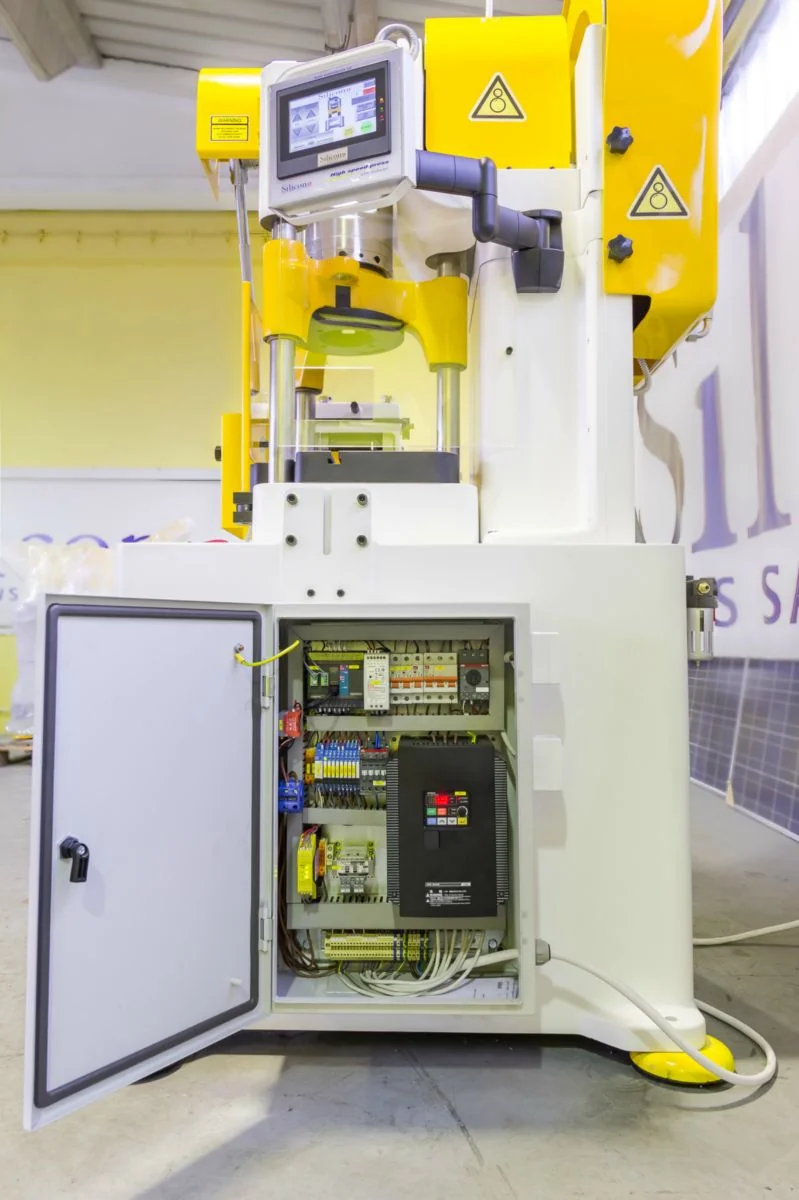

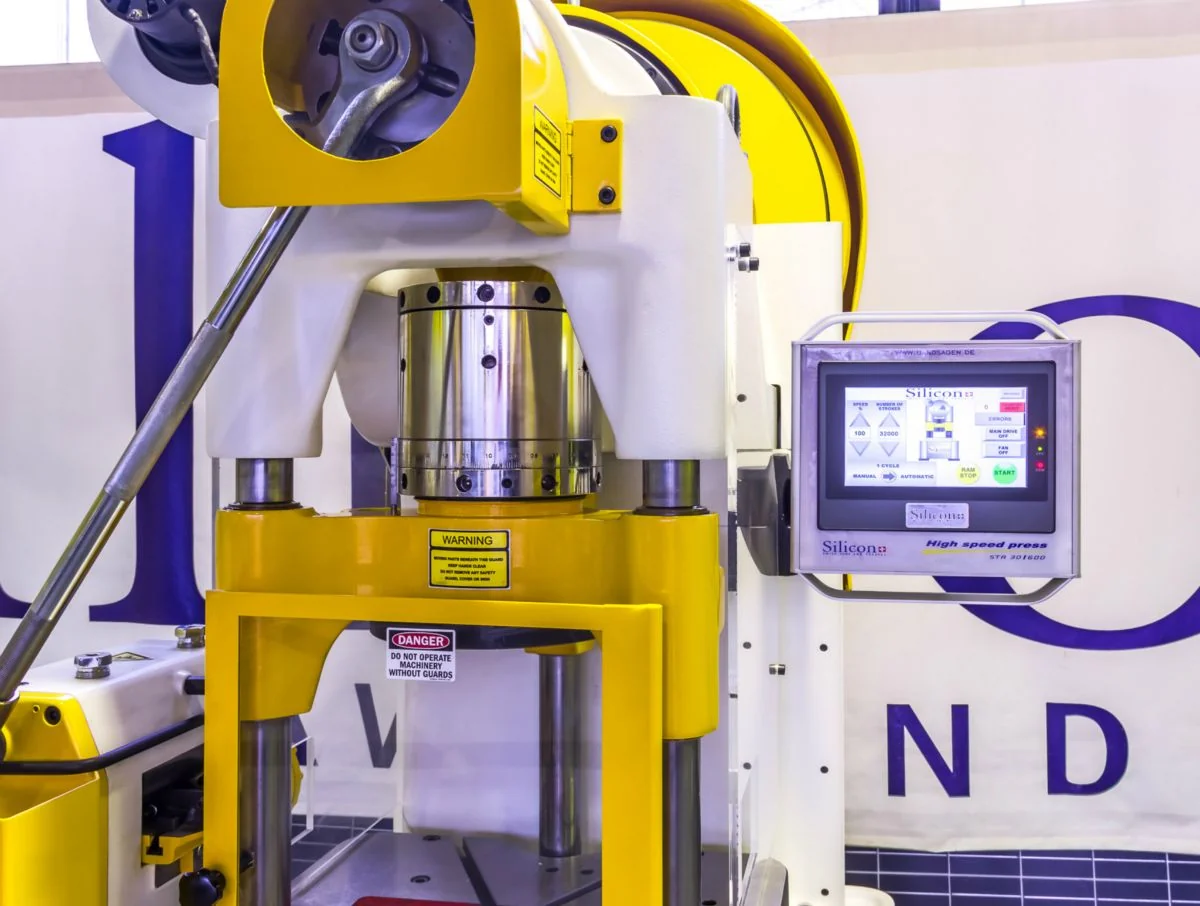

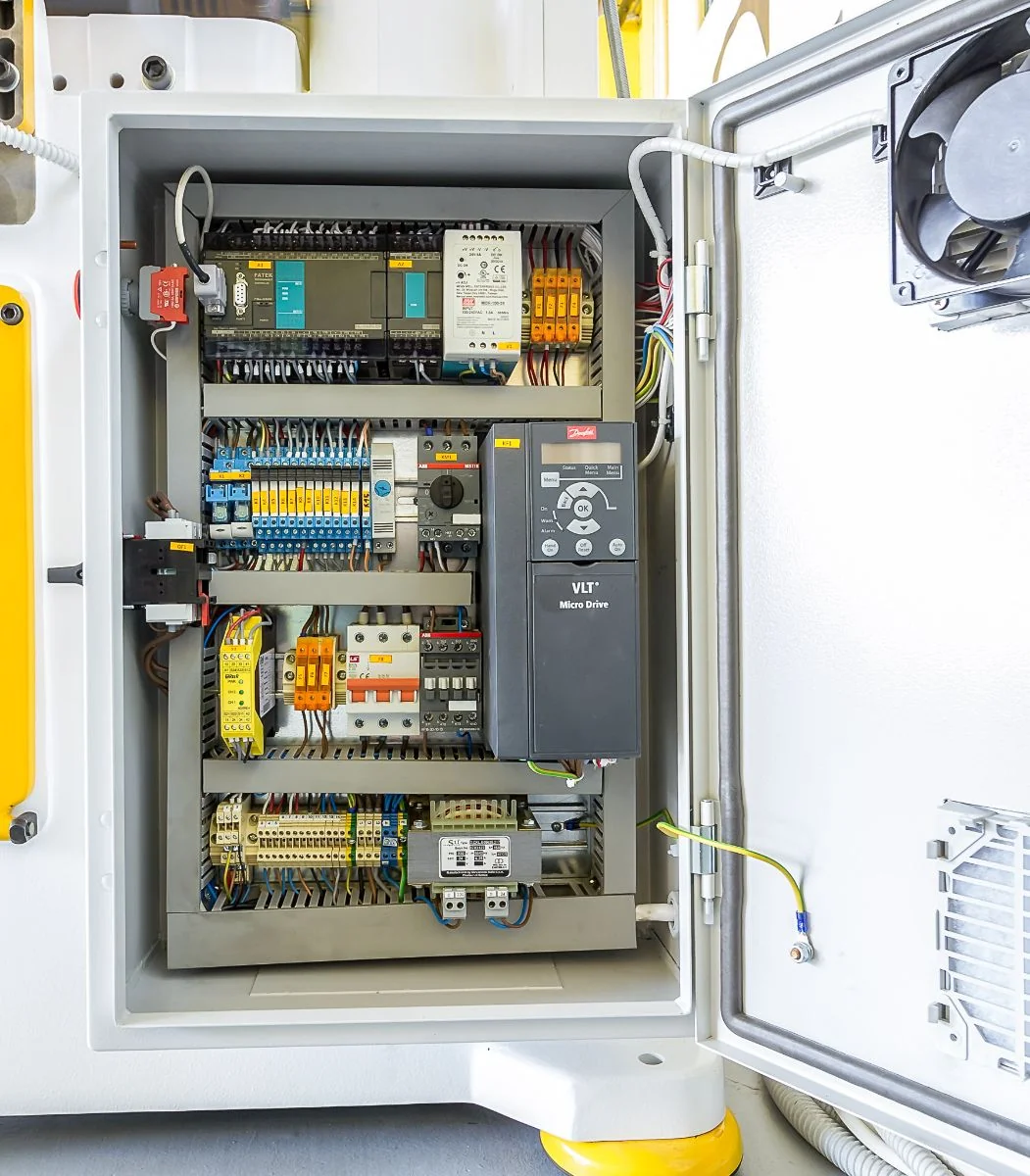

PLC touch screen logical interface control
With stroke and speed counter, programmable auto stop
Three working modes: Manual, One stroke and Automatic
Pneumatic clutch and brake
Operator’s instruction manual in English
Stroke power: 300 [KN] (30 [tons])
Adjustable stroke: 8-40 [mm].
Table: 540 x 300 [mm].
Adjustable speed 100 – 600 strokes per minute up to 10 in one second.
Maximum strip thickness 2.5 [mm].
Central lubrication.
Power consumption 5.5 [kW].
Technical Air 5-10 [bar].
Warranty: 1 year.
All specifications non-binding , subject to change without notice.
