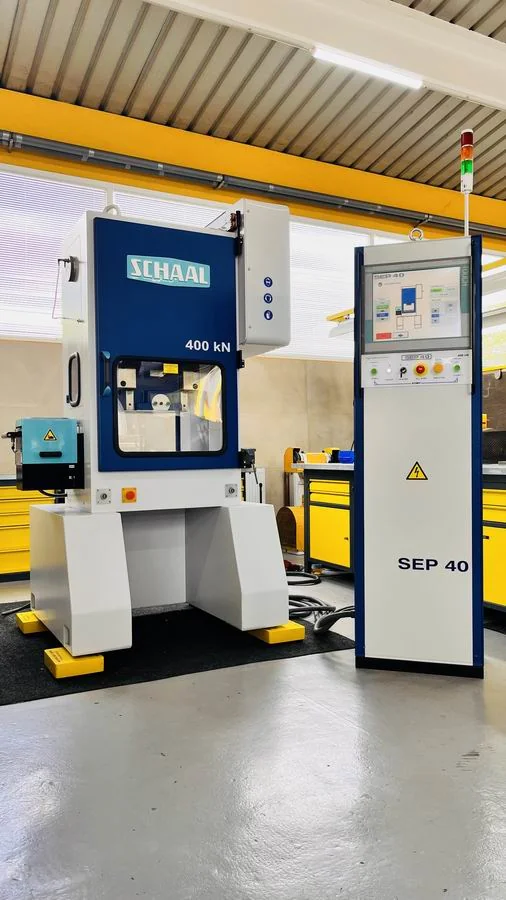

    Schaal SEP 40 High-Speed Stamping Press 1

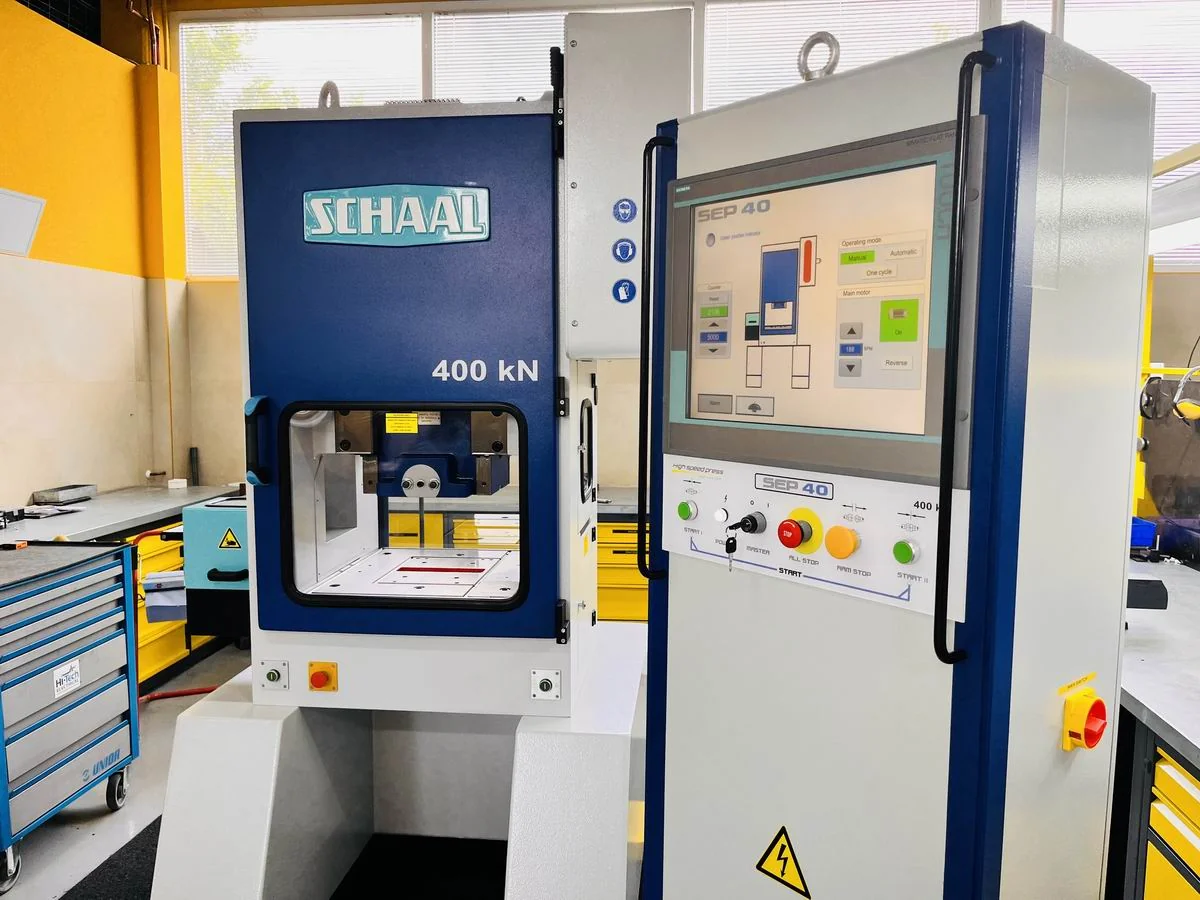

    Schaal SEP 40 High-Speed Stamping Press 2
    Schaal SEP 40 High-Speed Stamping Press 3

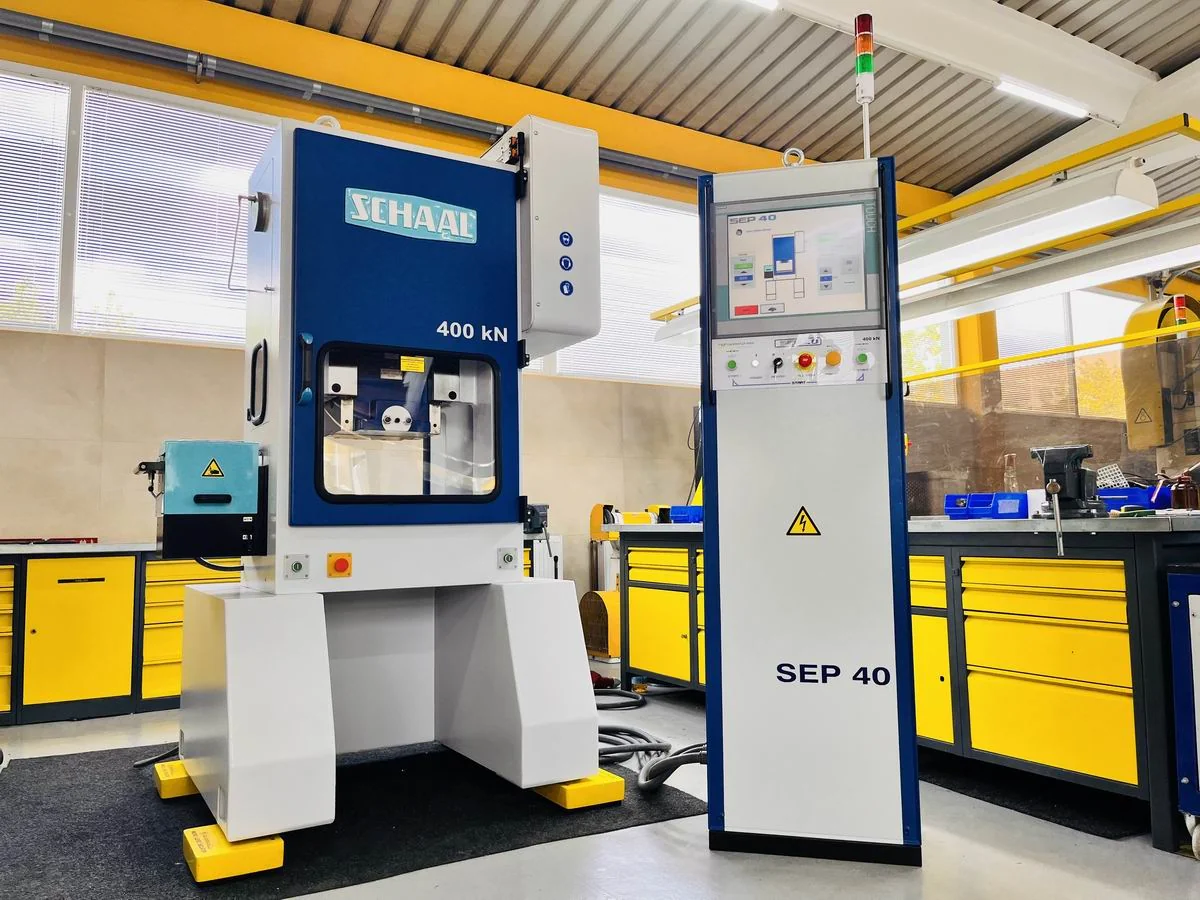

    Schaal SEP 40 High-Speed Stamping Press 4

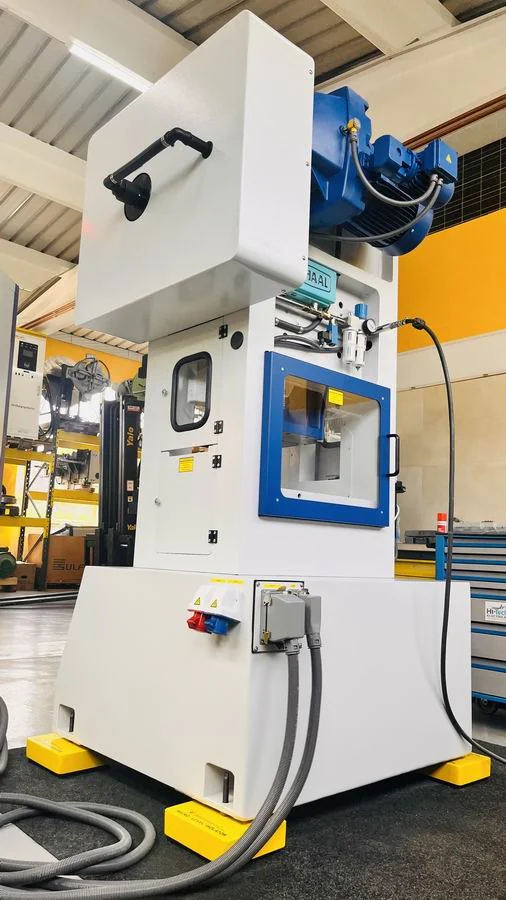

    Schaal SEP 40 High-Speed Stamping Press 5
    In Stock
    Presses
    Refurbished

    Schaal SEP 40 High-Speed Stamping Press Ref. 14026

    Automatic Punching Press • 1990 • ID: 14026

    The rework on this 1990-built SEP 40 is carried out once the machine is ordered, so it is handed over freshly overhauled rather than after long shelf storage. The control is replaced in full, with a Siemens PLC and touch-screen operation taking the place of the original electrics. Key figures: 400 kN (40 t) nominal capacity, 80 - 400 strokes per minute, gripper feeding device SZV 2 for strip of 8 - 120 mm, drive power 5,5 kW, weight 3800 kg. Stroke settings, table size, feed length and feed accuracy are set out in the specification table on this page. Operating instructions in German and English and schematics come with it, together with a new CE certificate. Schaal SEP 40, reference number 14026.

    Call Us

    Technical Specifications

    Make and Model:Schaal SEP 40
    Machine to be overhauled upon order.

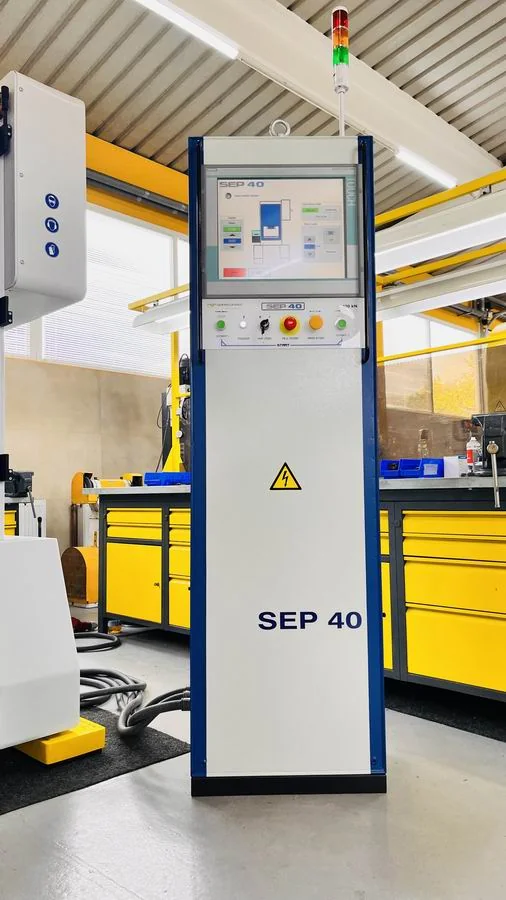

    Completely new control with Siemens PLC and touch screen
    Nominal capacity:400 kN (40 t)
    Min./Max. number of strokes:80 - 400
    Table dimensions:550 x 580 mm
    Ram surface area:340 – 300 mm
    Variable stroke:8 – 70 mm
    Stroke range:8, 10, 15, 20, 25, 31, 36, 41, 46, 50, 54, 58, 61, 64, 66, 68, 69, 70 mm
    Ram adjustment:70 mm
    Fitted with gripper feeding device SZV 2
    Width of strip:8 – 120 mm
    Feed length:2 – 80 mm
    Feeding thickness:0.1 – 2 mm
    Feeding:180°
    Feed accuracy:±0.01 mm
    Drive power:5,5 kW
    Dimensions (H x W x L):2300 x 1600 x 1400 mm
    Weight:3800 [kg]
    Operating instructions in German and English and schematics included
    New CE certificate
