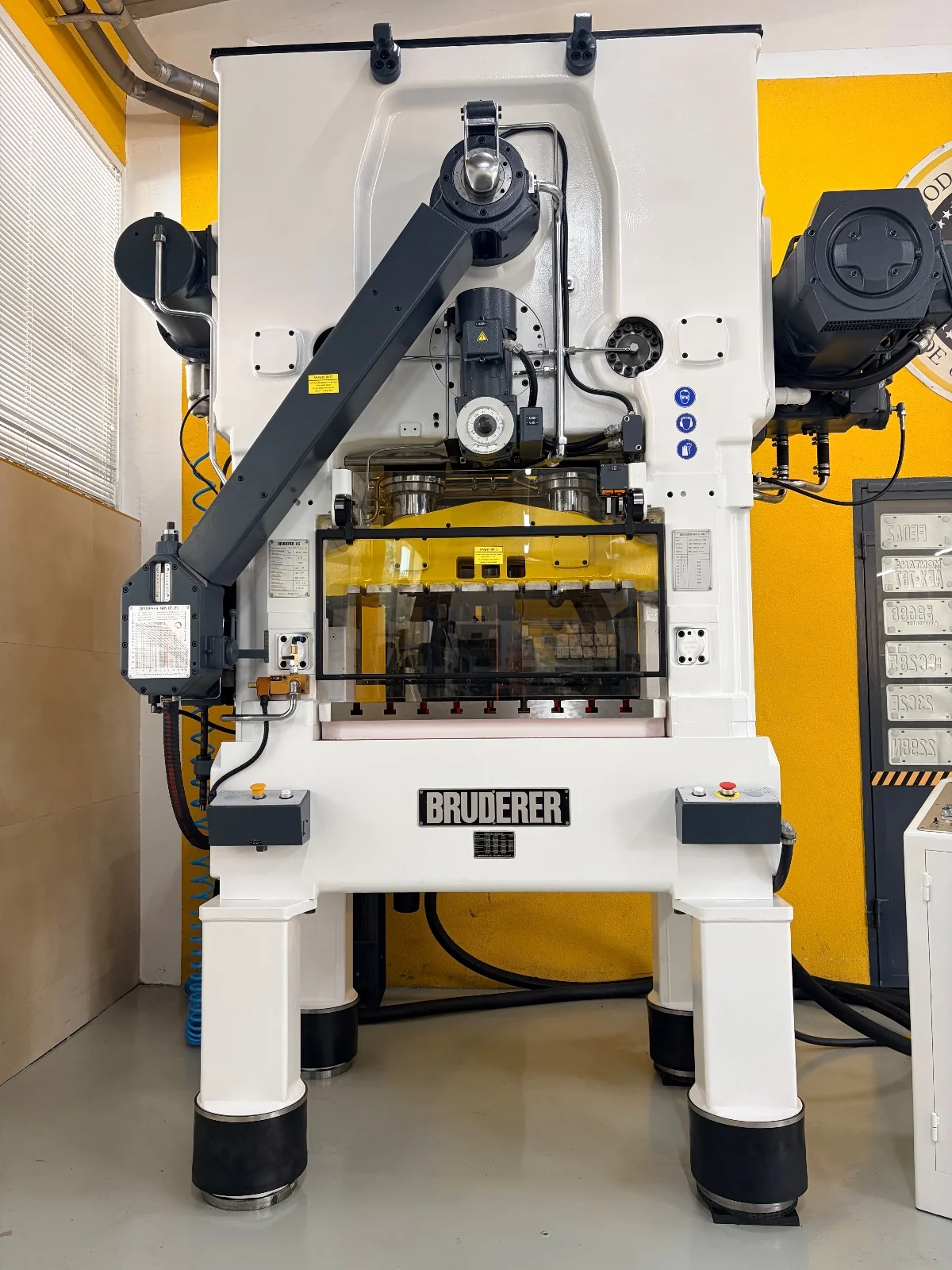

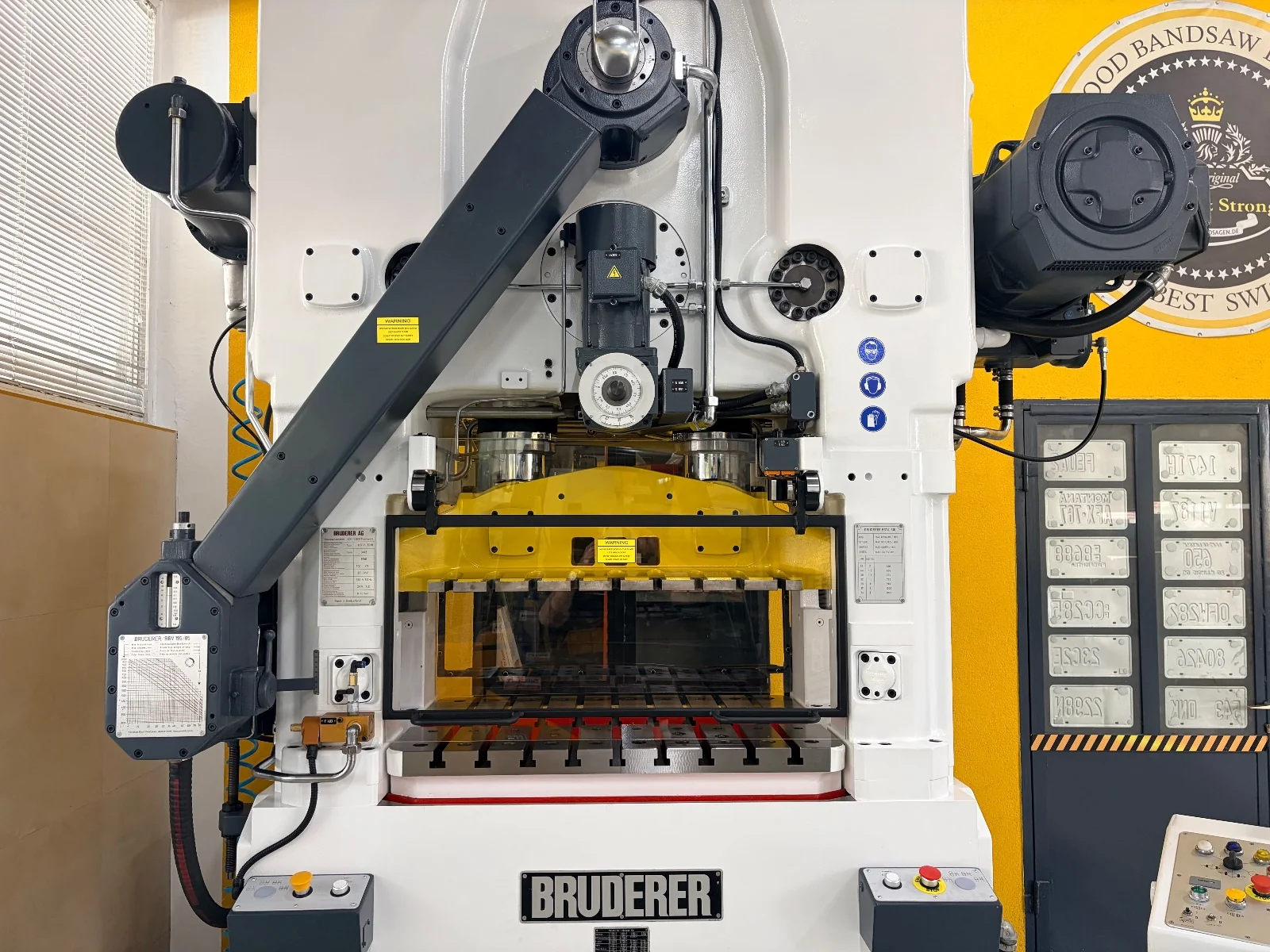

    BRUDERER BSTA 50HL Ref. 37426

    High Speed Automatic Stamping Press • 1990 • ID: 37426

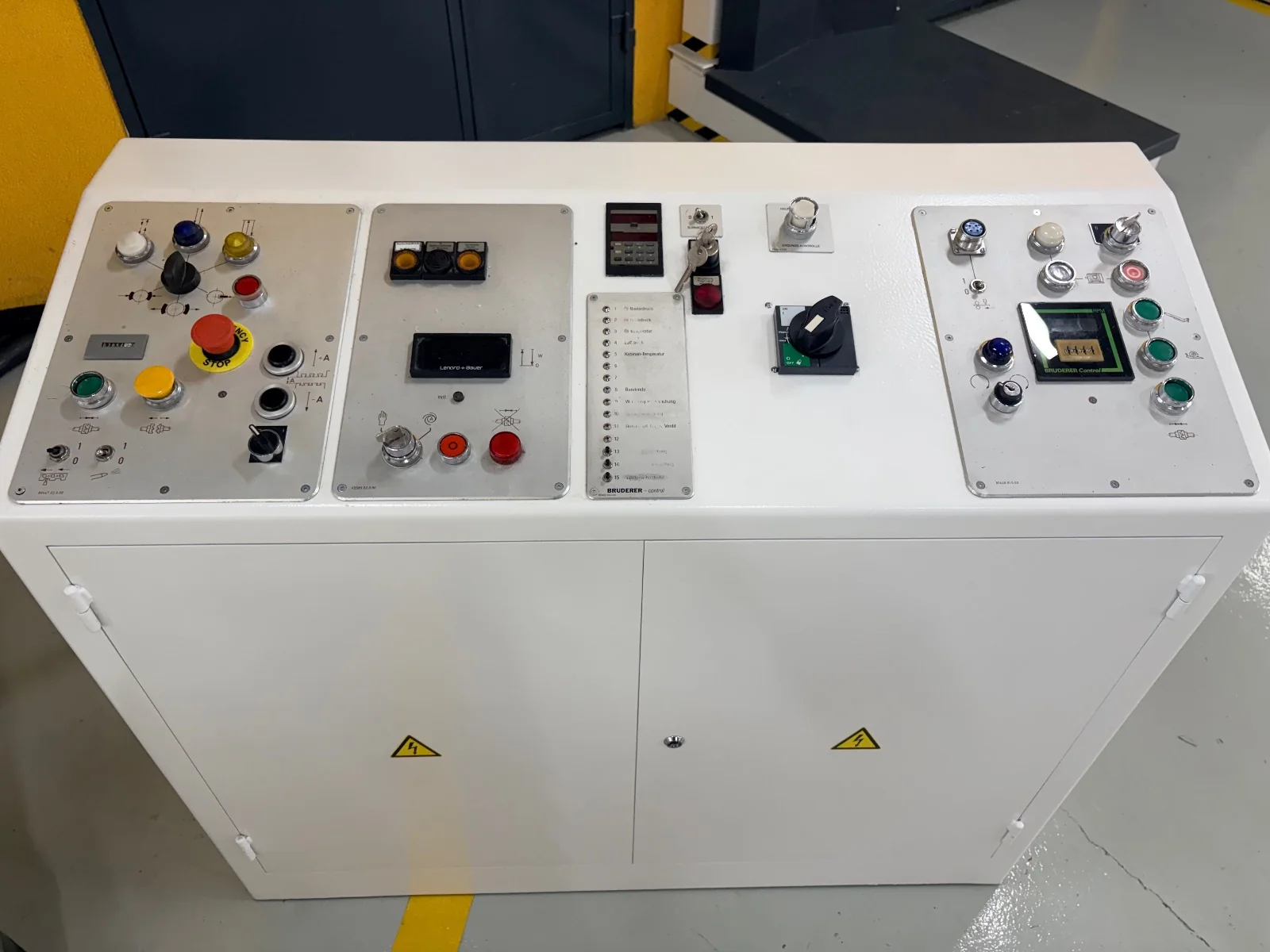

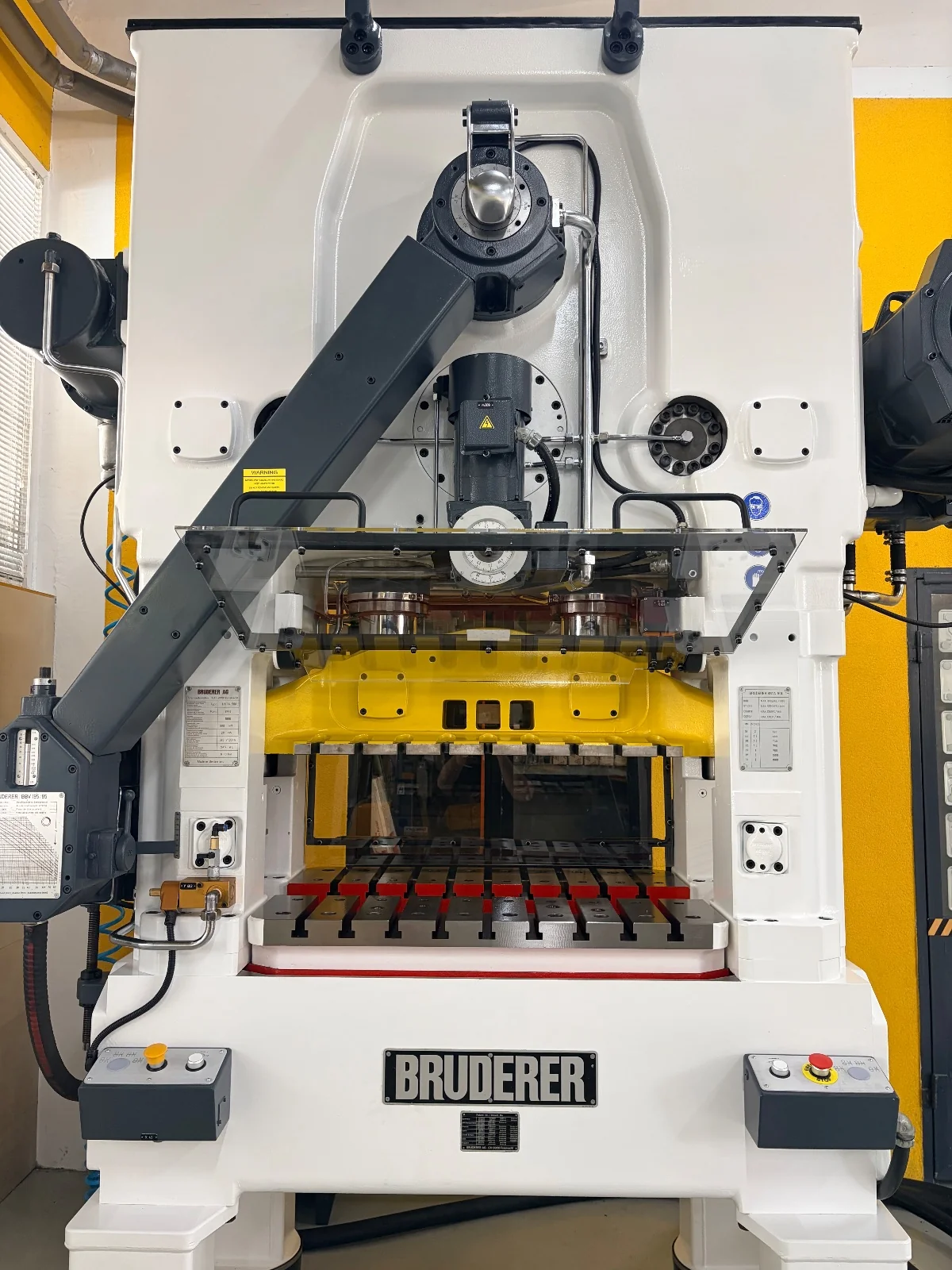

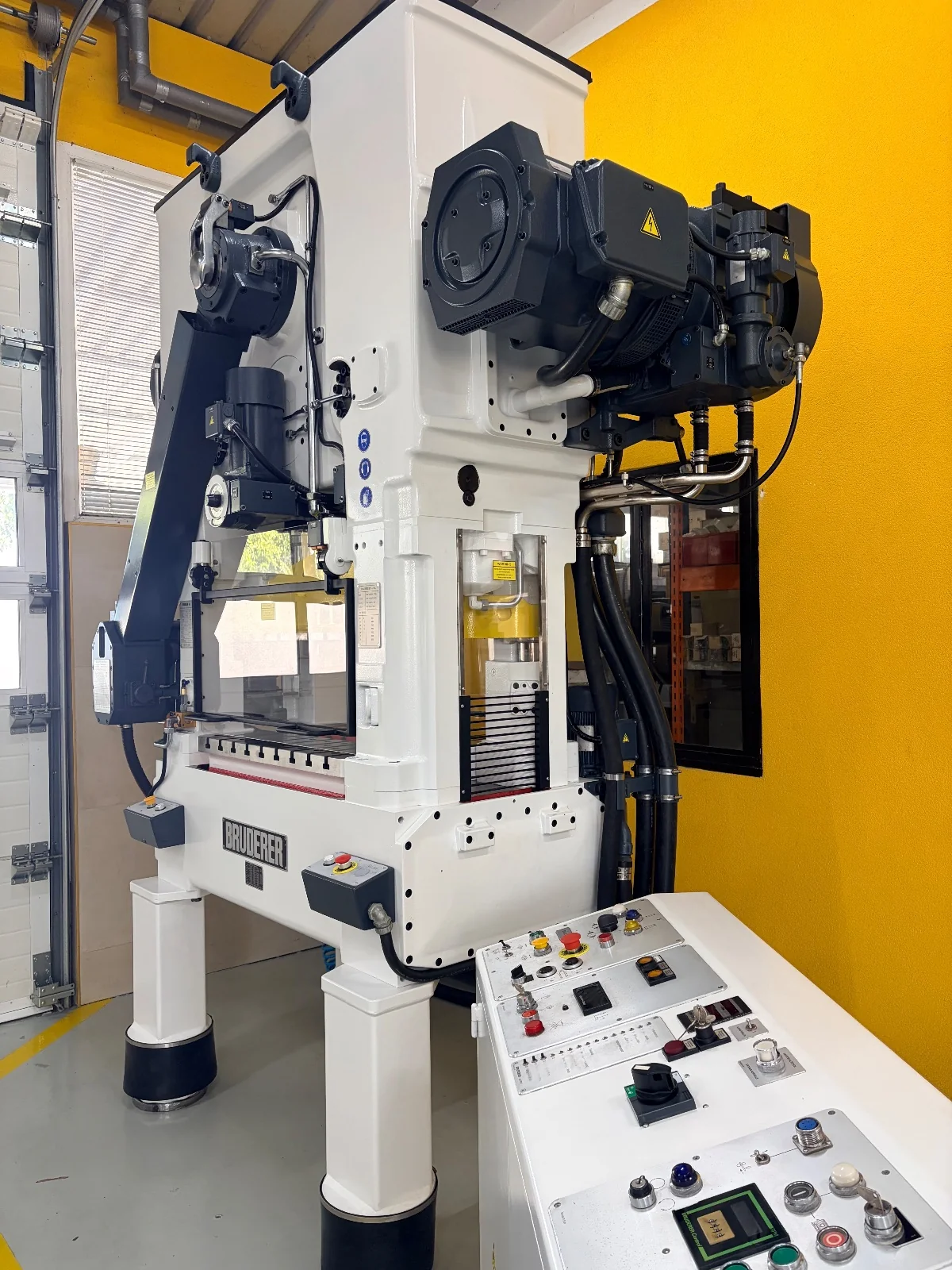

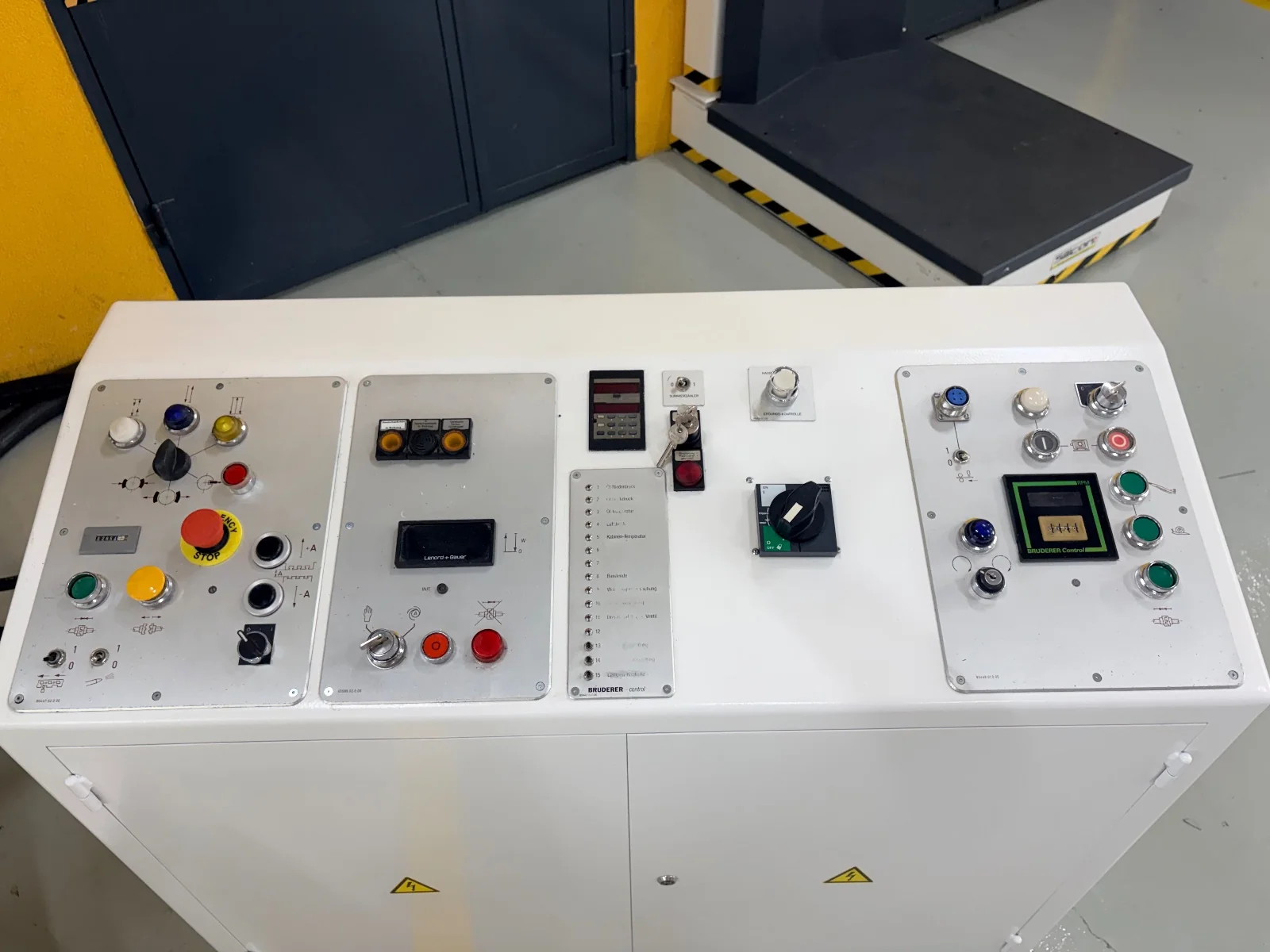

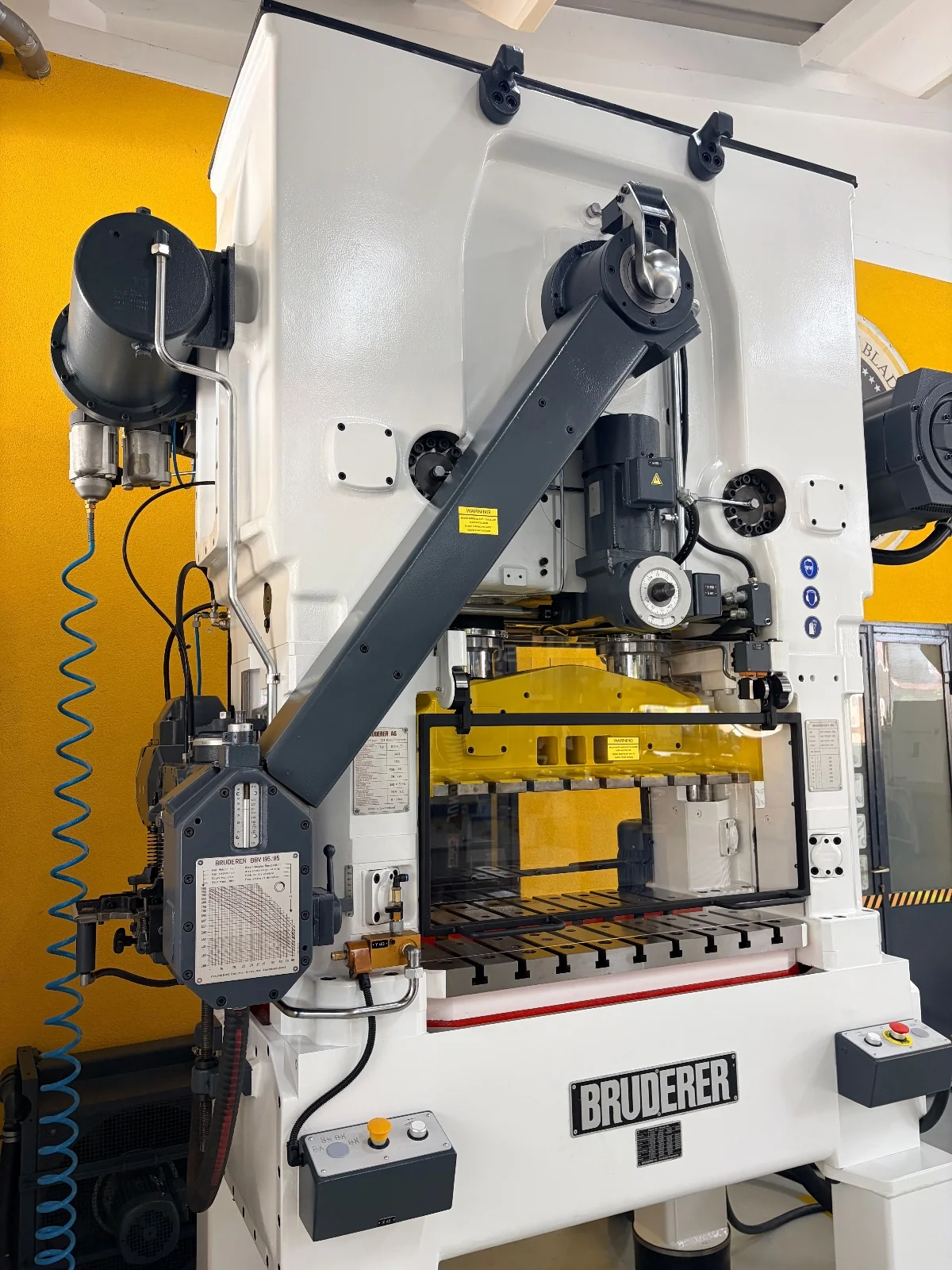

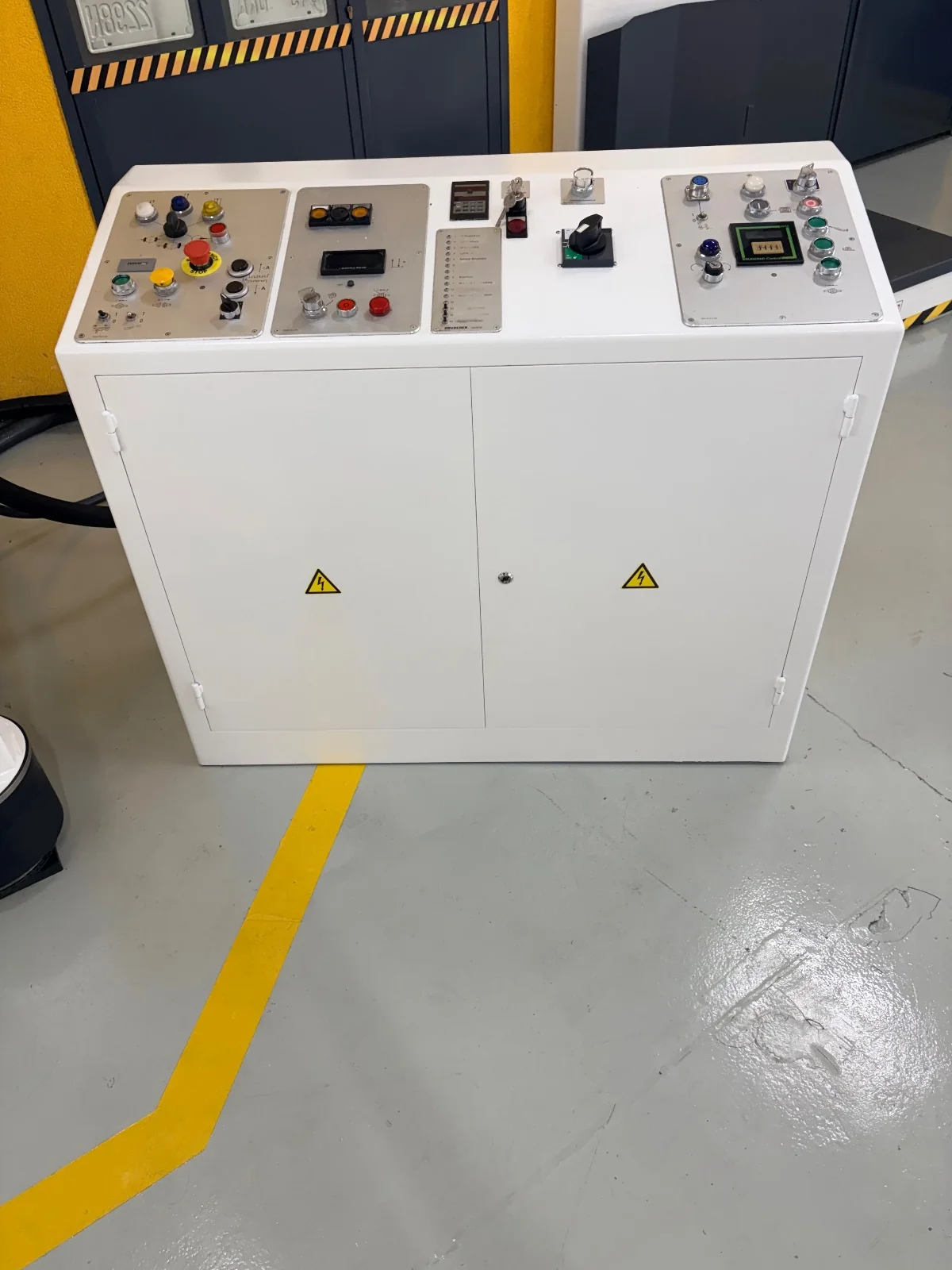

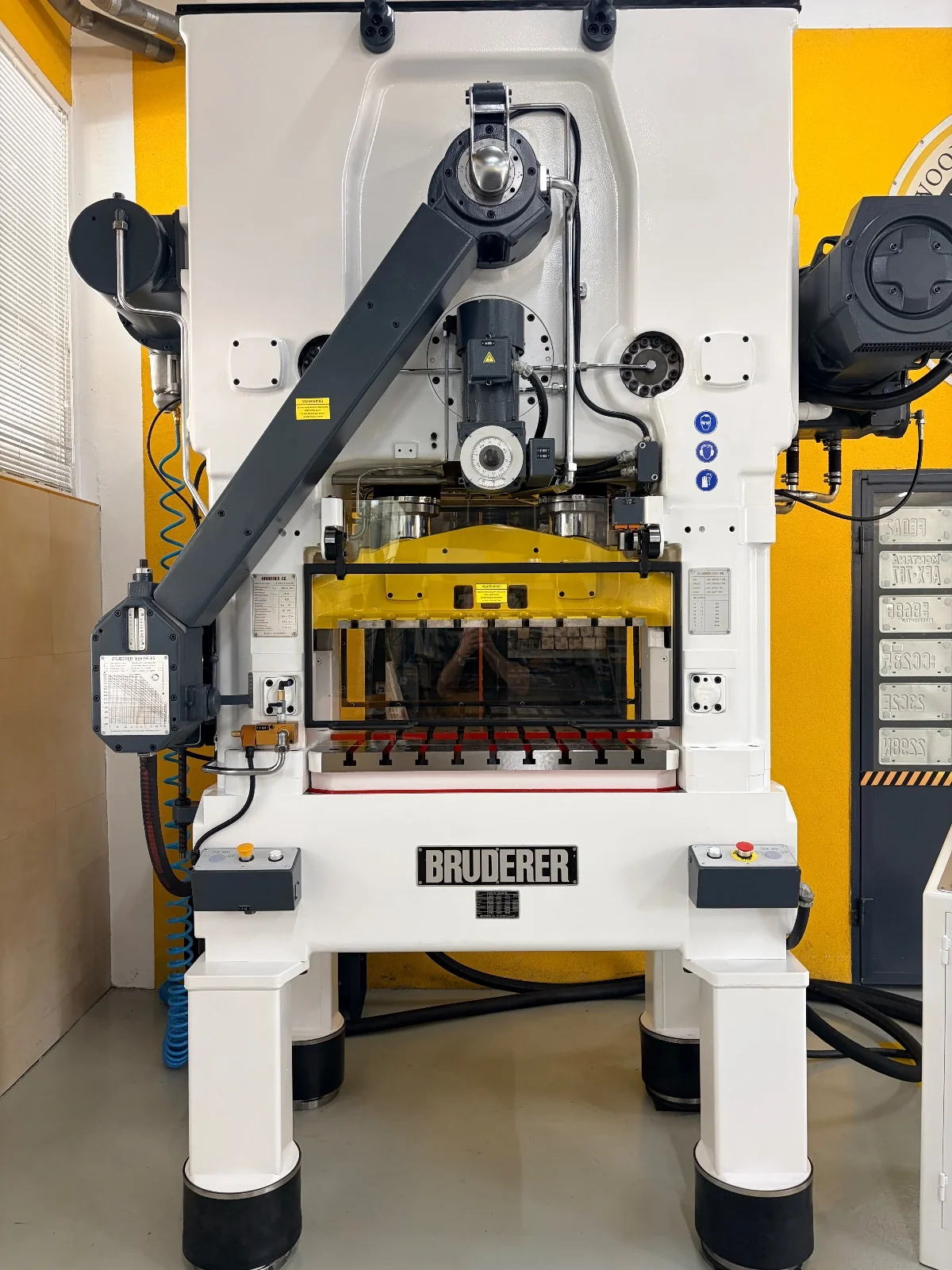

    BRUDERER BSTA 50 HL high speed automatic stamping press, year of manufacture 1990. Press force 500 kN, tool opening width 950 mm, bolster plate 940 × 650 mm, adjustable stroke 16–51 mm, up to 1,000 strokes/min. Equipped with BBV 195-85 roll feed (max. strip 160 mm × 4 mm), Unidor control and EFD strip lubrication. Total weight approx. 8,700 kg.

    Call Us

    Technical Specifications

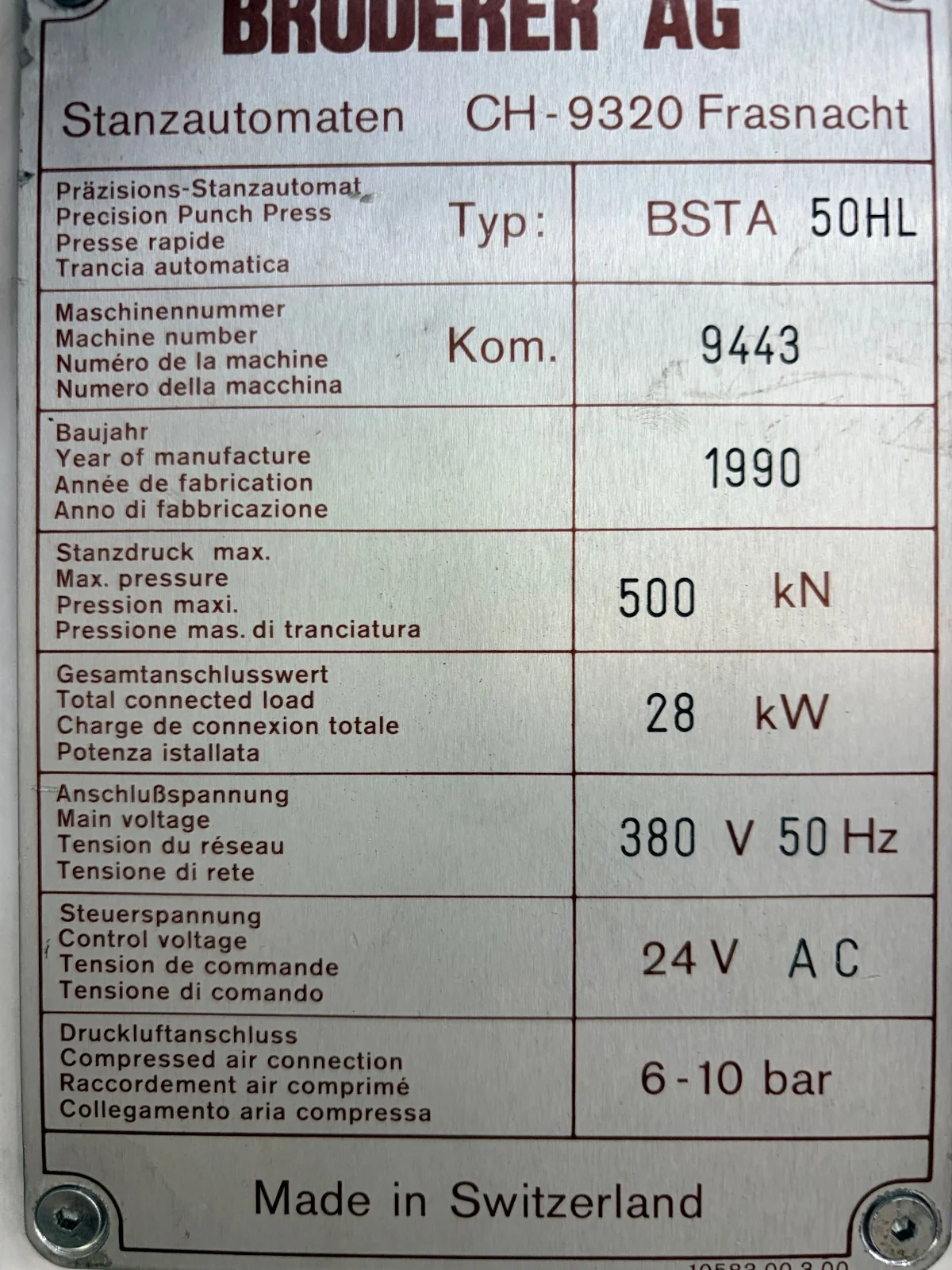

    Press ManufacturerBRUDERER AG, Frasnacht, Switzerland
    Machine ModelBSTA 50 HL
    Serial no.9443
    Year of Manufacture1990
    Max. press force500 kN
    Total Weight approx.8,700 kg

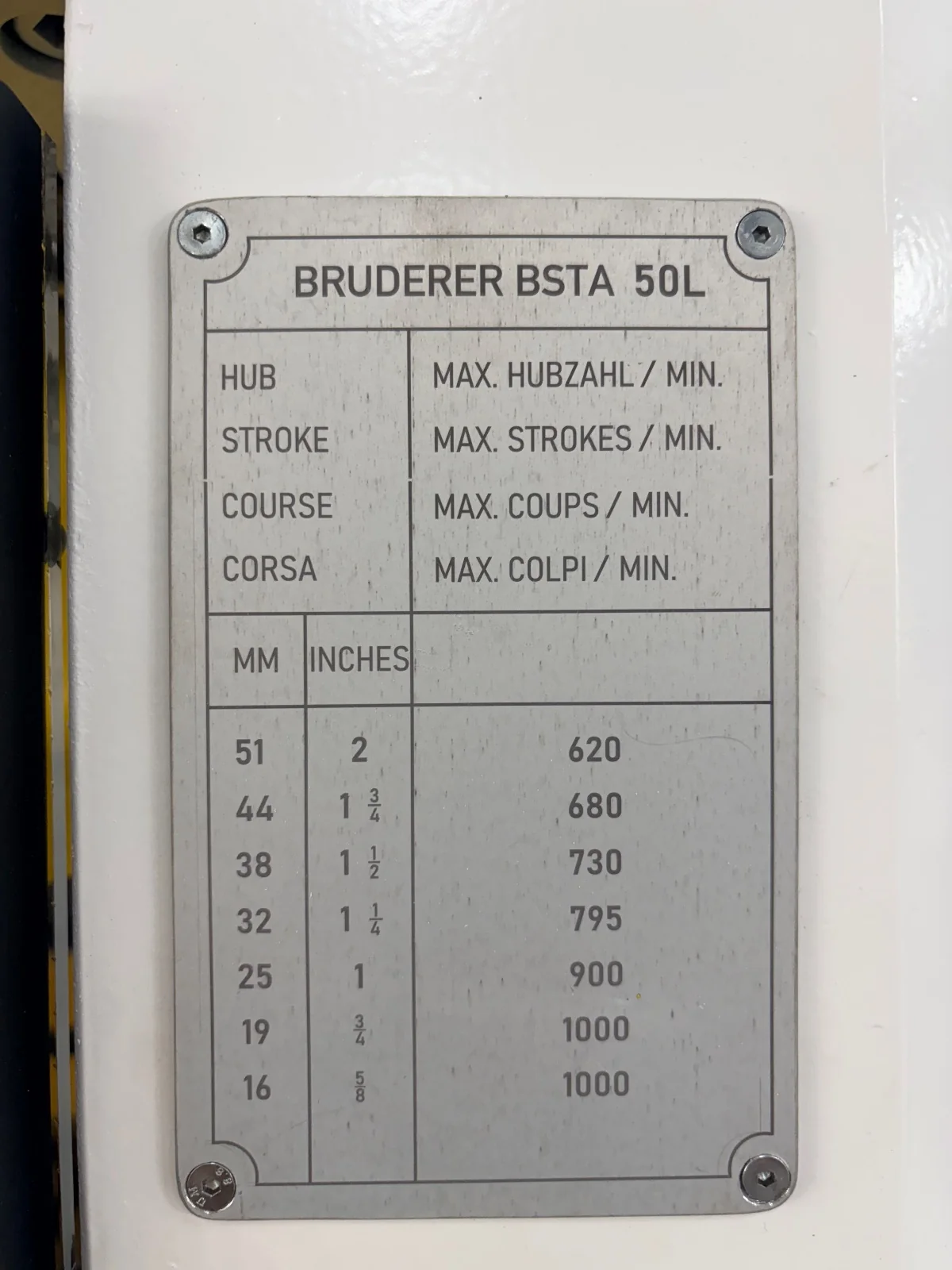

    Stroke range (adjustable)16 / 19 / 25 / 32 / 38 / 44 / 51 mm
    Max. strokes/min at 16 mm stroke1000
    Max. strokes/min at 19 mm stroke1000
    Max. strokes/min at 25 mm stroke900
    Max. strokes/min at 32 mm stroke795
    Max. strokes/min at 38 mm stroke730
    Max. strokes/min at 44 mm stroke680
    Max. strokes/min at 51 mm stroke620
    Ram adjustment range64 mm

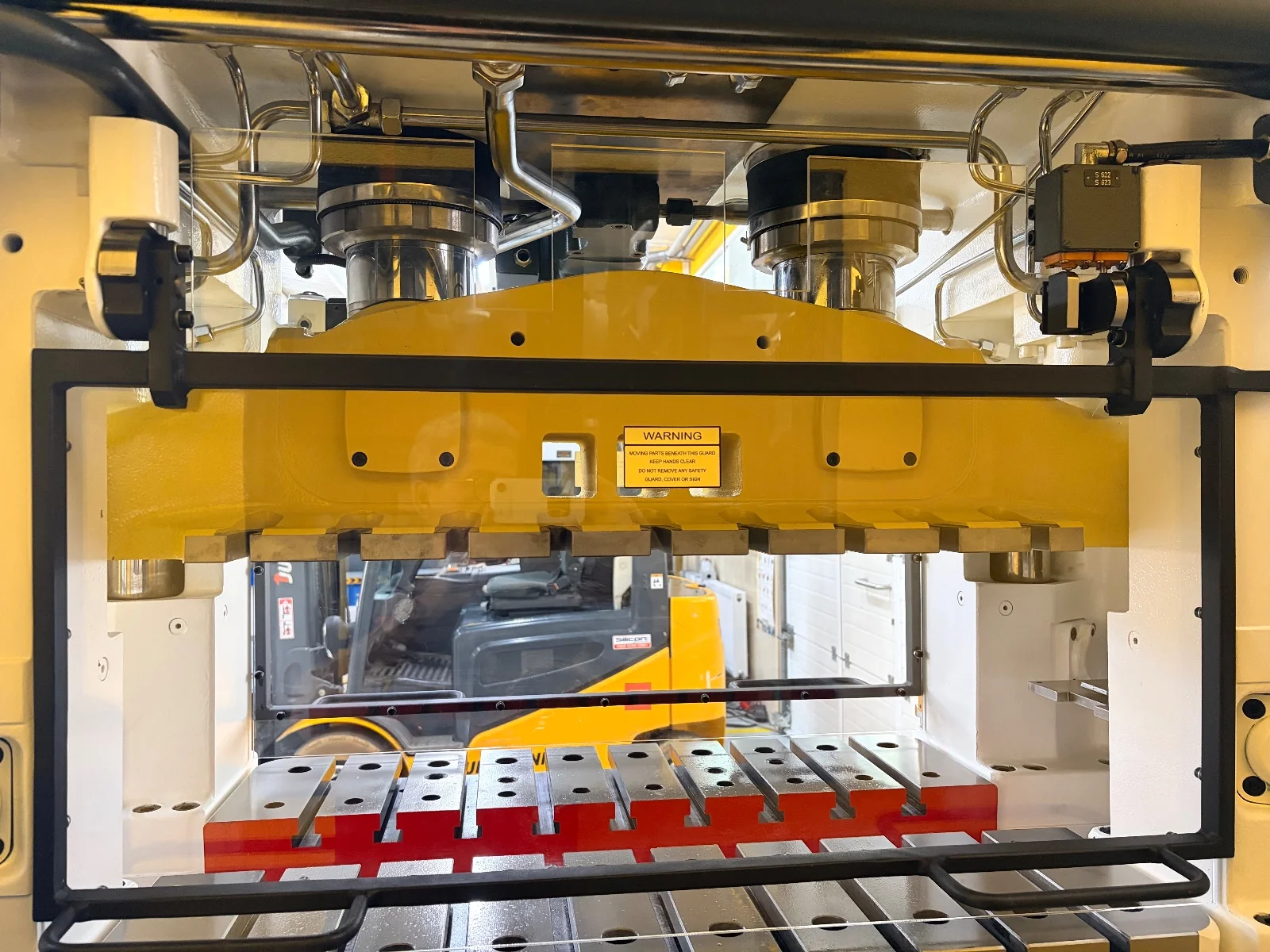

    Tool opening width (max.)950 mm

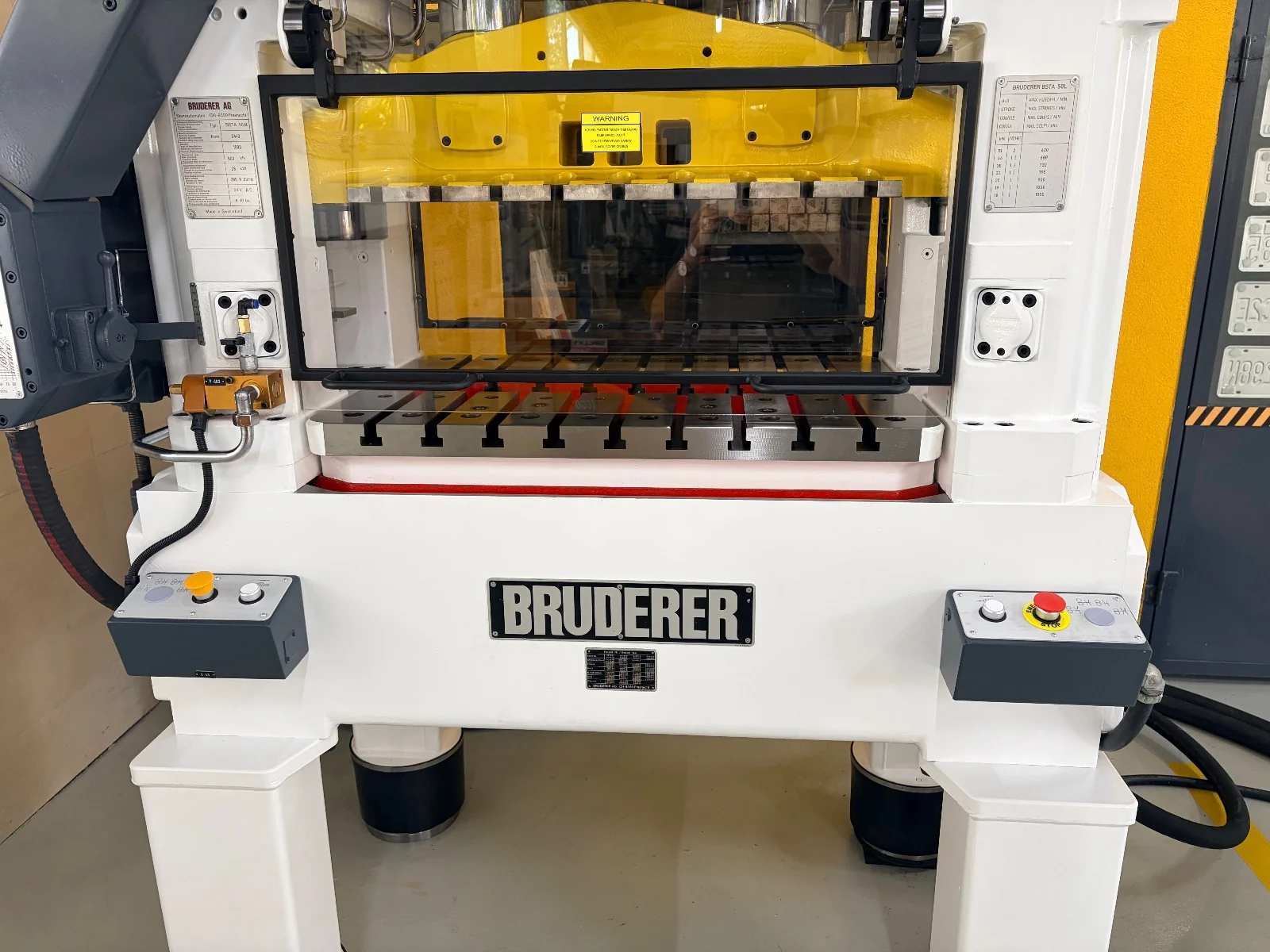

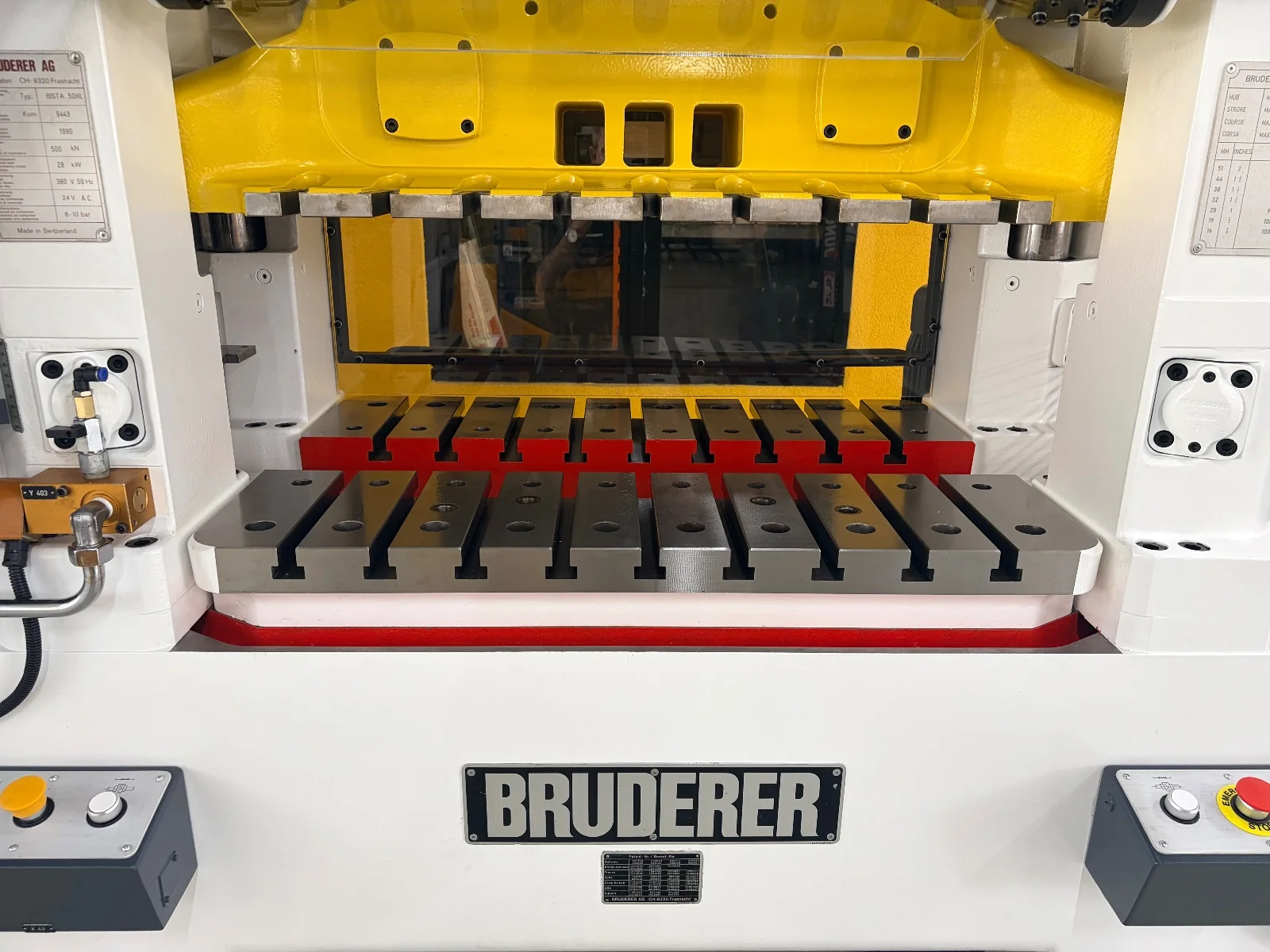

    Bolster plate — Width × Depth940 × 650 mm
    Baseplate opening W × D900 × 200 mm
    Strip feed height (adjustable)60 – 140 mm
    Max. strip pass-through width250 mm

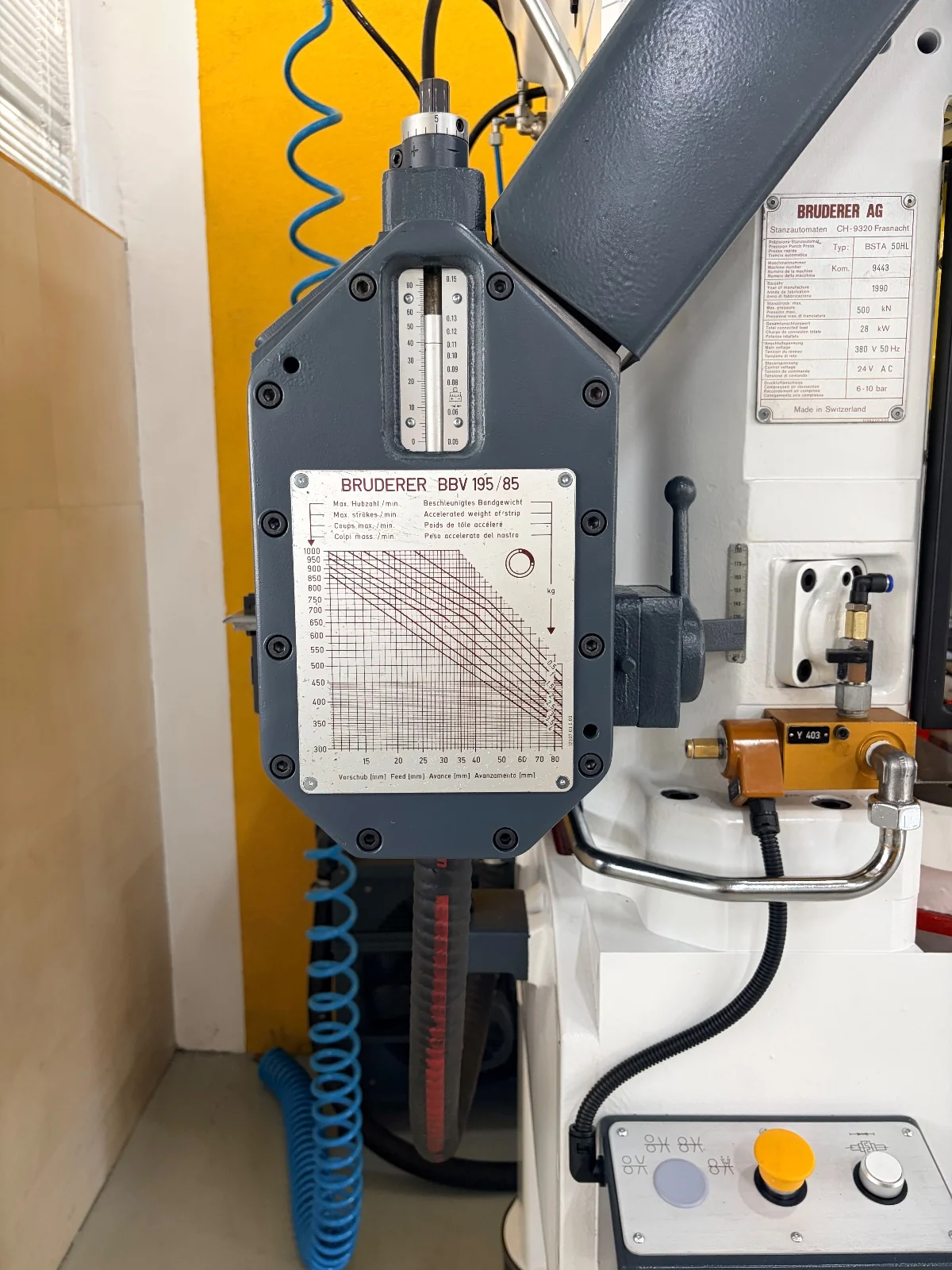

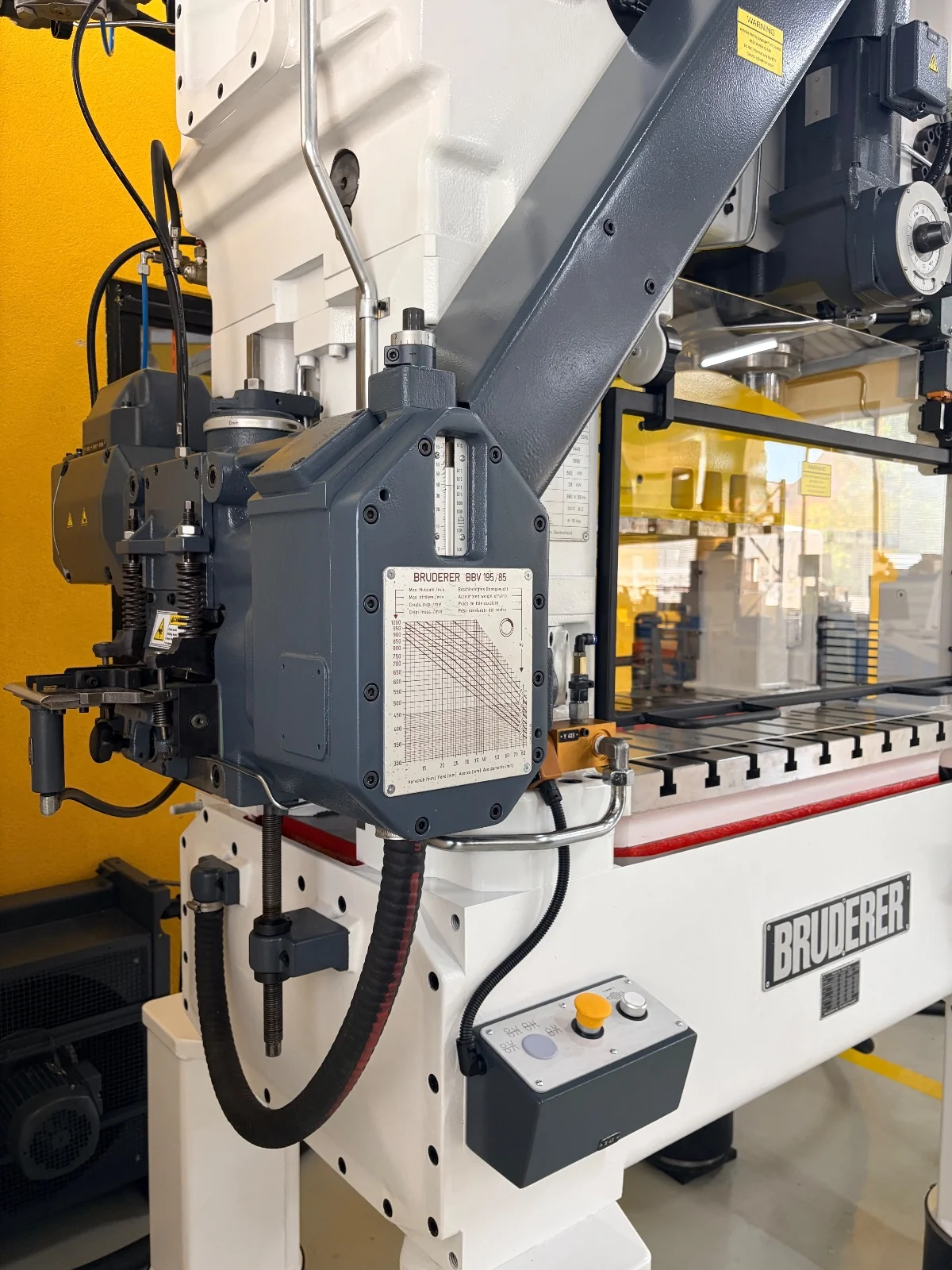

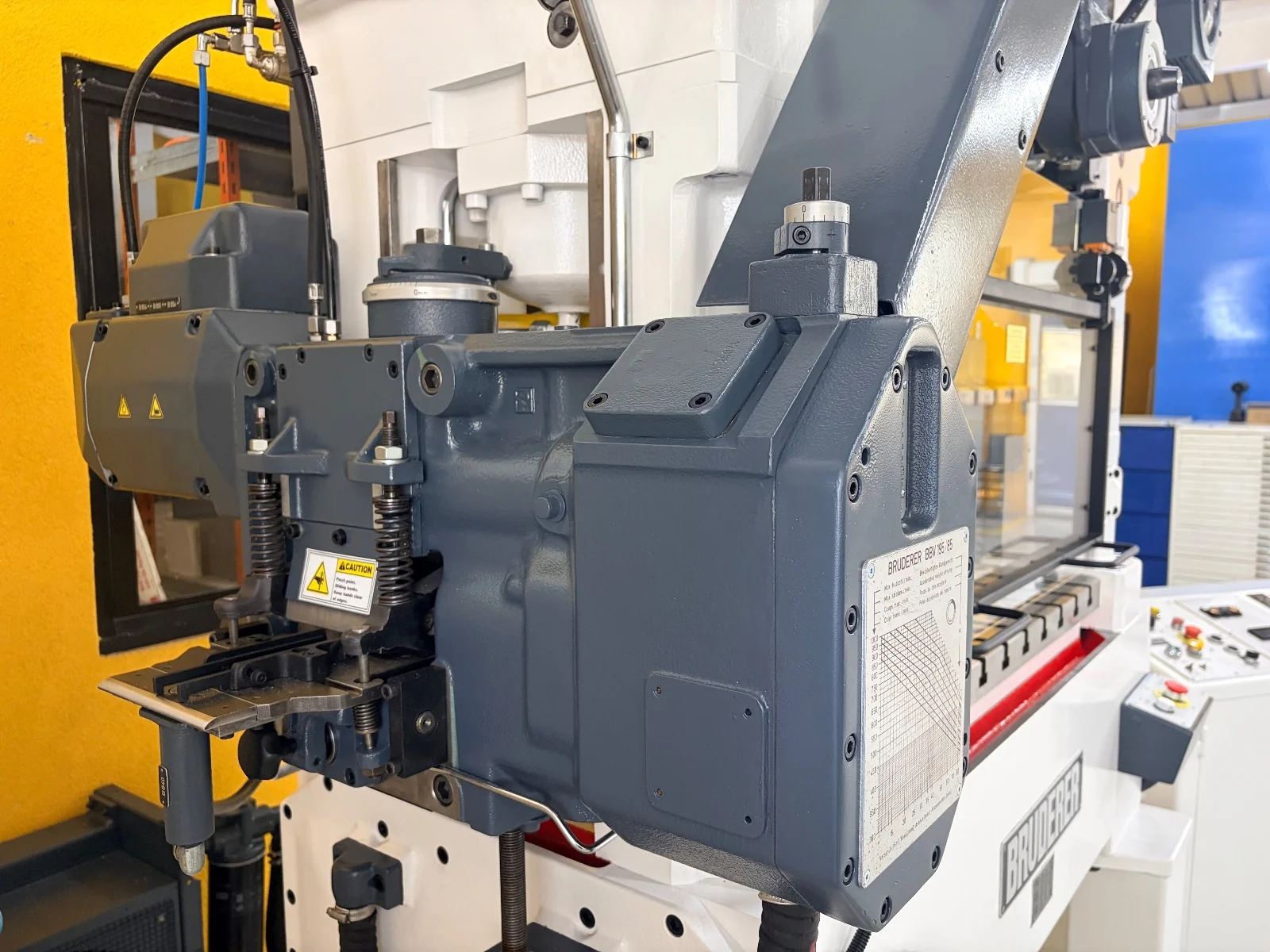

    Feeding deviceBBV 195 - 85
    Feeding angle90 degrees
    Max. strip thickness4 mm
    Max. strip width160 mm
    Feed length0 – 85 mm
    Supply voltage3 × 400 V / 50 Hz
    Main motor power28 kW
    Control voltage (DC)24 V DC
    Pneumatic supply6 – 10 bar (R ½" connection)
    Press width (with feeder) approx.2,471 mm
    Press depth approx.1,302 mm
    Press height approx.3,165 mm
    OptionalSound-insulating safety cabin / enclosure
    DocumentationOriginal technical documentation and schematics
