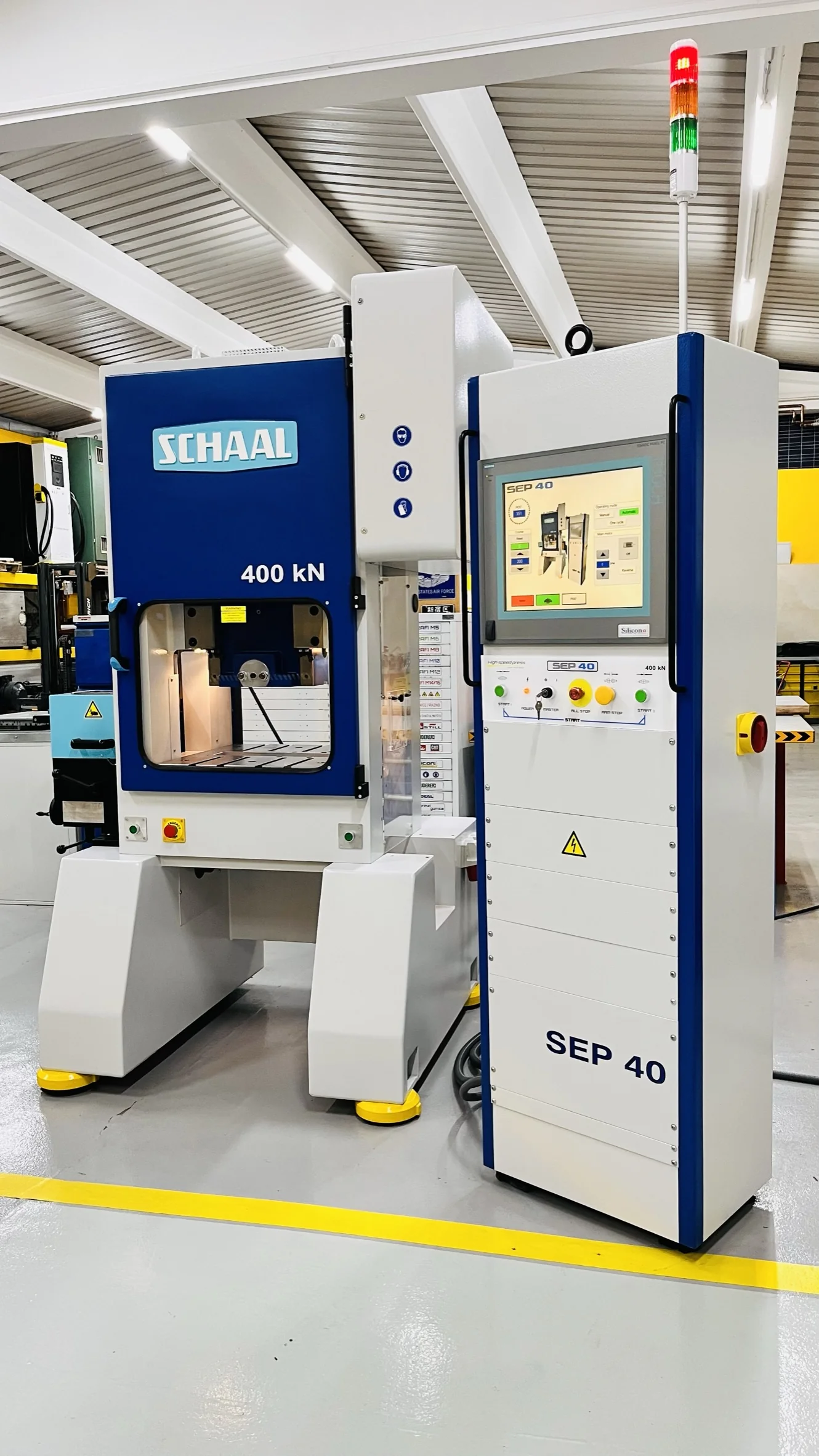

Schaal SEP 40 Ref. 21124

This unit is the wider-strip build of the SEP 40: the SZV 202 gripper feed takes strip of 8 – 160 mm width and feed lengths of 2 – 100 mm, with a feed accuracy of ±0.02 mm over 180° of feeding. The machine dates from 1992 and has been checked over in tested working condition. Press data Nominal capacity: 400 kN (40 t). Min./Max. number of strokes: 60 – 300. Variable stroke: 8 – 70 mm. Ram adjustment: 70 mm. Ram surface area: 340 – 300 mm. Bore in ram: ø40 x 80 mm. Stroke range: 8 / 10 / 15 / 20 / 25 / 31 / 36 / 41 / 46 / 50 / 54 / 58 / 61 / 64 / 66 / 68 / 69 / 70 mm. Table Table dimensions: 550 x 580 mm. Table thickness: 60 mm. Hole in table: 400 x 200 mm. Feeding Feeding thickness: 0.1 – 2 mm. Machine data Drive power: 7,5 kW. Dimensions (H x W x L): 2200 x 1600 x 1050 mm. Weight: 3800 kg. Original operating instructions in German and English and schematics are included. The machine is a Schaal SEP 40 carrying reference number 21124.
