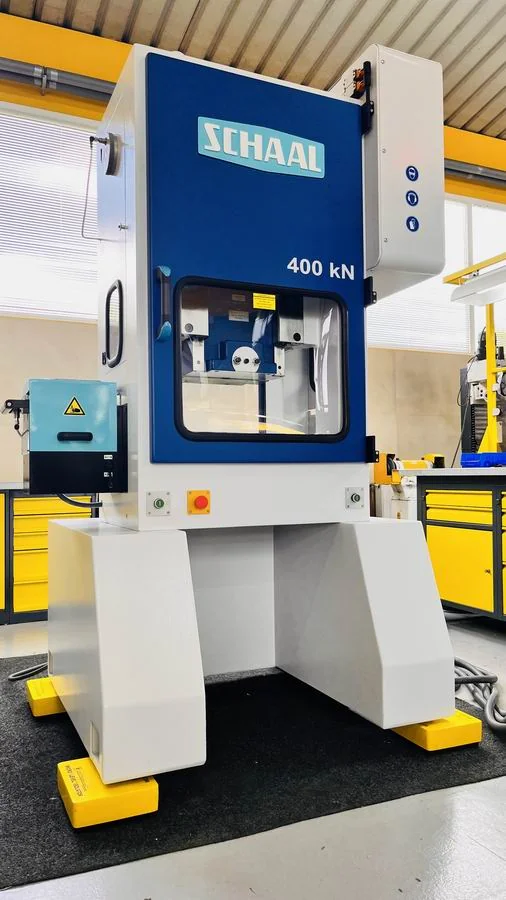

Schaal SEP 40 Ref. 21123

Revision work on this punching press finished in 2023 and reached as far as the electrics: the original control gave way to a Siemens PLC with touch-screen operation. The press itself left the works in 1996. Certification was renewed once the job was done, so a new CE certificate and a laboratory test report belong to it. Capacity and movement - 400 kN (40 t); 100 - 300 strokes per minute; variable stroke 8 - 70 mm; ram adjustment 70 mm; stroke steps 8, 10, 15, 20, 25, 31, 36, 41, 46, 50, 54, 58, 61, 64, 66, 68, 69, 70 mm. Bed - table dimensions 550 x 580 mm. Strip feed - gripper feeding device SZV 2; strip width 8 - 120 mm; feed length 2 - 80 mm; material thickness 0.1 - 2 mm; feeding angle 180 degrees; accuracy plus/minus 0.01 mm. Installation - drive 5,5 kW; weight 3800 kg. Operating instructions in German and English plus schematics are supplied with the press. Reference number 21123, Schaal SEP 40 automatic punching press.
