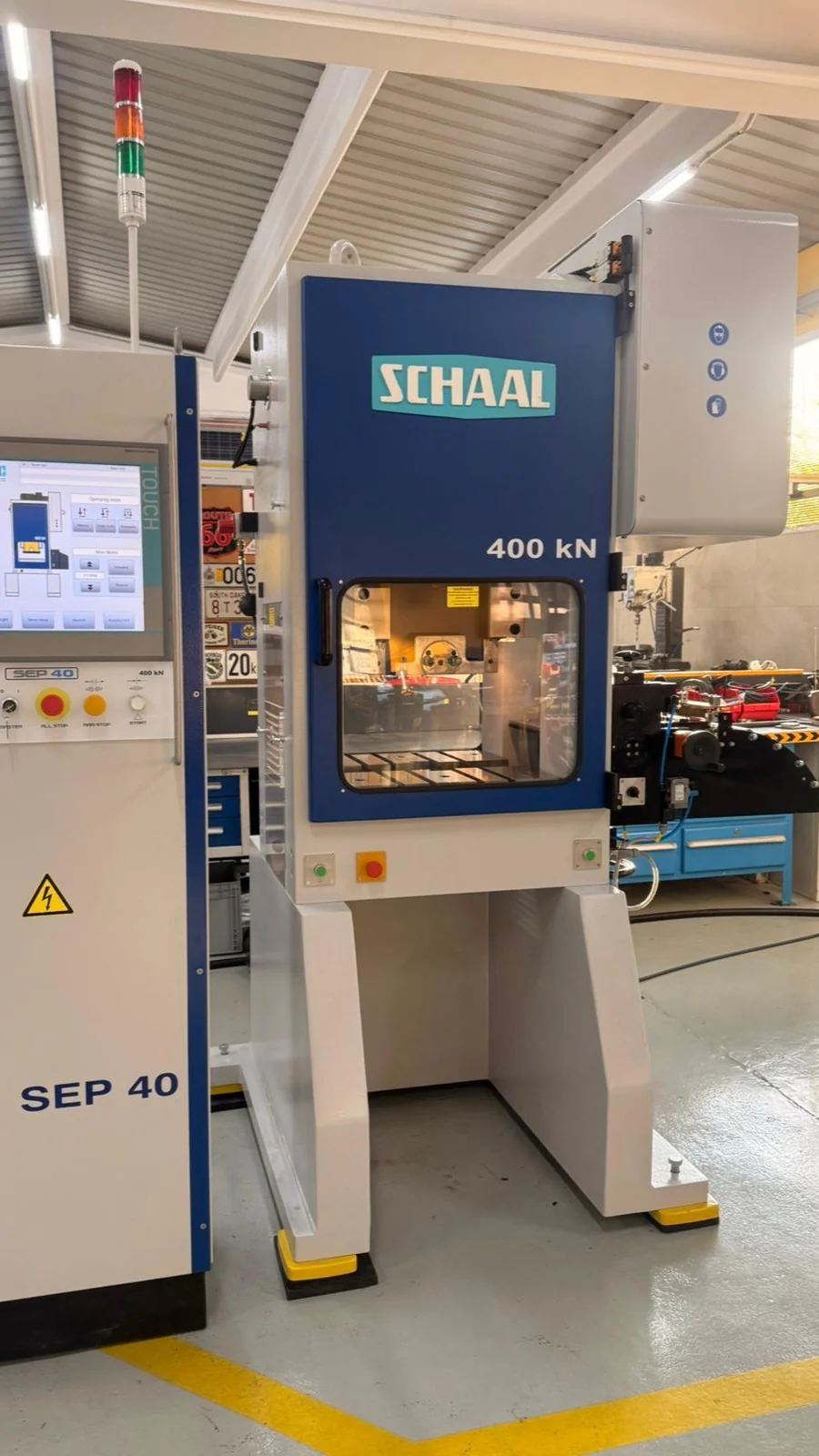

Schaal SEP 40 Ref. 32325

The most recent revision on this press was done in 2025, when the control was replaced in full by a Siemens PLC with a touch-screen interface. The press left the works in 1998. Its feeding equipment is an SWV 2 gripper taking strip up to 200 mm wide, with feed lengths anywhere from 1 to 9999 mm, and the drive motor is rated 9 kW. Feeding equipment Gripper feeding device SWV 2. Width of strip: up to 200 mm. Feed length: 1 - 9999 mm. Feeding thickness: 0.1 - 2 mm. Feeding: 180 degrees. Press Nominal force: 400 kN (40 t). Min./Max. number of strokes: 100 - 400. Variable stroke: 8 - 70 mm. Ram adjustment: 70 mm. Ram surface area: 340 - 300 mm. Table: 550 x 580 mm. Machine Drive power: 9 kW. Overall size (H x W x L): 2300 x 1600 x 1400 mm. Weight: 3800 kg. Operating instructions in English and schematics included. New CE certificate and lab test report. Schaal SEP 40 automatic punching press, ref. no. 32325.
