Schaal SEP 25 Ref. 12426

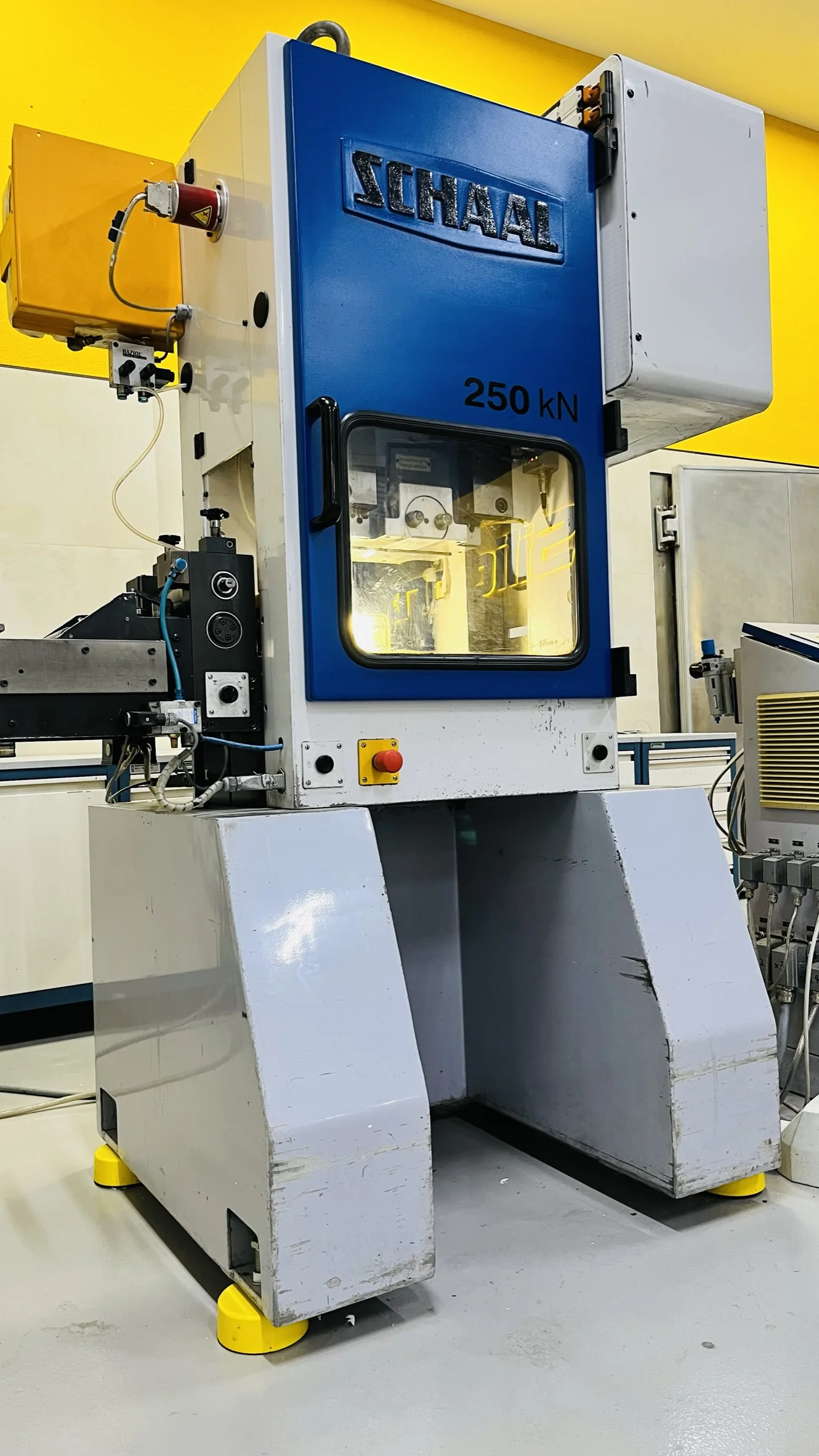

Schaal SEP 25. Automatic punching press. Year of manufacture: 1997. Nominal capacity: 250 [kN] (25 [t]). Min./Max. number of strokes: 60 – 300. Ram adjustment: 60 [mm]. Variable stroke: 8 – 60 [mm]. Ram surface area: 280 – 250 [mm]. Bore in ram: ø40 x 80 [mm]. Stroke range: 8, 10, 13, 17, 22, 27, 32, 36, 40, 44, 47, 50, 53, 55, 56, 58, 59, 60 [mm]. Table dimensions: 450 x 480 [mm]. Table thickness: 50 [mm]. Hole in table: 300 x 160 [mm]. Fitted with roll feeding device SWV/1/E. Max width of strip: 160 [mm]. Feeding thickness: 0 – 2 [mm]. Feeding: 180 [°]. Feed accuracy: ±0.05 [mm]. Roll diameter: 72 [mm]. Drive power: 4 [kW]. Fitted with Undior control unit and Raziol strip lubricating device. Machine in good working condition. Original operating instructions in German and schematics included.
