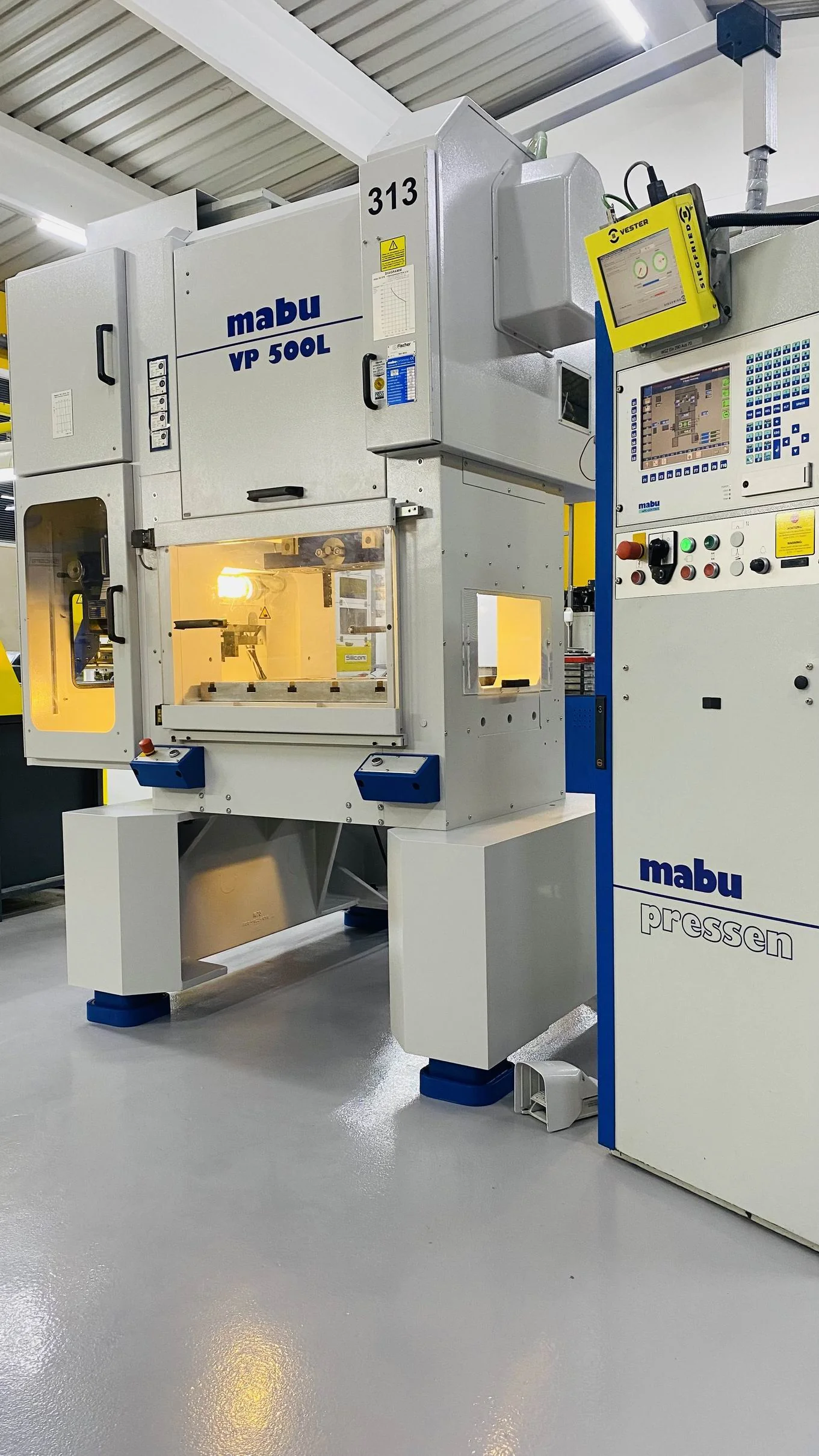

    Mabu VP500L / RC11

    High Speed Automatic Press • 2007 • ID: 0

    Make: MABU Made in Germany Model: VP 500 L / RC 11 Max. Pressure: 500 kN (50 T) Speed range: 60-300 spm. Year of production: 2007. Working hours: 5949 (23. May. 2022) Machine new valid test seal till Nov. 2022. Adjustable stroke: 7-60. Siegfried Vester press and tool monitoring Press-processor SPP 700 Max. Tool width clearance between columns: 750 mm. Max. Strip clearance width: 150 mm. Power: 7.5 kw. Feeder: Mabu RC11 on left-hand side. Max. strip width: 150 mm. Max. strip thickness: 3 mm. Max. feeding pitch: 5-120 mm. Machine dimensions: H 3000 x W 2700 x D 1800 mm. Weight of machine: cca. 5000 kg. CE Certificate Electrical cabinet mPC 200 with Mabu Touch screen control. Front and rear safety guards with inspection glass.

    This machine has been sold. If you are interested in this type of machine, please contact us.
