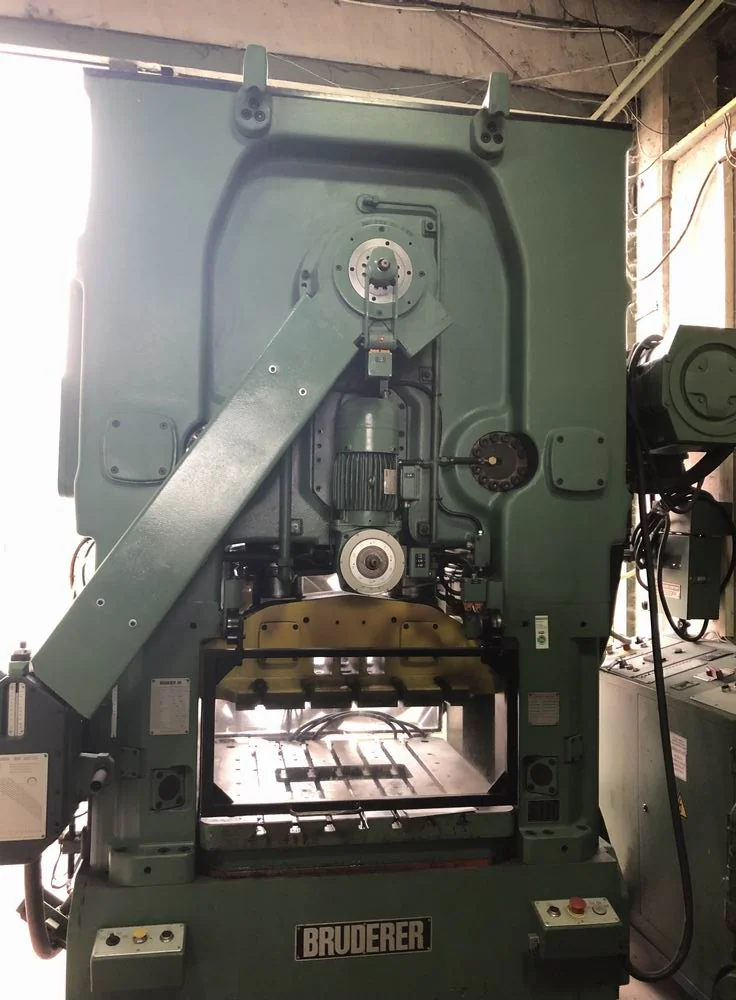

Bruderer BSTA 80 Ref. 13726

An 80-ton Bruderer automatic press with a wide working area: bolster 950 mm left-right by 910 mm front-back, ram 760 x 510 mm, and a bed opening of 920 x 320 mm. The average mass of the tool upper part is given as 600 kg. Press Max. pressure: 80 Tons, 800 kN. Speed: max. 1000 1/min, min. 100 1/min. Ram position adjustment: 76 mm. Max. tool width clearance (L-R): 970 mm. Tonnage meter Toledo onboard. Feeder Feeder Bruderer on left side, BBV 202/120. Max. strip inlet width: 202 mm. Strip feed pitch: 0-120 mm. Strip inlet height: max. 160 mm, min. 70 mm. Supply Mains voltage (with protective conductor): 220 V, 380 V, 440 V. Mains frequency: 50 Hz, 60 Hz. Power supply: 43 kW. Control voltage AC: 24 V. Compressed air connection: 6-10 bar. Dimensions Machine: length 2834 mm, width 1742 mm, height 3460 mm; mass complete with 1 BBV 202 approx. 17.500 kg. Electrical cabinet: length 1200 mm, width 500 mm, height 1025 mm, mass approx. 250 kg. Bruderer BSTA 80, reference number 13726.
