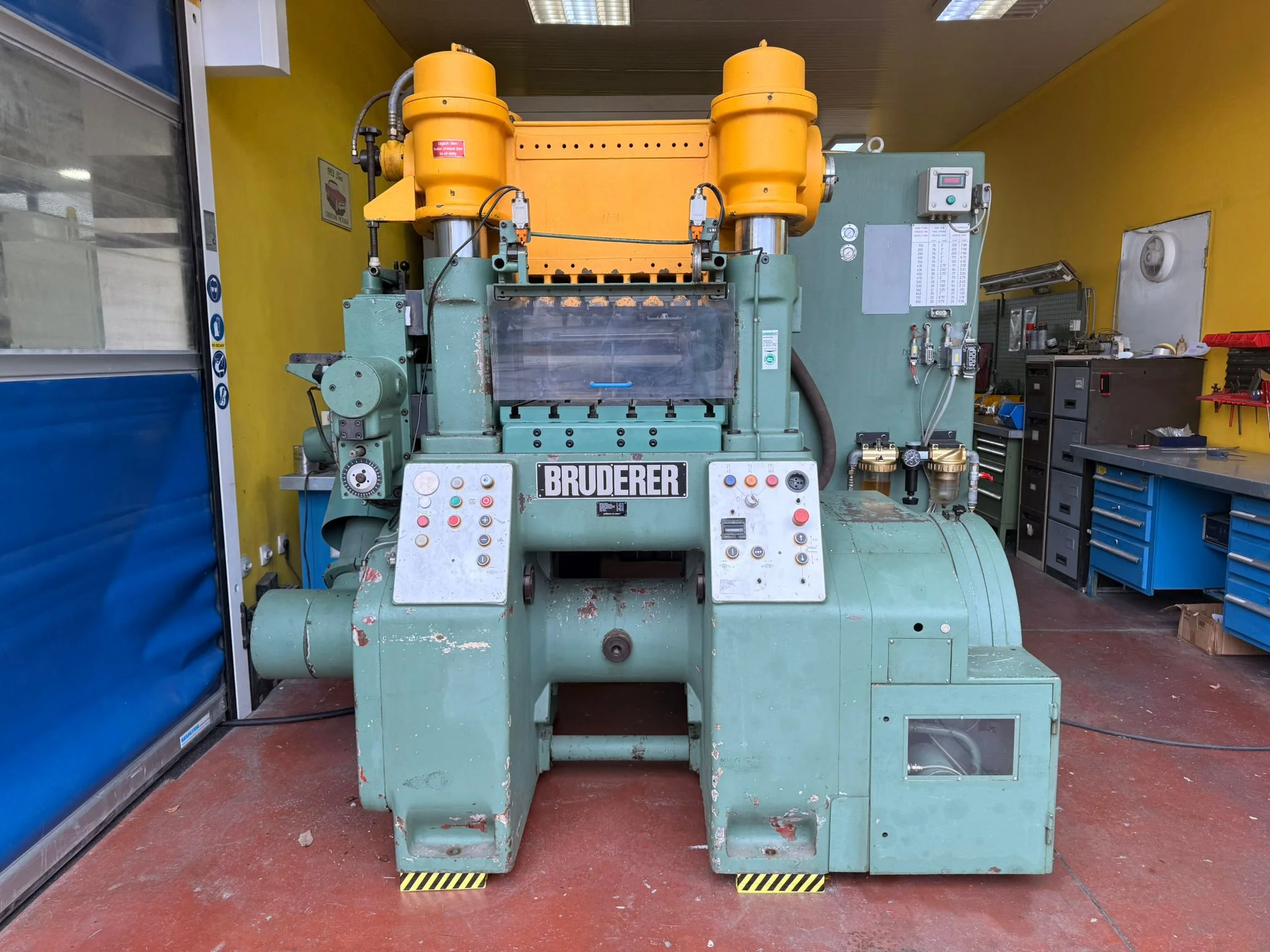

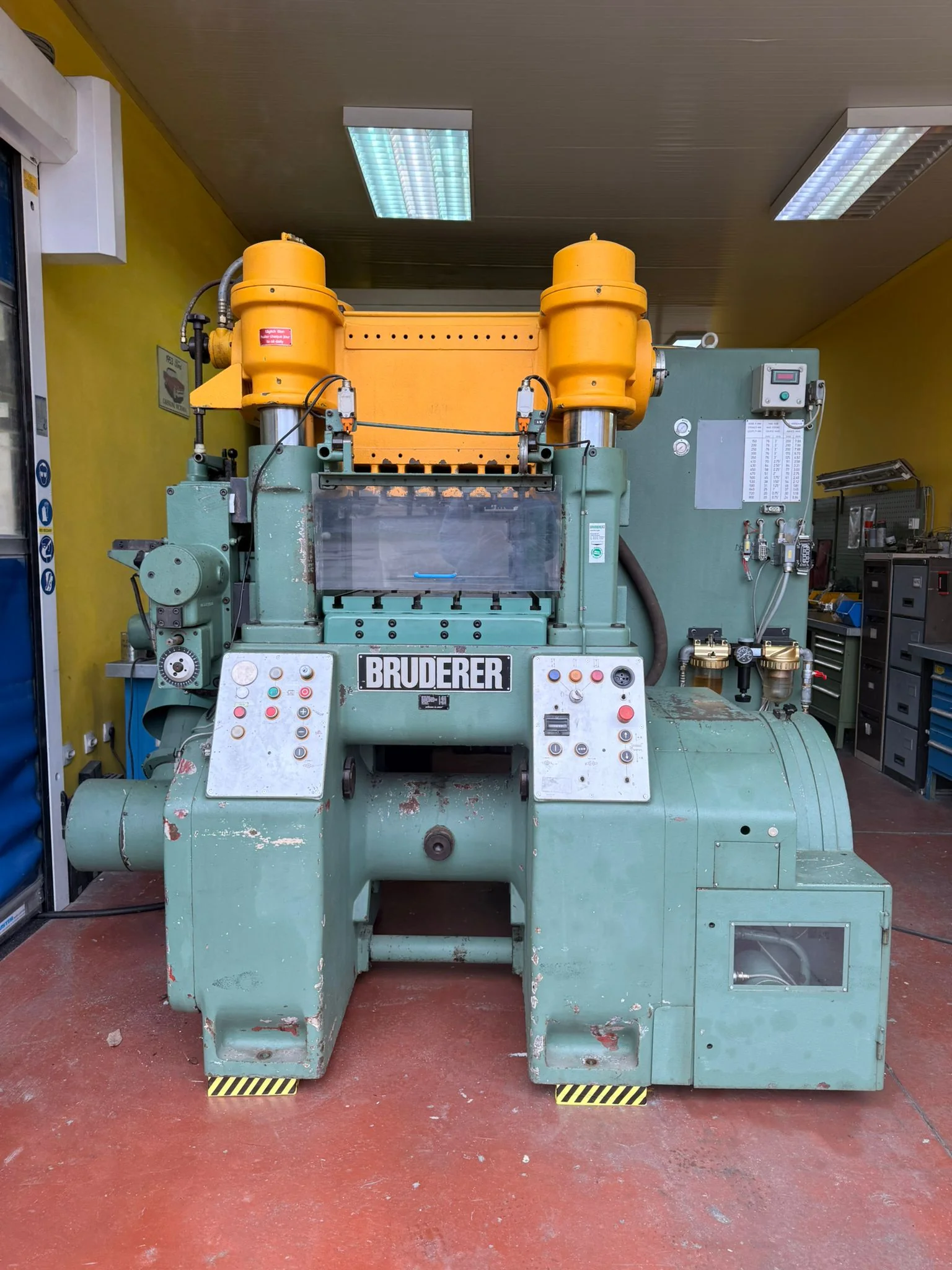

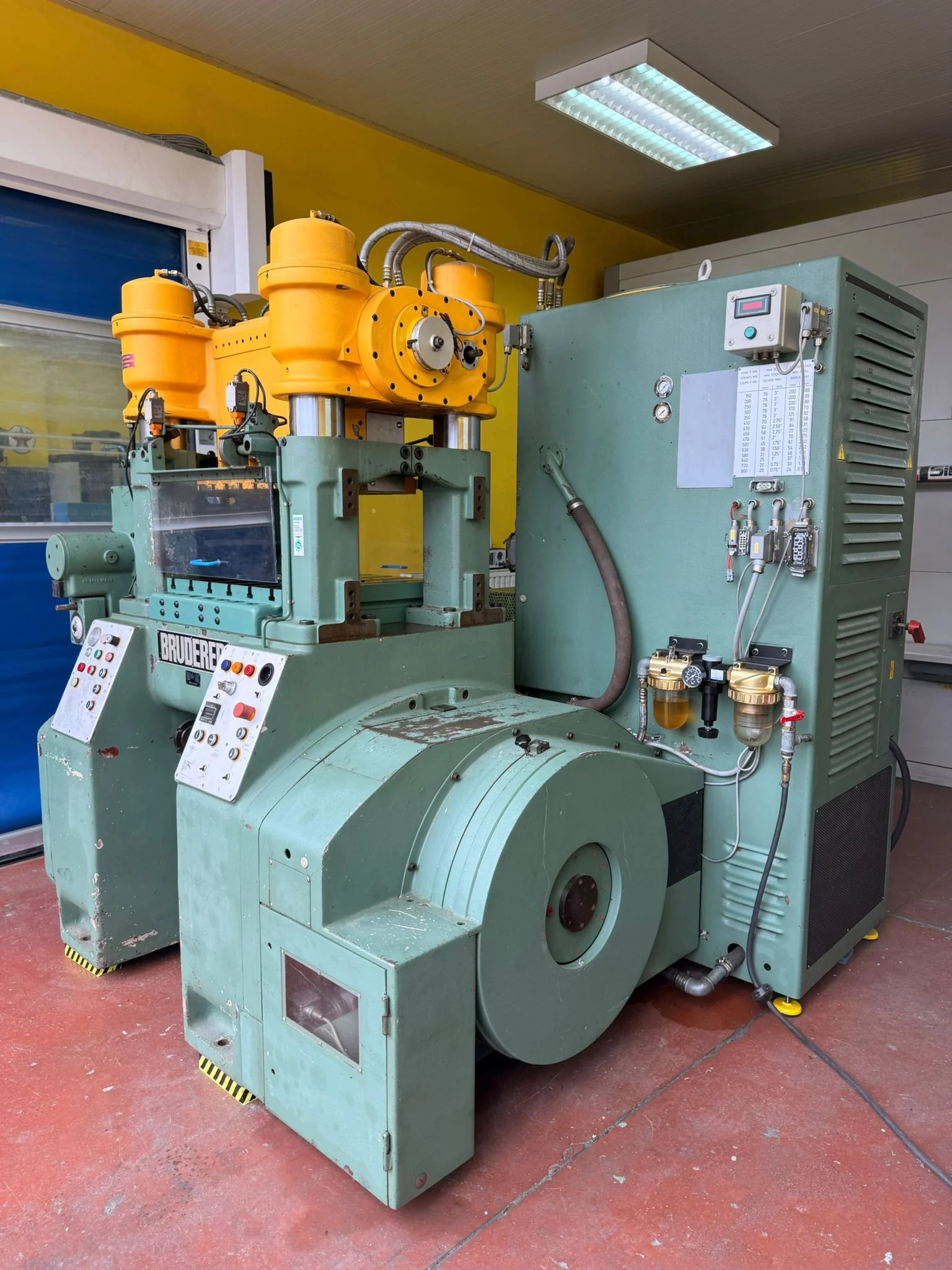

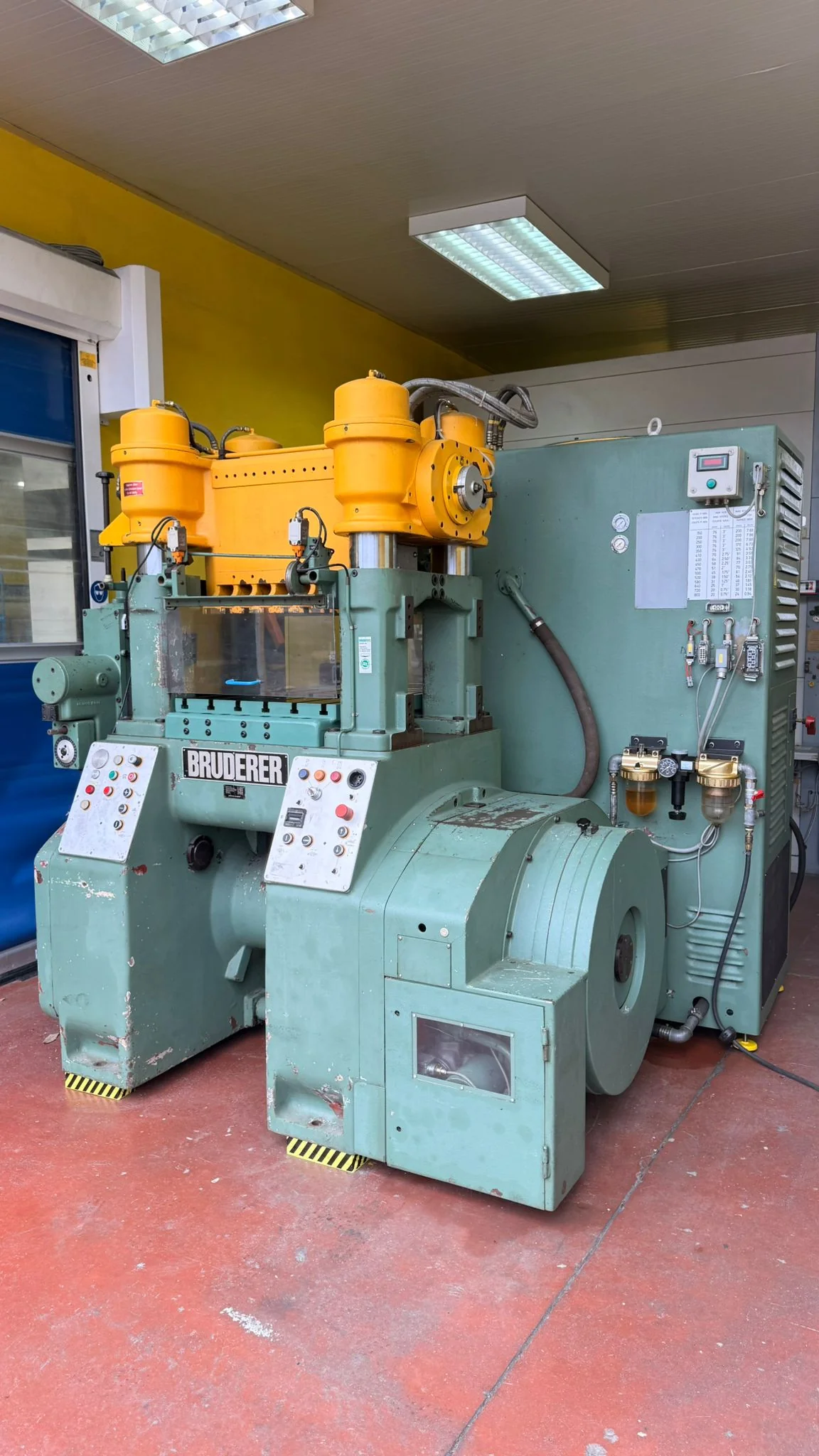

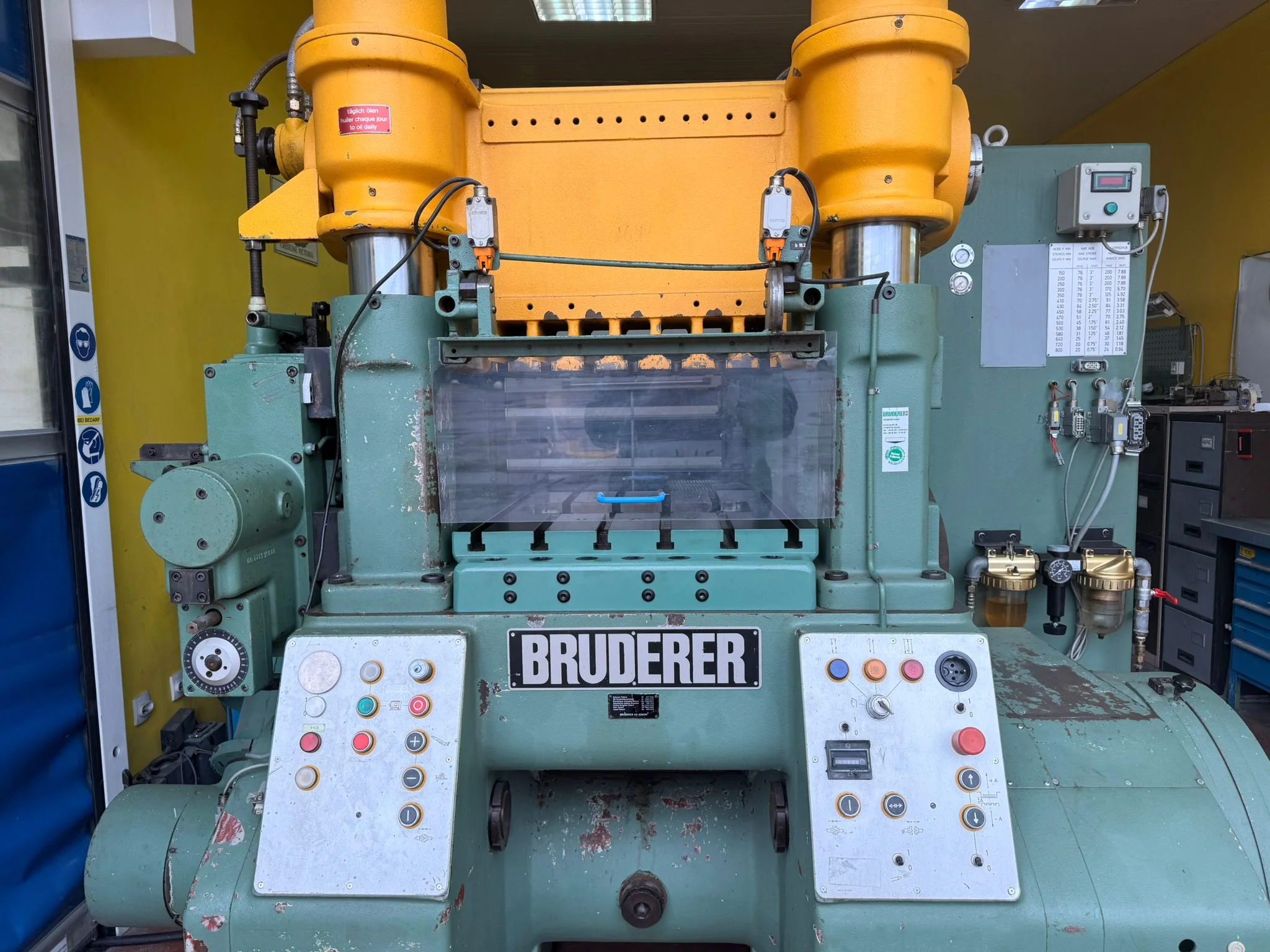

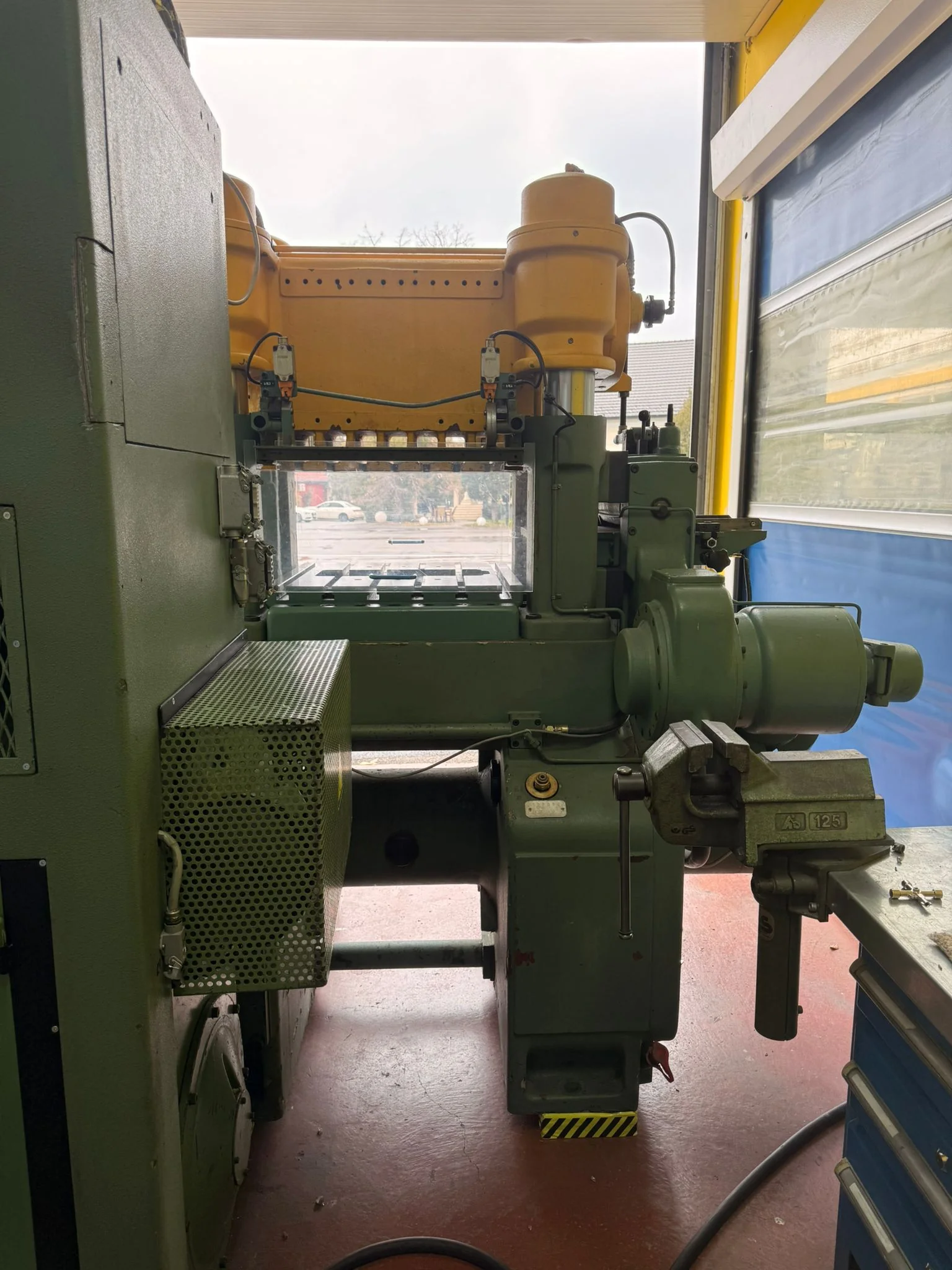

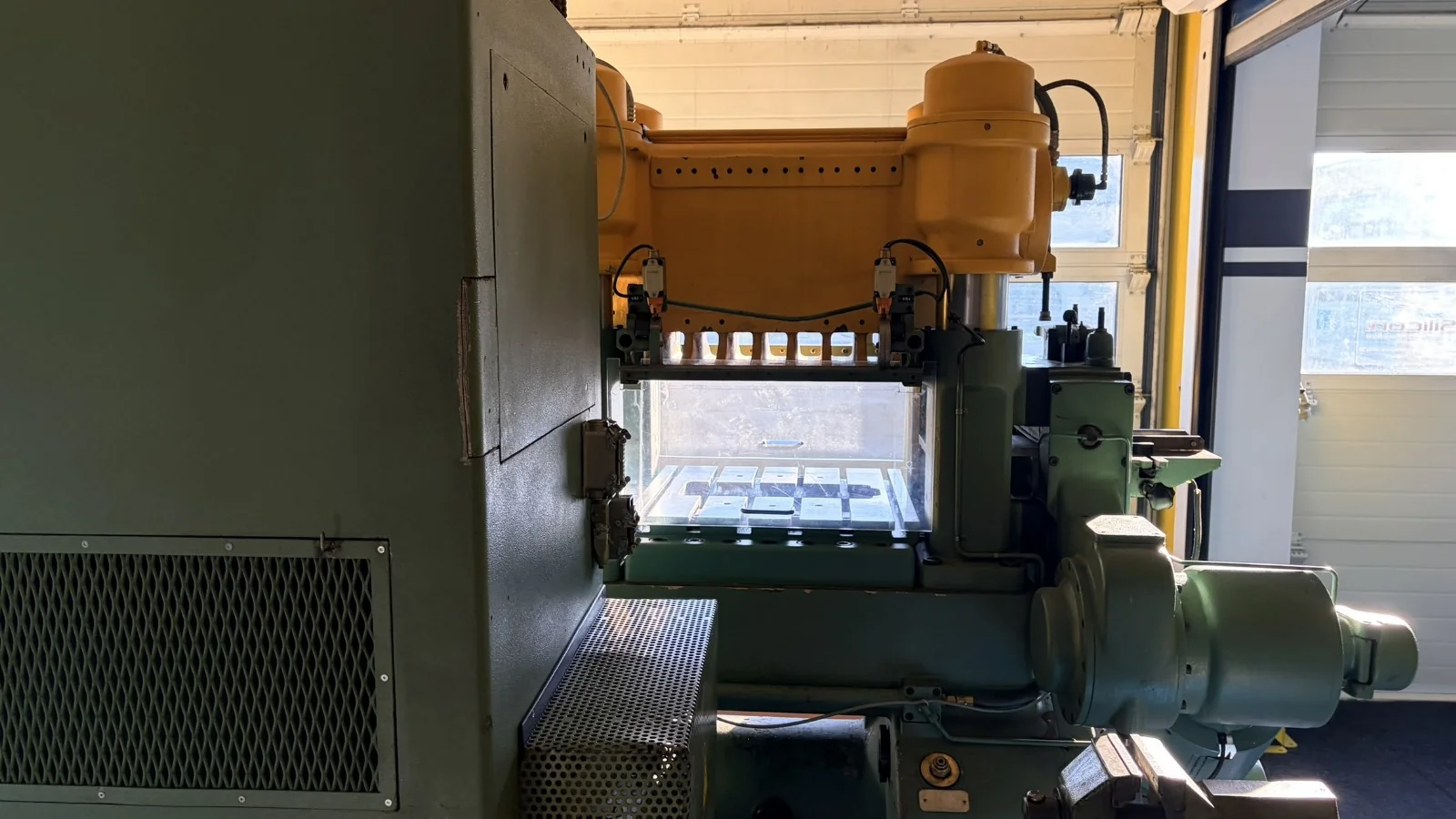

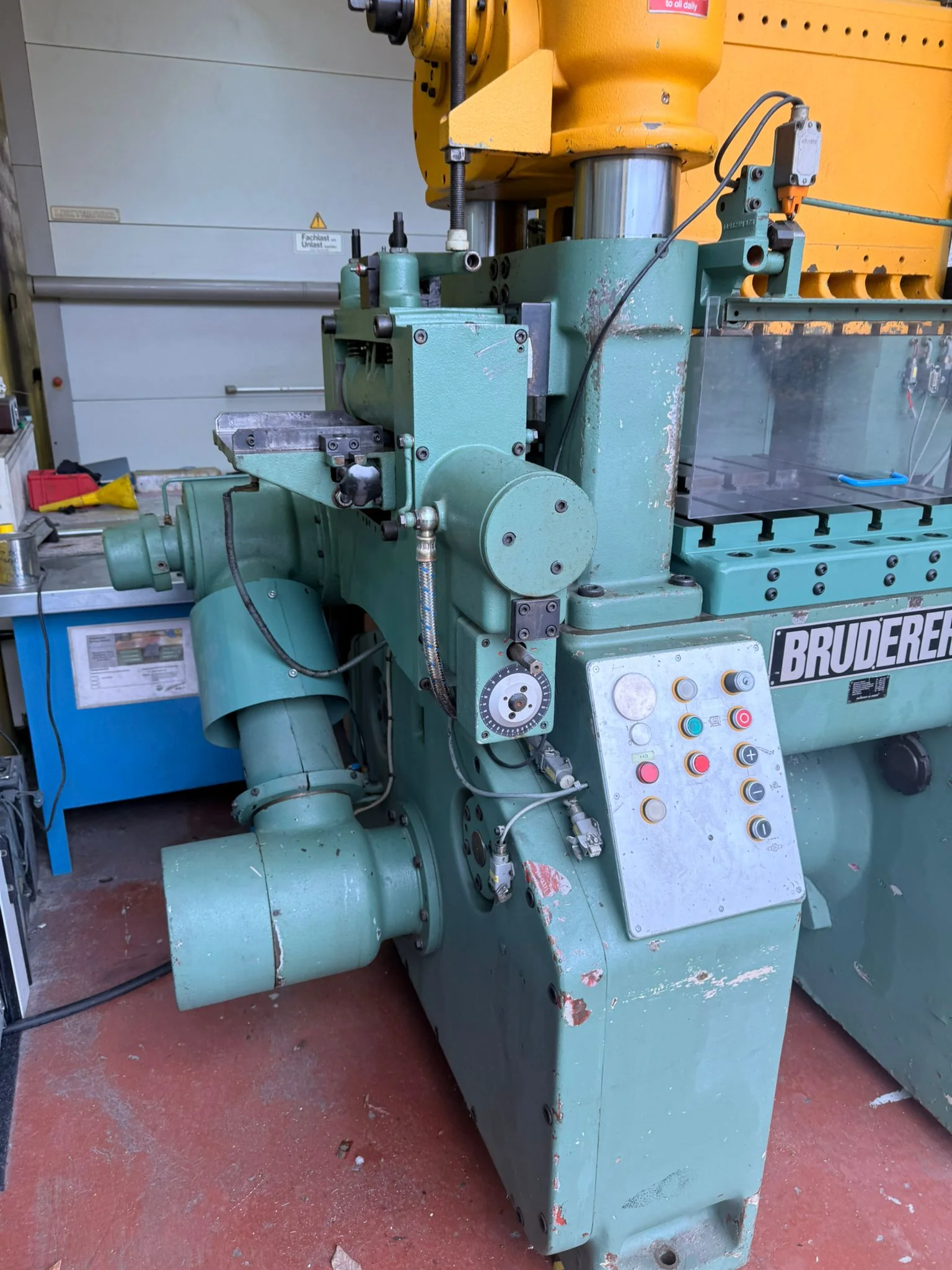

BRUDERER BSTA 60 Ref. 32925
High Speed Stamping Press • ID: 32925
This machine has been sold. If you are interested in a machine of this type, please contact us.
Technical Specifications
Nominal force600 kN
Stroke rate100–800 strokes per minute
Max. feed length200 mm.
YearUnknown (No ID Plate)
Tested under power2025
Drive power30 Hp
Control voltage24V AC
Power connection440VAC / 50Hz

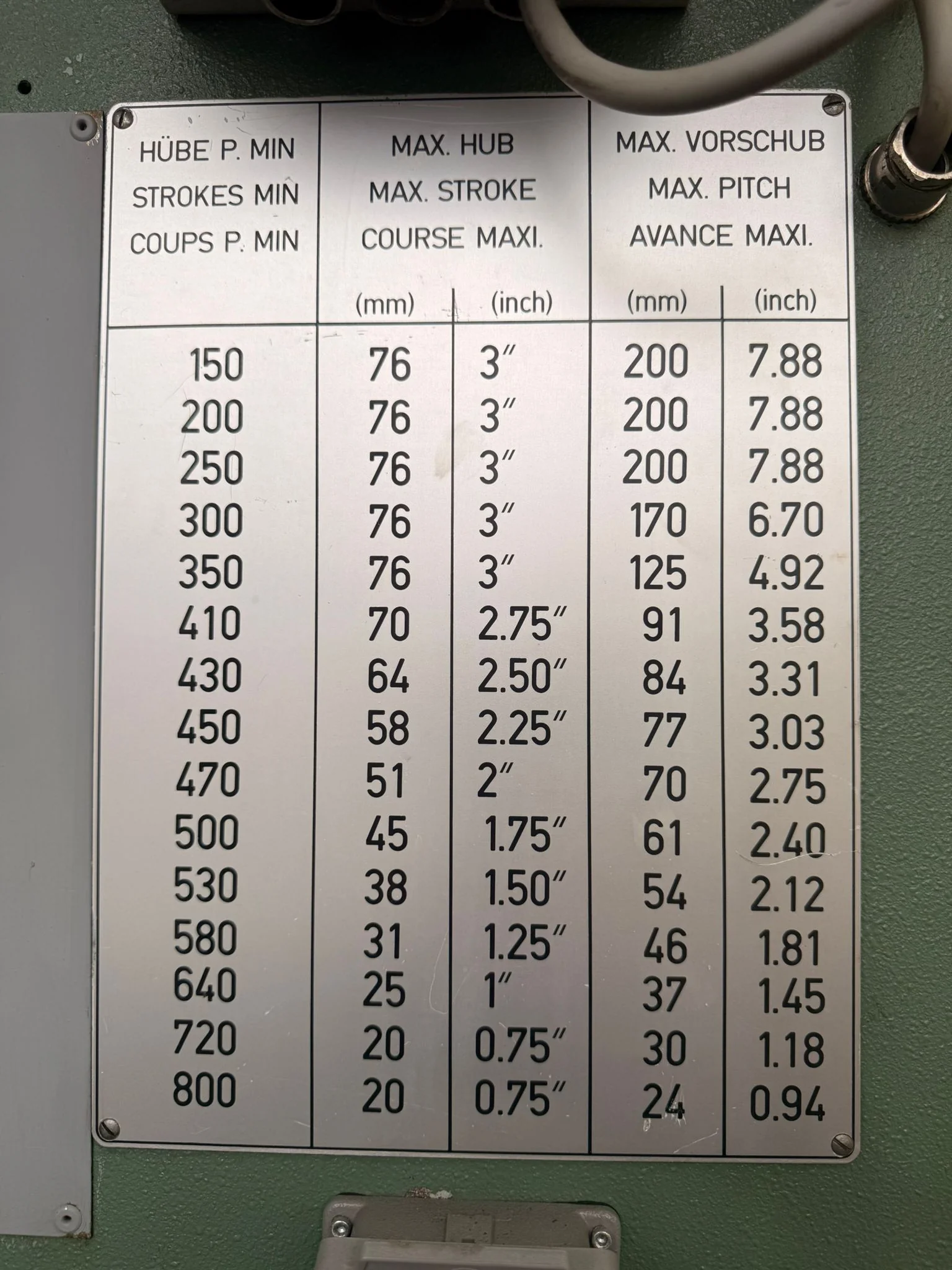

Adjustable stroke20 / 25 / 31 / 38 / 45 /51 / 58 / 64 / 70 / 76 mm
Shut/Ram height adjustment80 mm
Max tool installation width620 mm
Strip pass widthup to 320 mm
Ram area800 × 500 mm

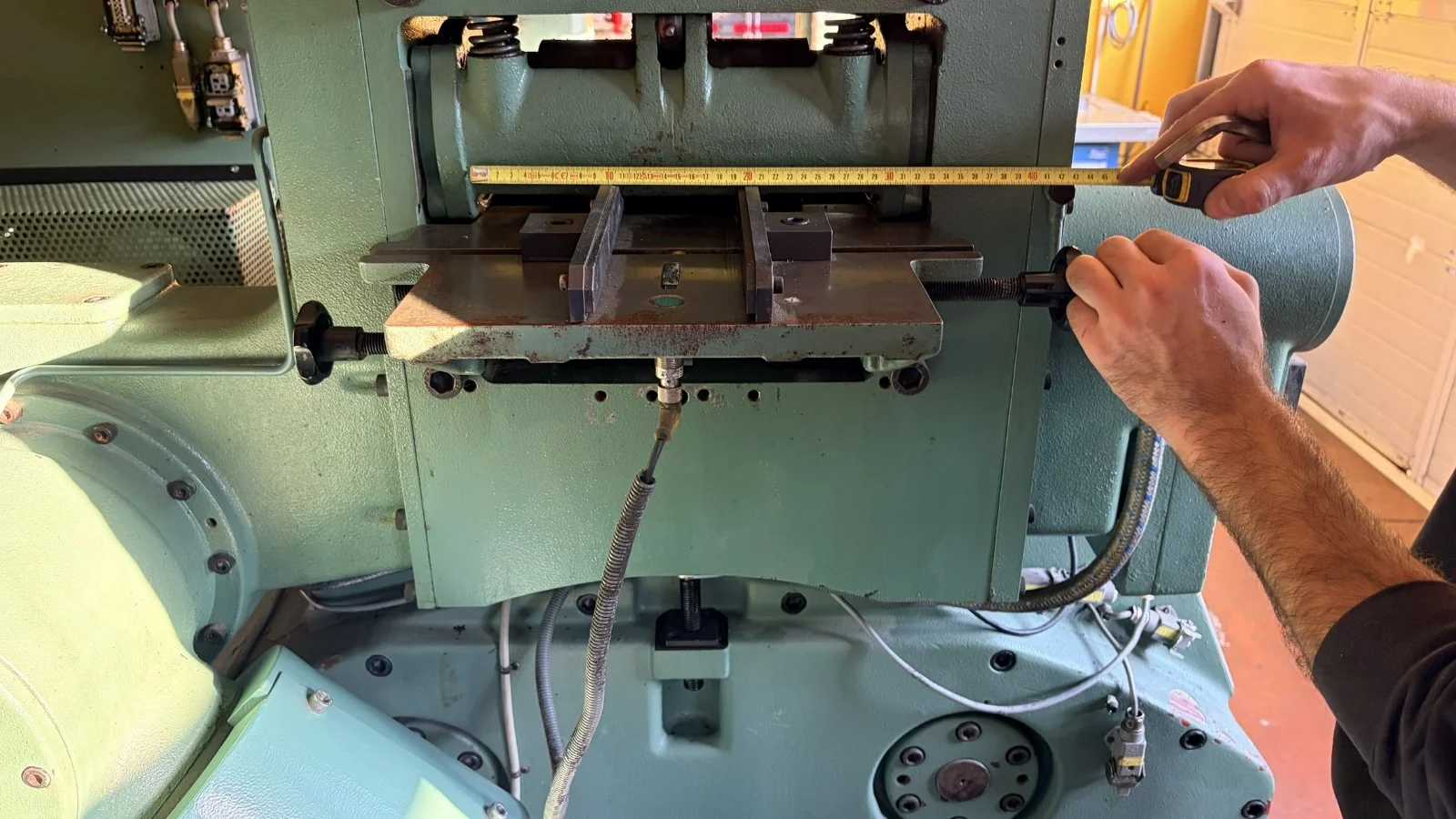

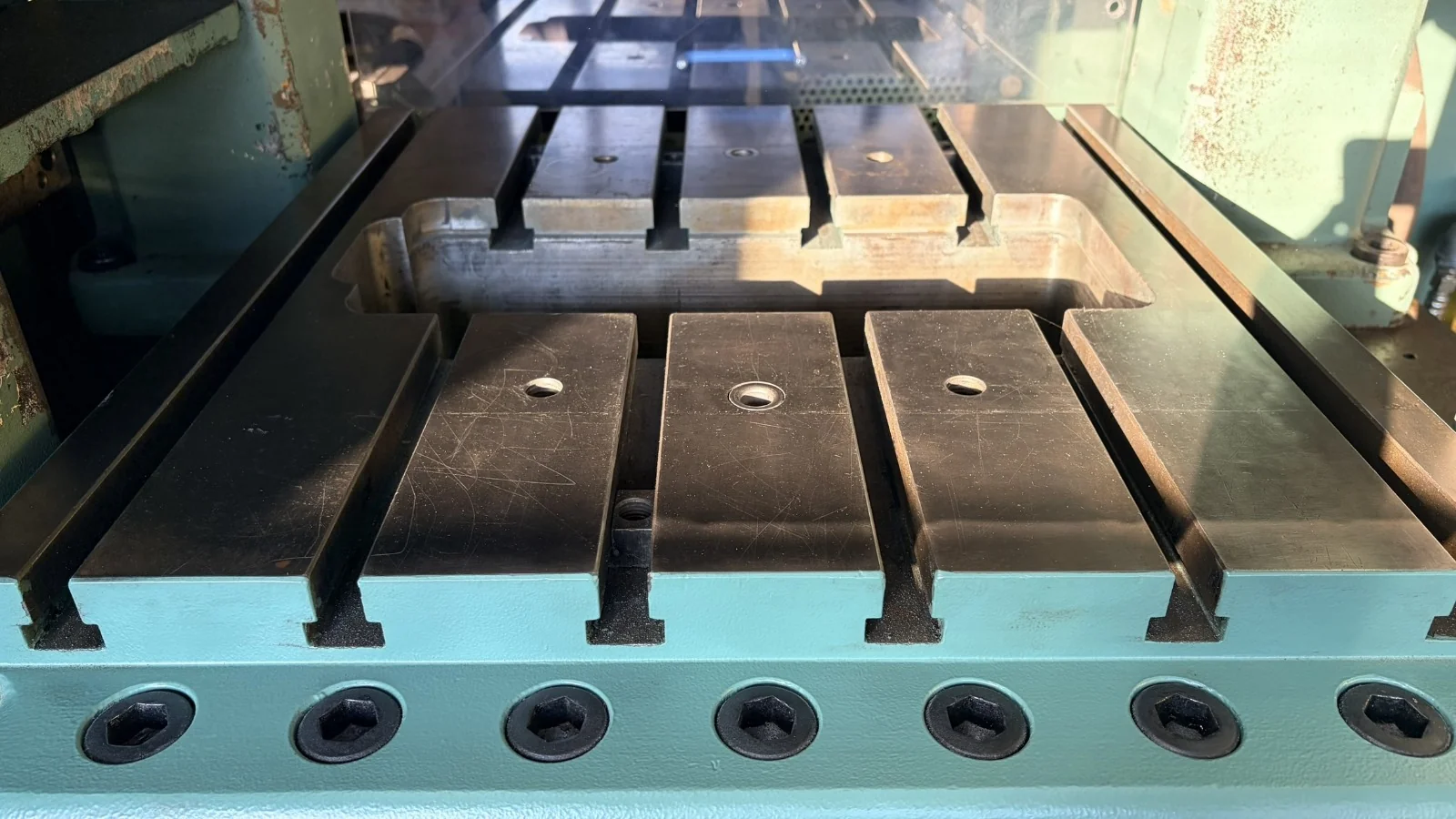

Table area620 × 680 mm
Max strip width300 mm
Max feeding pitch200 mm
Max material thickness6 mm
Feeding angle180 Deg
Machine footprint (L × W × H)2210 × 2075 × 2190 mm
Weight (approx.)8,000 kg
Compressed air connection6–10 bar
