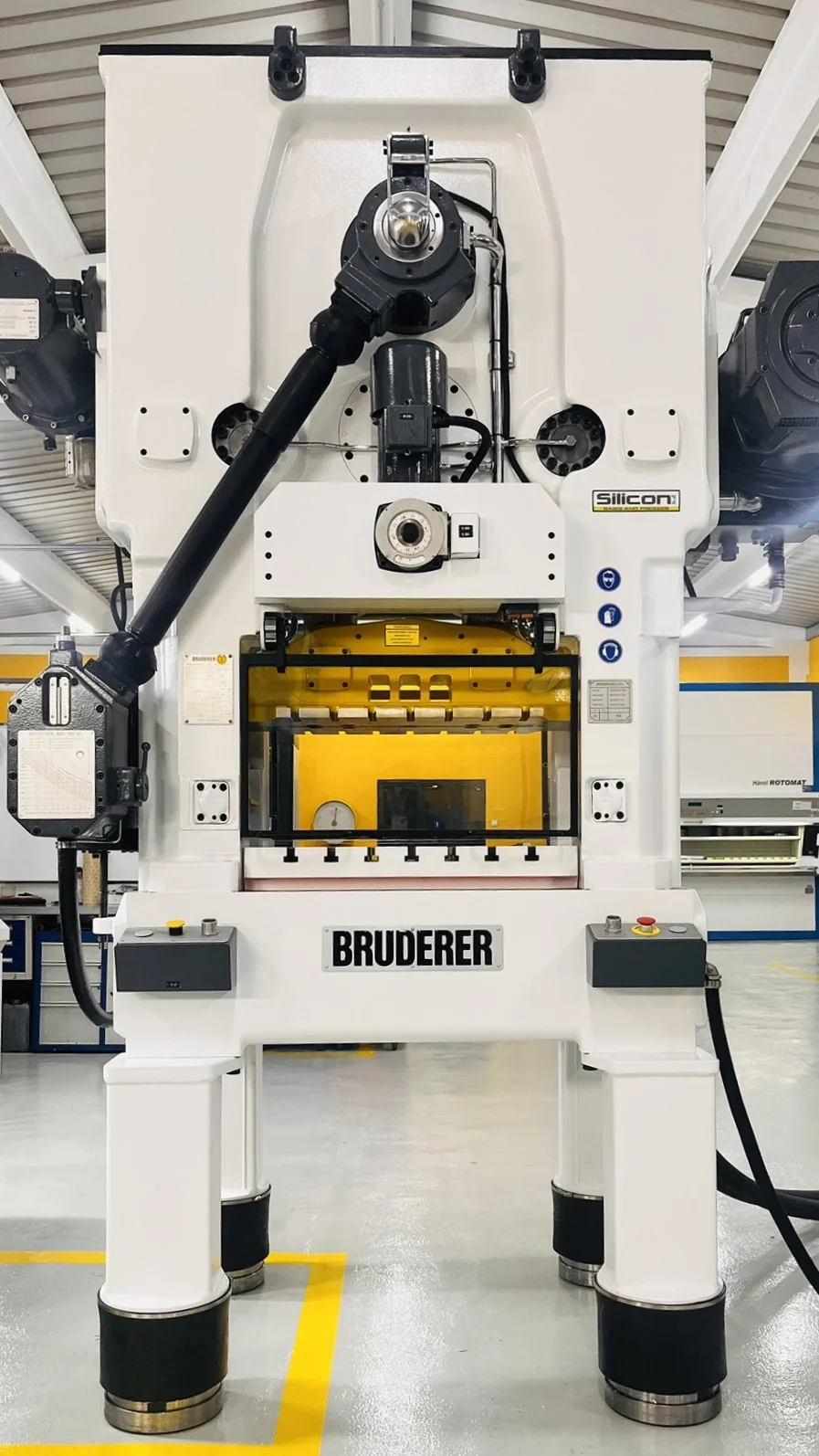

Bruderer BSTA 50H Ref. 23223

BRUDERER BSTA 50 High Speed Automatic Punching Press Max. Pressure: 500 kN (50 T). Speed range: 100 – 1070 spm. Machine overhauled 2024. Year: 1993. Hour-meter: 59295 h. Press tested 1.000.000 strokes in one go. Fitted with roller-gripper feed unit BBV 190/85 on left-hand side. Max. strip width: 160 mm. Max. strip thickness: 4 mm. Max. feeding pitch: 85 mm. Feeding cycle: 180 Degrees. Strip running height from clamping plate: 60 – 140 mm. Stroke: 20 mm. Ram height adjustment: 64 mm. Bolster (Clamping) plate dimensions: 760 x 650 mm. Hole in table: 310 x 90 mm. Bed opening: 730 x 250 mm. Max. Tool width clearance between columns: 770 mm. Max. Strip clearance width: 256 mm. Connected load: 25 kW. Power: 380 V 50 Hz. Control voltage: 24 V. Machine dimensions: H 3040 x W 2400 x D 1278 mm. Weight of machine: cca. 7800 kg. Electrical cabinet and control. Fault monitoring system. Oil pump. Oil cooler. Fitted with spring feet dampers. Front and rear safety guards with inspection glass. Also on stock high speed presses: Mabu, Schaal and other Bruderer models.
