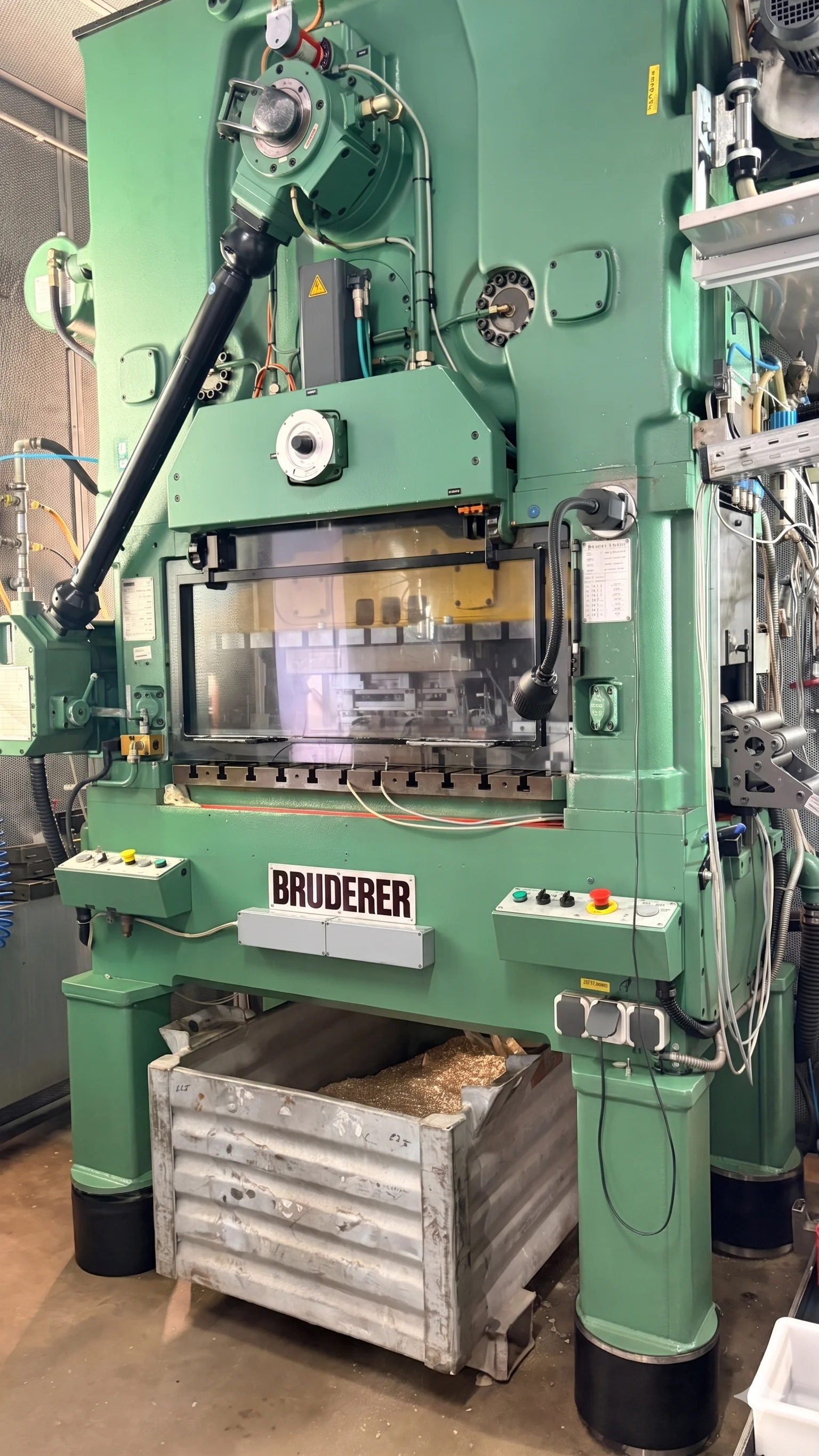

BRUDERER BSTA 500-110B Ref. 35426

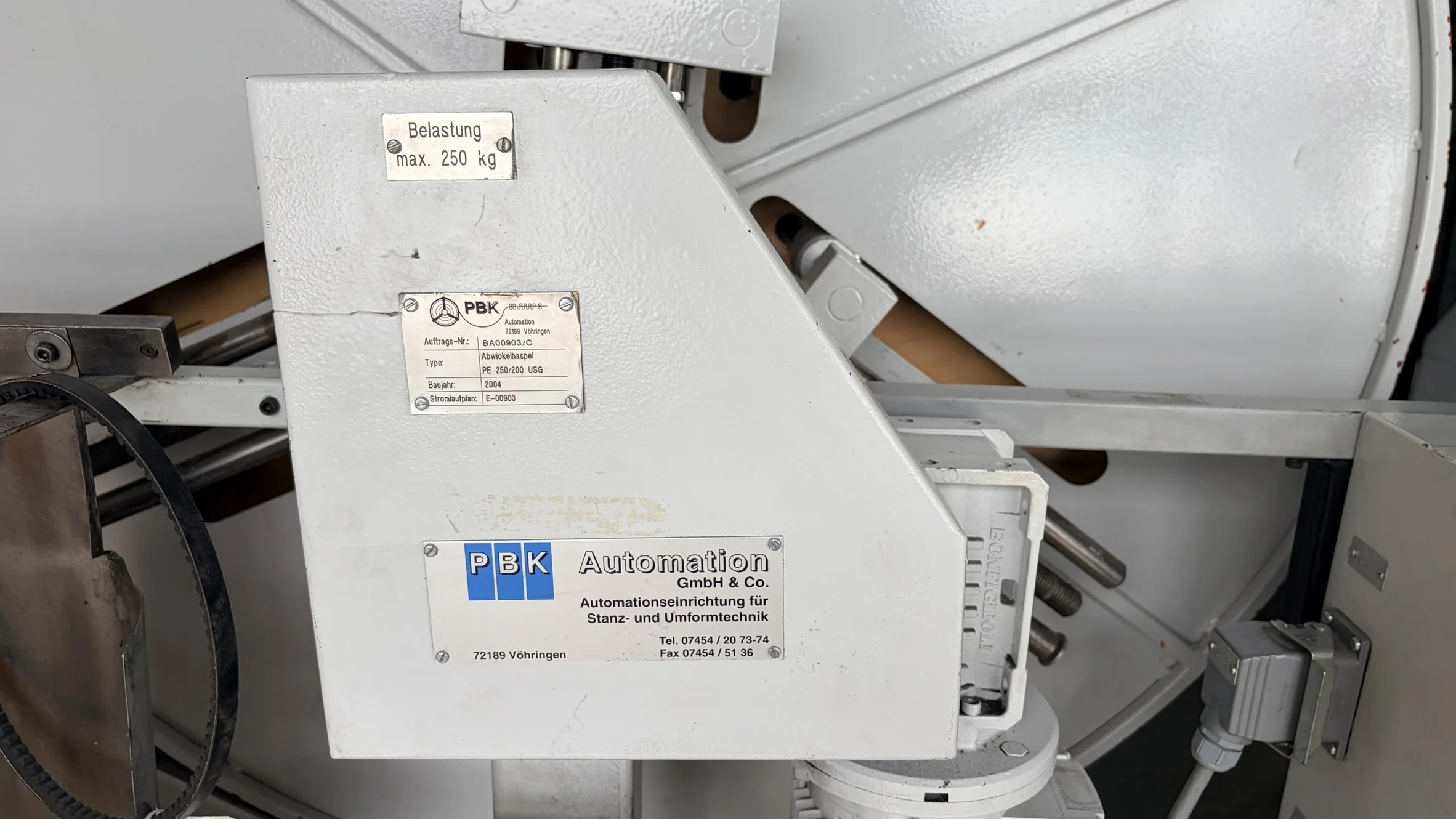

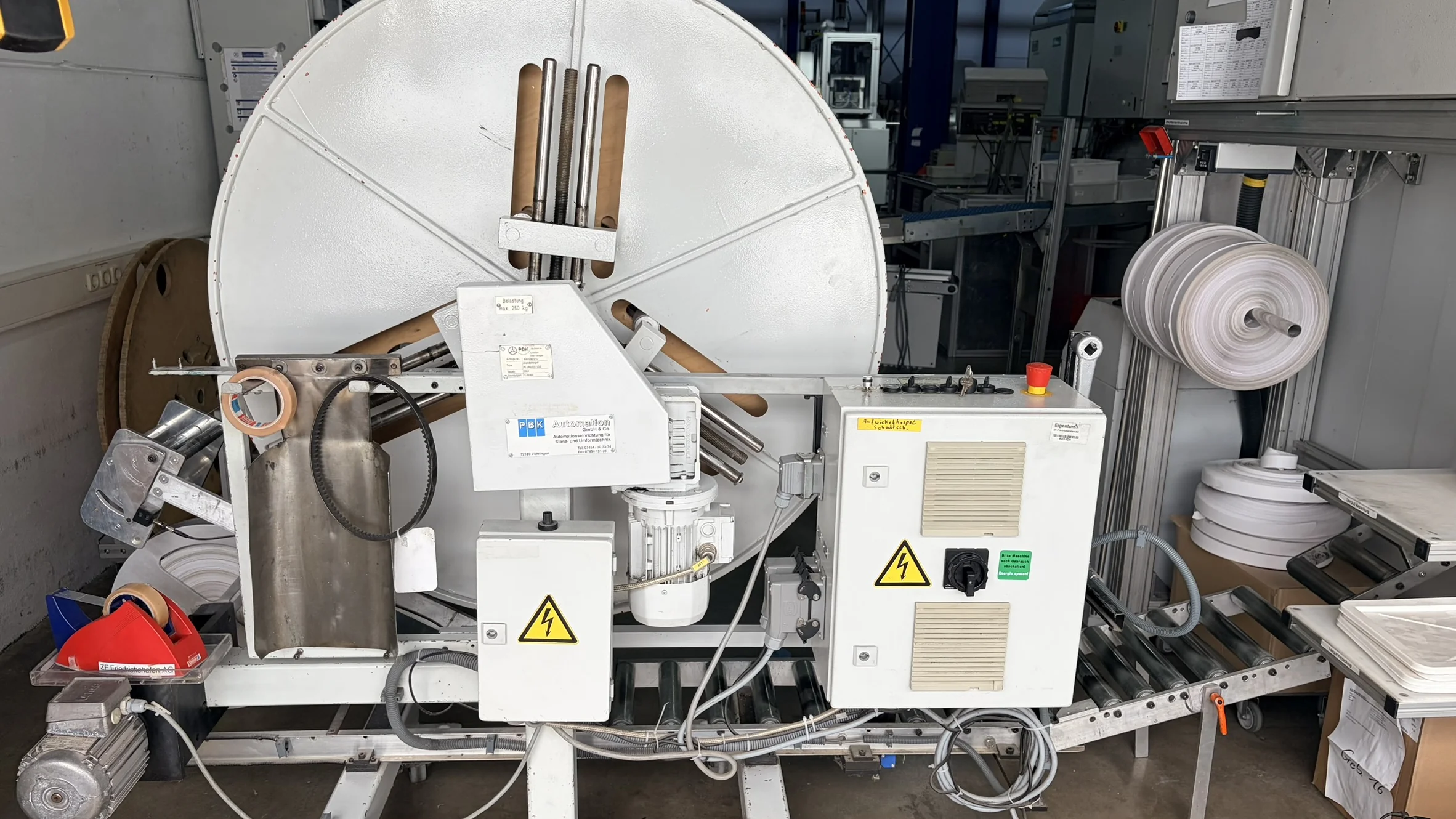

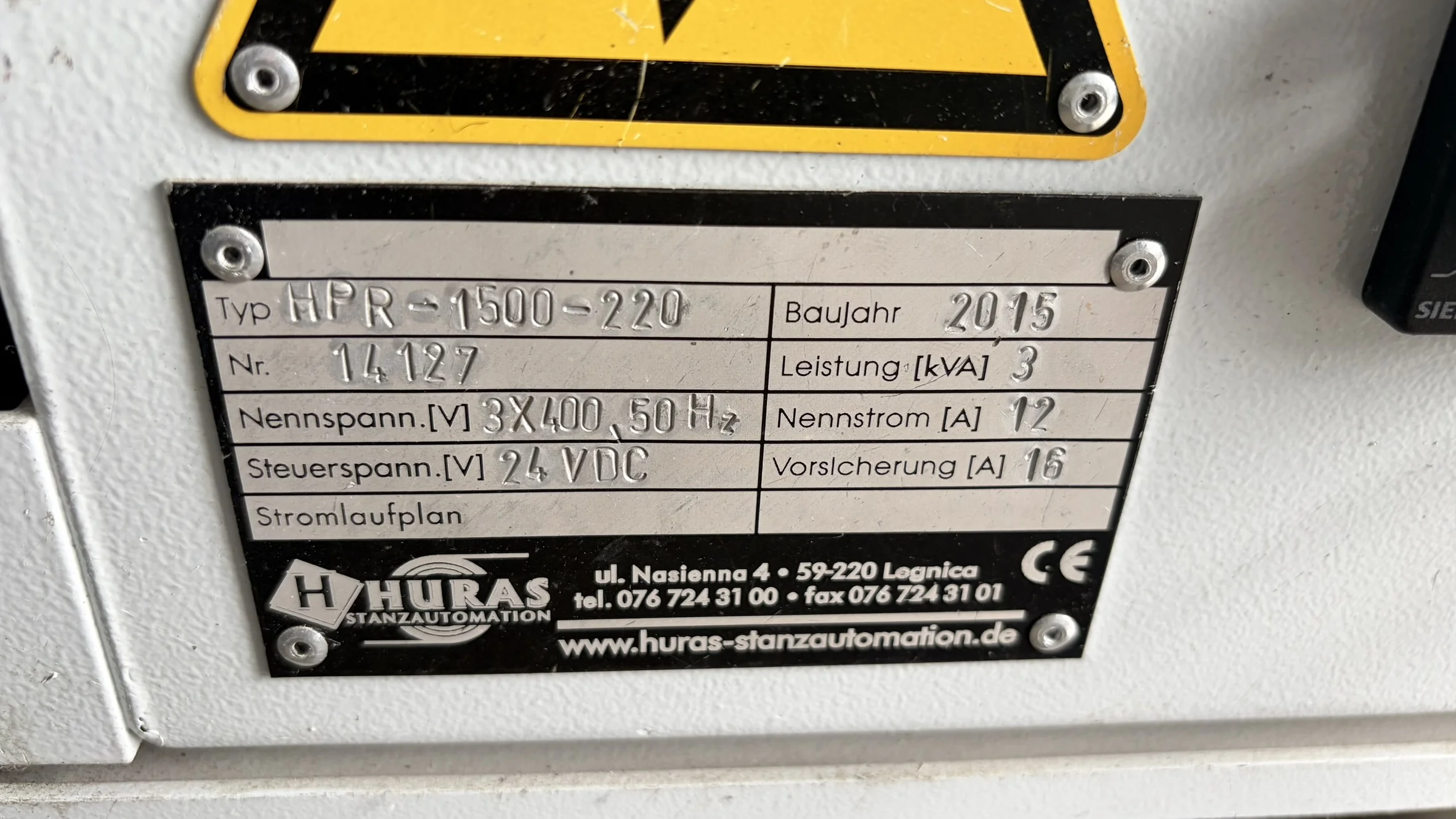

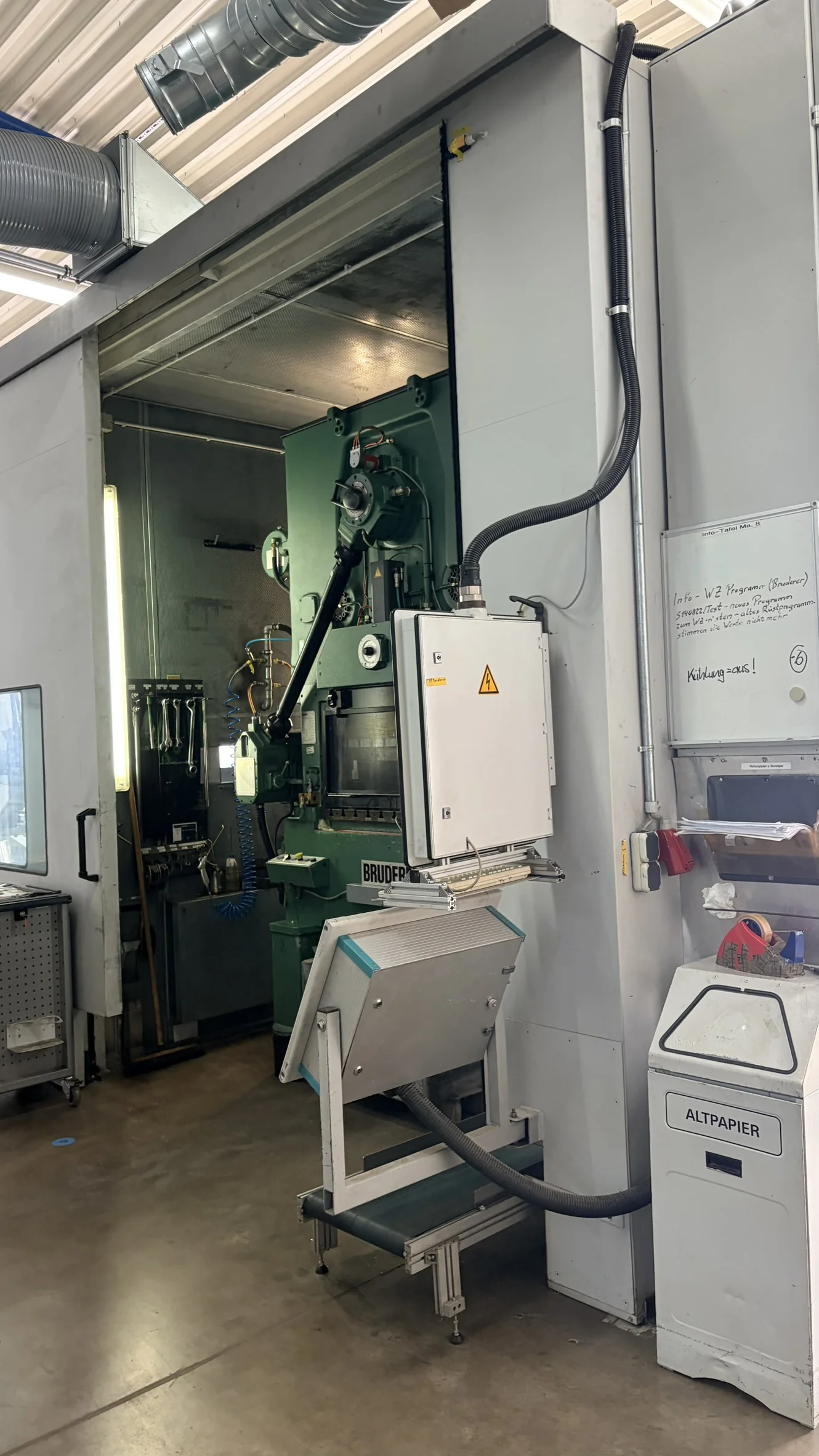

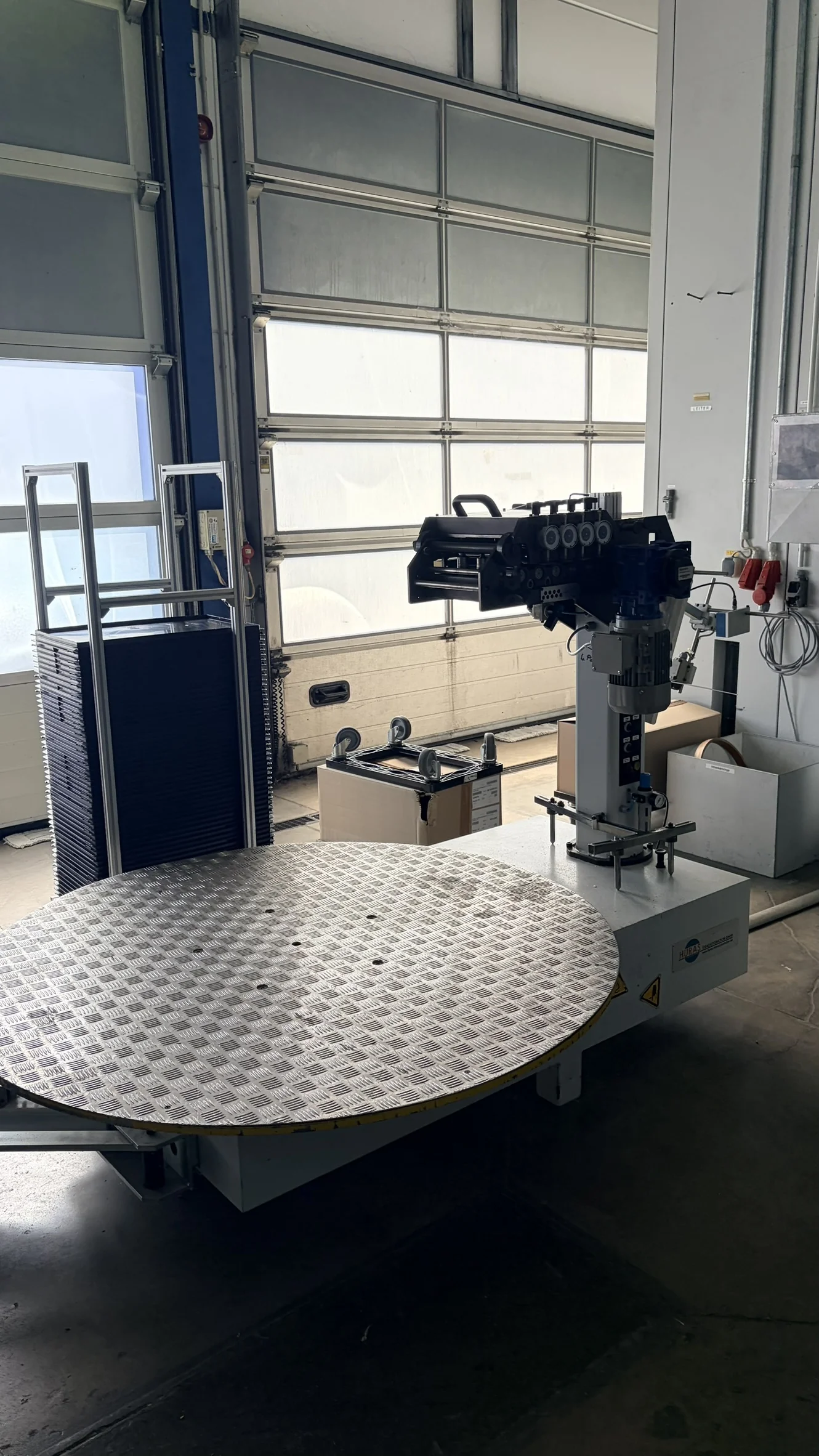

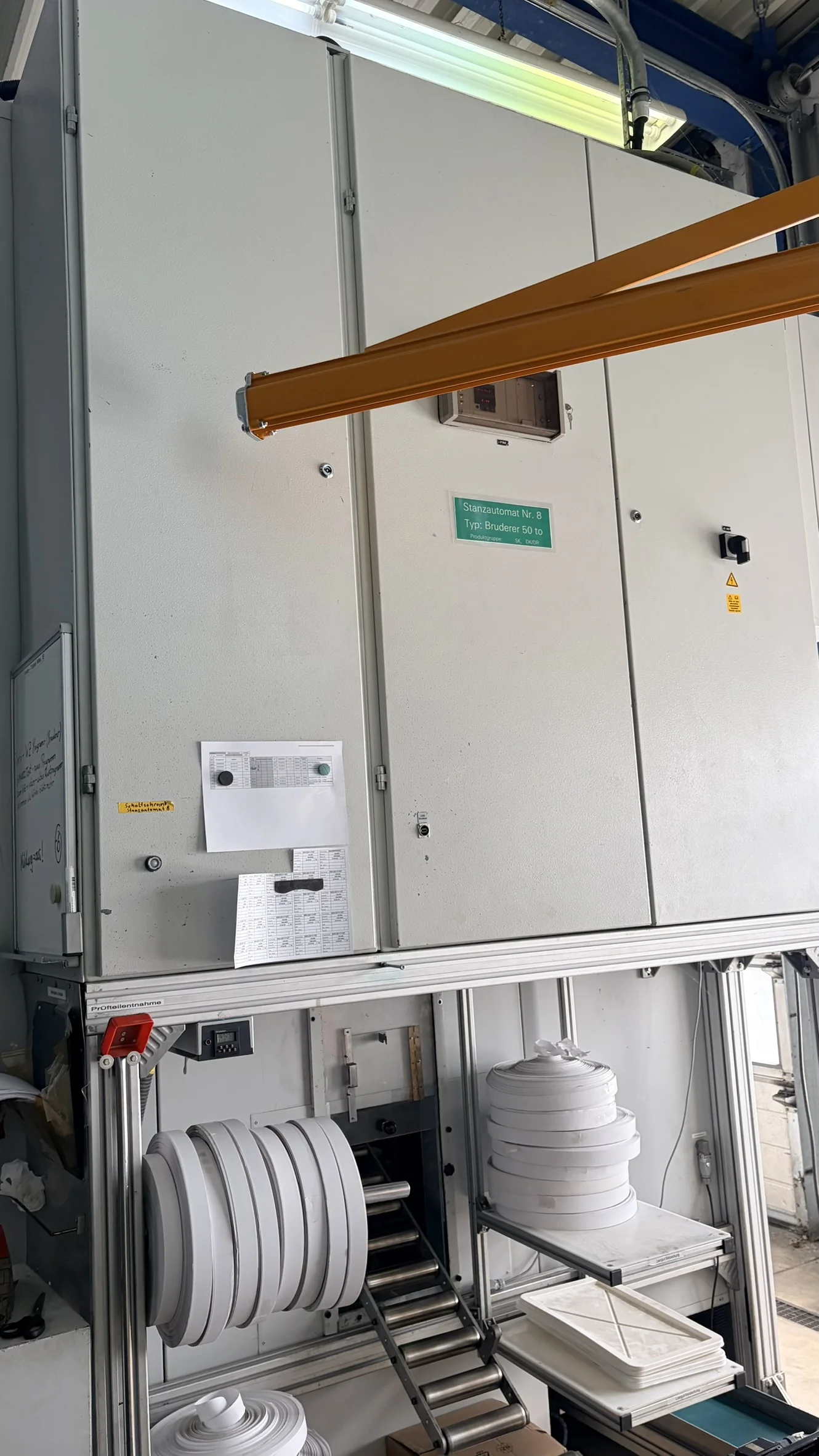

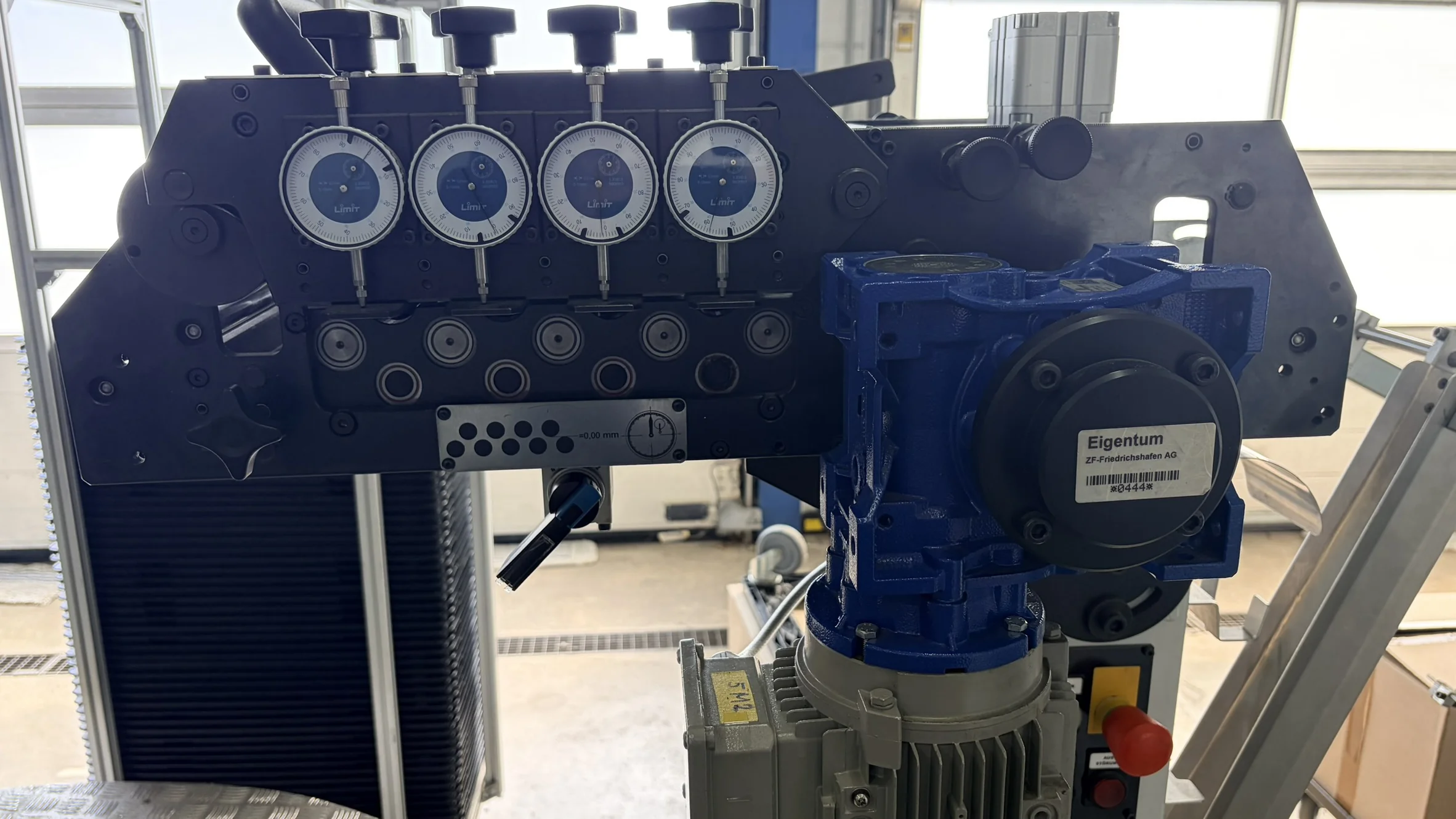

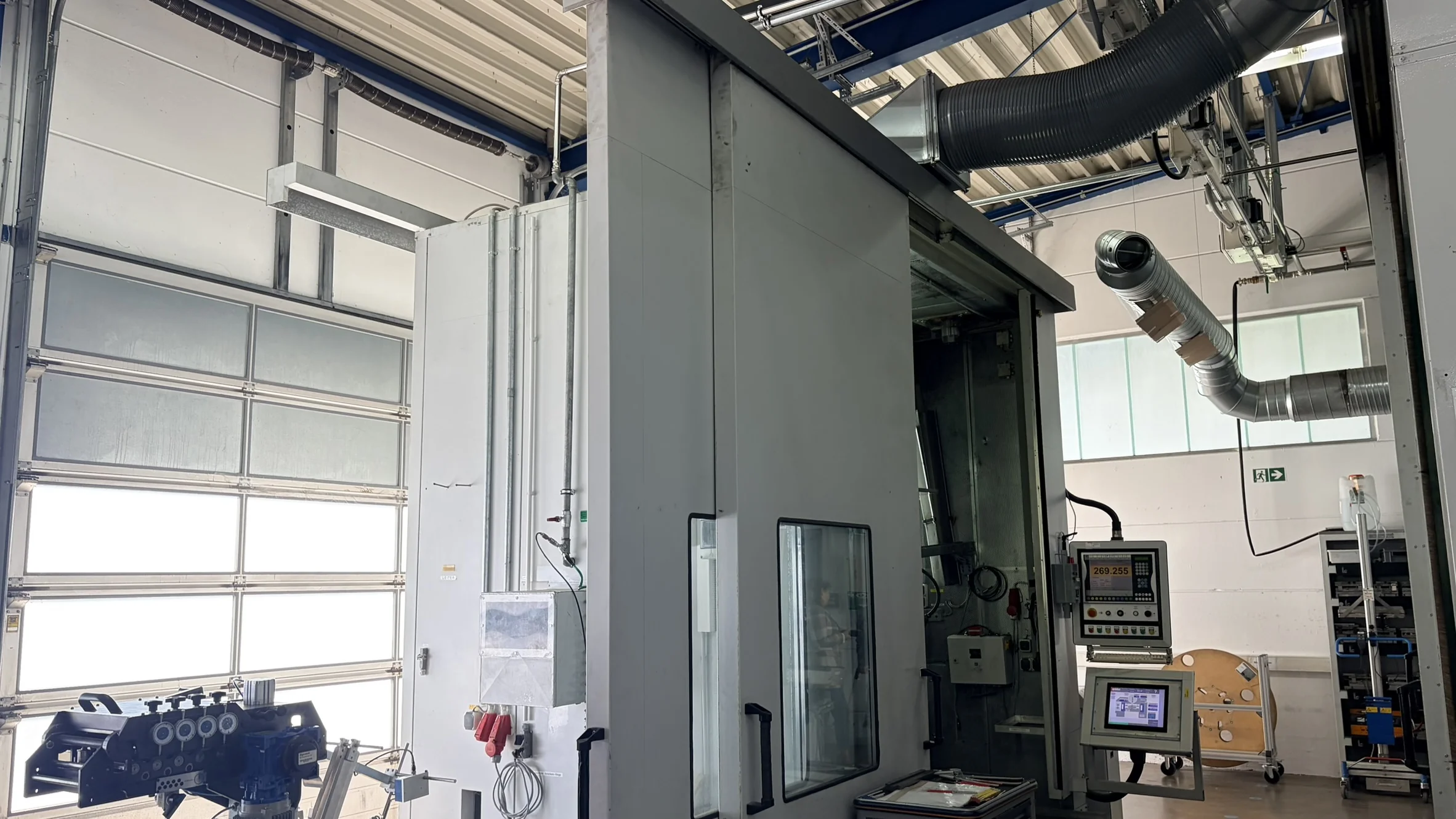

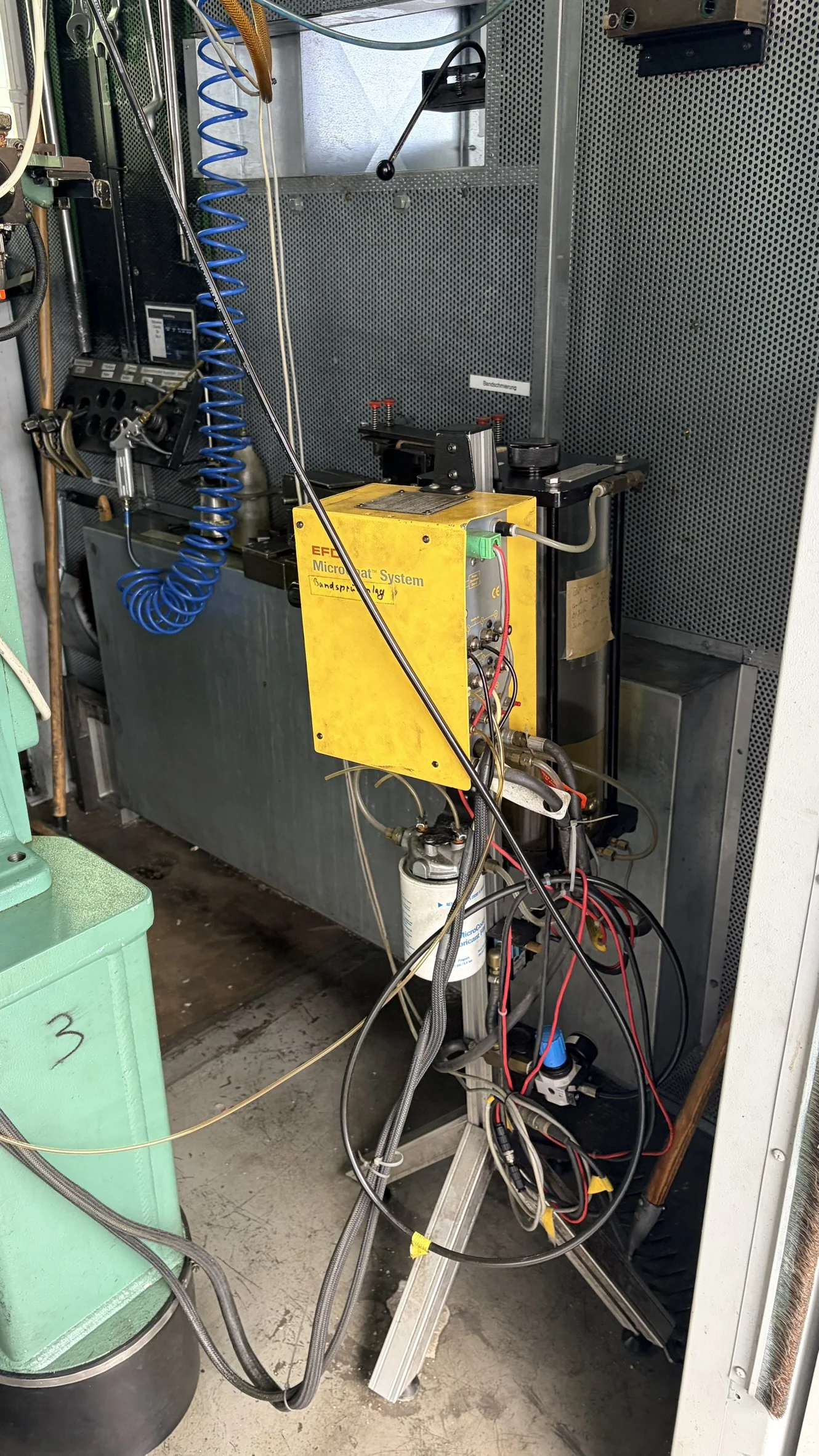

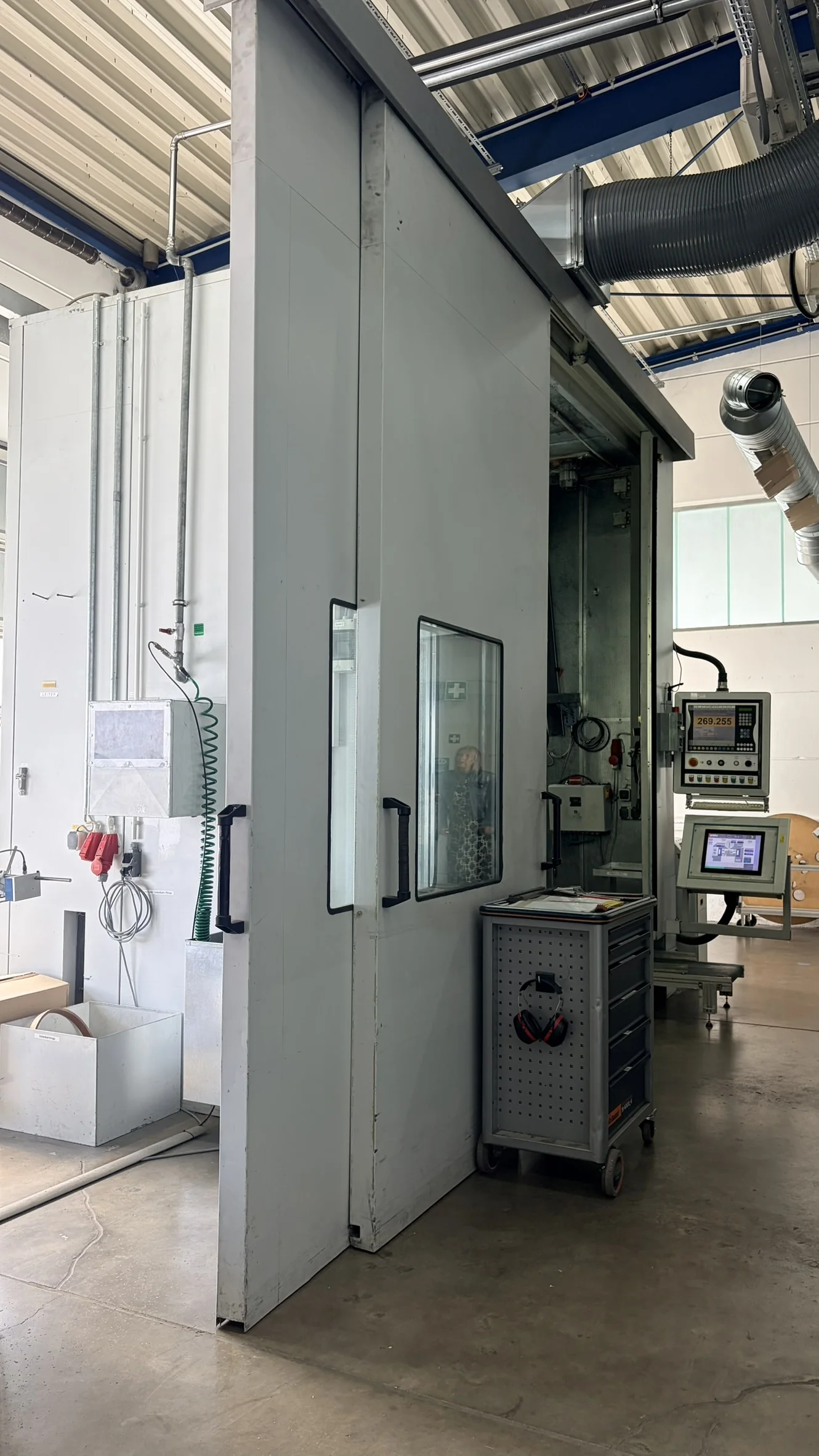

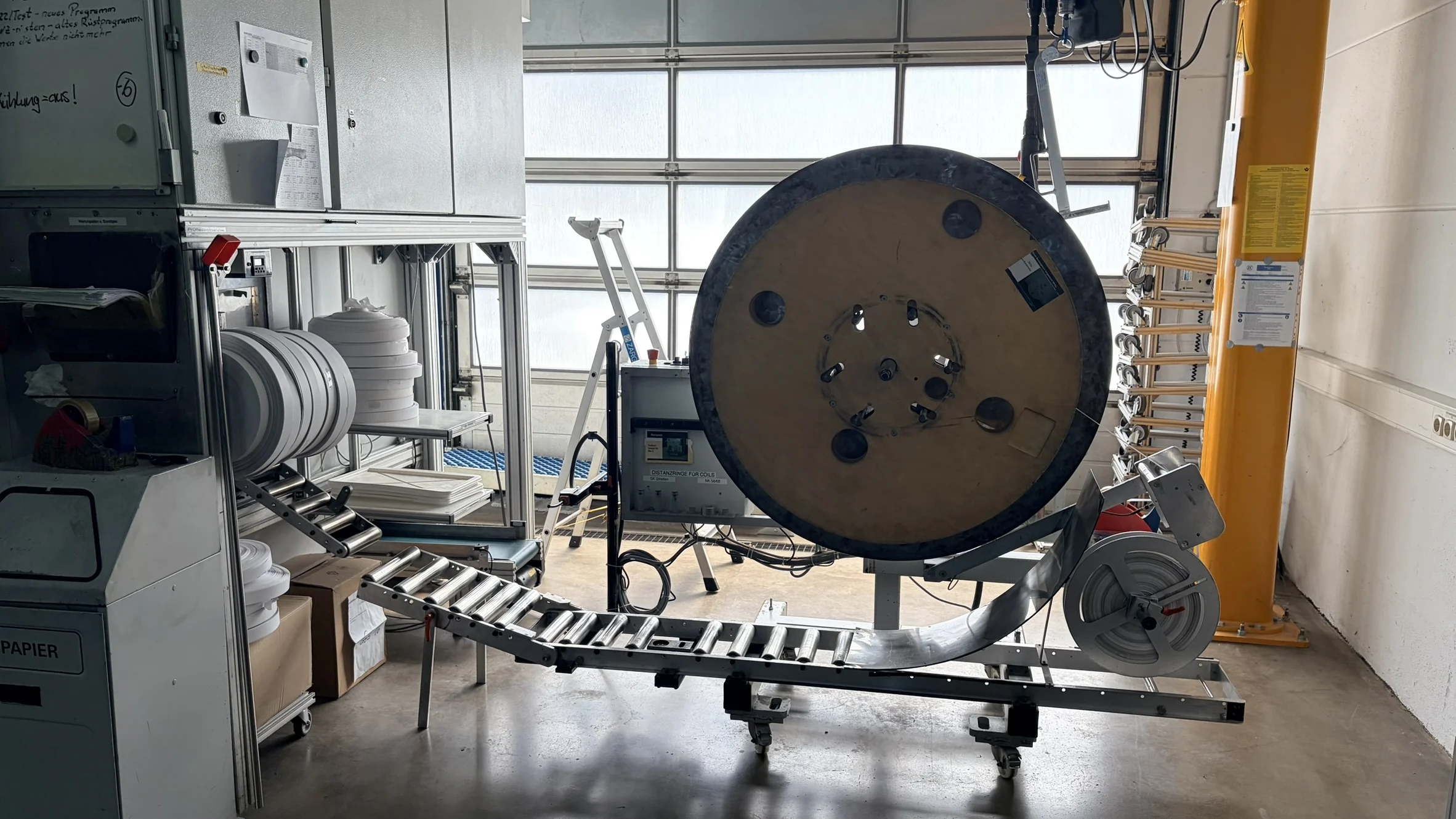

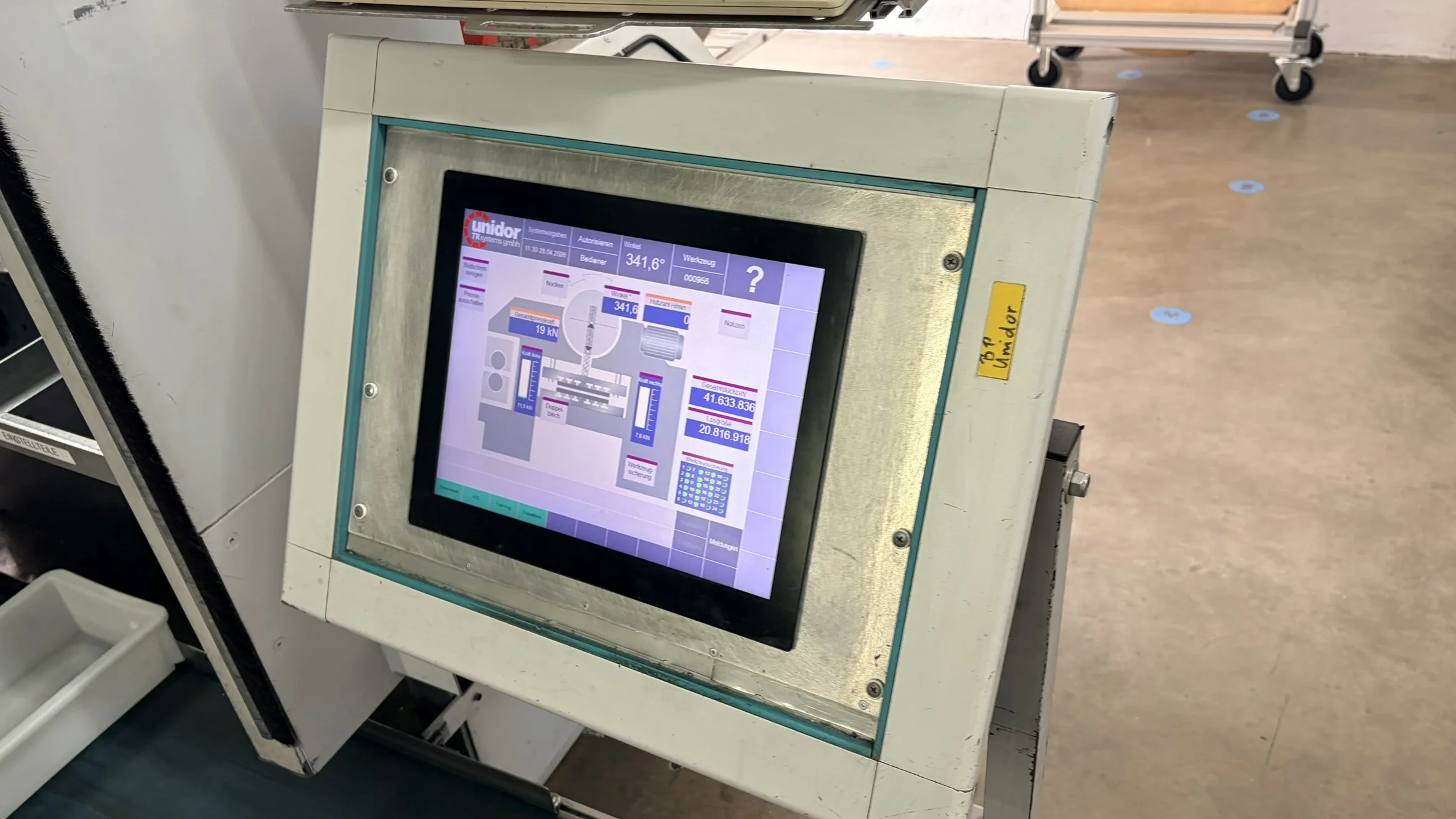

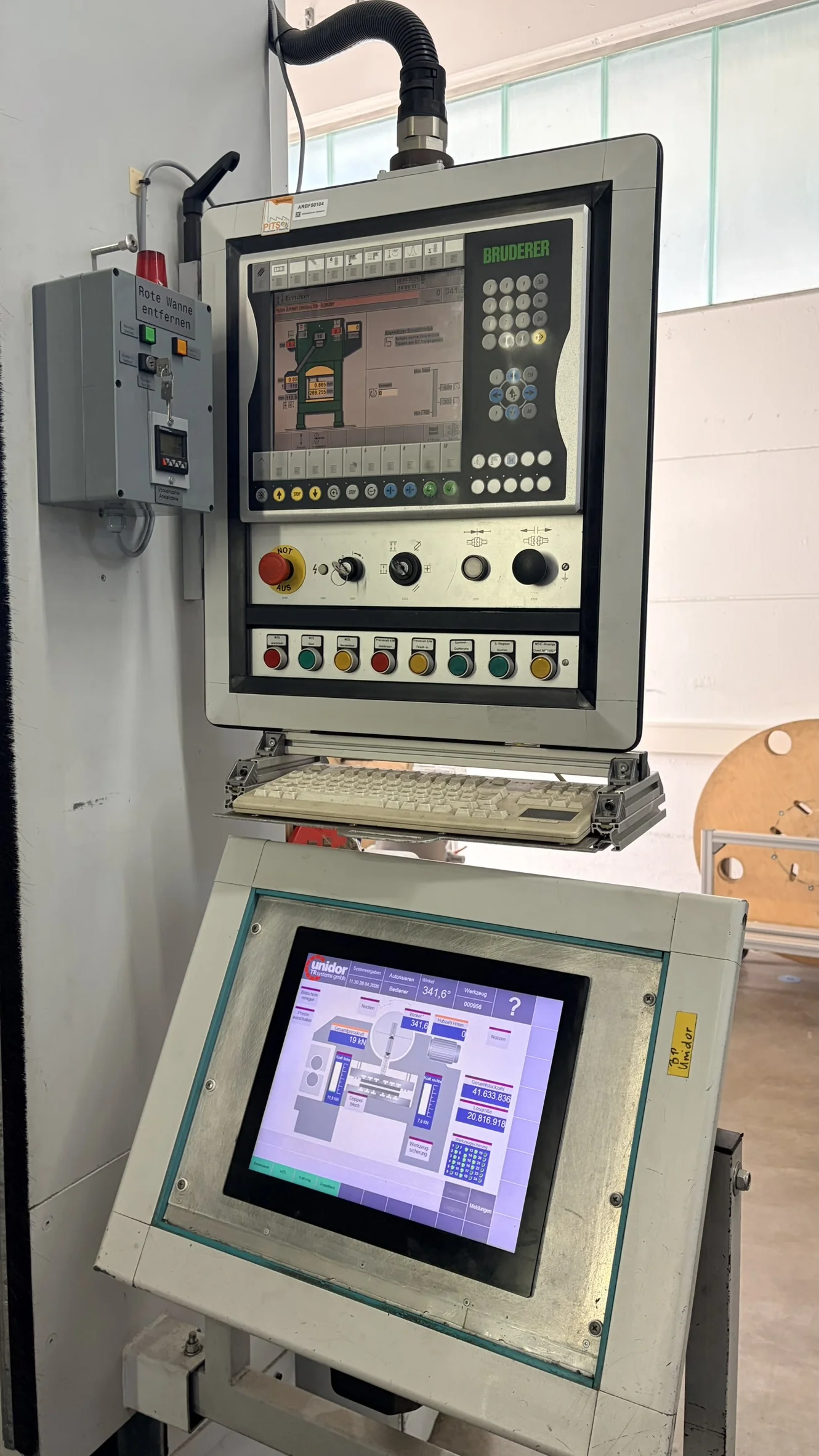

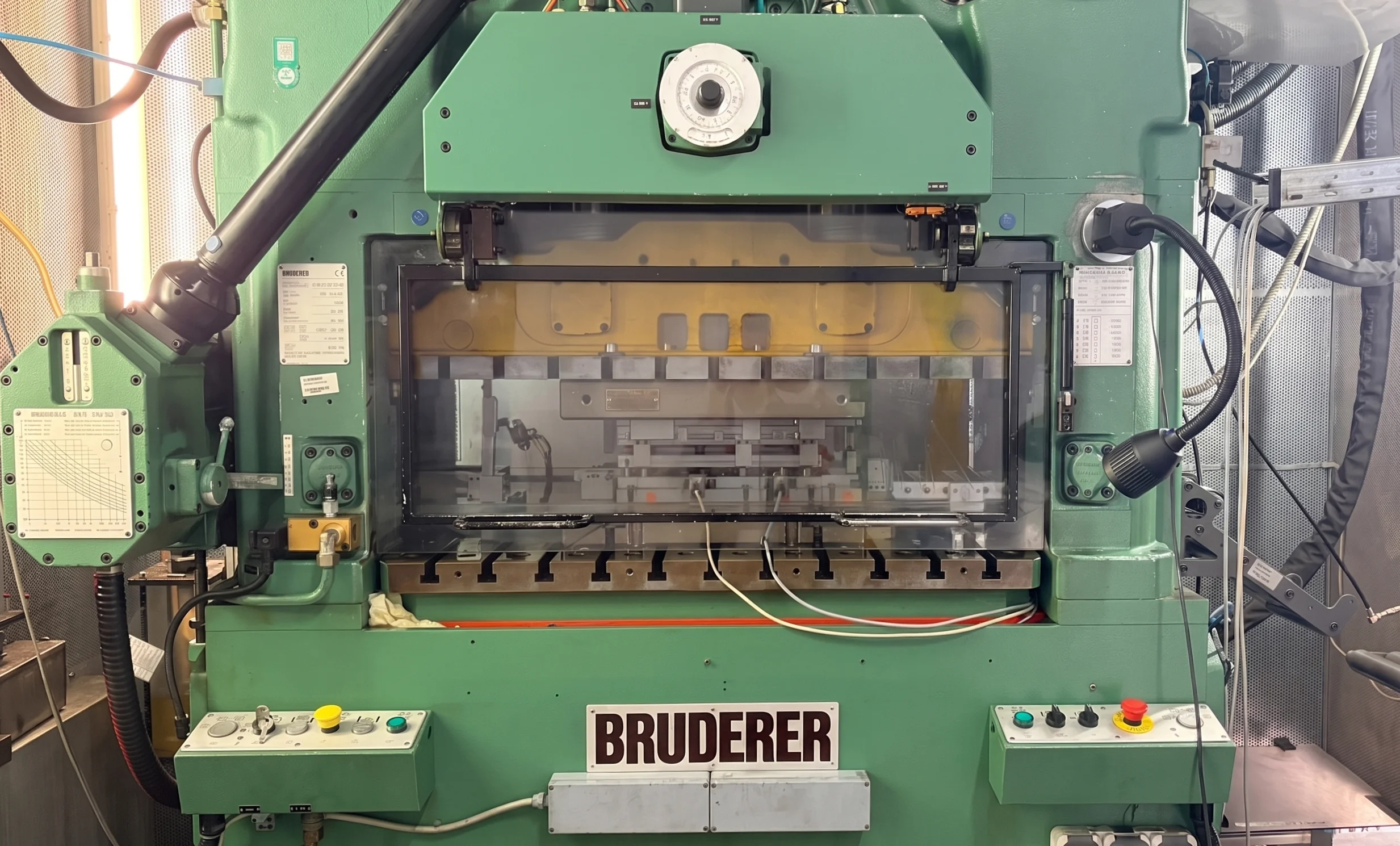

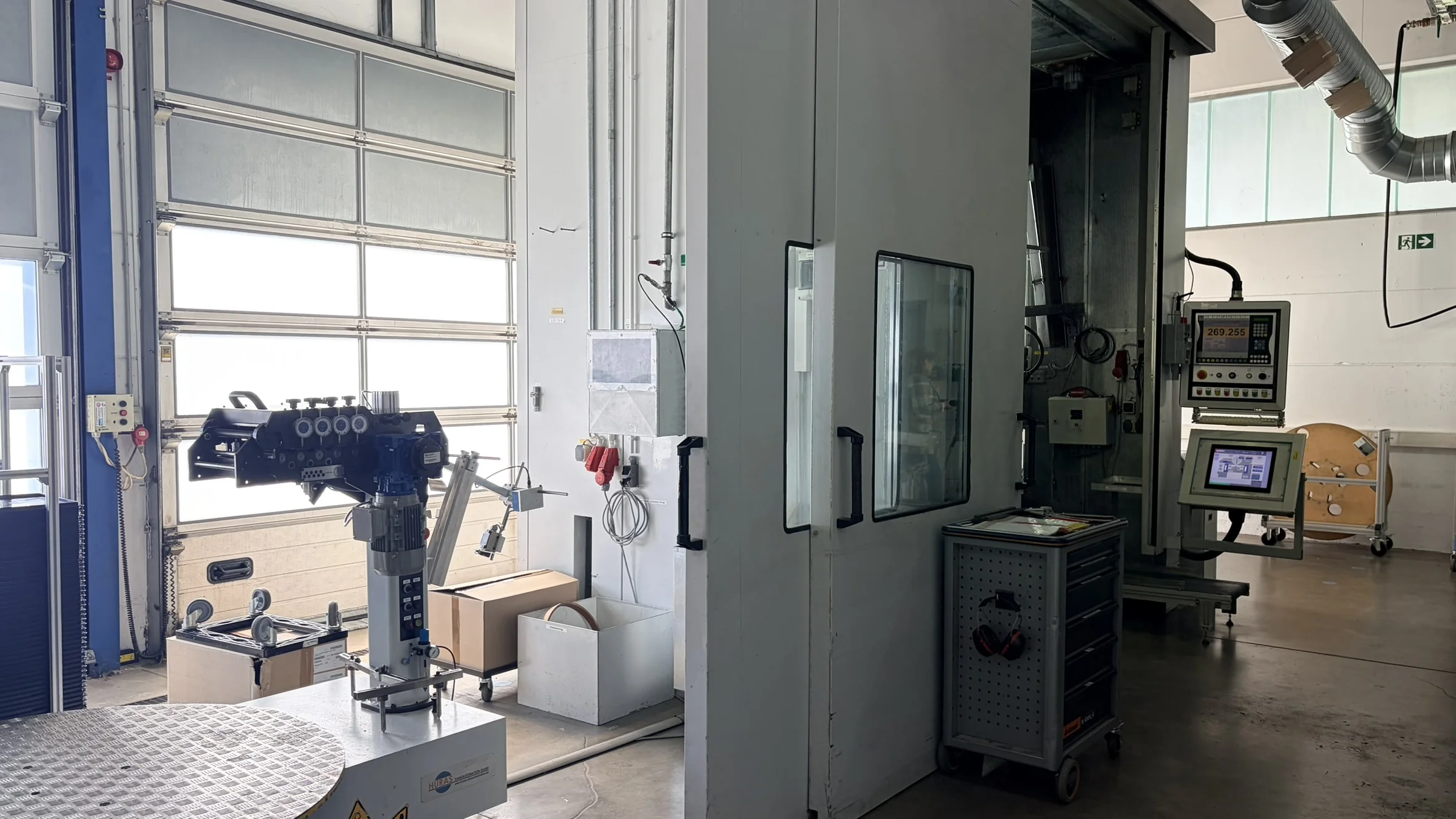

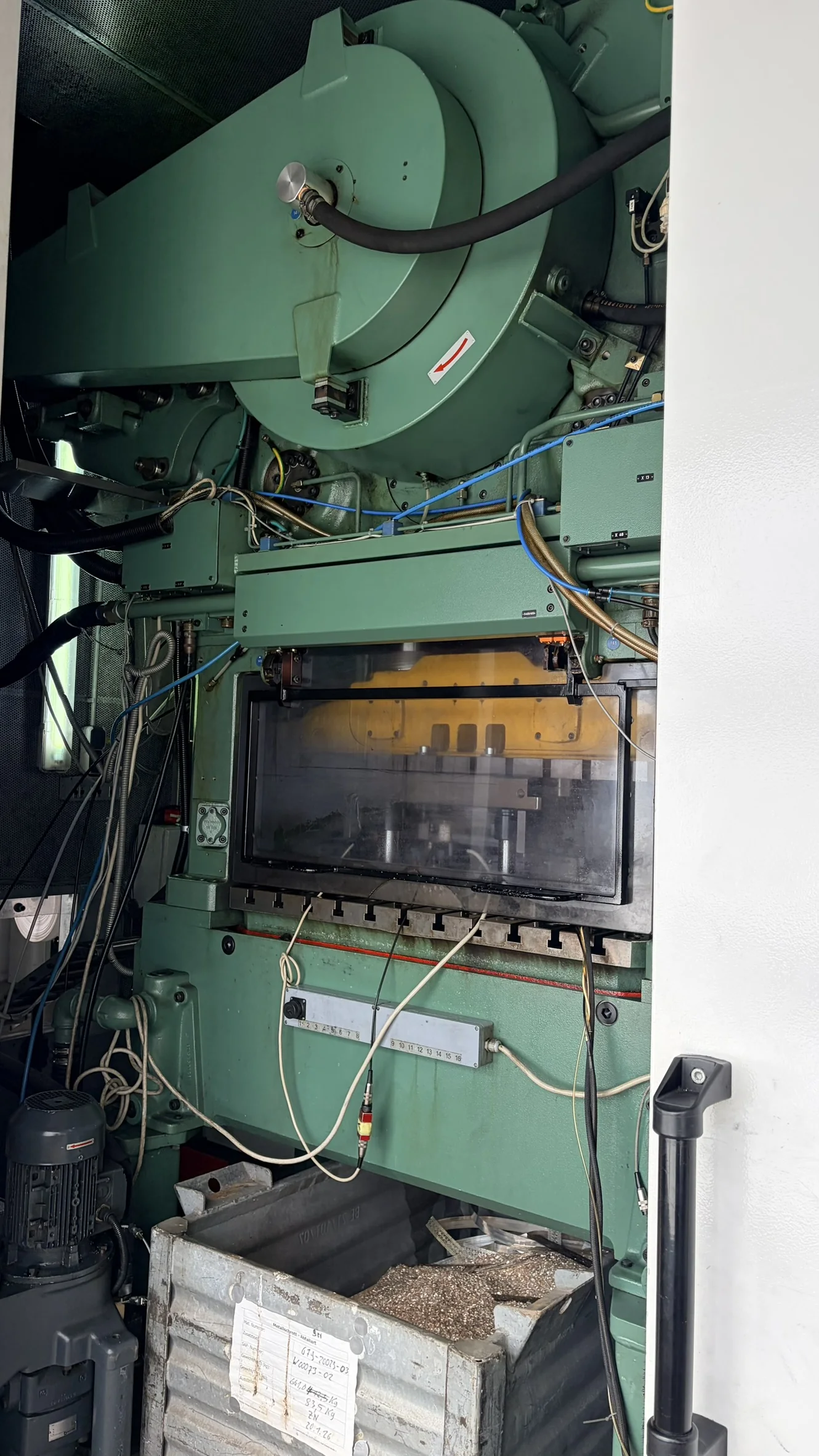

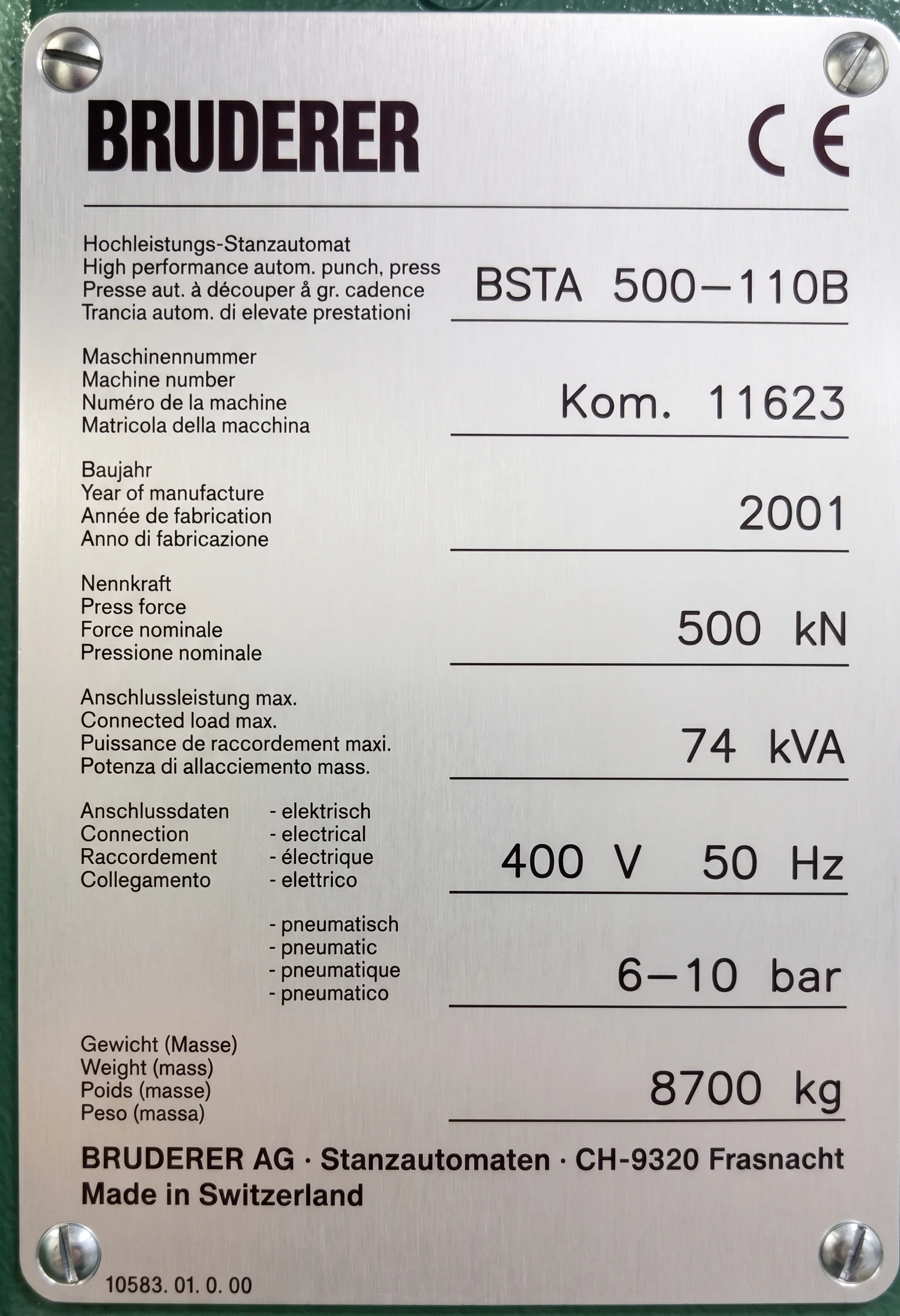

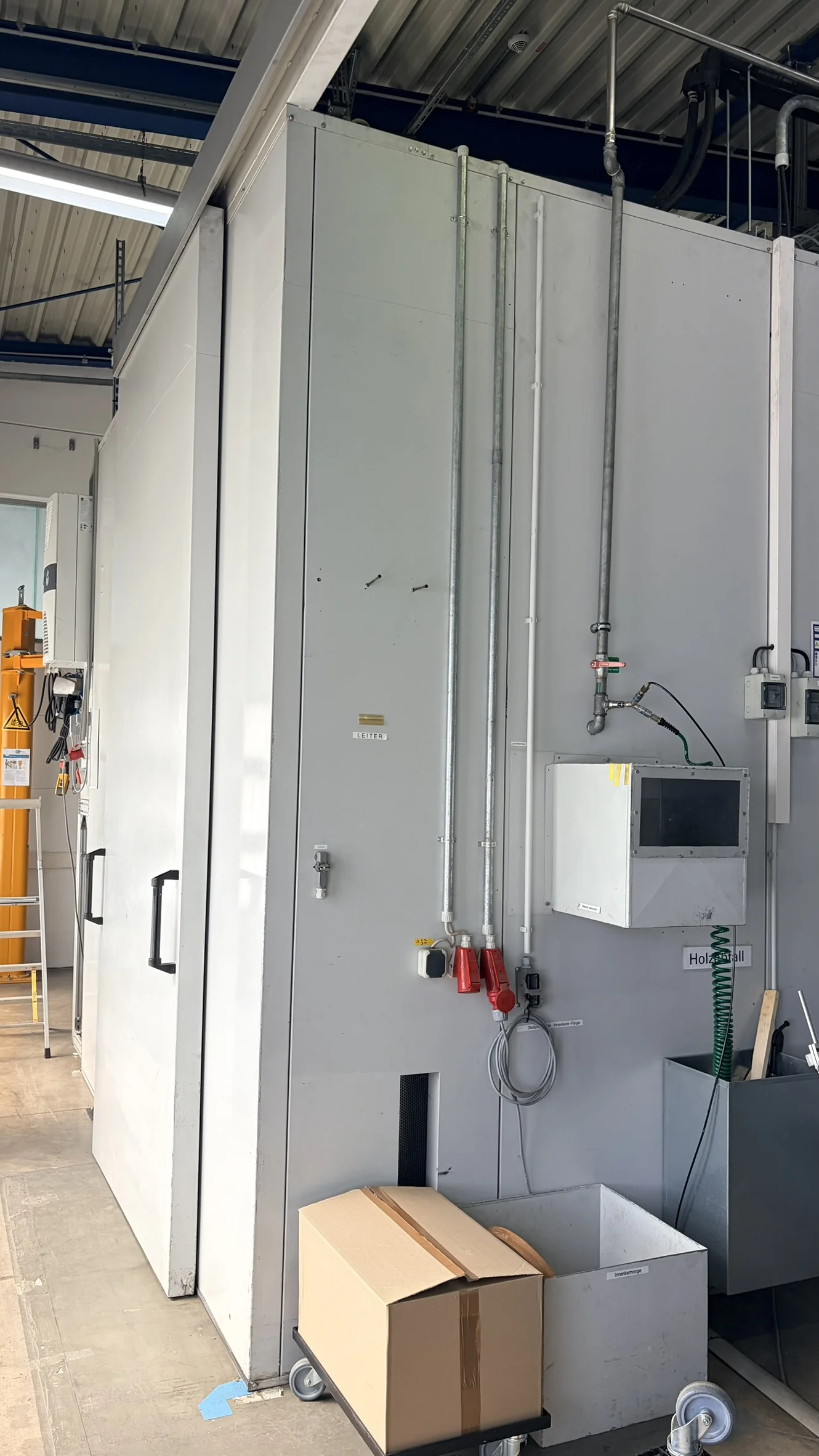

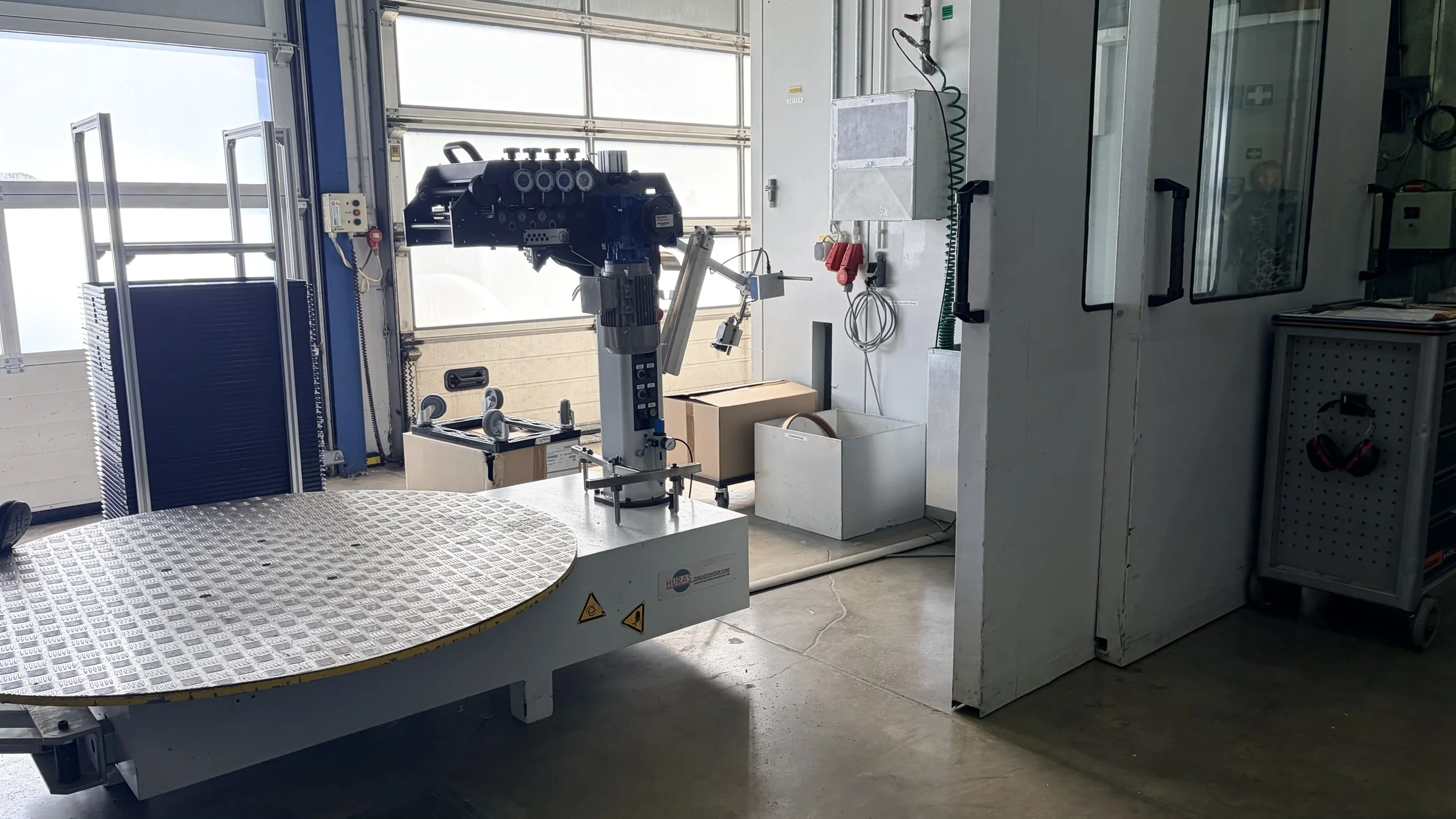

A whole coil-to-part installation was built around this Bruderer, from decoiler through lubrication to coiling of the finished strip. The press itself was watched over by a Unidor system, and its nameplate carries CE marking. Working room inside the acoustic enclosure was 3,460 mm x 2,331 mm x 3,910 mm. Ancillary machines EFD Micromat strip lubrication system. PBK PE 250 200 USG coiling machine, 2004. HURAS HPR 1500 220 horizontal decoiler, 2015. Output conveyor for the finished parts. Press in brief Nominal press force 500 kN, year of manufacture 2001. Tool opening width max. 1,100 mm; ram face 980 x 420 mm; baseplate opening 1,060 x 200 mm. 22 kW inverter-driven main motor, 3 x 400 V / 50 Hz, max. 74 kVA, 24 V DC controls. Type B press control, software 7.3.5, German and English. Original technical documentation and schematics were kept with the installation. Remaining values can be read from the specification table alongside. Reference number 35426, Bruderer BSTA 500-110B stamping line.
