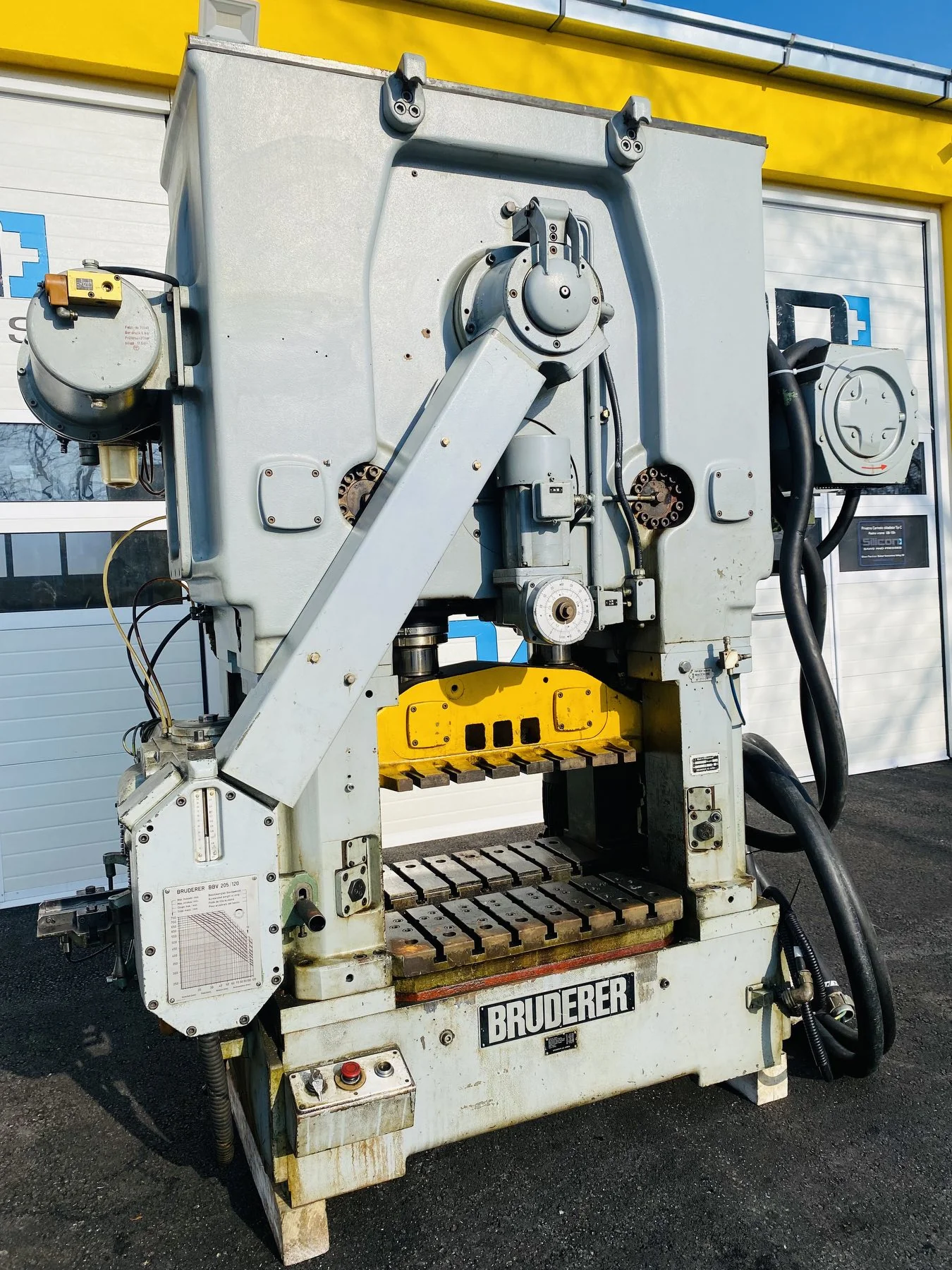

Bruderer BSTA 50 L Ref. 13626

Max. Pressure: 500 kN (50 T). Year of production: 1979. Fitted with roller-gripper feed unit BBV 205/120 on right-hand side. Max. strip width: 200 mm. Max. feeding pitch: 120 mm. Adjustable stroke: 16; 19; 25; 32; 38; 44; 51. Ram height adjustment: 60 mm. Max. Tool width clearance between columns: 770 mm. Max. Strip clearance width: 200 mm. Bed opening: 730 x 250 mm. Connected load: 28 kw. Freqency: 50/60 Hz. Machine dimensons: H 3040 x W 2710 x D 1820 mm. Weight of machine: cca. 7800 kg. Electrical cabinet and control. Oil pump. Oil cooler. Fitted with spring feet dampers. Sound insulating cabinet.
