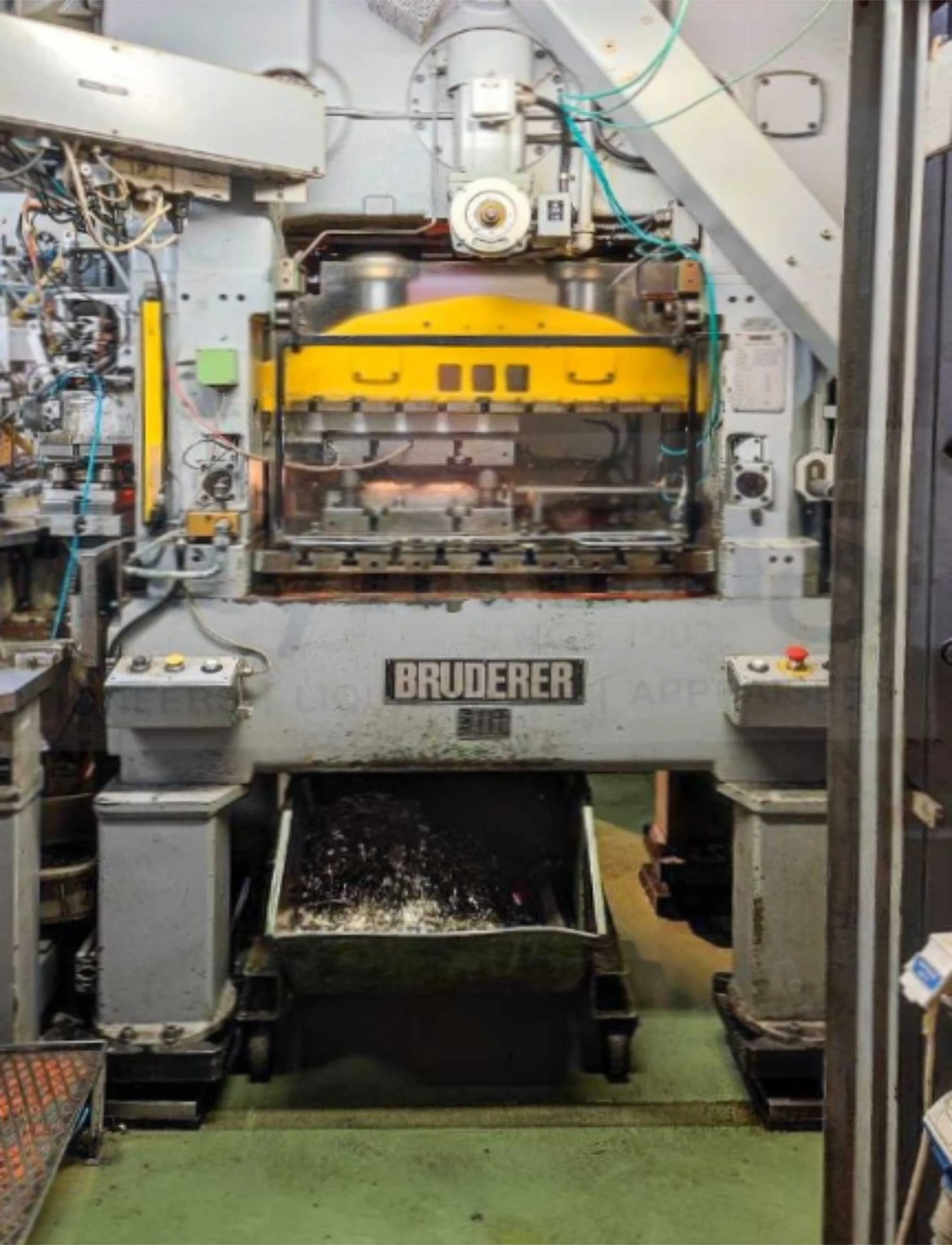

Bruderer BSTA 50 HL Ref. 13526

Bruderer high speed press, model BSTA 50 HL, year of production 1988. Tool loading width is 950 mm max. and the strip inlet height adjusts from 60 to 140 mm. Control is analogue. Press Max. Pressure: 500 kN (50 T). Adjustable stroke: 16; 19; 25; 32; 38; 44; 51, that is 16 to 51 mm. Ram adjustment: 64 mm. Bed (bolster) area: 940 x 650 mm. Max. tool width clearance between columns: 950 mm. Feed Roller-gripper feed unit BBV 205. Max. strip width: 205 mm. Max. strip thickness: 6 mm. Max. feeding pitch: 120 mm. Strip inlet height: 60 to 140 mm. Services Electrics: 380 volts 50Hz. Connected load: 28 kw. Electrical cabinet and control. Oil pump. Oil cooler. Fitted with spring feet dampers. Front and rear guards fitted with inspection glass. Machine dimensions: H 3040 x W 2710 x D 1820 mm. Weight 8200 kgs approx. Reference number 13526 identifies this Bruderer BSTA 50 HL.
