Bruderer BSTA 50 Ref. 21524

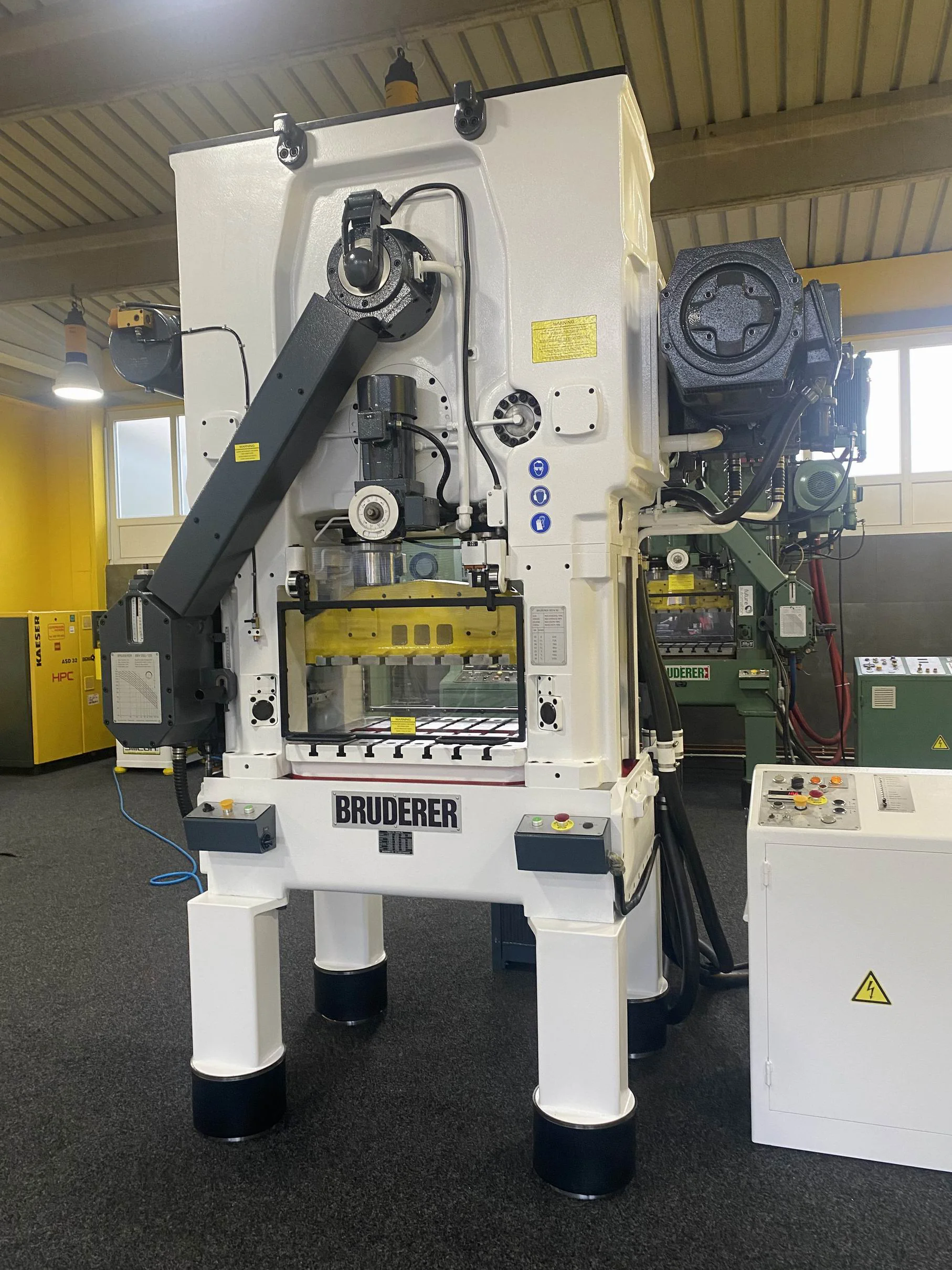

High-speed automatic press of 1985 build, put through refurbishment. Spring feet dampers separate the frame from the floor, and safety guards at the front and the rear carry inspection glass. Stroke length is fixed in seven steps from 16 to 51 mm. Force and speed: 500 kN (50 T), 100 - 1200 spm, year of production 1985. Feed unit: BBV 202/120, left-hand side; strip width to 203 mm, thickness to 6 mm, feeding pitch to 120 mm. Ram: height adjustment 60 mm. Tooling: max. tool width clearance between the columns 770 mm; max. strip clearance width 203 mm. Space and mass: H 3040 x W 2710 x D 1820 mm, cca. 8000 kg. Bruderer BSTA 50, reference number 21524.
