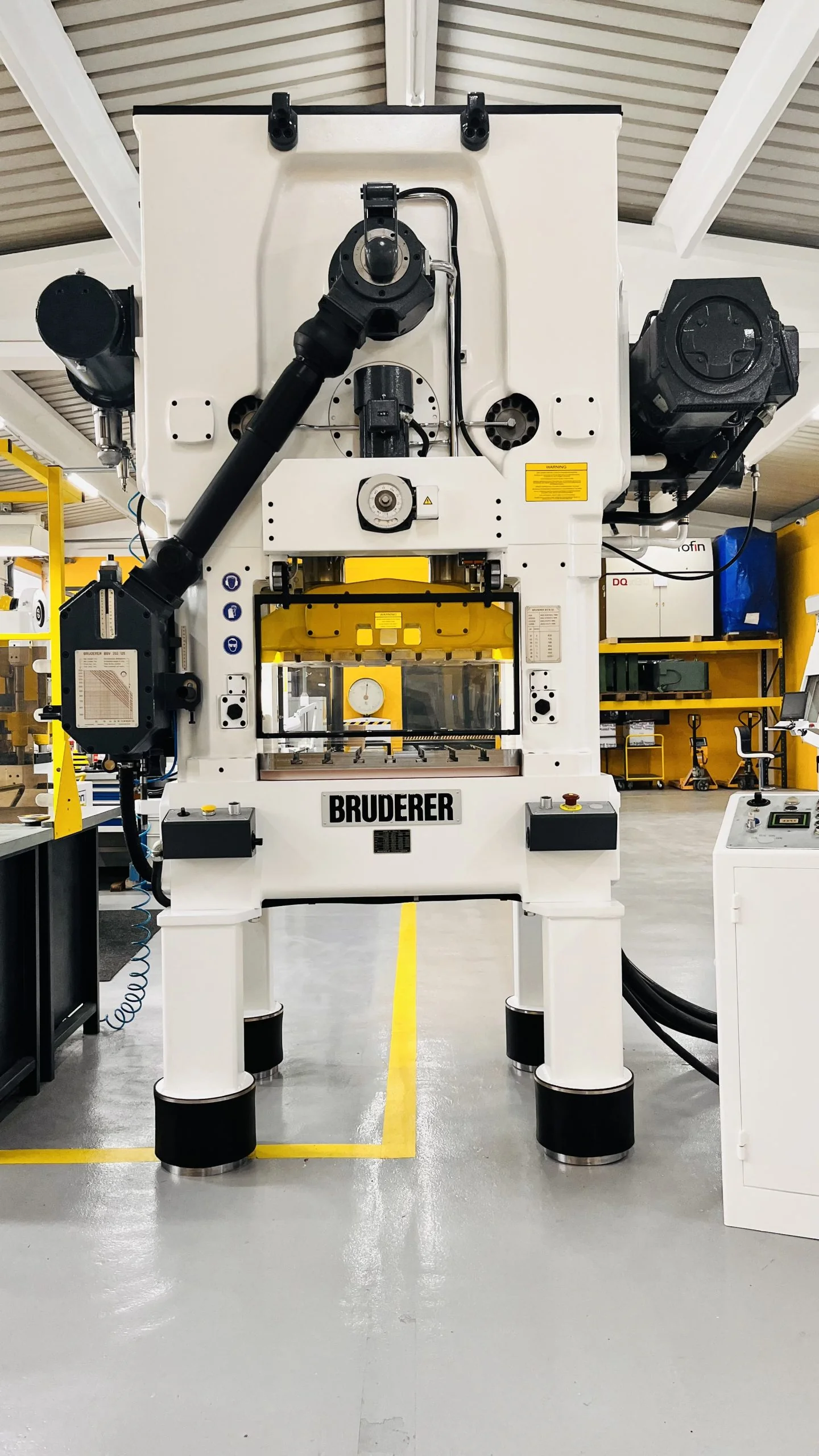

Bruderer BSTA 50 Ref. 19422

Bruderer's 50-ton punching press, here in a fully dimensioned configuration with hole in table 310 x 90 [mm] and 64 [mm] of ram height adjustment. Its recorded running time is 4438 h. Mass is about 8400 [kg] and the overall envelope is H 3040 x W 2710 x D 1820 [mm]. Press Max. Pressure: 500 [kN] (50 [T]). Speed range: 100 - 1200 [spm]. Adjustable stroke: 16; 19; 25; 32; 38; 44; 51 [mm]. Bolster (clamping) plate: 760 x 650 [mm]. Hole in table: 310 x 90 [mm]. Bed opening: 730 x 250 [mm]. Tool width between columns: 770 [mm] max. Feeder Roller-gripper unit BBV 202/120, mounted left-hand side. Feeding cycle 180 degrees, feeding pitch to 120 [mm]. Strip to 203 [mm] wide and 6 [mm] thick; strip running height from clamping plate 60 - 140 [mm]. Electrics Connected load 28 [kW], power 380 [V] 50 [Hz], control voltage 24 [V] [AC]. Fault monitoring system in the electrical cabinet. Reference number 19422, BRUDERER BSTA 50 High Speed Automatic Punching Press.
