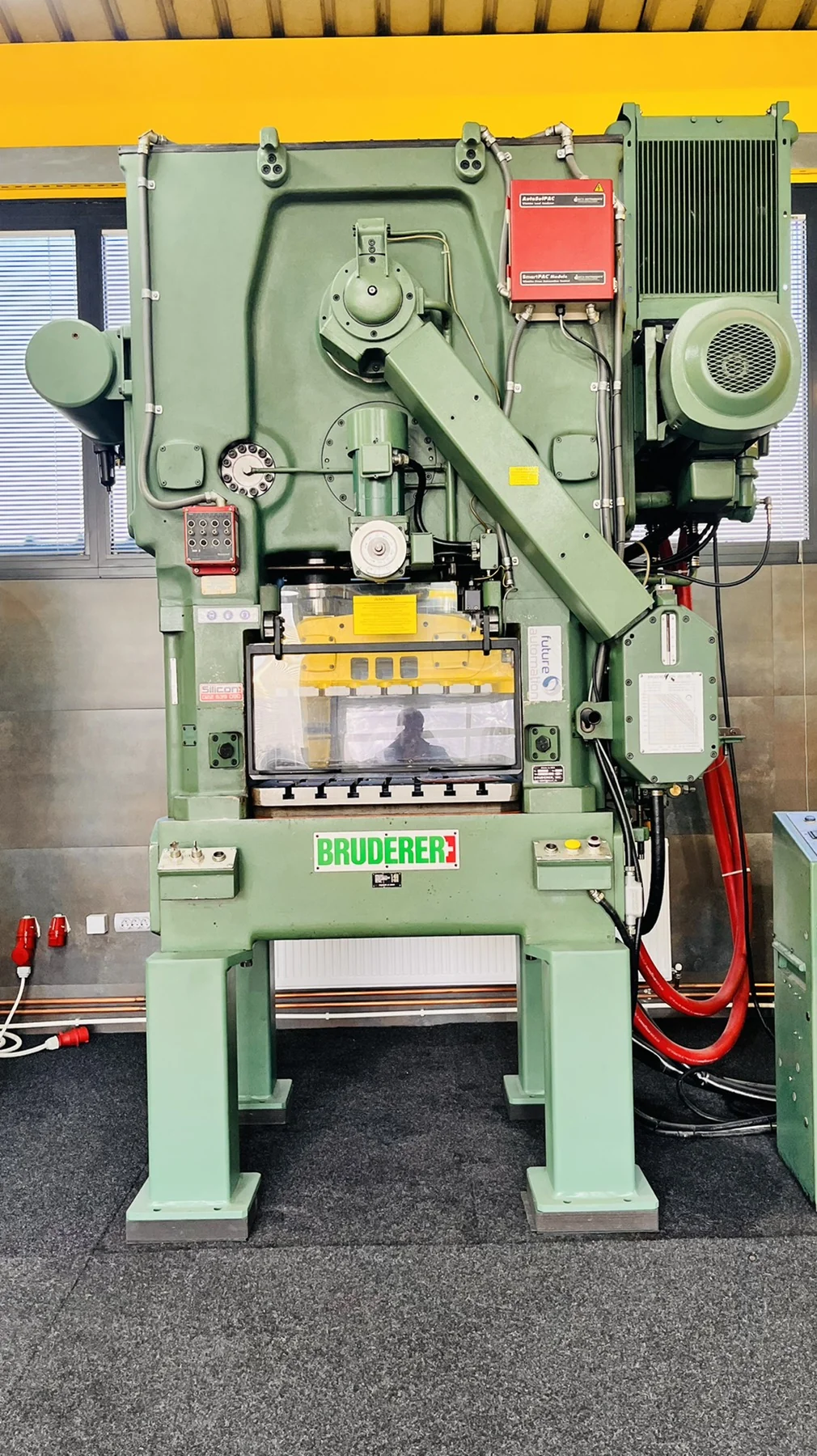

Bruderer BSTA 50 Ref. 17822

Beyond the original Swiss equipment, this 1983 press carries an aftermarket tool monitoring package. It is described as used. Overall size is H 3040 [mm] x W 2710 [mm] x D 1820 [mm]. Control Wintriss SmartPAC 2. SmartPAC 2 is a smart modular interface for multiple press automation functions including die protection and programmable cam switch. Right-hand feed Roller-gripper unit BBV 202/120. Width of strip max. 203 [mm], thickness max. 6 [mm], pitch max. 120 [mm], strip clearance width 203 [mm]. Press data Speed range 100 - 1200 [spm]. Frequency 50/60 [Hz]. Stroke 16 / 19 / 25 / 32 / 38 / 44 / 51, ram height adjustment 60 [mm]. Bed opening 730 x 250 [mm]. Connected load 28 [kw]. Weight cca. 7800 [kg]. Fittings include the electrical cabinet and control, oil pump and oil cooler, spring feet dampers and glazed guards front and rear. This machine is the Bruderer BSTA 50 under reference number 17822.
