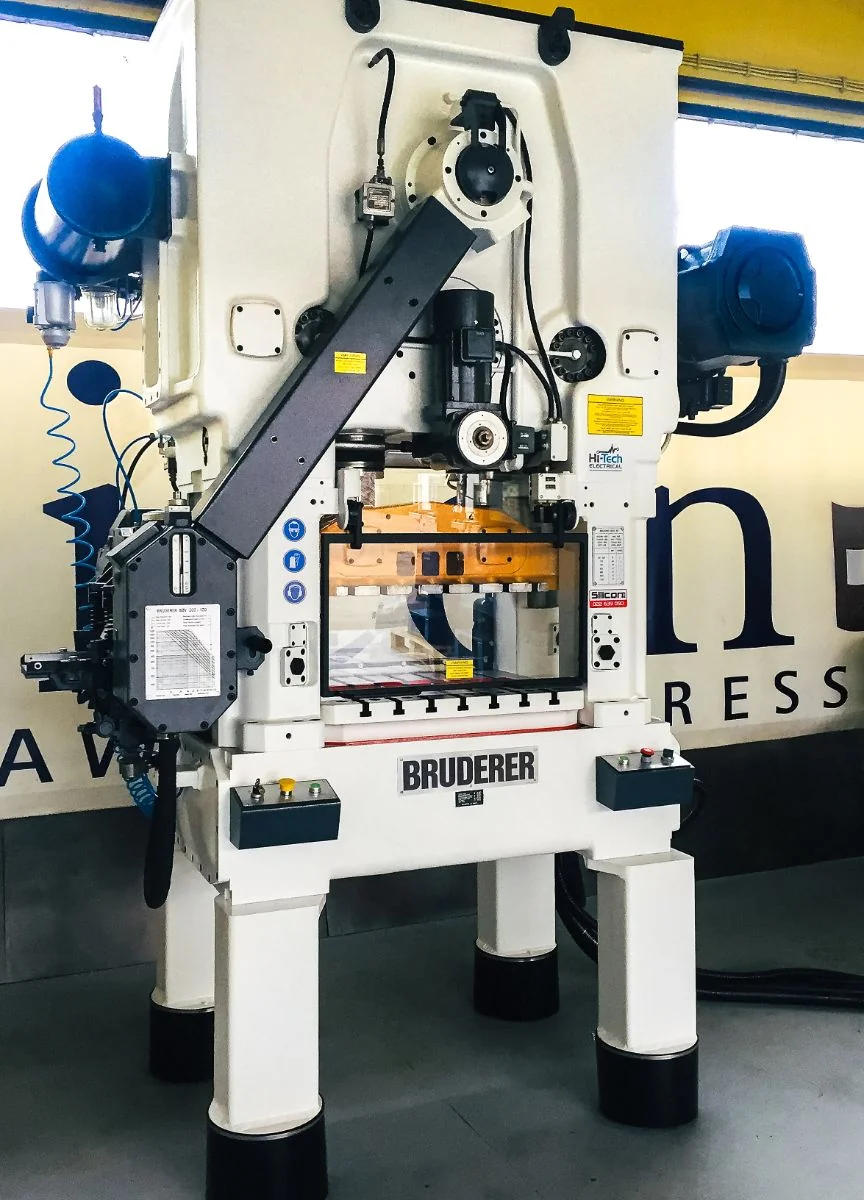

Bruderer BSTA 50 Ref. 21424

Refurbishment has been carried out on this 1985 press. It is supplied with its electrical cabinet and control, and the front and rear guards are glazed with inspection glass so that the tool area stays in view. Output: 500 kN (50 T) at 100 to 1200 spm. Stroke: 16; 19; 25; 32; 38; 44; 51. Ram height adjustment: 60 mm. Roll feed: BBV 202/120 on the left-hand side, feeding pitch to 120 mm, strip to 203 mm wide and 6 mm thick. Electrical: connected load 28 kw, drawn through the cabinet that carries the control. Lubrication: oil pump with oil cooler. Die space: bed opening 730 x 250 mm. Weight: cca. 8400 kg. Reference number 21424 belongs to this Bruderer BSTA 50.
