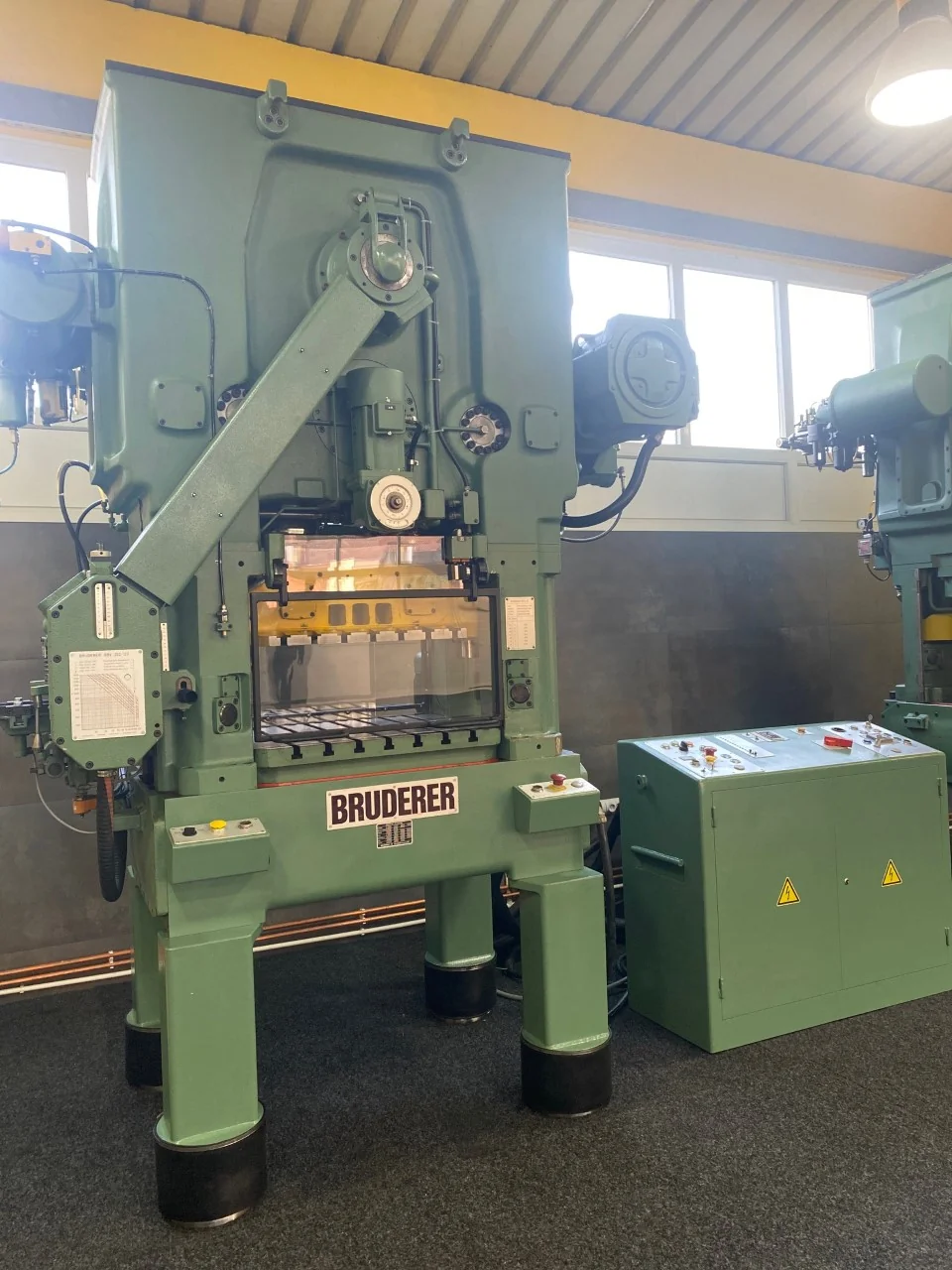

Bruderer BSTA 50 Ref. 13426

A 1985 machine in used condition, arranged for left-hand strip entry. Lubrication runs through an oil pump with its own cooler. Mass is around 7800 kg. Working data Pressure 500 kN (50 T), stroke rate 100 - 1200 spm. The stroke itself is selectable between 16 and 51 mm, and the ram can be reset over 60 mm of height. Die space and strip Bed opening 730 x 250 mm. Free tool width between the columns 770 mm. Strip clearance width 203 mm. The BBV 202/120 gripper feed unit accepts up to 203 mm width, 6 mm thickness and a 120 mm pitch. The press described here is the Bruderer BSTA 50 filed under reference 13426.
