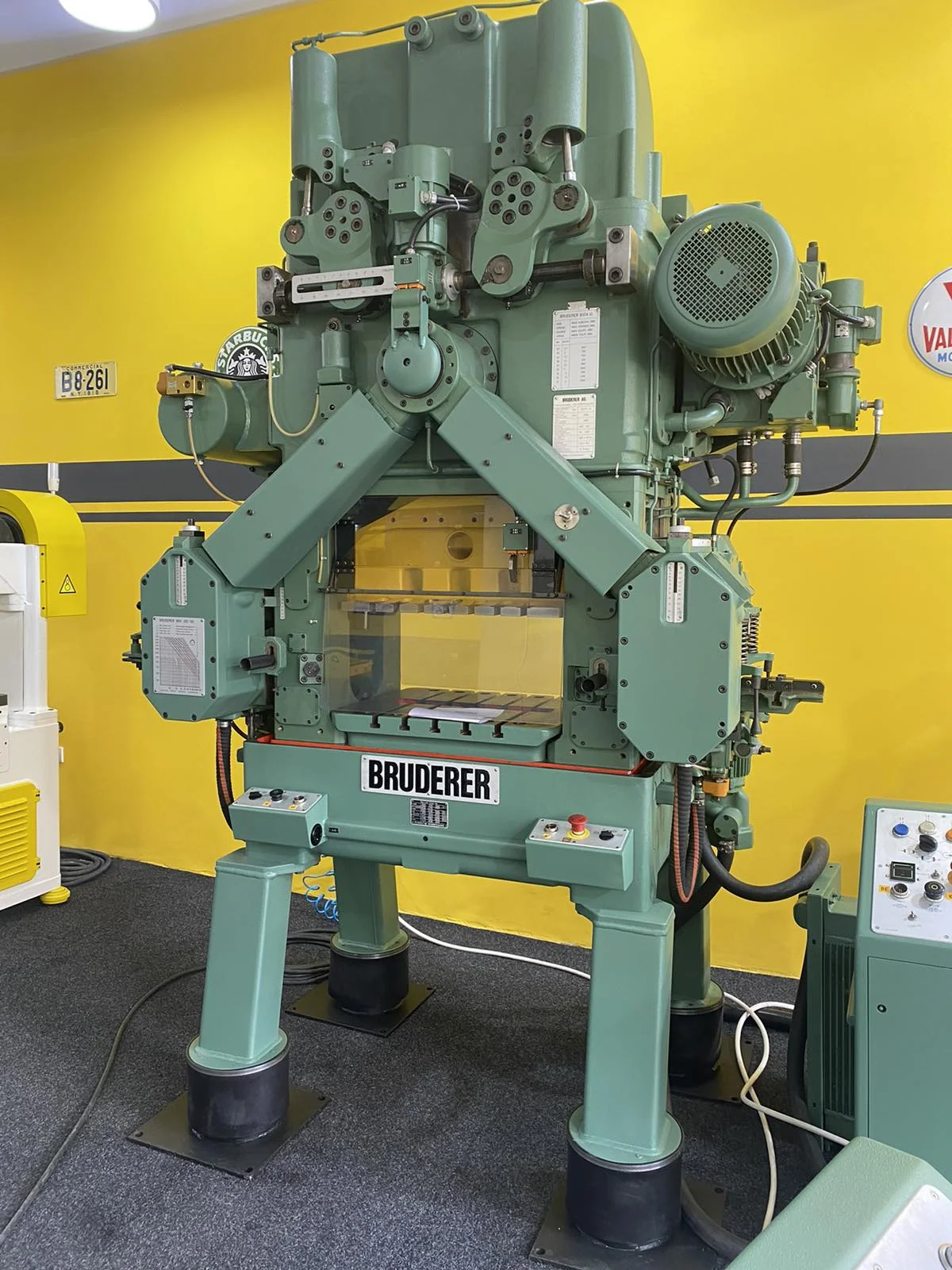

Bruderer BSTA 41 Ref. 13226

Precision high speed punching press. Nominal capacity: 40 tons. Min./Max. number of strokes: 100/1200. Year of manufacture: 1985. Max width of strip: 190 mm. Variable stroke: 13, 15, 19, 25, 32, 38, 44, 51, 57 mm. Fitted with two roll feeders BBV 202/120. Feed length variable up to 120 mm max. Sound insulating cabin. Condition: good working and visual order. On stock ready for delivery. Machine in mint condition. All mechanical and electrical functions tested and working. Oil pump. Oil cooler. Execution: 4 supports. Front and rear safety guards. Fitted with spring feet dampers. Table dimensions: 670 x 550 mm. Passage between the supports: Longitudinal 690 mm; Lateral 204 mm. Slide adjustment 60 mm. Sound insulating cabin included, painted in white and anthracite. Original operating instructions in German and schematics included. Press weight cca. 6500 kg.
