Bruderer BSTA 25 EL Ref. 34926

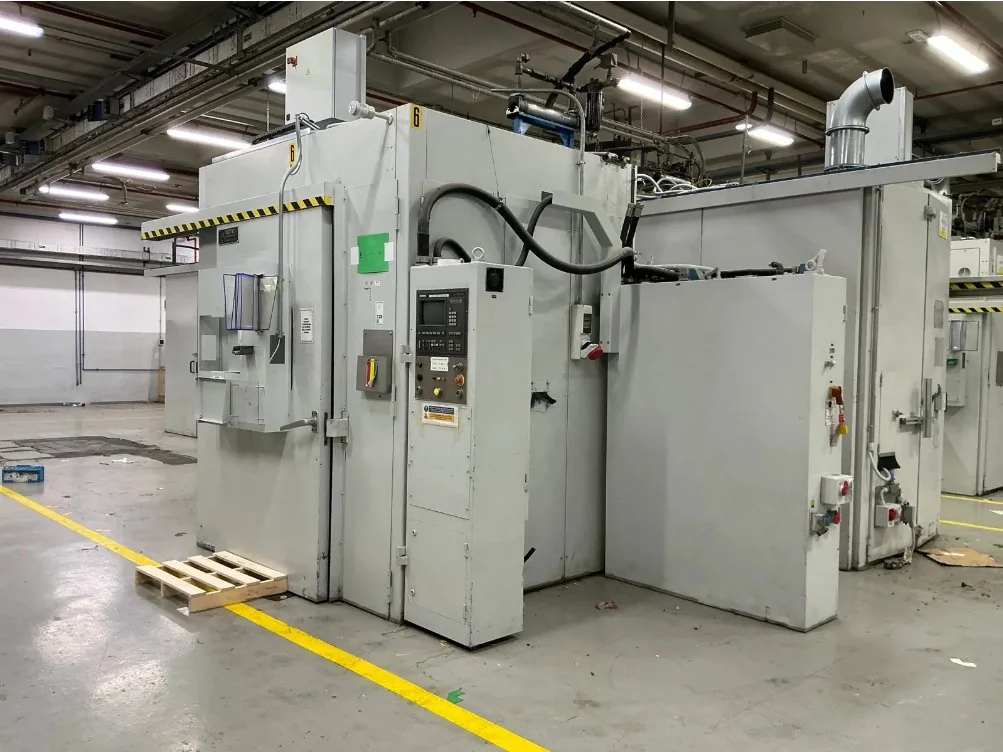

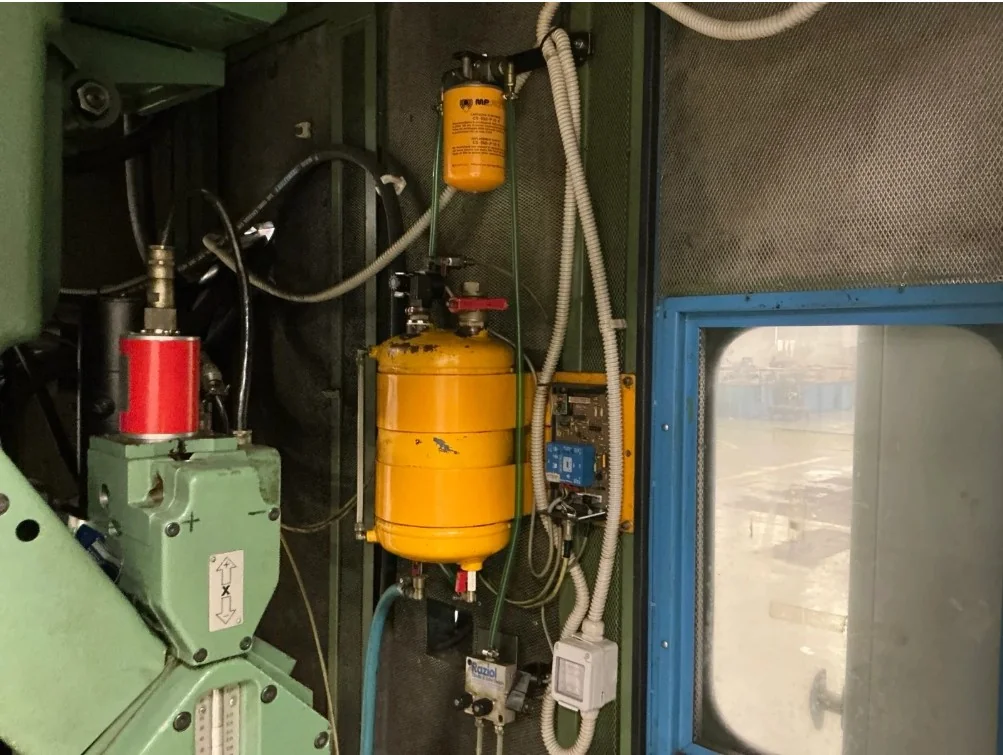

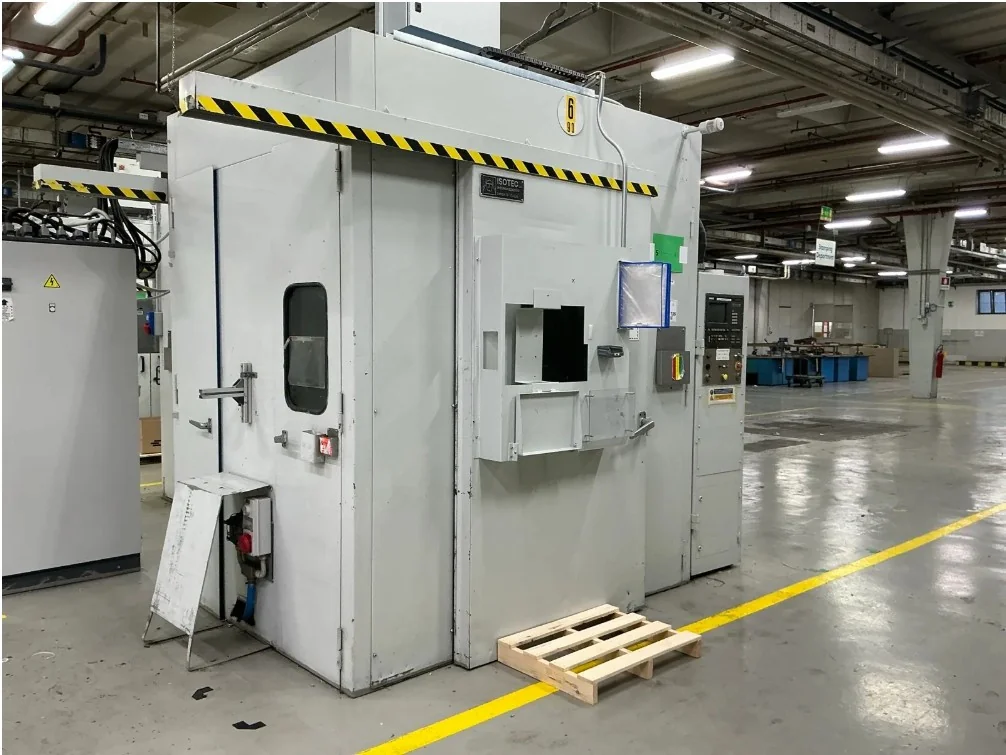

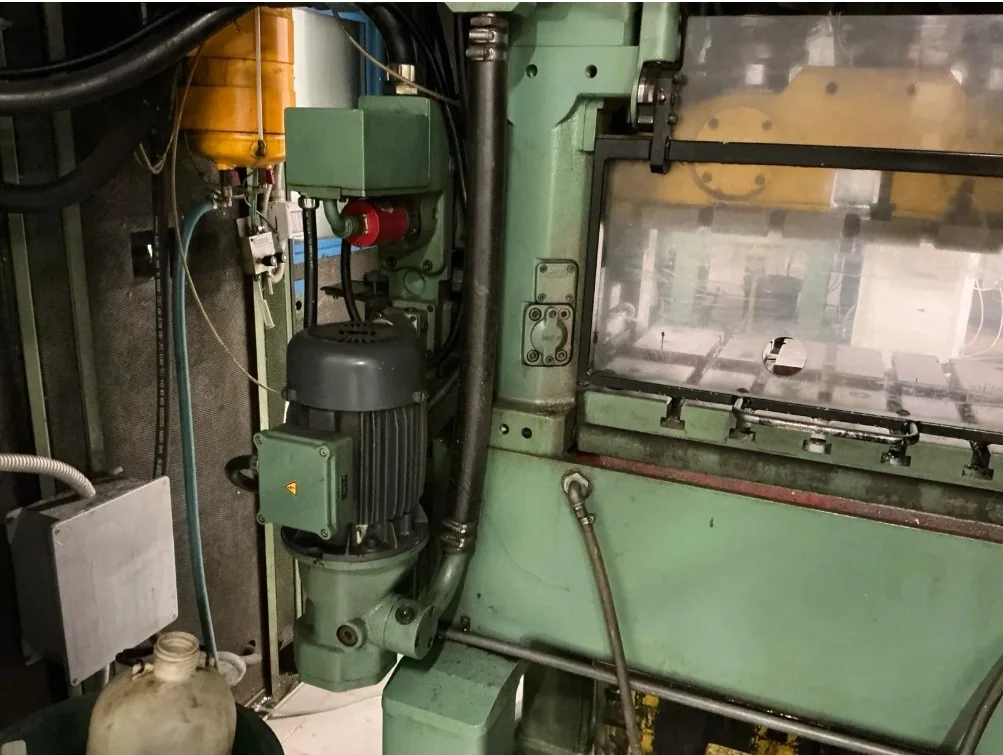

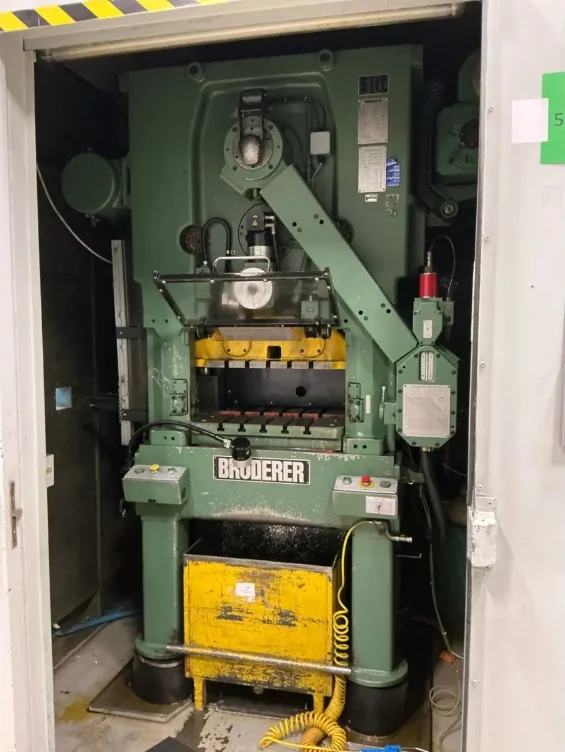

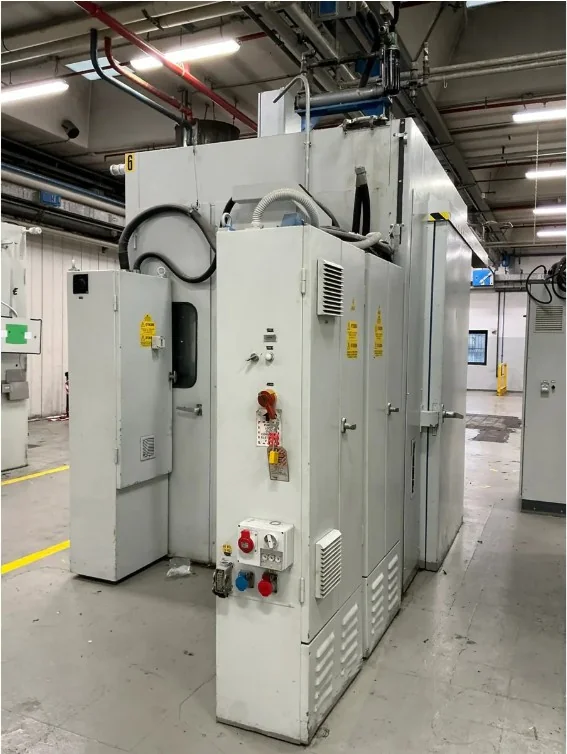

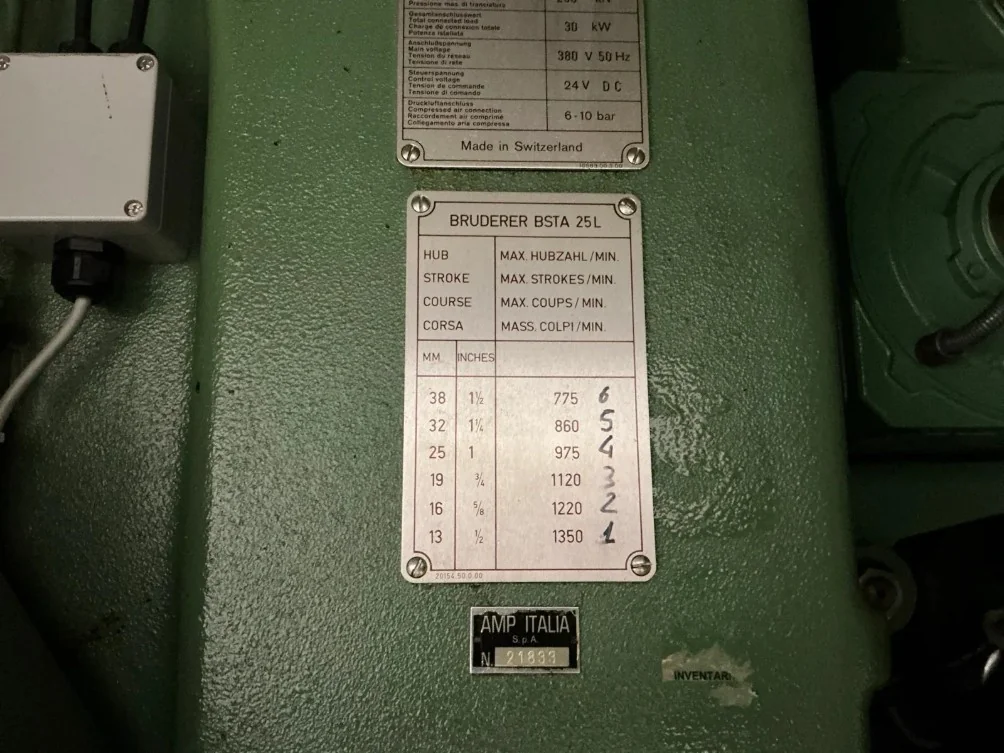

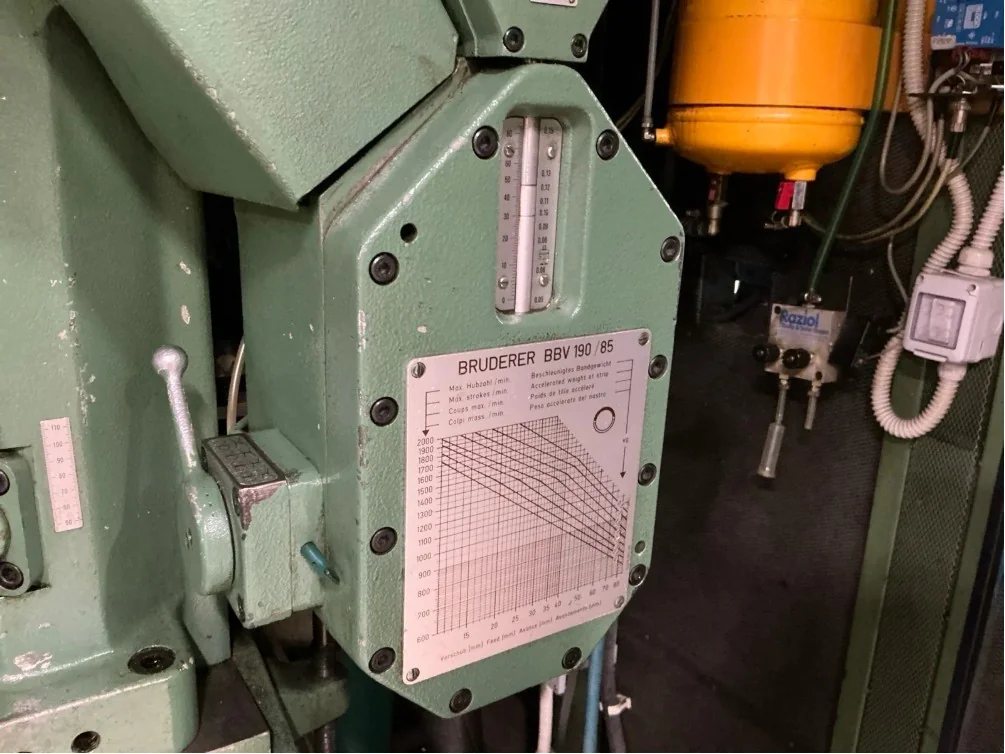

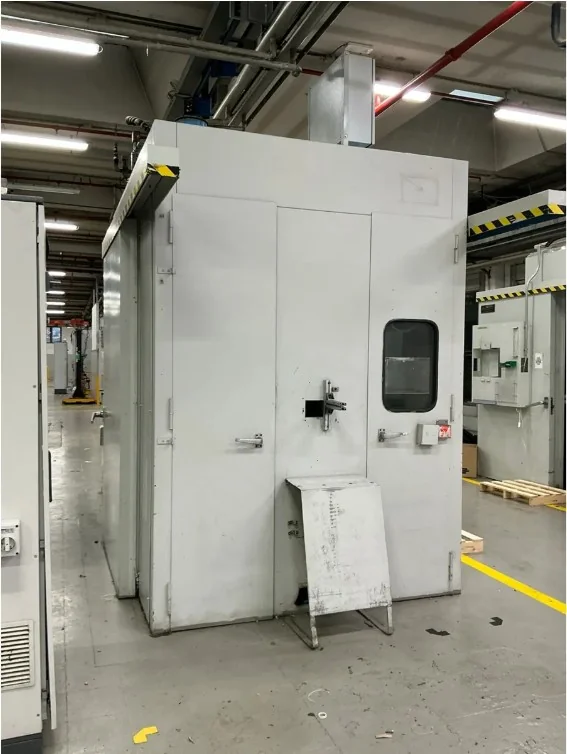

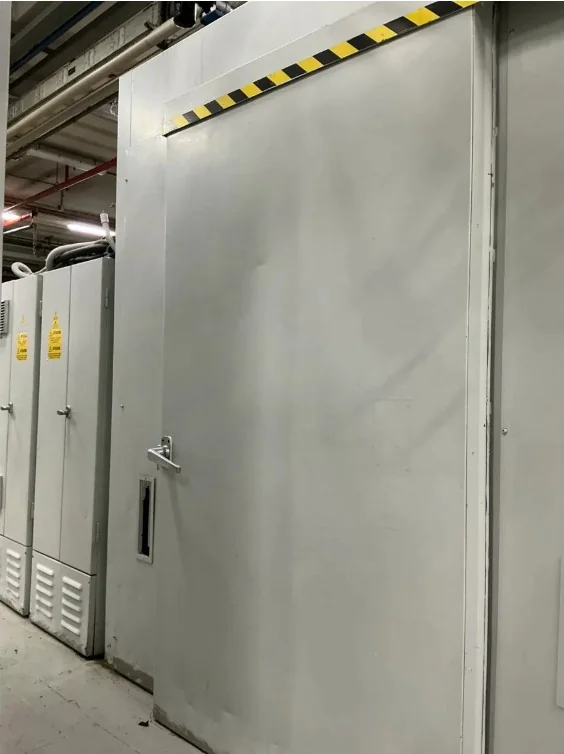

A well-maintained Bruderer BSTA 25 EL high-speed stamping press from 1989. Nominal force 250 kN (25 tons), with six adjustable stroke positions (13–38 mm) and a maximum speed of 1,350 spm. Equipped with a Bruderer BBV 190/85 roll feeder (right-hand side) for strip widths up to 160 mm and variable feed lengths up to 85 mm. Table dimensions 640 × 530 mm; longitudinal passage 640 mm, lateral passage 220 mm. Ram adjustment 51 mm. Machine weight approx. 5,000 kg; mounted on four spring feet for vibration isolation. Standard equipment includes front and rear safety guards, oil pump, and heat-exchange oil cooler. Optional sound-insulating cabin available. Full documentation included.
