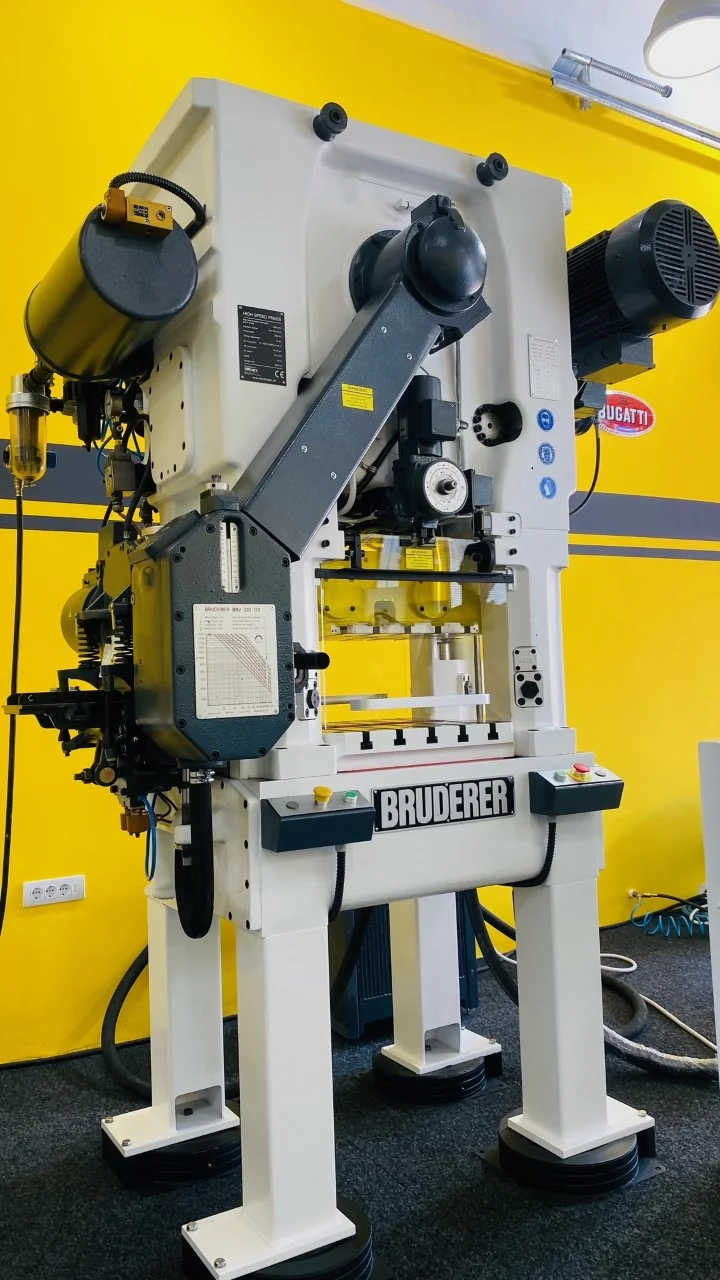

Bruderer BSTA 25 Ref. 10622

Refurbished Bruderer precision high speed punching press in the four-support execution, arranged for strip entering from the left. Nominal capacity 250 kN (25 ton); minimum and maximum number of strokes 100/1500; variable stroke 13 to 38 mm. Press weight cca. 4500 kg. Slide and tooling Tool height 176 - 239 mm, slide adjustment 51 mm, slide bore diameter 52 mm. The clamping surface on the slide is 438 mm by 360 mm. Bed Table relieving measures 430 mm by 75 mm, and between the supports the passage is 540 mm longitudinal and 203 mm lateral. Auxiliaries Oil pump. Oil cooler. Front and rear safety guards. Fitted with spring feet dampers. An English-language manual is delivered with the machine. The press covered by this entry is a Bruderer BSTA 25, ref. no. 10622.
