Bruderer BSTA 25 Ref. 17022

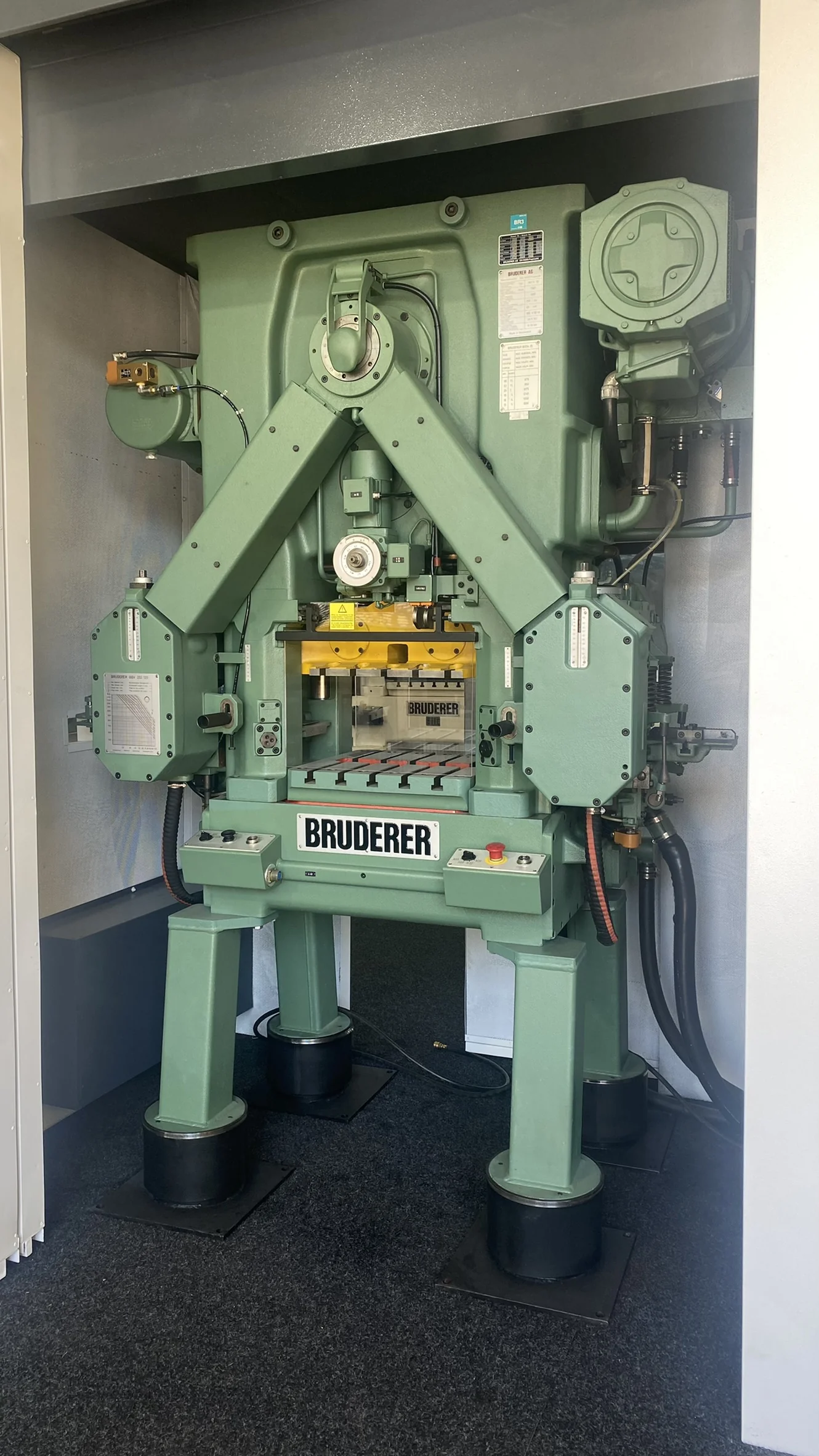

BRUDERER BSTA 25 Precision high speed punching press. Nominal capacity: 25 [tons]. Min./Max. number of strokes: 100/1500. Year of manufacture: 1985. Max width of strip: 203 [mm]. Adjustable stroke: 13, 16, 19, 25, 32, 38 [mm]. Fitted with two roll feeders BBV 202/120. Feed length variable up to 120 [mm] max. Optional: sound insulating cabin. Condition: good working and visual order. All mechanical and electrical functions tested and working. Oil pump. Oil cooler. Execution: 4 supports. Front and rear safety guards. Fitted with spring feet dampers. Table dimensions: 530 x 530 [mm]. Passage between the supports: Longitudinal 540 [mm]; Lateral 203 [mm]. Slide adjustment 51 [mm]. Sound insulating cabin on request, painted in white and anthracite. Operating instructions included. Press weight cca. 5000 [kg].
