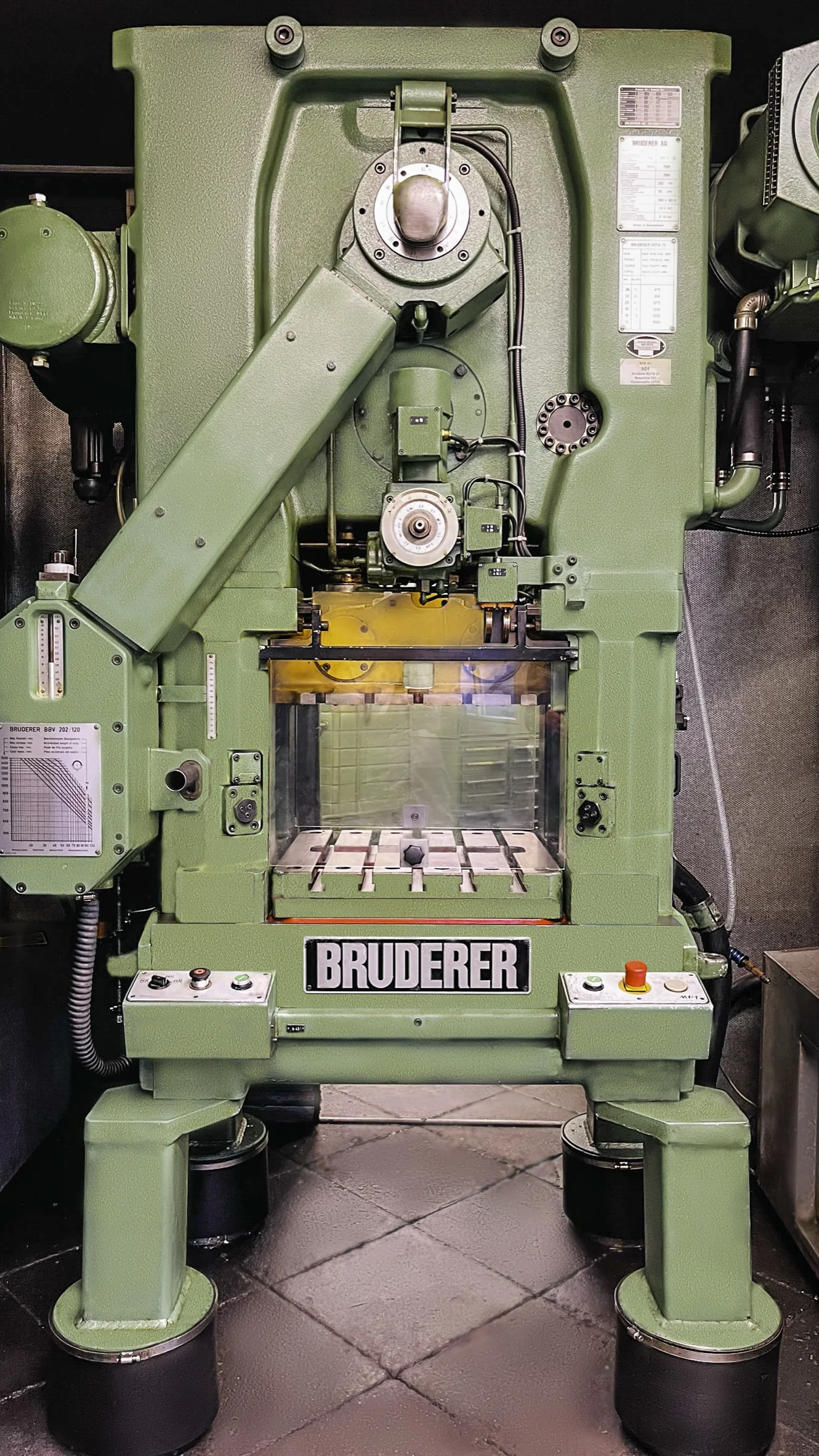

BRUDERER BSTA 25 Ref. 20023

Ref. 20023 dates from 1984 and is offered in used condition. Capacity 250 [kN]; 25 [tons] across a stroke rate window of 100 to 1500 per minute. Table and passages Table dimensions 530 x 530 [mm]; passage between the supports 540 [mm] longitudinal, 203 [mm] lateral. Slide adjustment 51 [mm]. Stroke settable at 13, 16, 19, 25, 32 or 38 [mm]. Strip handling Two BBV 202/120 roll feeders, strip up to 203 [mm] wide, feed length variable to a maximum of 120 [mm]. Standard equipment Oil pump and oil cooler. Execution on 4 supports with spring feet dampers beneath. Guards protect the front and the rear. A sound insulating cabin was offered as an option. Documentation in the German or English language comes with the machine, which weighs cca. 5000 [kg]. This is the Bruderer BSTA 25 held under reference 20023.
