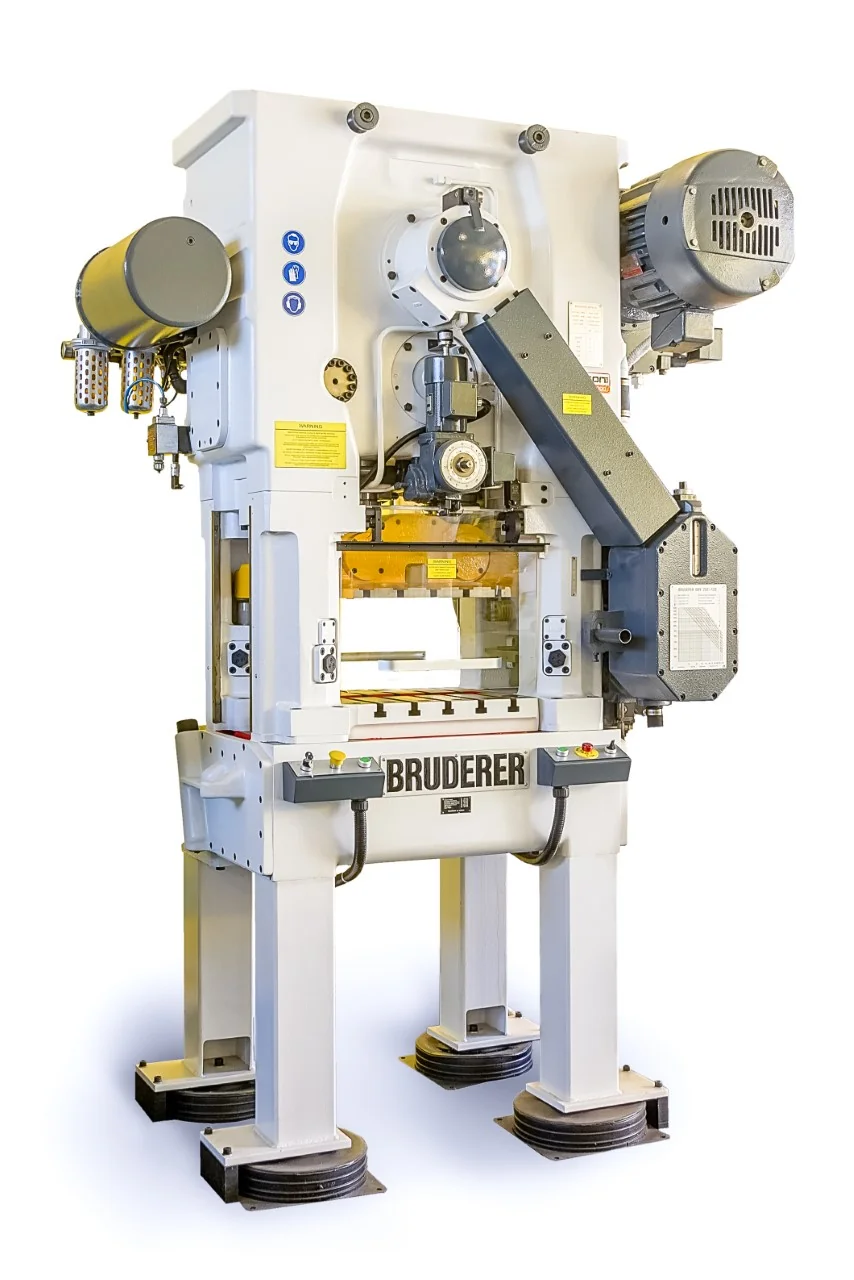

Bruderer BSTA 25 Ref. 21024

Set up for right-to-left strip travel, this press suits a line already laid out in that direction. Cabin included. Nominal capacity 250 kN (25 ton), 100/1500 strokes, variable stroke 13 to 38 mm. Table and passages Table surface: Length 540 mm; Width 530 mm. Passage between the supports: Longitudinal 540 mm; Lateral 203 mm. Feed and supply BBV 202/120 roll feed on the right-hand side, feed length variable up to 120 mm max., max width of strip 202 mm. Voltage 50/60 Hz 3x 400 Volt. Masses: press cca. 4500 kg, sound cabin cca. 1200 kg. The user manual is in English. This press carries reference number 21024 and is a Bruderer BSTA 25.
