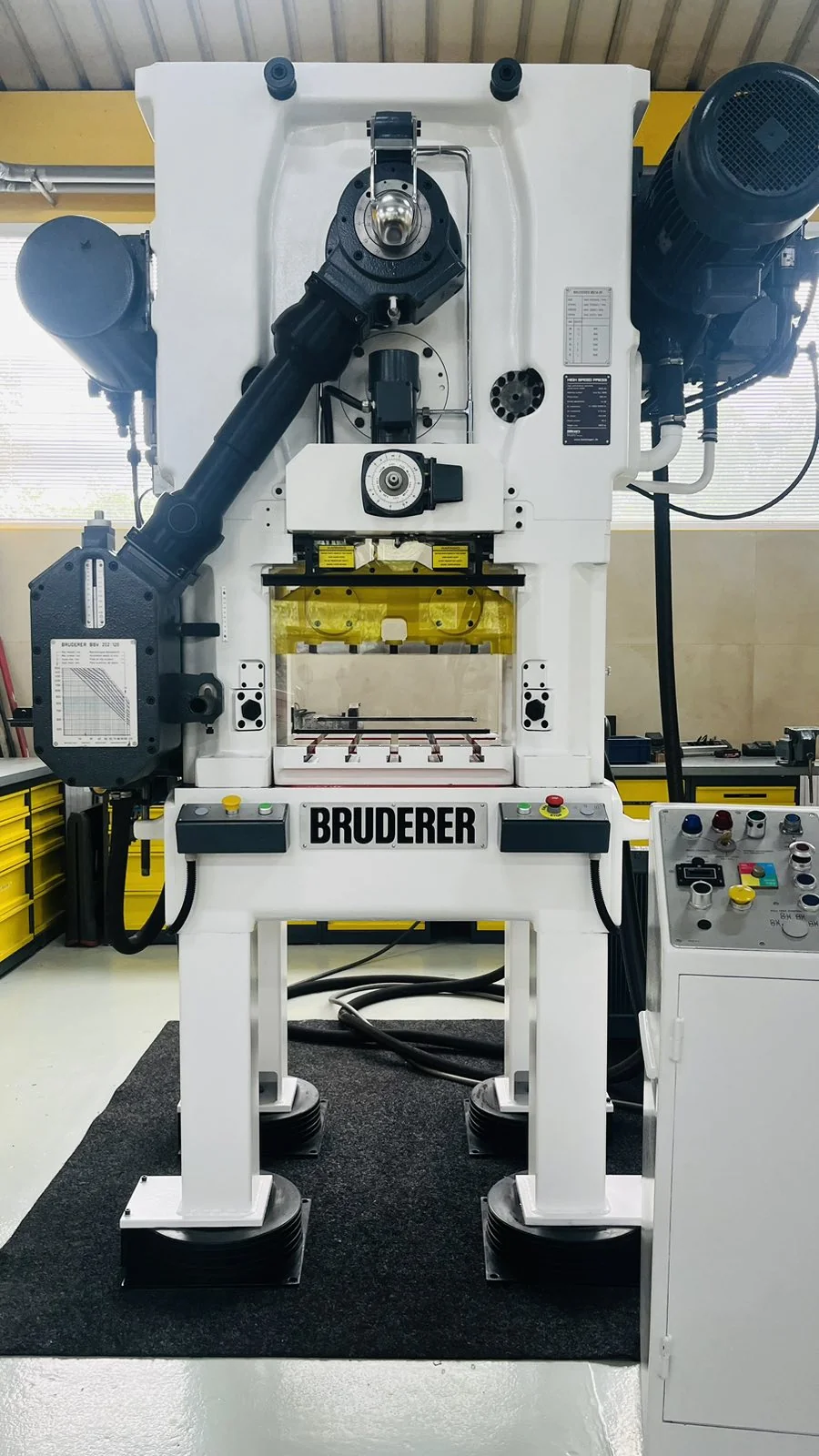

Bruderer BSTA 25 Ref. 25924

BRUDERER BSTA 25 Precision high speed punching press. Nominal capacity: 250 kN; 25 tons. Min./Max. number of strokes: 100/1500. Max width of strip: 200 mm. Adjustable stroke: 13, 16, 19, 25, 32, 38 mm. Fitted with roll feeder BBV 202/120 on left hand side. Feed length variable up to 120 mm max. Optional: Sound insulating cabin. Condition: good working and visual order. Oil pump. Oil cooler. Execution: 4 supports. Front and rear safety guards. Fitted on rubber feet. Table dimensions: 530 x 530 mm. Passage between the supports: Longitudinal 540 mm; Lateral 200 mm. Slide/Ram adjustment 51 mm. Documentation in German or English language included. Press weight cca. 4800 kg. Press dimensions: 2055 x 1355 x H26200 mm.
