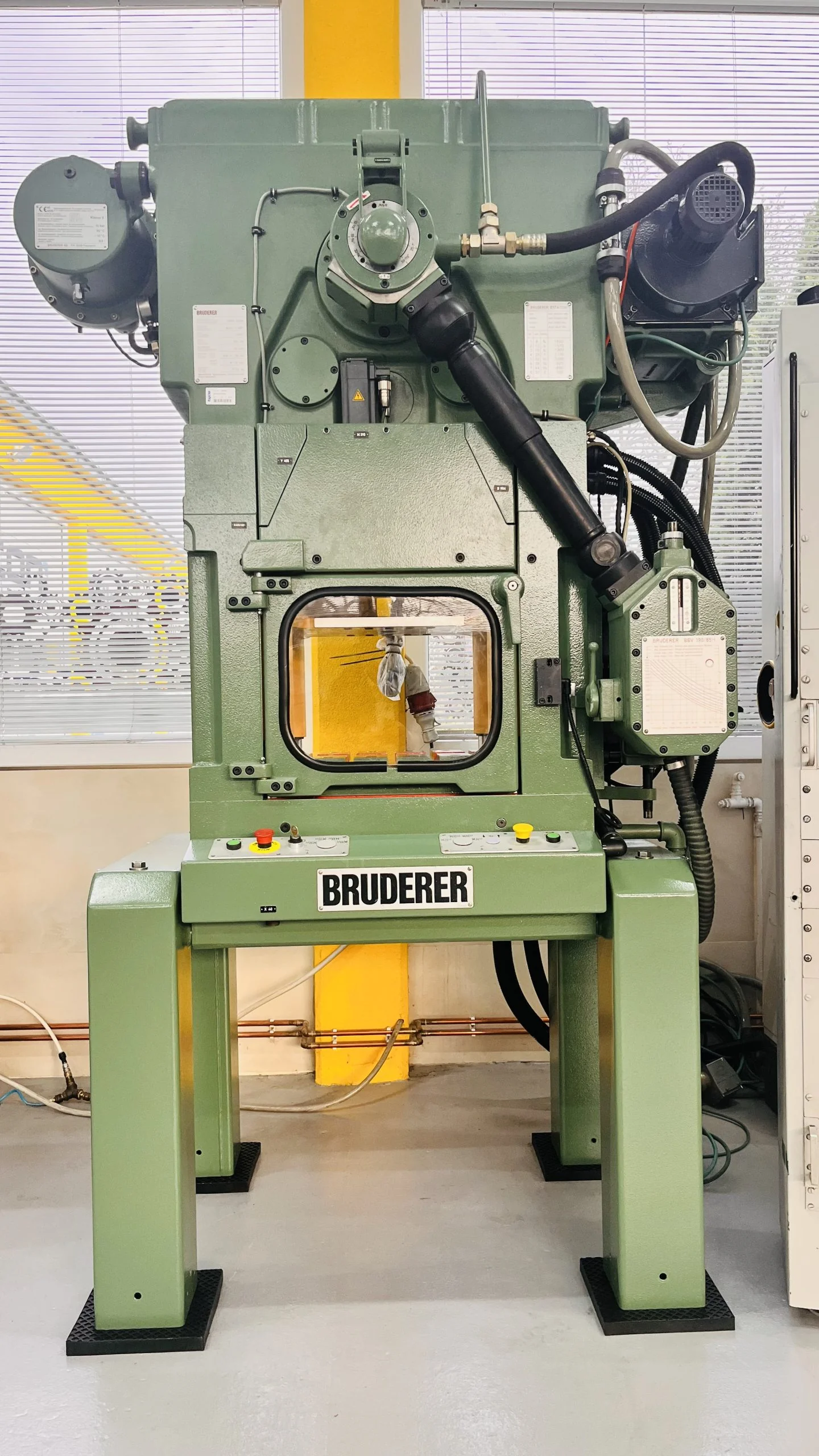

Bruderer BSTA 200M Ref. 19923

Precision high speed automatic punching press in good used condition, supplied with complete technical documentation. Variable stroke settings of 8, 13, 19, 25, 32, 38, 44 and 51 [mm] cover a wide range of progressive tools. Capacity Nominal capacity: 200 [kN] (20 [tons]). Min./Max. number of strokes: 100/1800. Year of manufacture: 2001. Working hours: 25045 [h]. Tool area Table dimensions: 510 x 400 [mm]. Passage between the supports: longitudinal 410 [mm]; lateral 260 [mm]. Slide adjustment: 51 [mm]. Feeder Roll feeder BBV 190/85. Max width of strip: 160 [mm]. Feed length variable up to 85 [mm] max. Weight Press weight cca. 3100 [kg]. This press is a BRUDERER BSTA 200M with reference number 19923.
