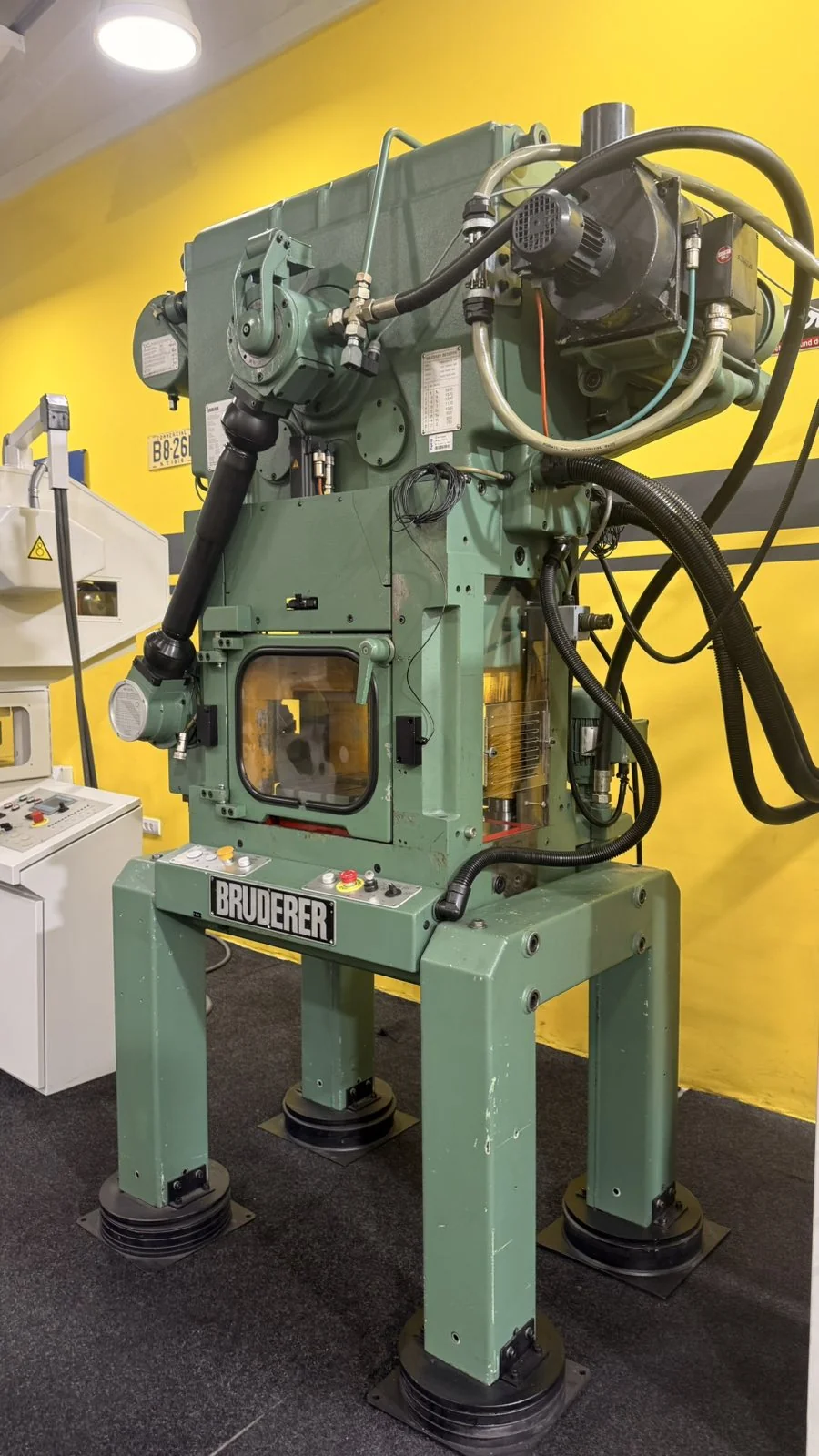

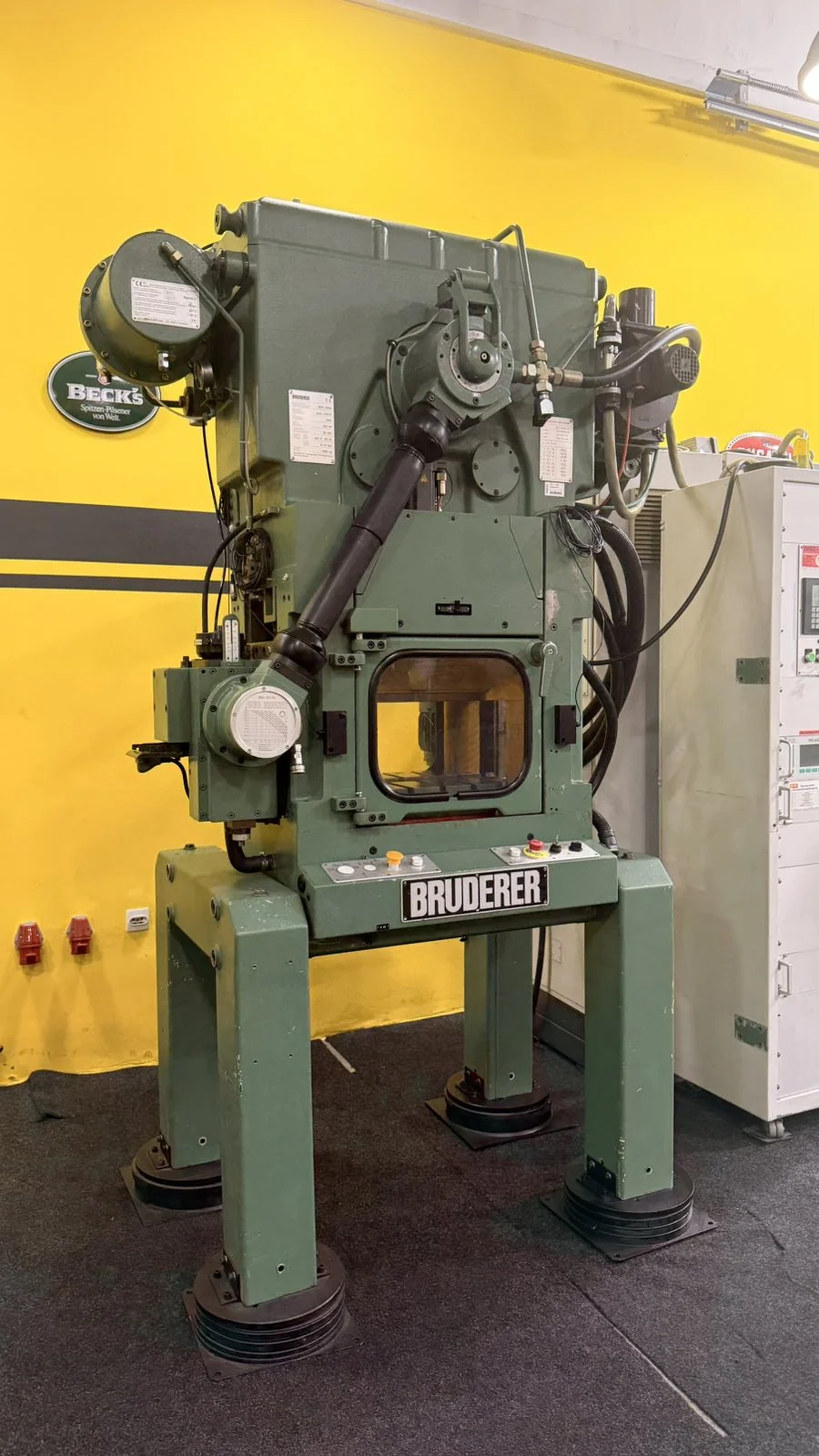

A high-performance automatic punching press with a compact footprint of H 2540 x W 1661 x D 855 mm and a weight of approximately 3100 kg. The sound cabin is sold separately and is not included in the machine price.
Punching press
Max. pressure: 200 kN (20 T). Speed range: 100 - 1800 spm.
Year of manufacture: 1996. Hours under power: 51574.
Stroke and ram

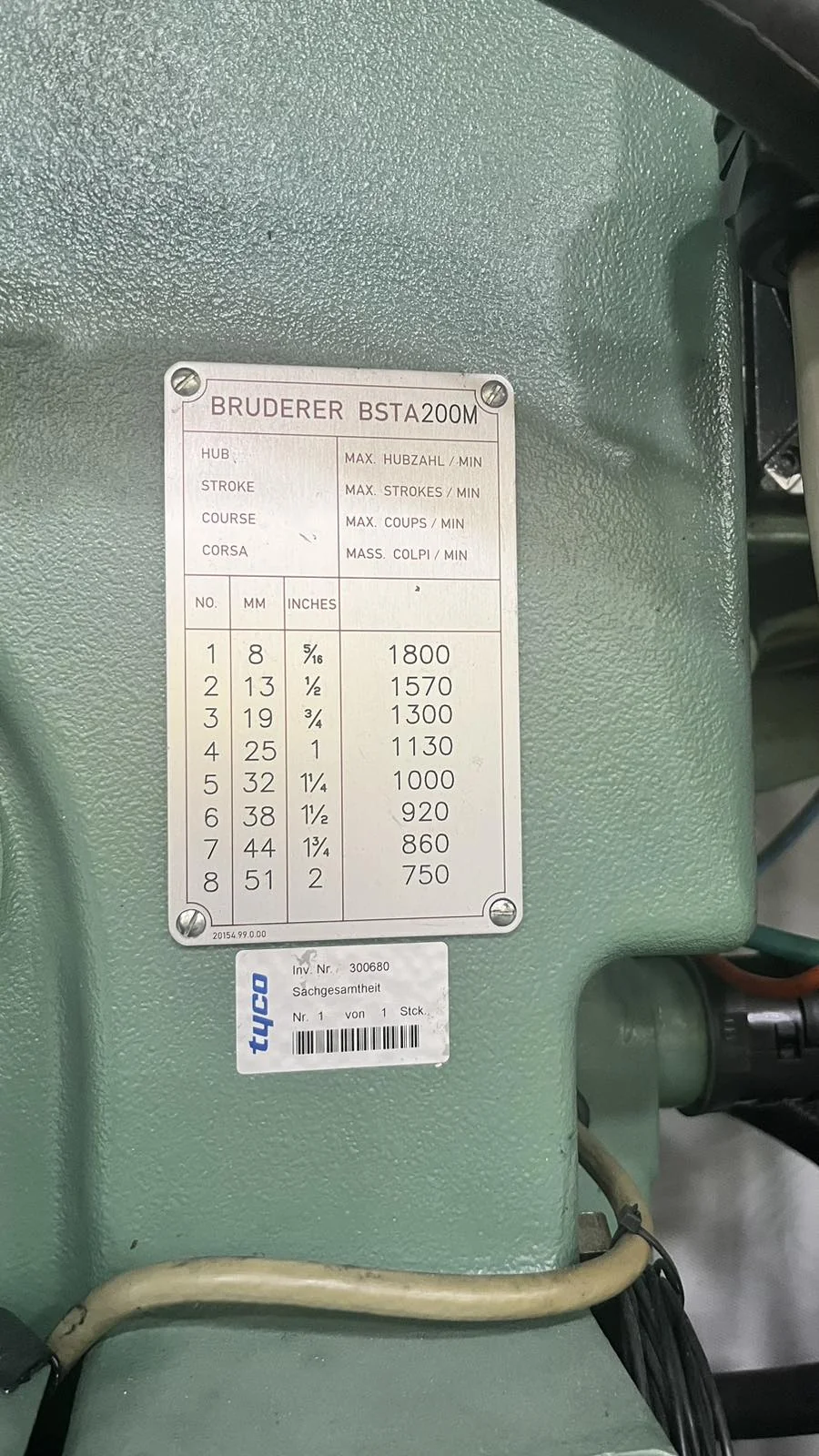

Adjustable stroke: 8; 13; 19; 25; 32; 38; 44; 51 mm.
Ram height adjustment: 51 mm.
Tooling area
Dimensions of the clamping plate: 510 x 400 mm.
Bed opening: 400 x 160 mm.
Max. distance of the mold width between the columns: 410 mm.
Max. strip passage width: 260 mm.
Feed
Feed BBV 101/75 on the left-hand side.
Max. strip width: 125 mm. Max. feed pitch: 75 mm.
Electrical
Connected load: 51 kVA. Power 400 V 50 Hz. Control voltage: 24 V.
Control cabinet and control system.
Bruderer BSTA 200M, reference number 23524.
