Bruderer BSTA 20 E Ref. 21324

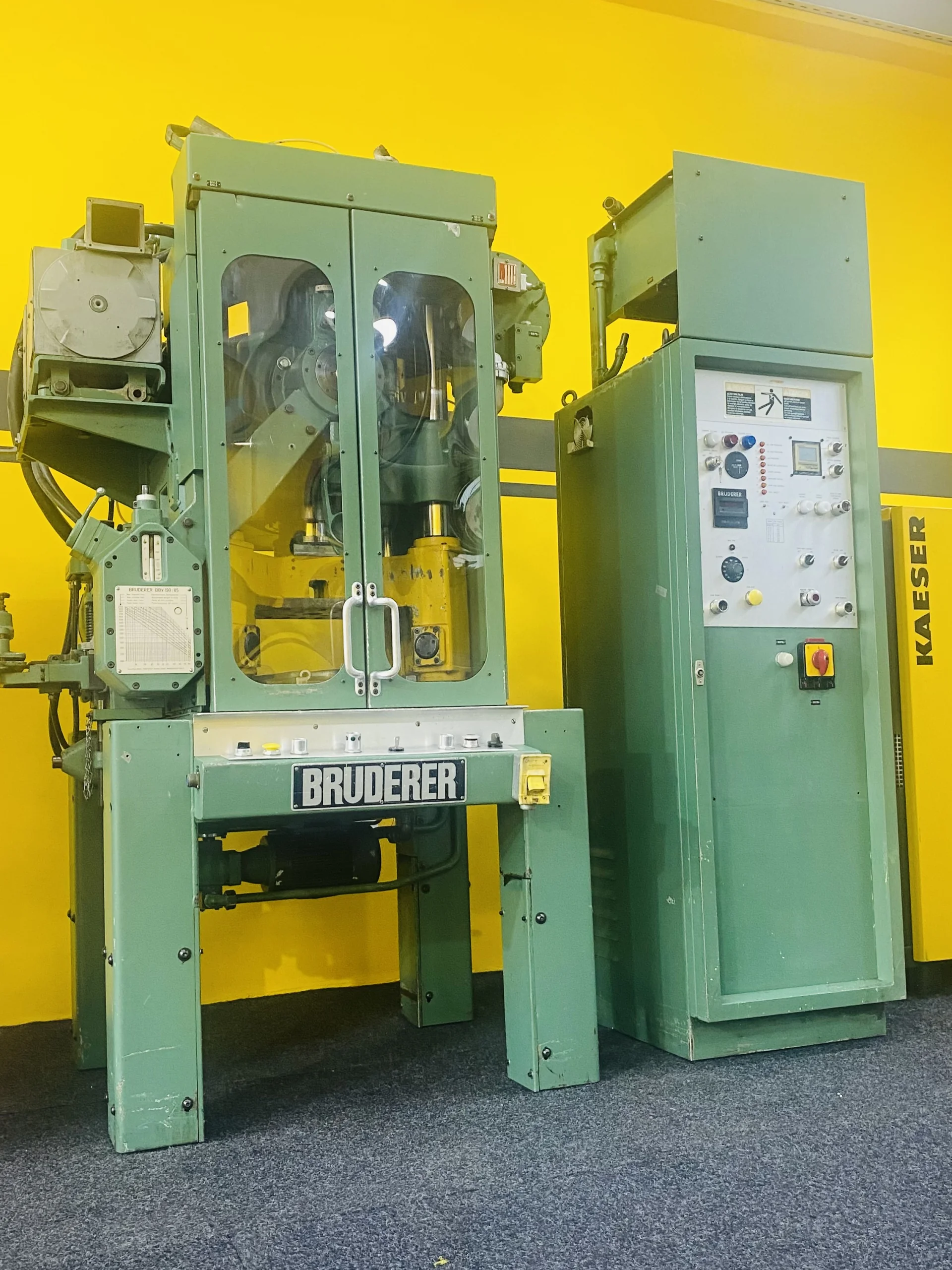

Used BSTA 20 E of 1985. Guards at the front and rear carry inspection glass, so the tool area stays visible while the press runs. Capacity 200 kN (20 T) across 100 - 1800 spm. Ram and stroke: adjustable stroke 8; 9.5; 13; 17; 21; 25; 32; 38. Ram height adjustment 50 mm, fast lifting of the ram 40 mm. Clearances: tool width between columns 380 mm max., strip clearance width 220 mm max. Strip: width to 160 mm, thickness to 4 mm, feeding pitch to 85 mm, feeding cycle 180 degrees. Feed unit: roller-gripper BBV 190/85, left-hand side. Weight of machine cca. 3200 kg, weight of control cabinet cca. 420 kg. The machine described above is a Bruderer BSTA 20 E carrying reference number 21324.
