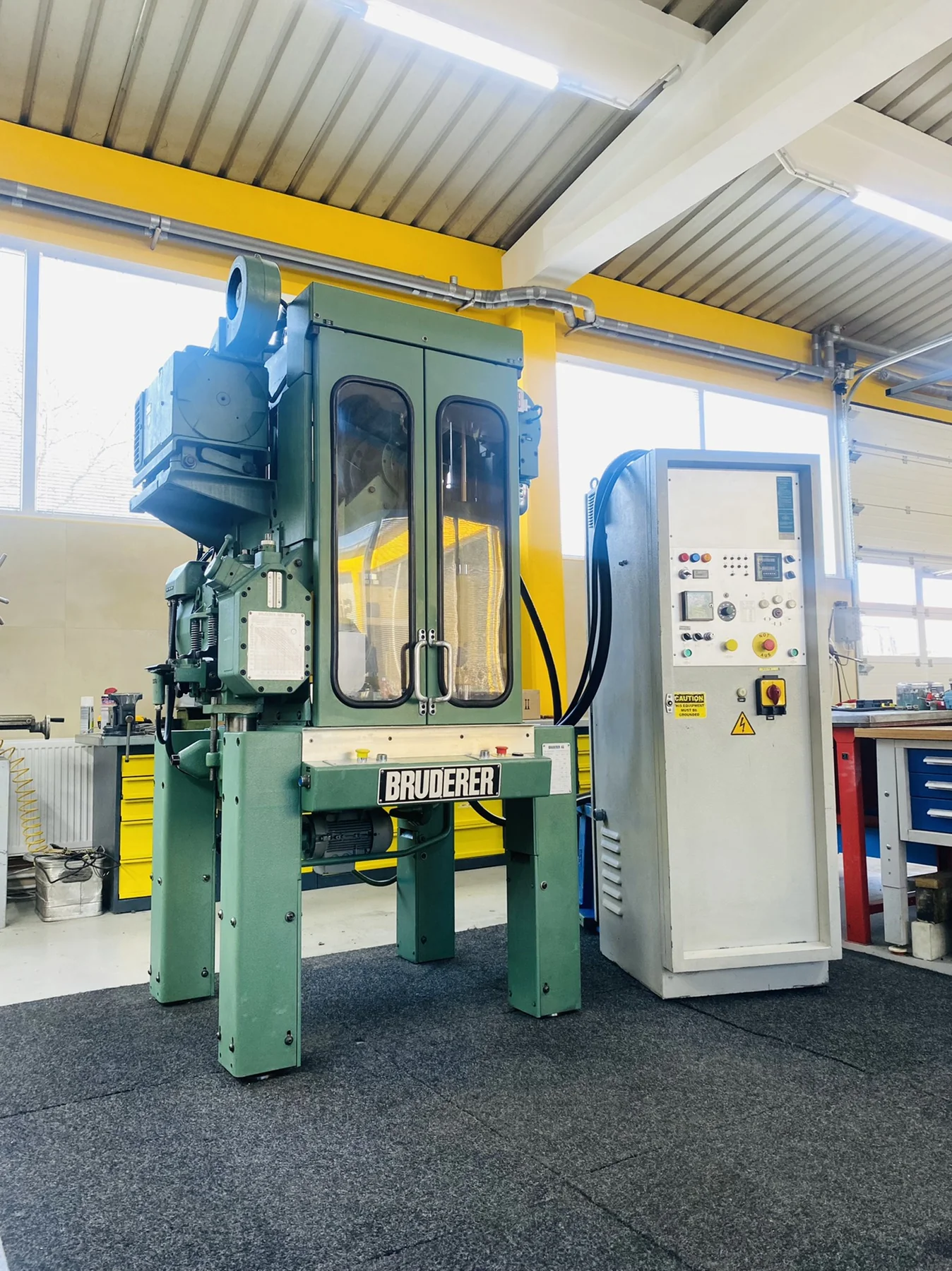

Bruderer BSTA 20 E Ref. 21224

Produced in 1985 and listed as used. An oil pump and oil cooler serve the lubrication circuit, and the frame is carried on spring feet dampers. Pressure reaches 200 kN (20 T) and the speed range covers 100 - 1800 spm. The roller-gripper feed unit BBV 190/85 is mounted on the left-hand side and works on a feeding cycle of 180 degrees: maximum strip width 160 mm, maximum strip thickness 4 mm, maximum feeding pitch 85 mm. Power is 400V, the connected load 20 kw, and the electrical cabinet with control is a separate item of cca. 420 kg. Machine dimensions are H 2325 x W 1375 x D 1115 mm at a weight of cca. 3200 kg. Reference number 21224, Bruderer BSTA 20 E.
