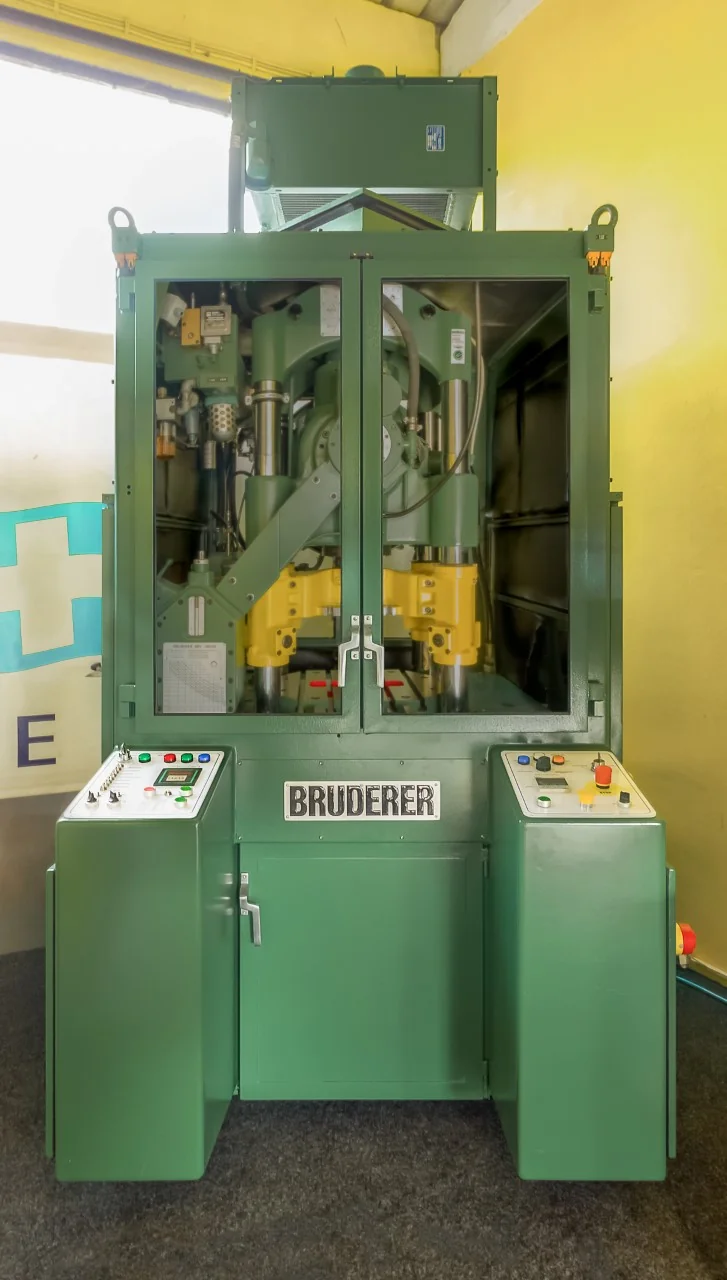

Bruderer BSTA 20 Ref. 13026

A used BSTA 20 of Swiss manufacture, dated 1984, working at up to 1800 strokes per minute against 200 kN of stroke power. The clutch and brake are electro-pneumatic and a sound insulation cabin belongs to the press. Strip travel is left to right. Working area The table measures 560 mm in length by 400 mm in width. Tool height 191 - 261 mm. Slide adjustment 50 mm. Stroke adjustment runs from 8 up to a maximum of 38 mm. Passages Passage between supports longitudinal 360 mm. Passage between supports lateral 160 mm. Feed Bruderer BBV 190/85 feeder; strip enters on the left and leaves on the right; feeding pitch from 0-85 mm. Power and size Power total 20 kW 3 phase 380 V. Overall dimensions: length 1685 mm, width 1470 mm, height 2895 mm. Weight approx 4.000 kg. The unit described above is a Bruderer BSTA 20, reference number 13026.
