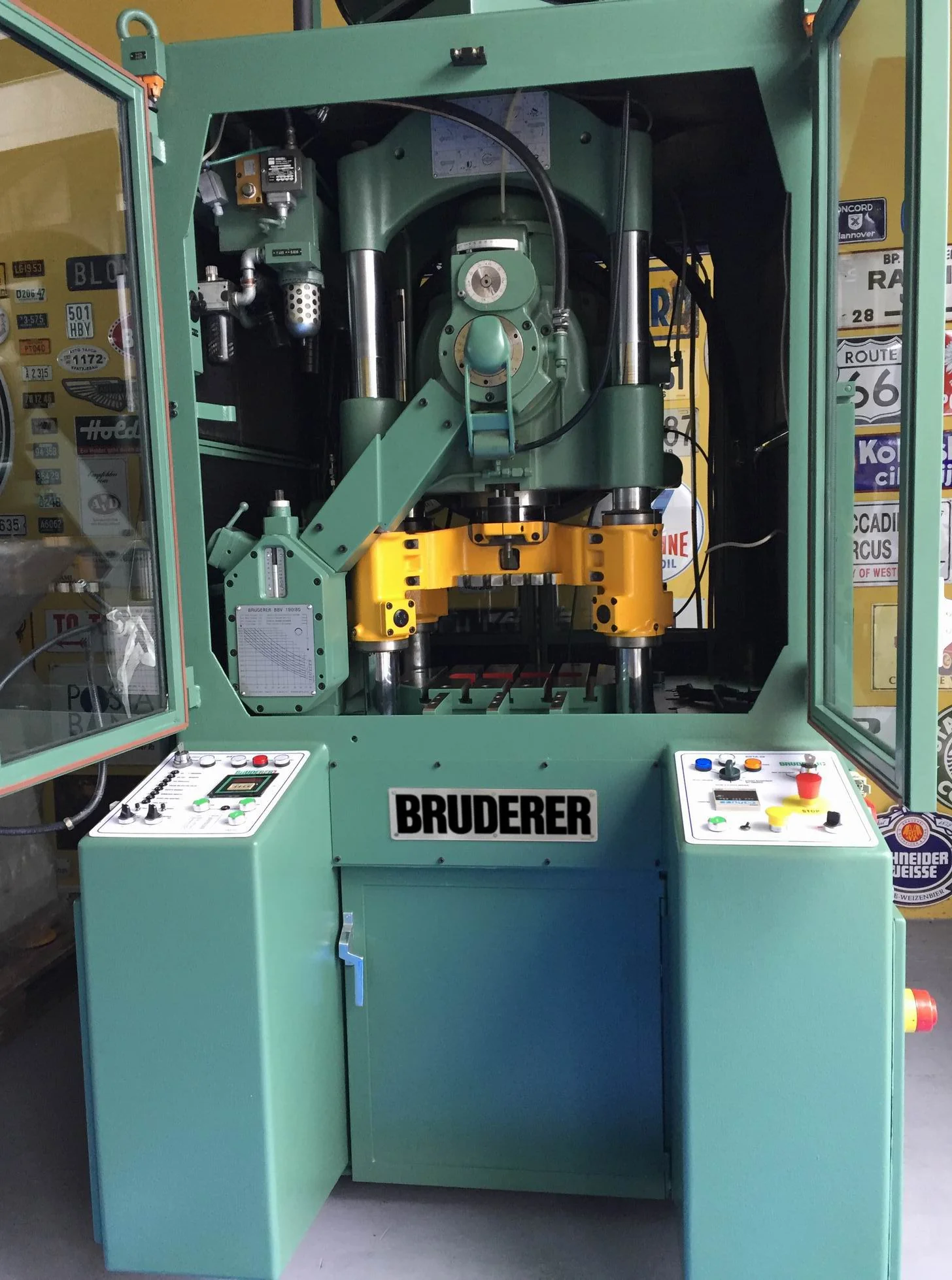

Bruderer BSTA 20 Ref. 12826

Reference 12826 is a refurbished example of the BSTA 20, a compact high speed automatic press weighing approx 4.000 kg and occupying 1685 x 1470 mm of floor area. Its height of 2895 mm is worth allowing for when planning the installation. Clutch and brake work electro-pneumatically. Press Stroke power 200 kN (20 ton). Punching speed: 100 - 1800 SPM. Stroke adjustment from 8 to max. 38 mm. Slide adjustment 50 mm. Tool height 191 - 261 mm. Bed Table length 560 mm, table width 400 mm. Passage between supports longitudinal 360 mm; passage between supports lateral 160 mm. Feeder Bruderer feeder BBV 190/85, feeding from left to right, feeding pitch from 0-85 mm. Other Sound insulation cabin. Power supply: 20 kW total, 3 phase 380 V. Machine reference: Bruderer BSTA 20, no. 12826.
