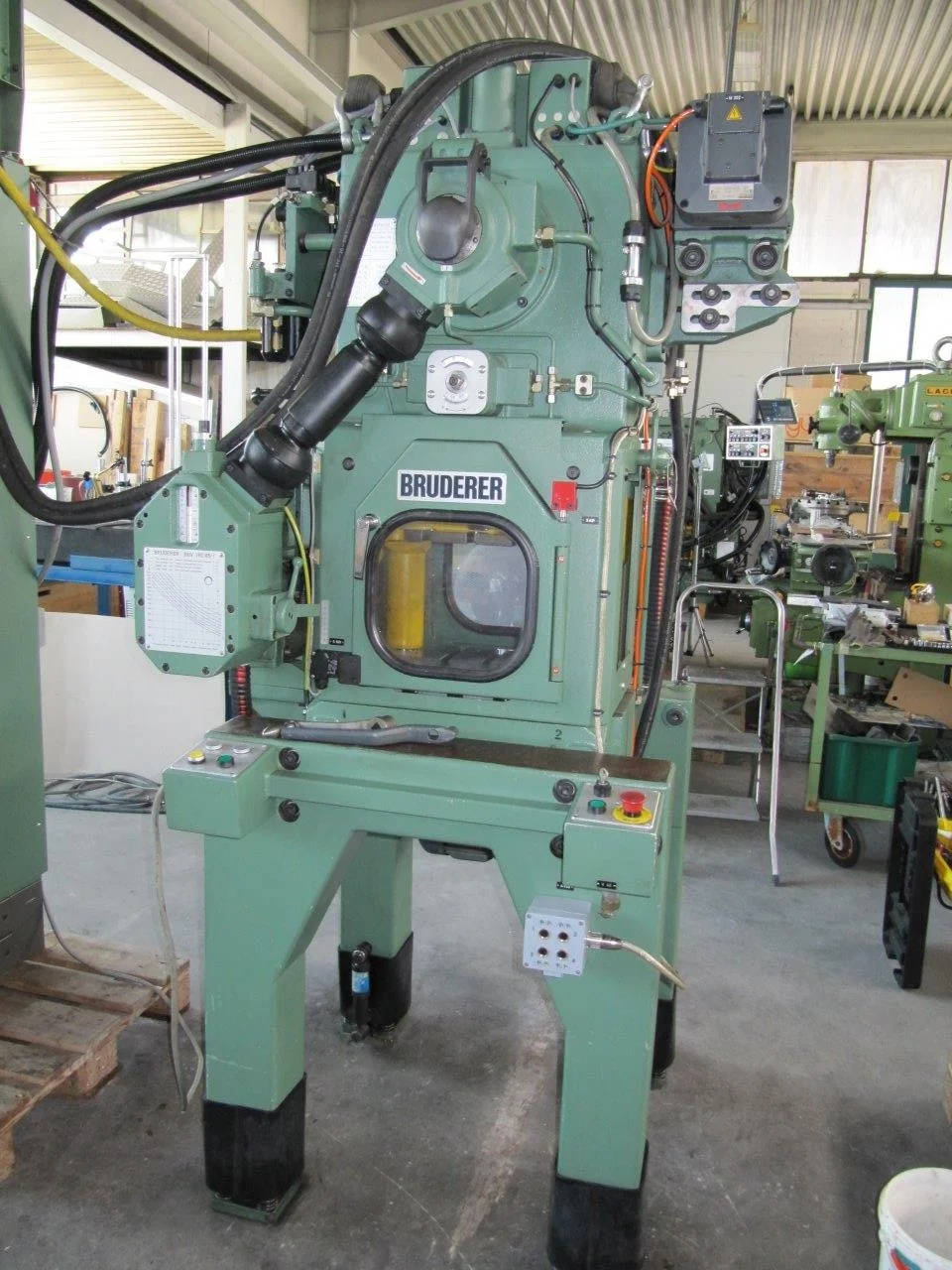

Bruderer BSTA 180U Ref. 12726

Precision high speed punching press. Nominal capacity: 180 kN (18 ton) Min./Max. number of strokes: 100/1400 Year of manufacture: 2001 Max width of strip: 160 mm Variable stroke: 8 to 40 mm BBV 190/85 roll feed mounted on left-hand side. Feed length variable up to 85 mm max. Feed angle 180°. Electronic drive with frequency inverter. PLC controls. Oil pump. Oil cooler. Fitted with spring feet dampers. Front and rear safety guards with inspection glass. End of strip monitoring electronic. Bolster area 480 x 374 mm. Max tool loading width 359 mm L-R. Weight of machine approx 1850 kgs. Power supply 400 Volt, 50 Hz. Contains documents EUR-1 and CE. Made in Switzerland.
