Bruderer BSTA 110 Ref. 16422

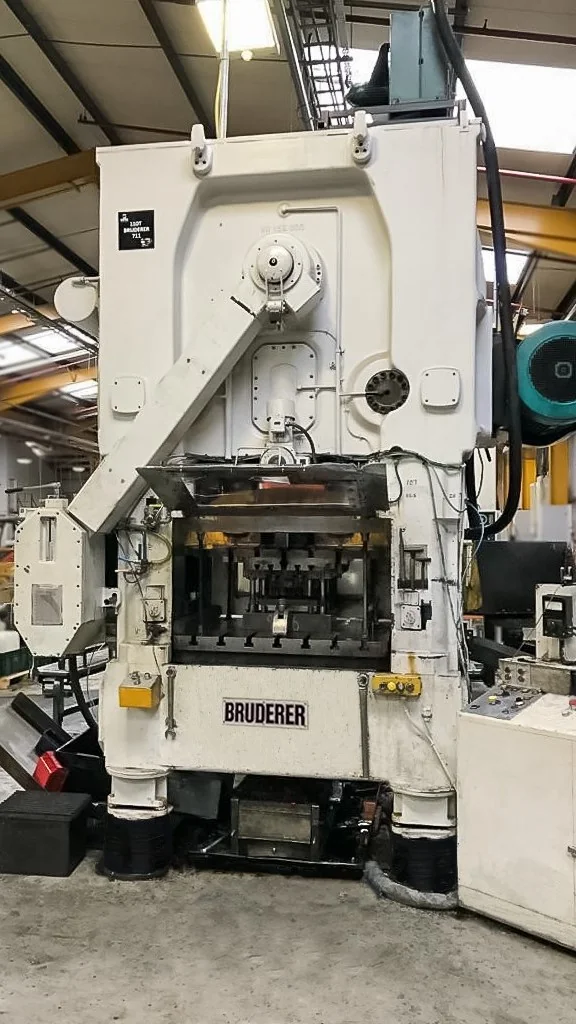

BRUDERER BSTA 110H Precision High Speed Automatic Press. Max. Pressure: 1100 kN (110 T). Speed range: 100 – 800 spm. Year of production: 1976. Fitted with roller-gripper feed unit BBV 320/200 on left-hand side. Max. strip width: 400 mm. Max. strip thickness: 12 mm. Max. feeding pitch: 200 mm. Adjustable stroke: 16-75. Ram height adjustment: 89 mm. Max. Tool width clearance between columns: 1170 mm. Max. Strip clearance width: 400 mm. Weight of machine: cca. 26000 kg. Electrical cabinet and control. Oil pump. Oil cooler. Fitted with spring feet dampers. Front and rear safety guards with inspection glass.
