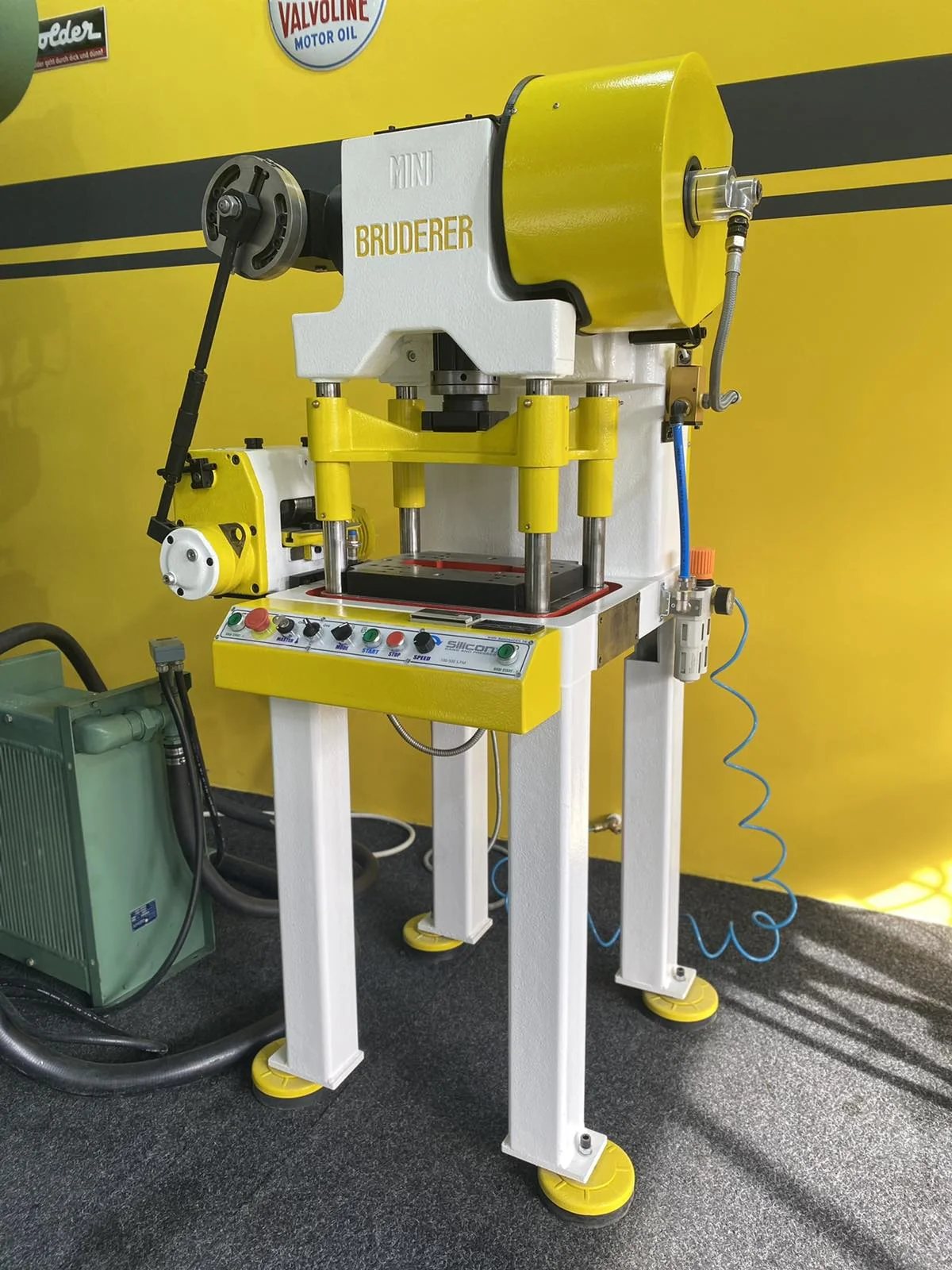

BRUDERER BSTA 10 Ref. 12626

Bruderer BSTA 10 MINI. Precision high speed punching press. Nominal capacity: 100 kn (10 t). Min./Max. number of strokes: 100/500. Variable stroke: 7, 13, 19, 25, 32, 38 mm. Fitted with BBV roll feeder. Max width of strip: 30 mm. Feed length variable up to 60 mm max. Reconditioned press with new control installed. All mechanical and electrical functions tested and working. Execution: 4 supports. Passage between the supports: Longitudinal 340 mm; Lateral 208 mm. Operating instructions in English and schematics included. Press weight cca. 1300 kg. On stock ready for delivery.
