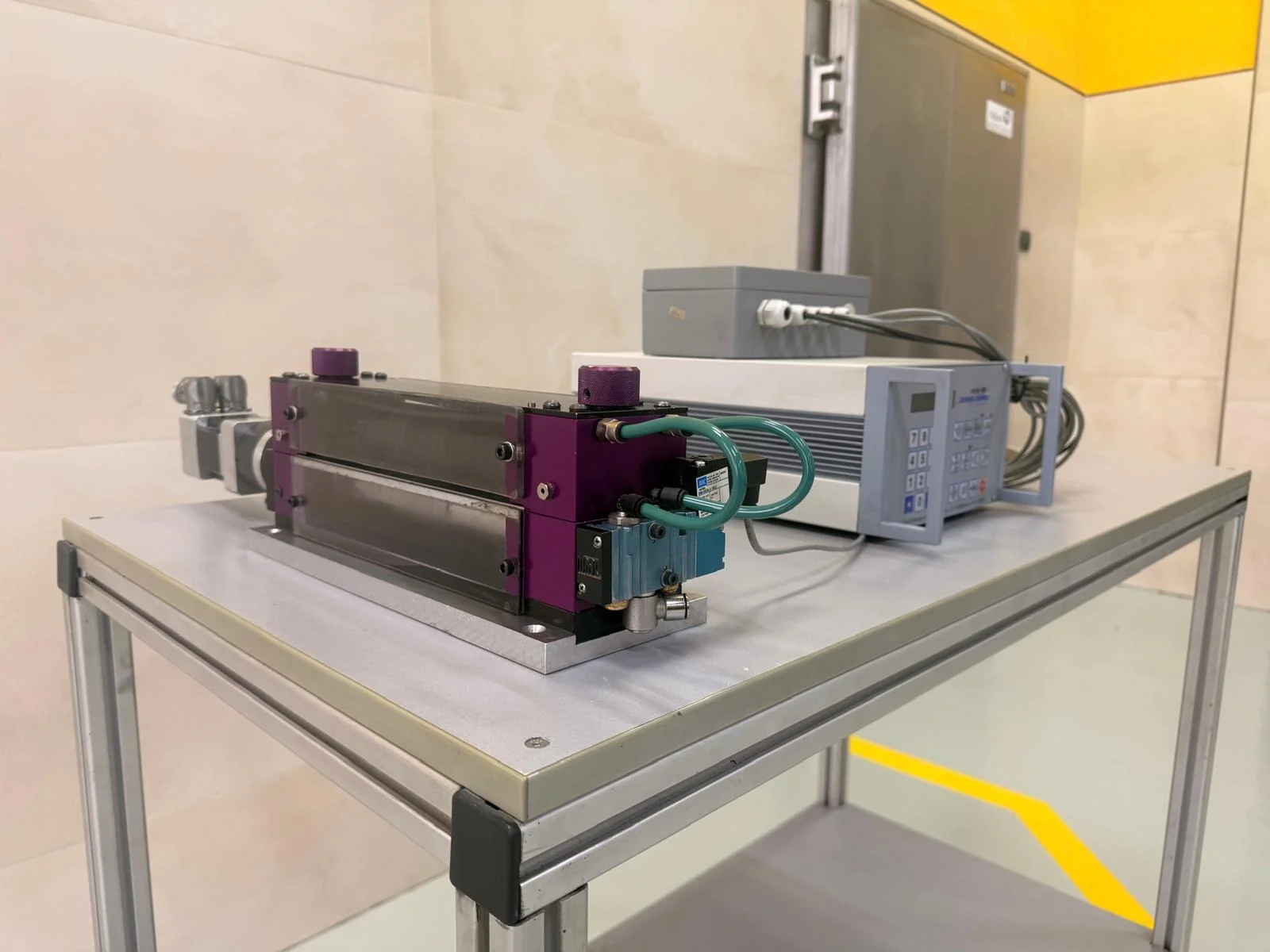

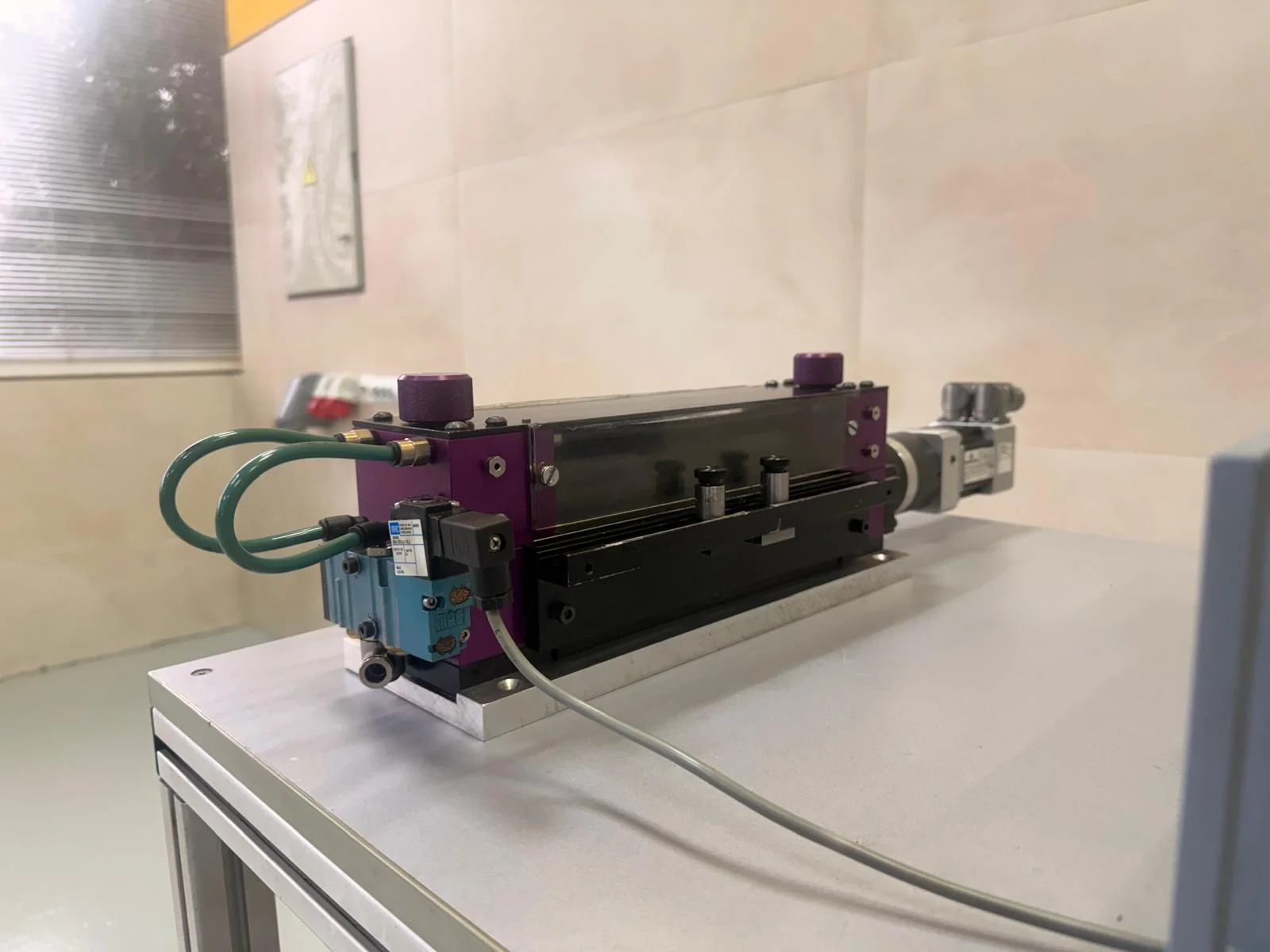

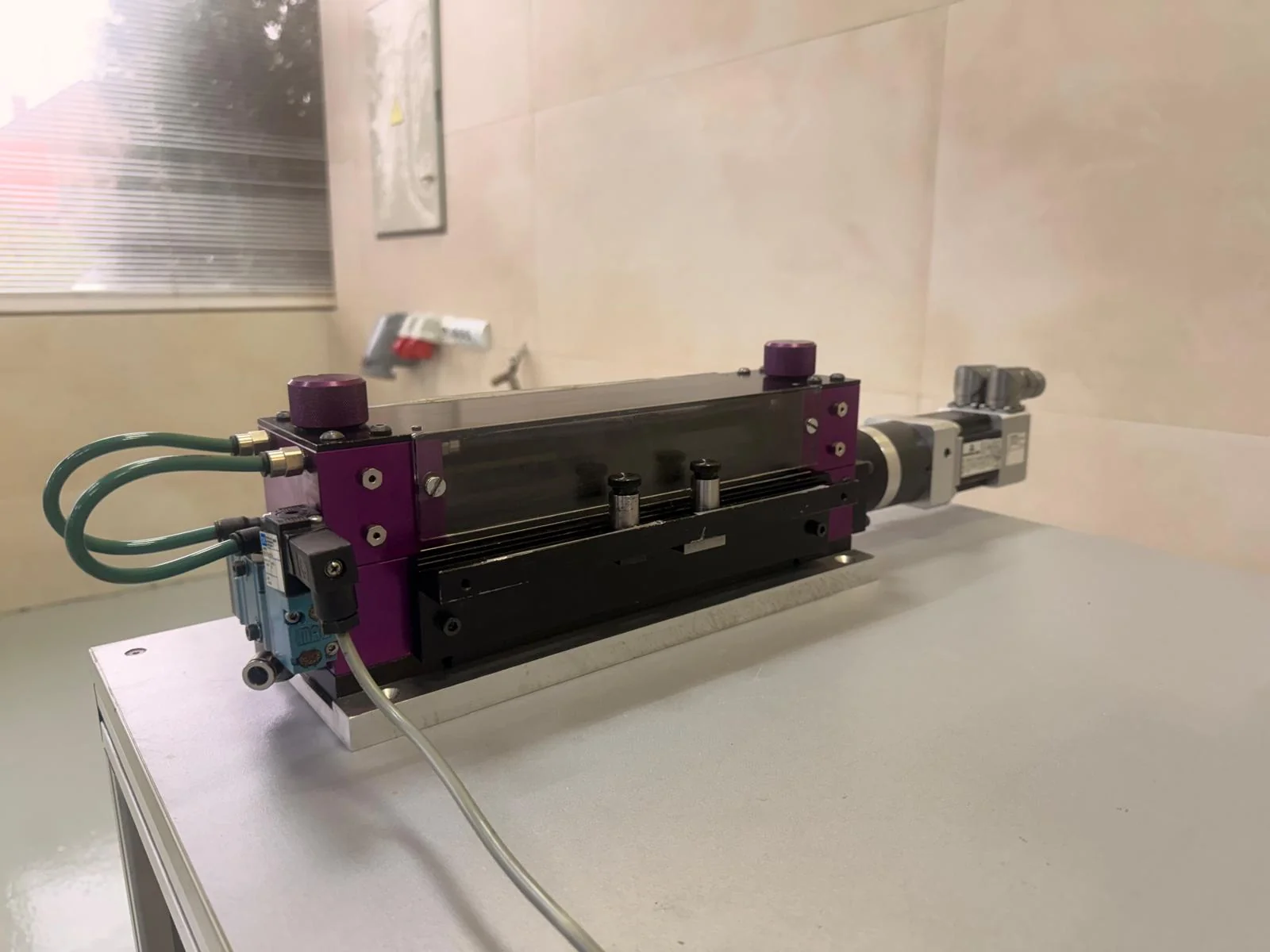

    ZEHNDER & SOMMER EVD 220 DG S Ref. 35126

    Servo Feeding Device • 2015 • ID: 35126

    High-precision strip feeder manufactured by Zehnder & Sommer, Germany, designed for accurate and reliable feeding of metal strip in stamping, punching, and forming applications. This feeder is ideal for integration with high-speed presses such as Bruderer, Schaal, Mabu, Bihler, and similar machines. Zehnder & Sommer feeders are known for their exceptional Swiss engineering, compact design, and excellent feeding accuracy, making them suitable for demanding industrial environments and high-speed production lines.

    This machine has been sold. If you are interested in a machine of this type, please contact us.

    Contact Us
    Call Us

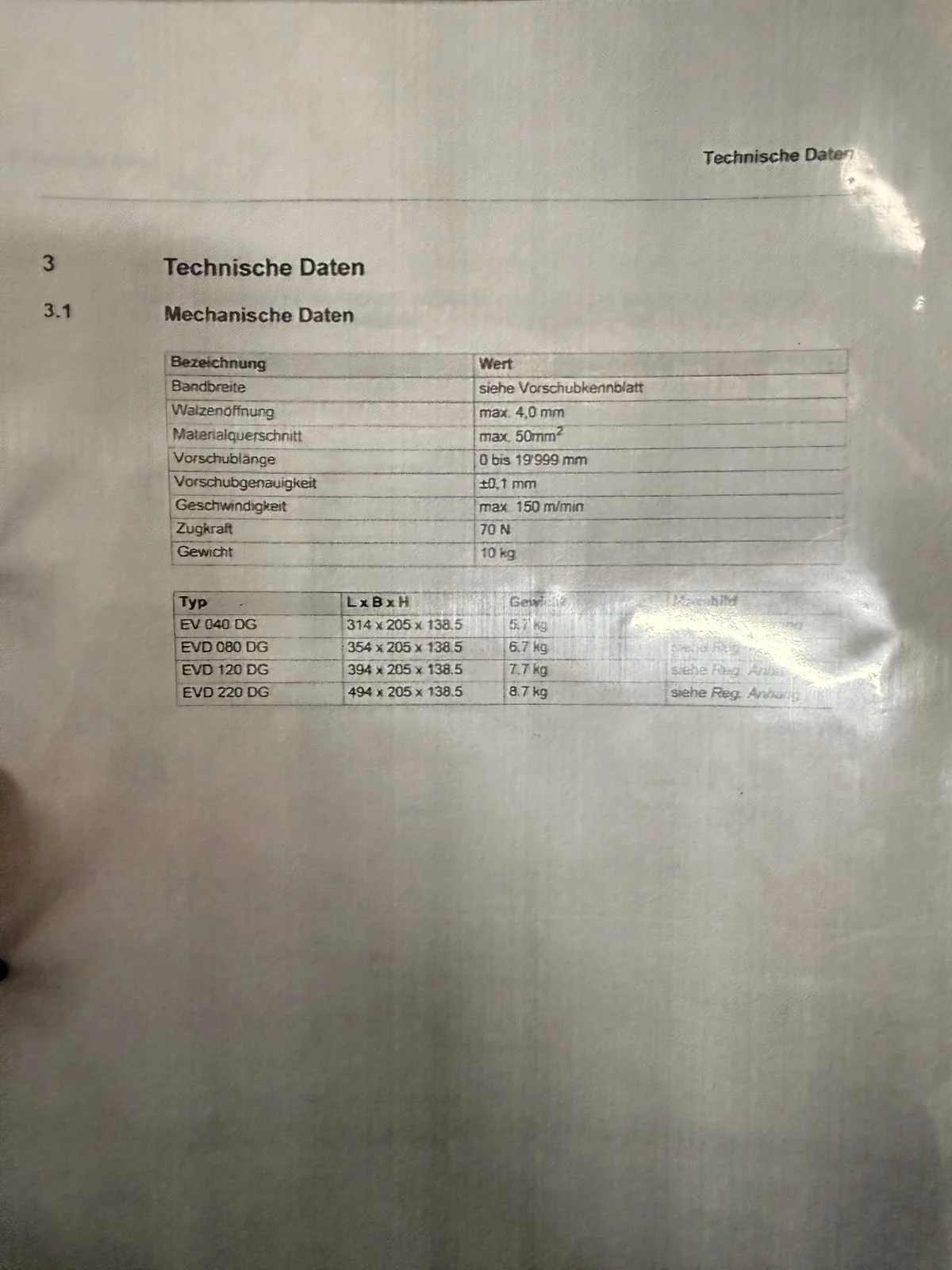

    Technical Specifications

    Manufacturer:Zehnder & Sommer
    Model:EVD 220 DG S
    Strip width max.:200 mm
    Roll opening (max strip thickness):4.0 mm
    Maximum material cross-section:50 mm²
    Feed length range:0 – 19,999 mm
    Feed accuracy:± 0.1 mm
    Maximum feeding speed:150 m/min
    Pulling force:70 N
    Weight:10 kg
    High precision feeding for stamping and forming applications
    Compact and lightweight industrial design
    Suitable for high-speed press automation
    Reliable swiss manufacturing quality
    Easy integration into existing production lines
    Ideal for fine stamping, electrical components, and precision metal parts production
