IDEAL BAS 050-11 GTR Band Saw Blade Welder Ref. 37126

Band Saw Blade Welding Machine • 2019 • ID: 37126

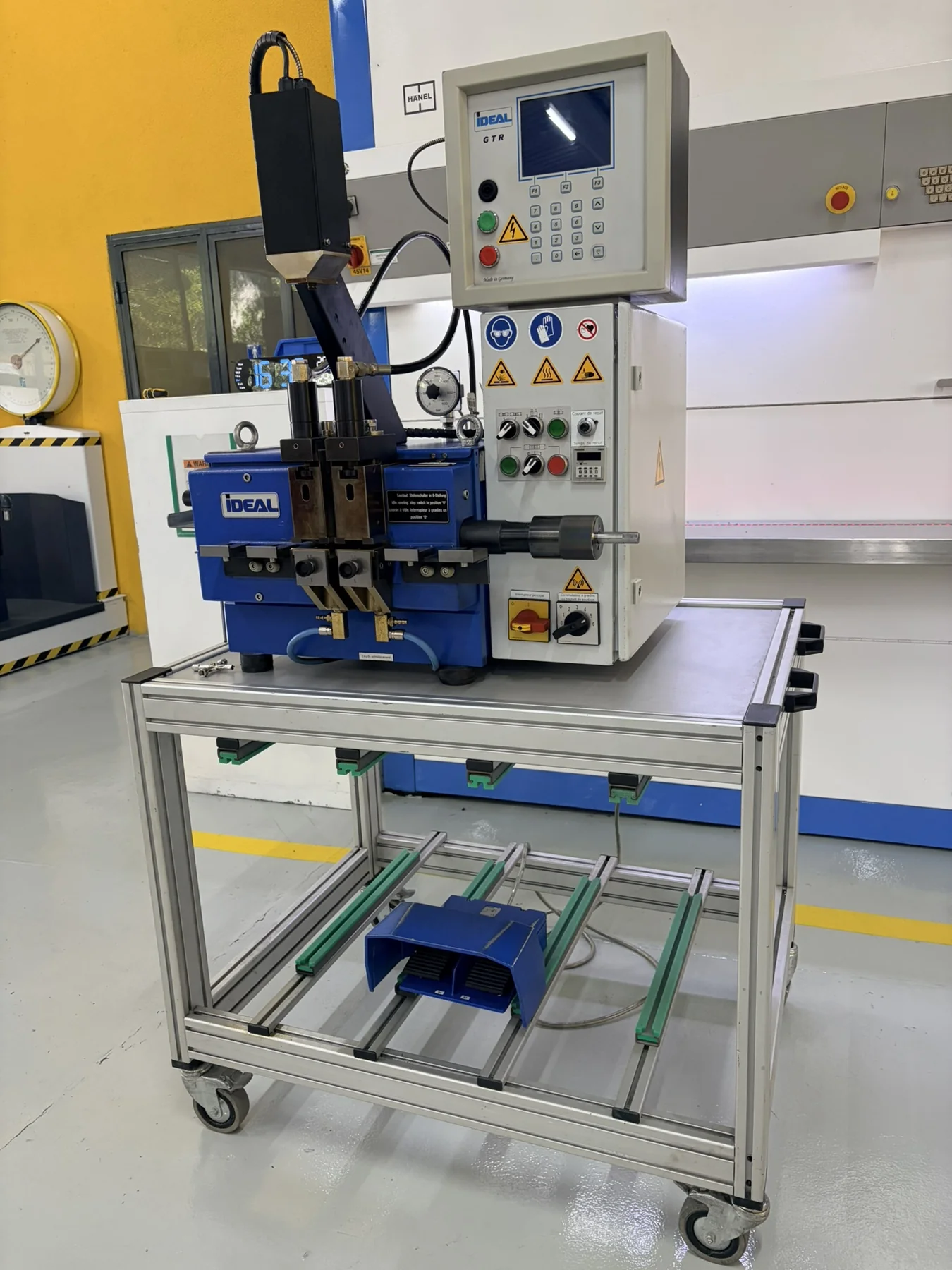

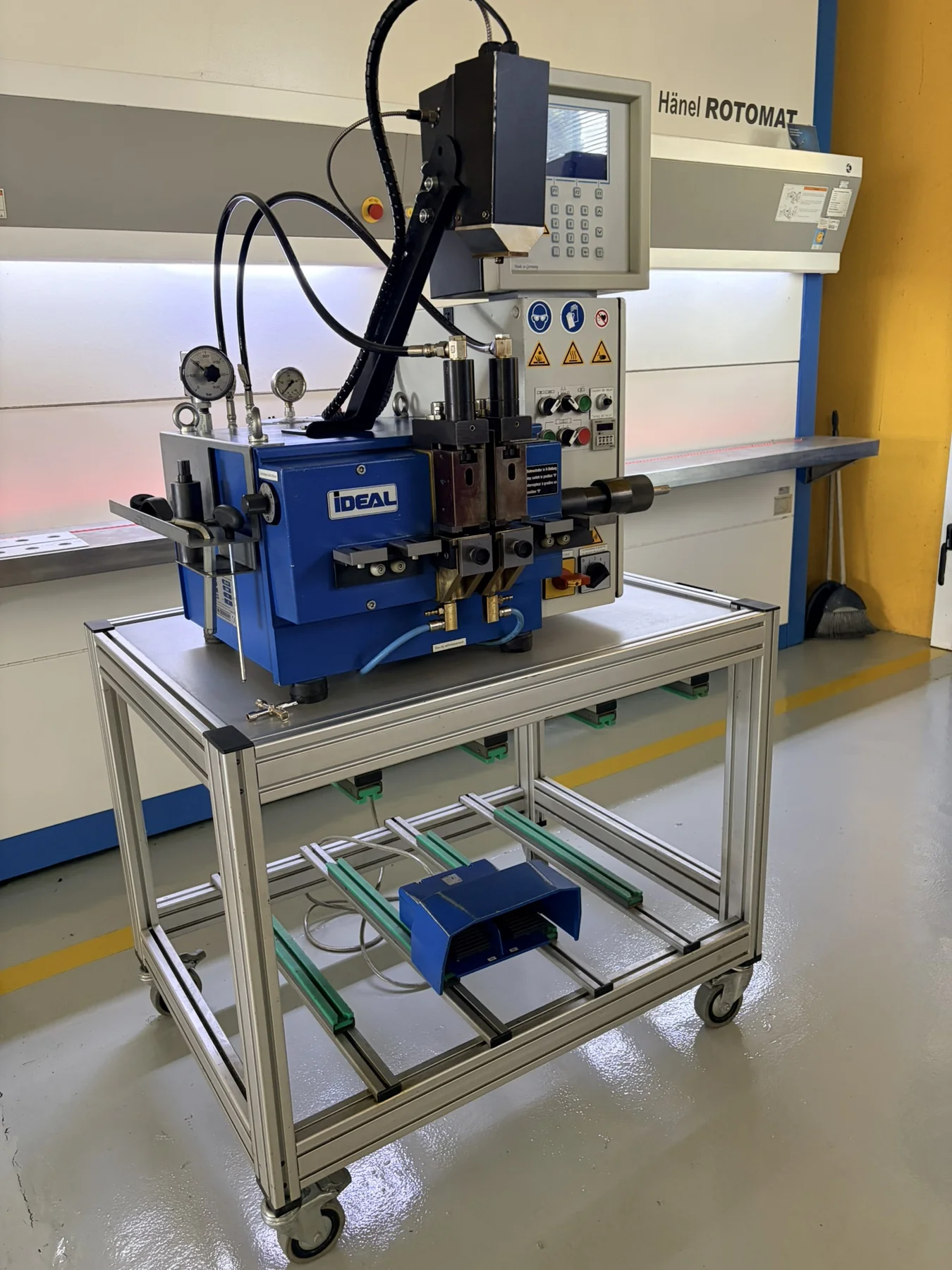

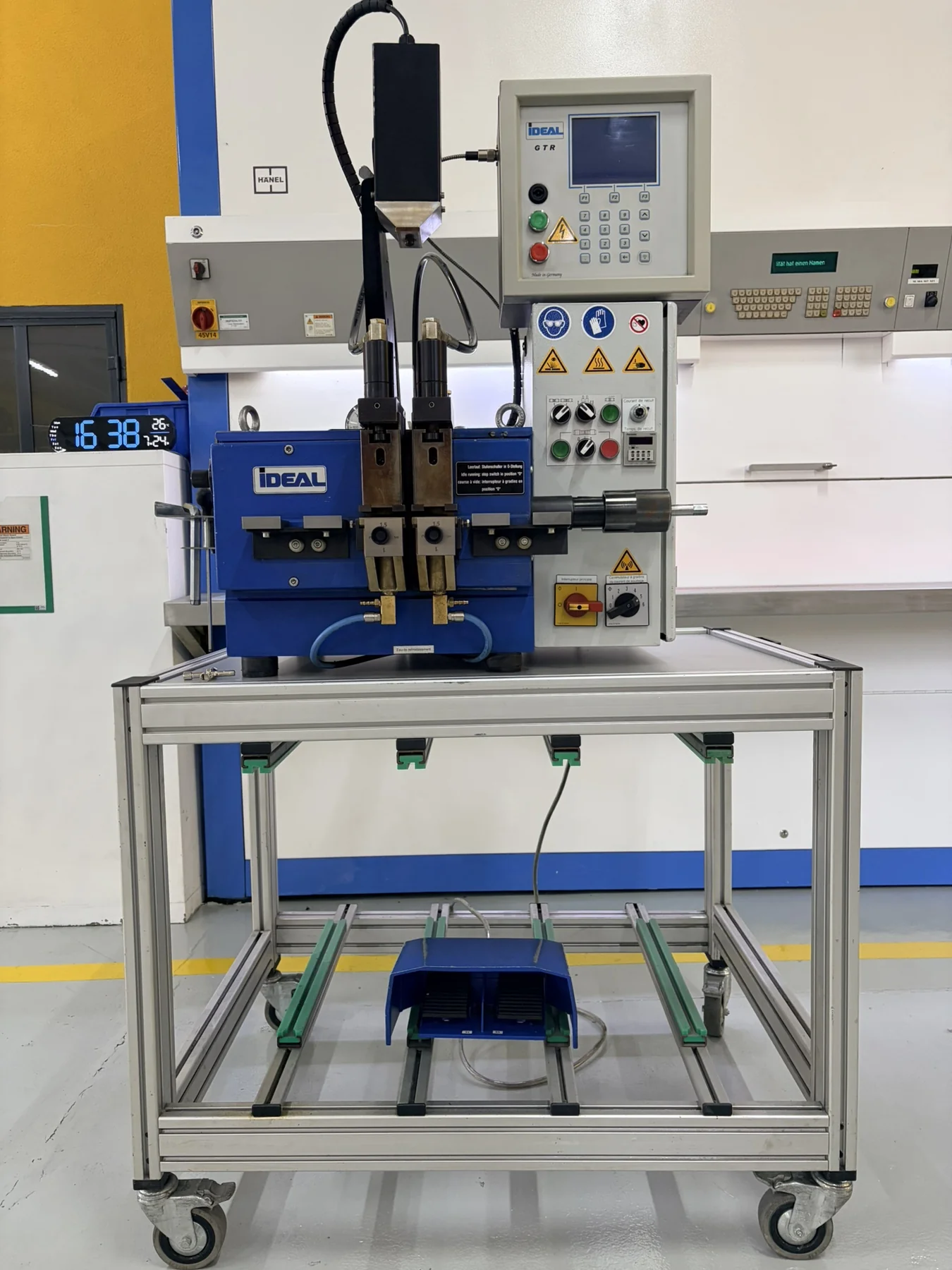

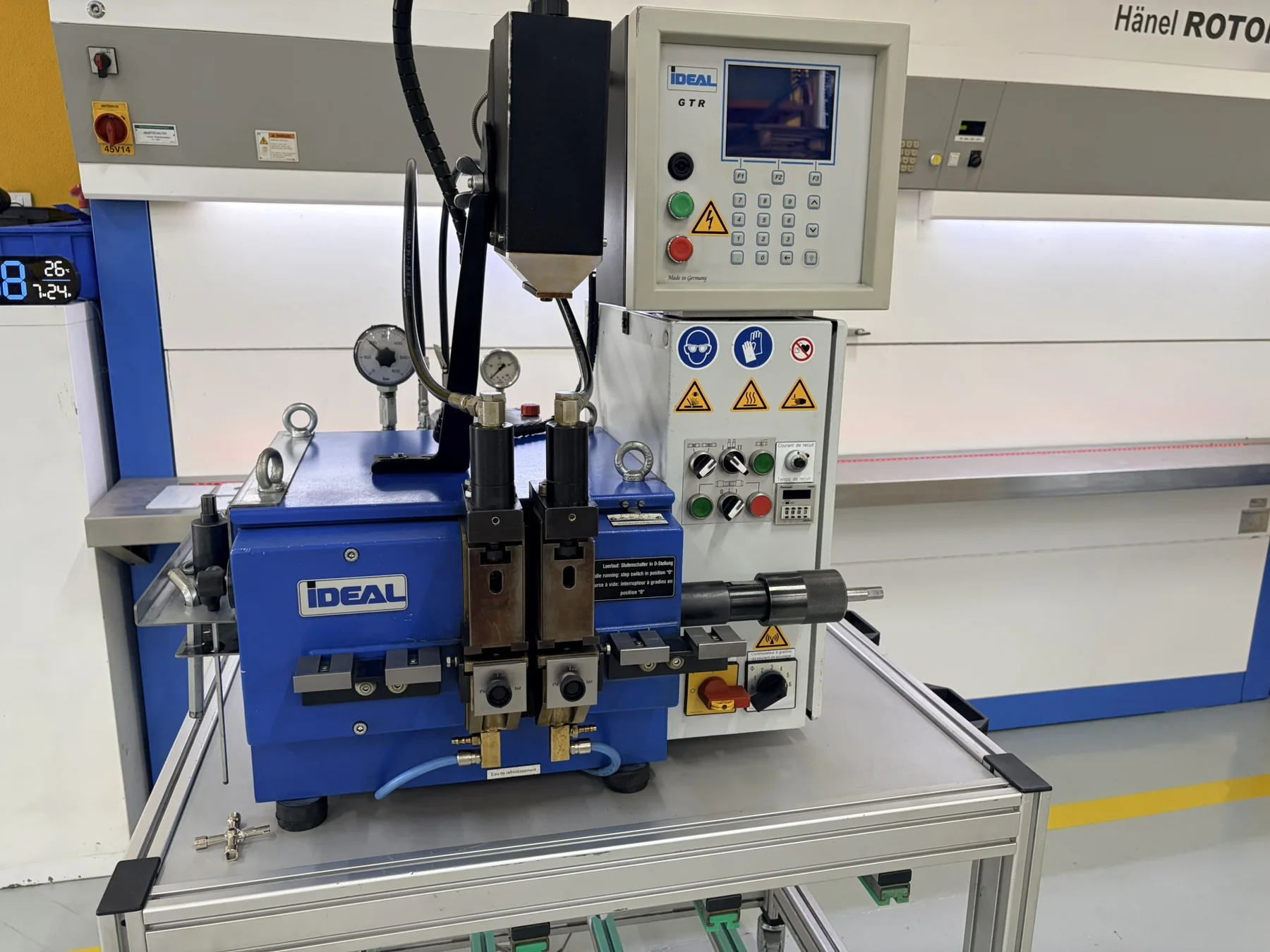

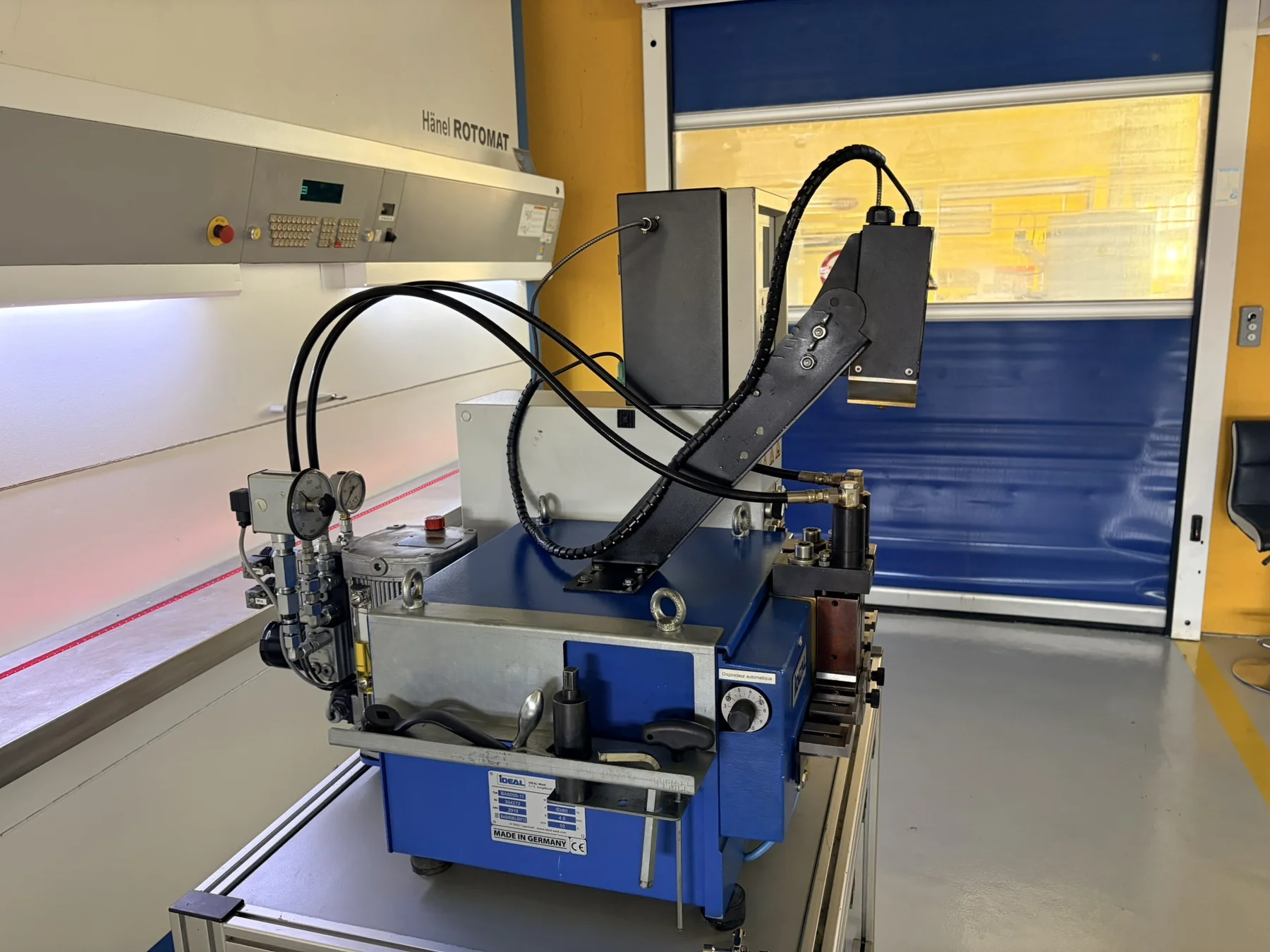

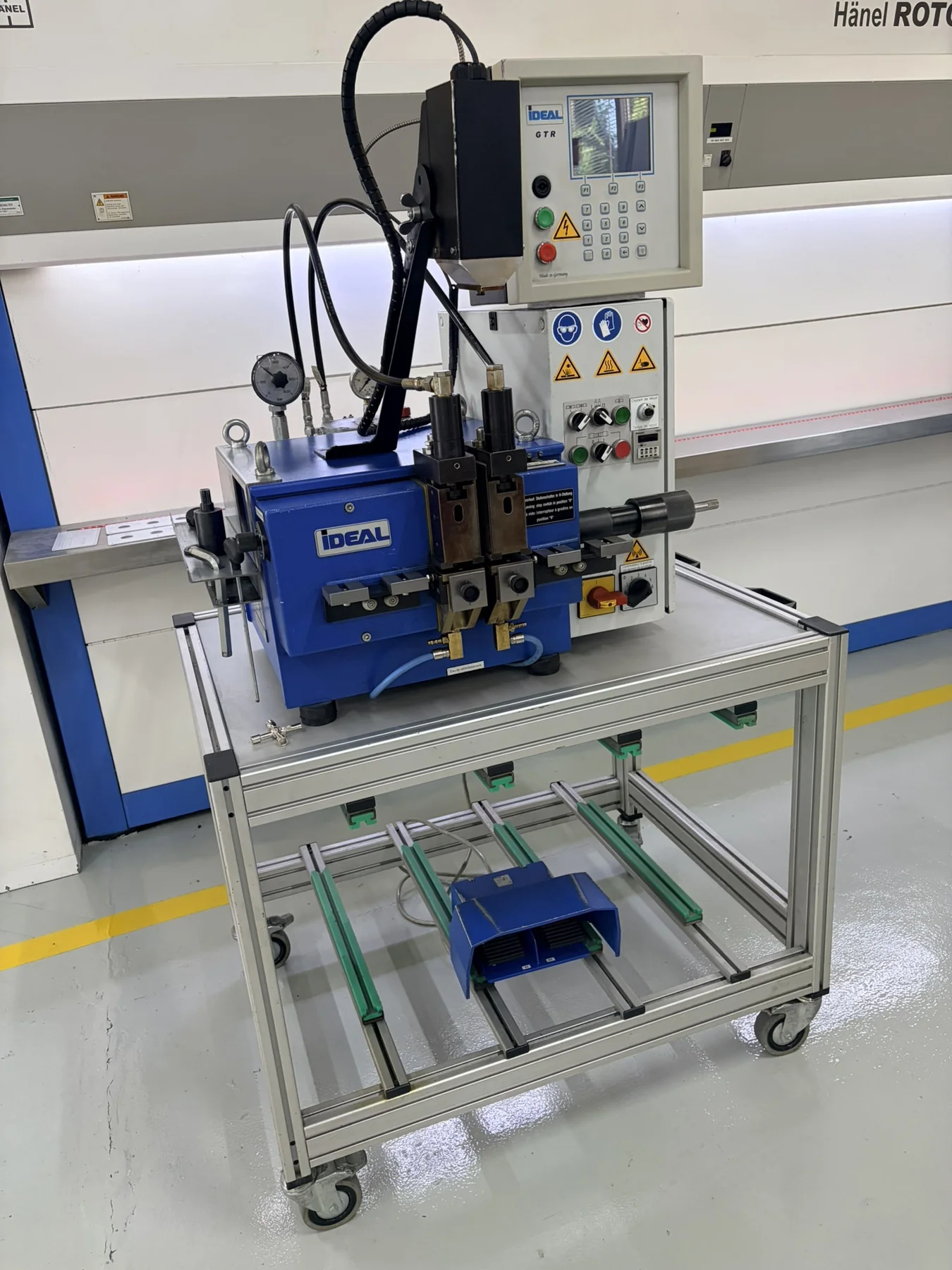

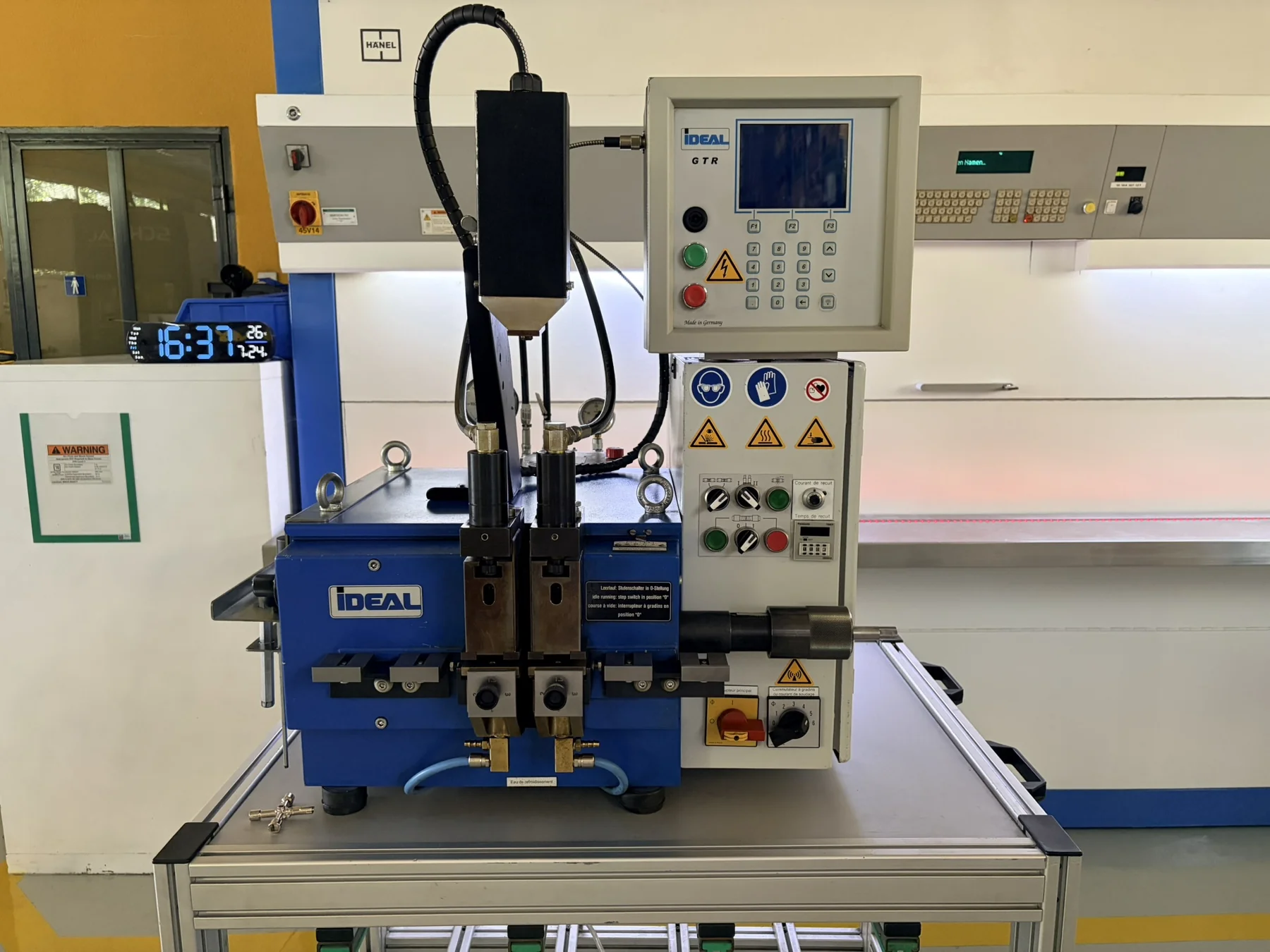

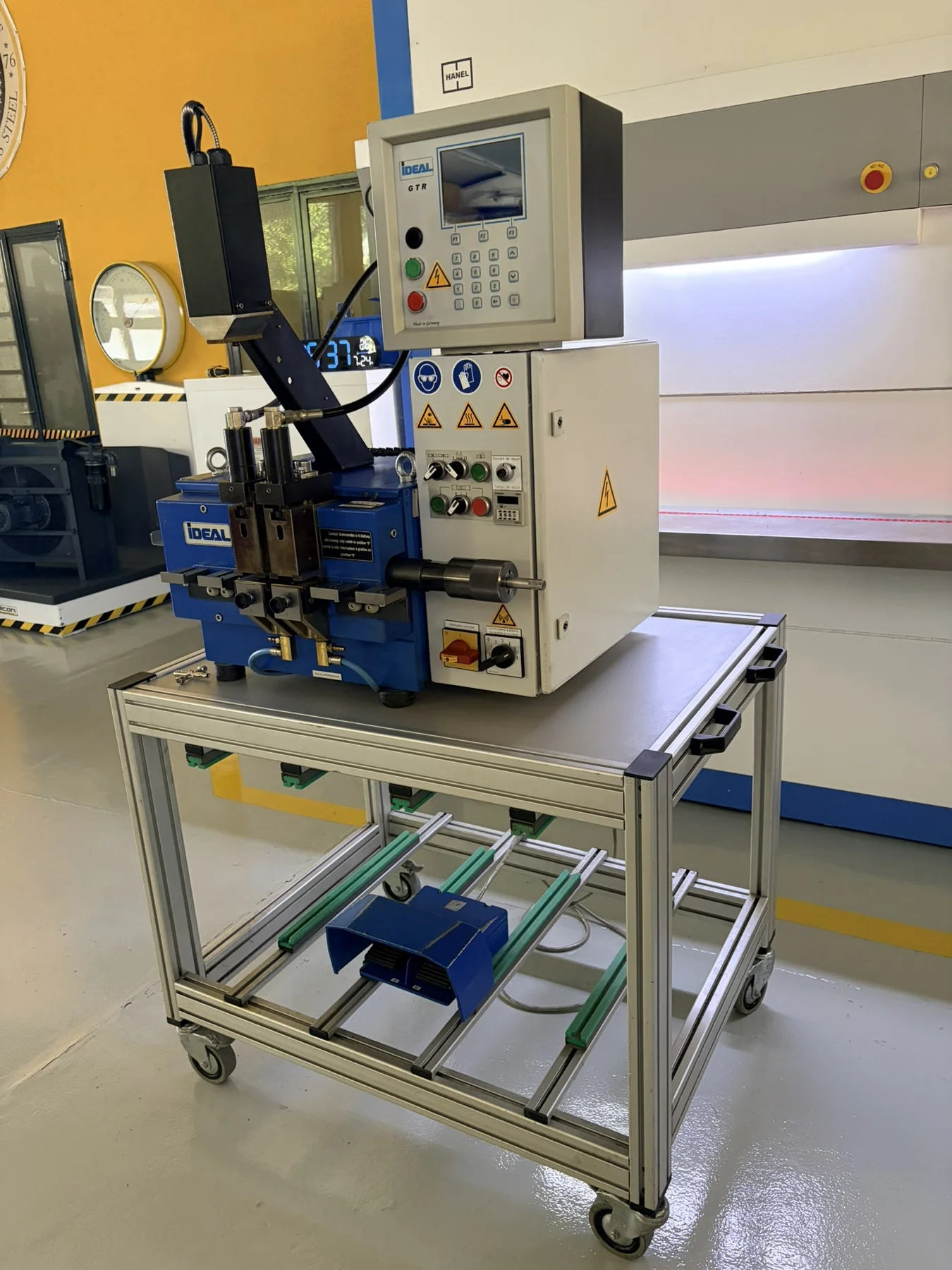

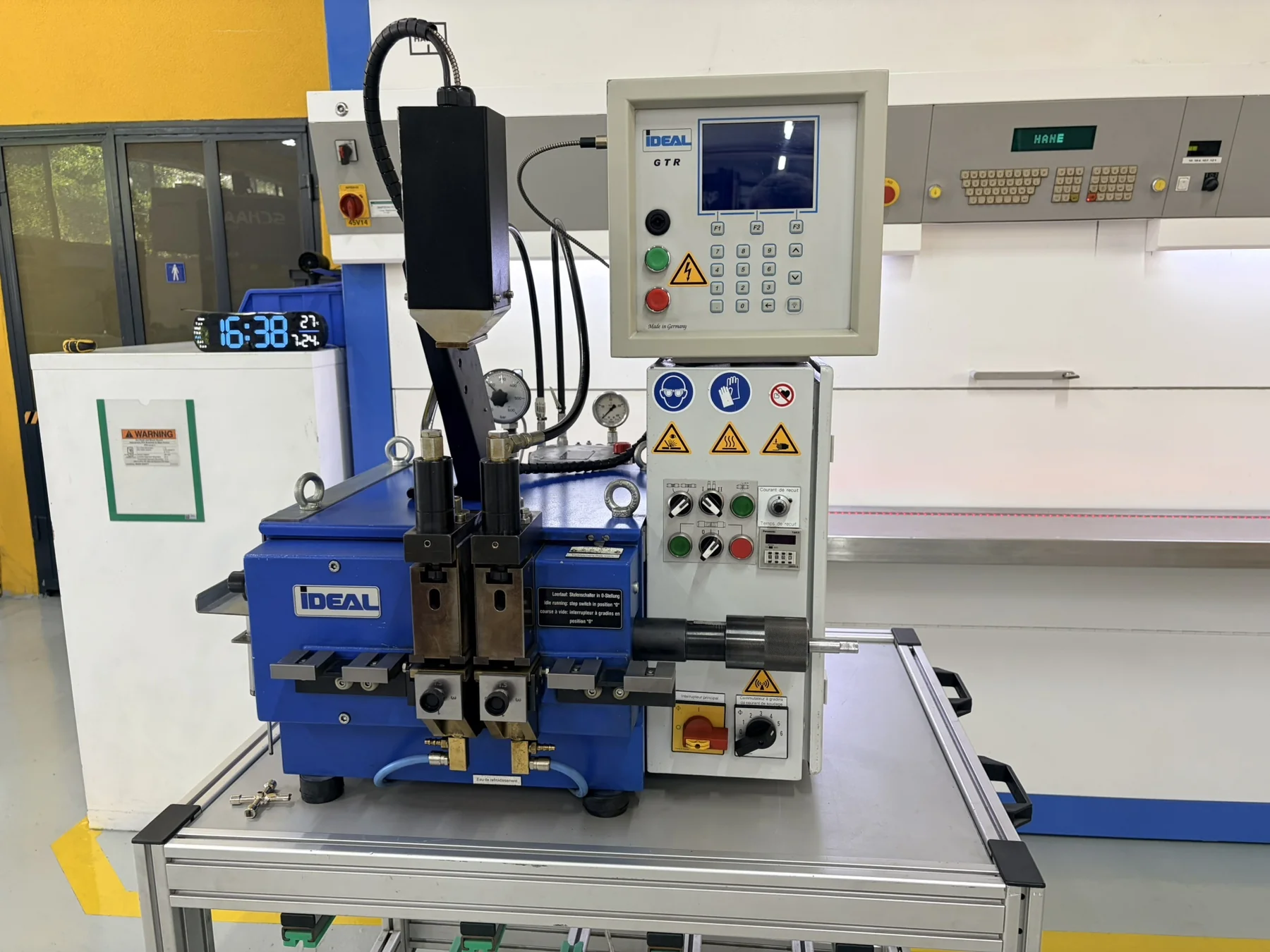

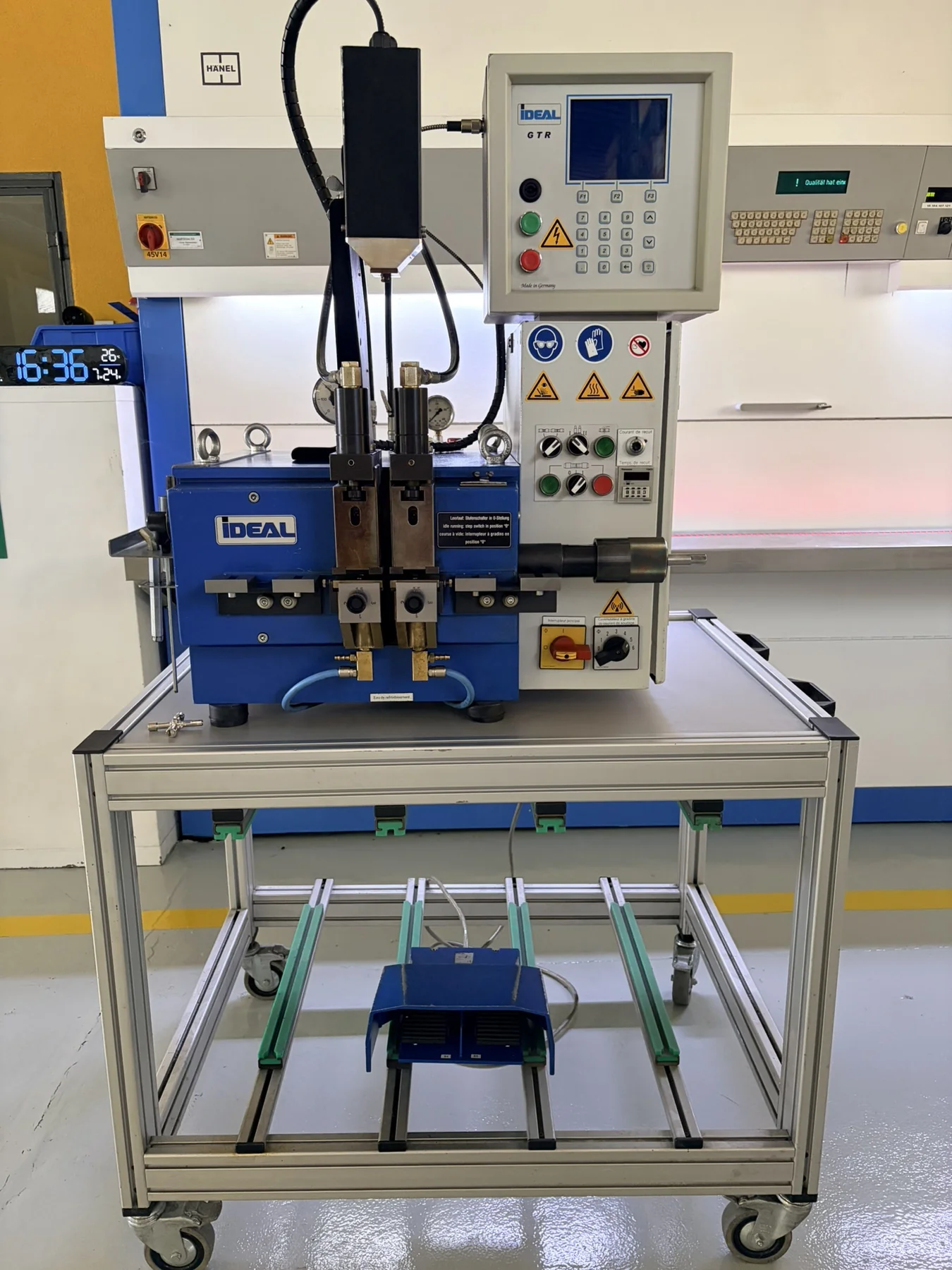

IDEAL BAS050-11 is a band saw blade welding machine with GTR control. It operates at 380-419 V and 50/60 Hz with a power of 4.5 kVA. Equipped with the GTR pyrometer option: annealing temperature is set by recipe and monitored contactless, ending the cycle automatically for repeatable, operator-independent weld quality. Machine is from 2019, in very good condition, water-cooled, and ready for immediate production use. Hydraulic clamping (BAS 050-11): Both clamping jaws are operated hydraulically via foot switches, freeing both hands for blade positioning. The automatic sequence moves the machine to the annealing position after welding without manual intervention.

Call Us

Technical Specifications

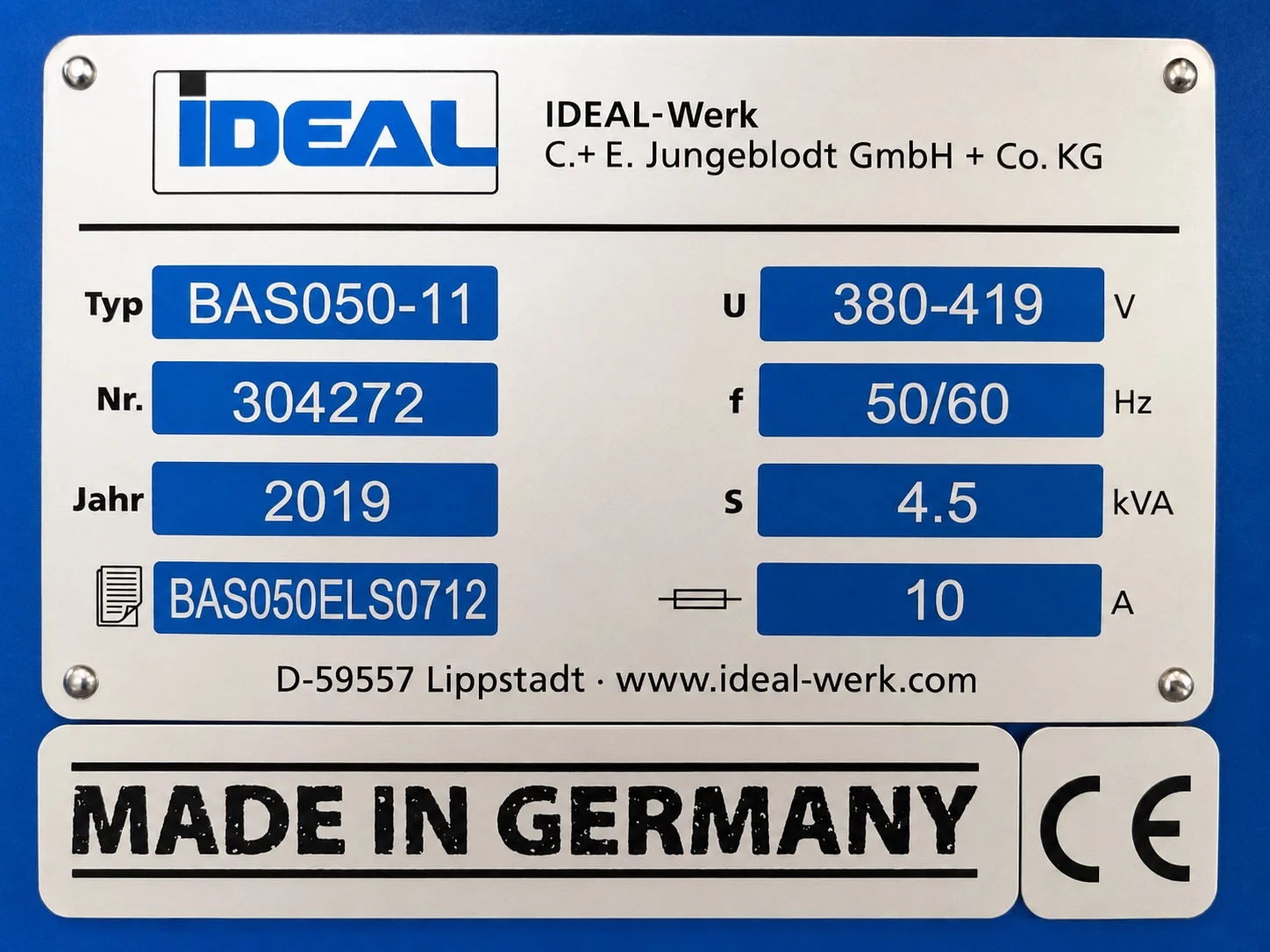

Make and Model:iDEAL BAS 050-11

Year of manufacture:2019

Serial no.:304272

Pyrometer (GTR)yes (temperature display on touch panel)

Clamping hydraulic,foot switch operation

Clamping force10 kN (hydraulic)

Upsetting forcemax. 2.2 kN

Secondary voltage2.6 – 4.4 V (6 stages)

Voltage:380-419 V

Frequency:50/60 Hz

Power:4.5 kVA

Wood saw blades6×0.4 – 50×1.0 mm

Bi-metal / carbide bandsaws 6×0.6 – 34×1.1 mm

Stainless steel saw blades6×0.4 – 25×0.5 mm

Strip steel S235JRmax. cross-section 75 mm²

Machine weight approx. 180 kg

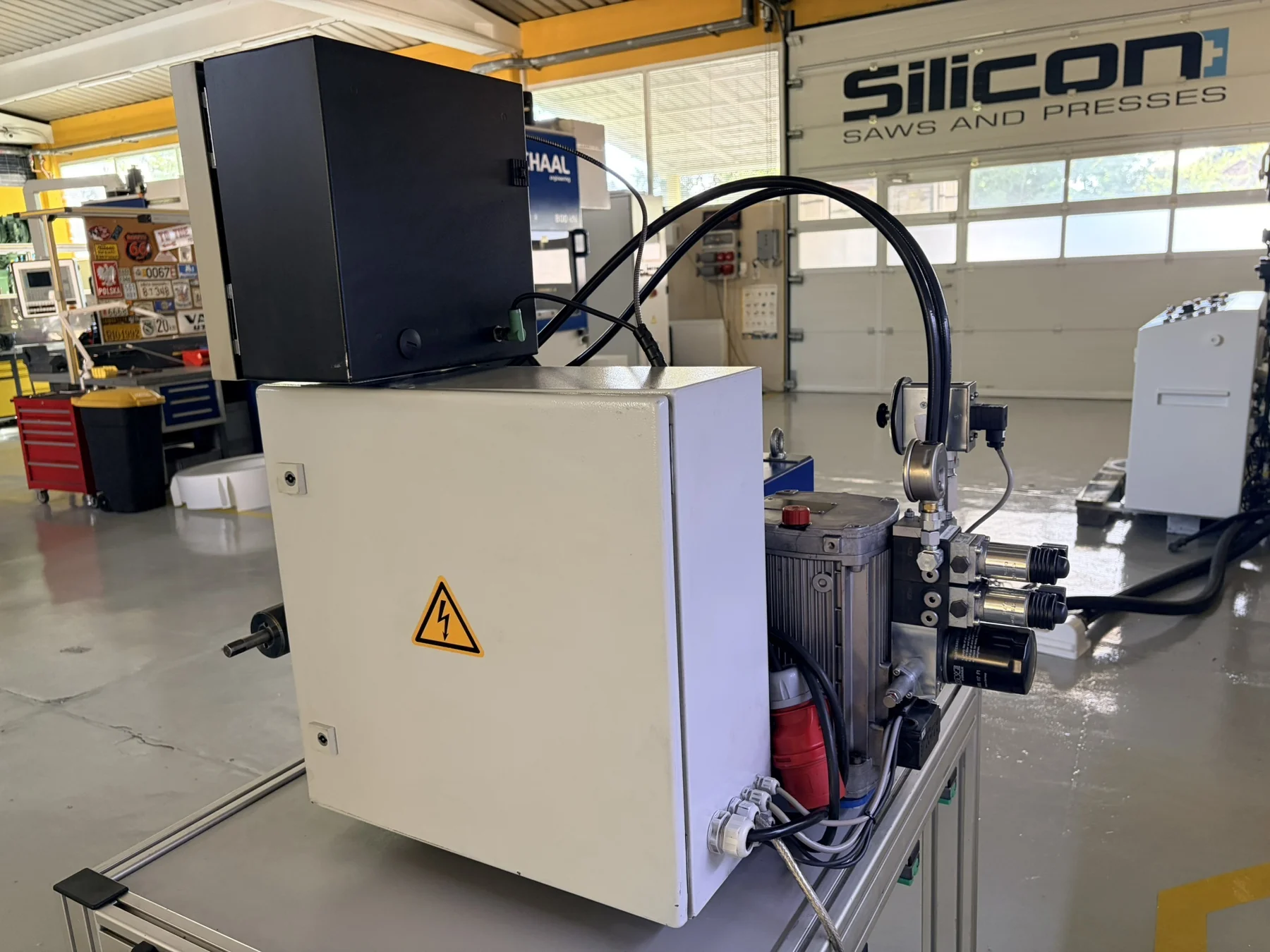

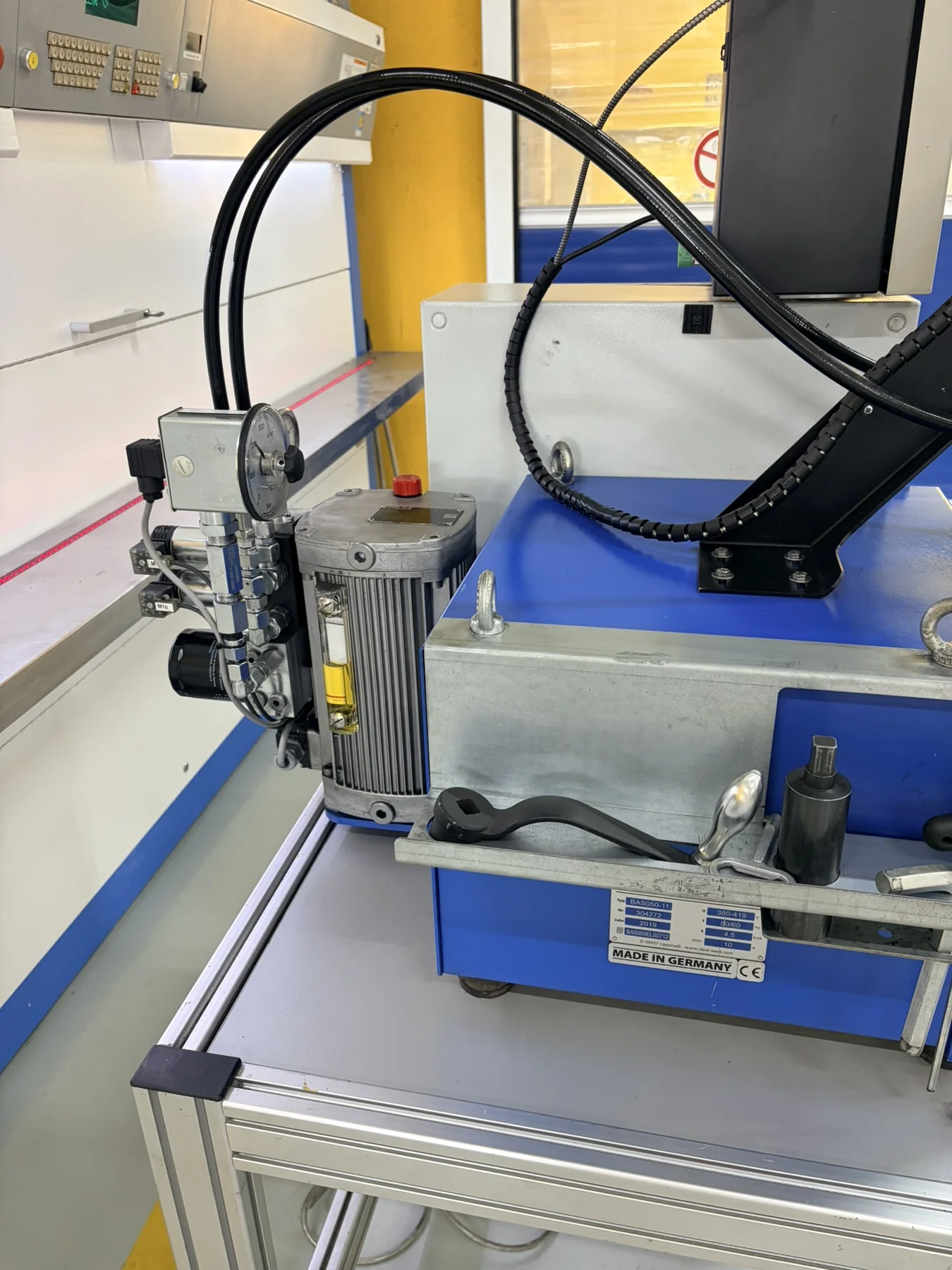

Hydraulic clamping (BAS 050-11 specific): Both clamping jaws are operated hydraulically via foot switches, freeing both hands for blade positioning. The automatic sequence moves the machine to the annealing position after welding without manual intervention.

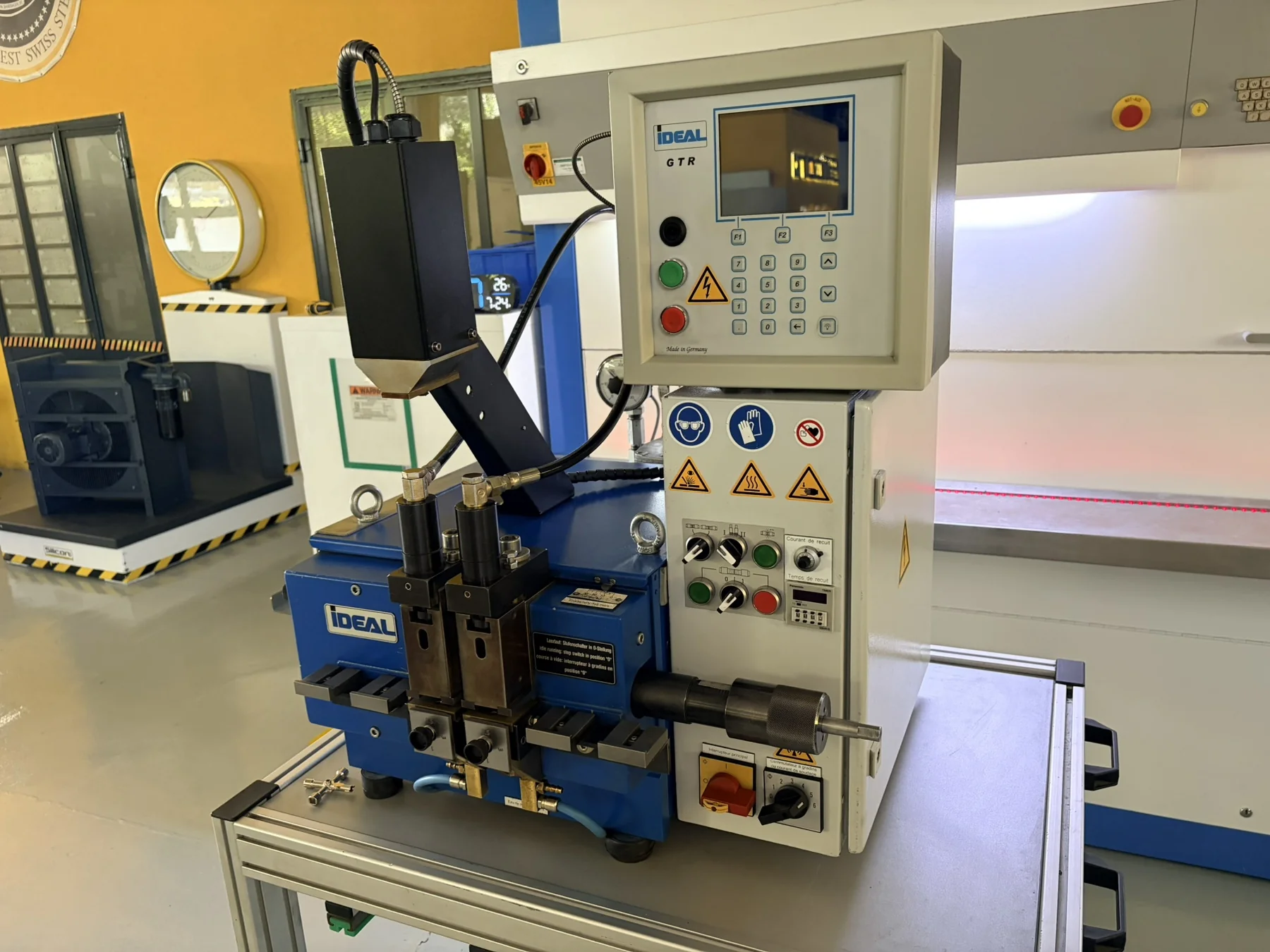

Pyrometer / GTR option: Integrated pyrometer (GTR) enables contactless temperature measurement during the annealing process. Target temperature is stored in the recipe and displayed on the touch panel — the annealing cycle ends automatically when the set temperature is reached, eliminating operator-dependent variables and ensuring repeatable weld quality.

Included: Machine, operating tools, operating instructions.
