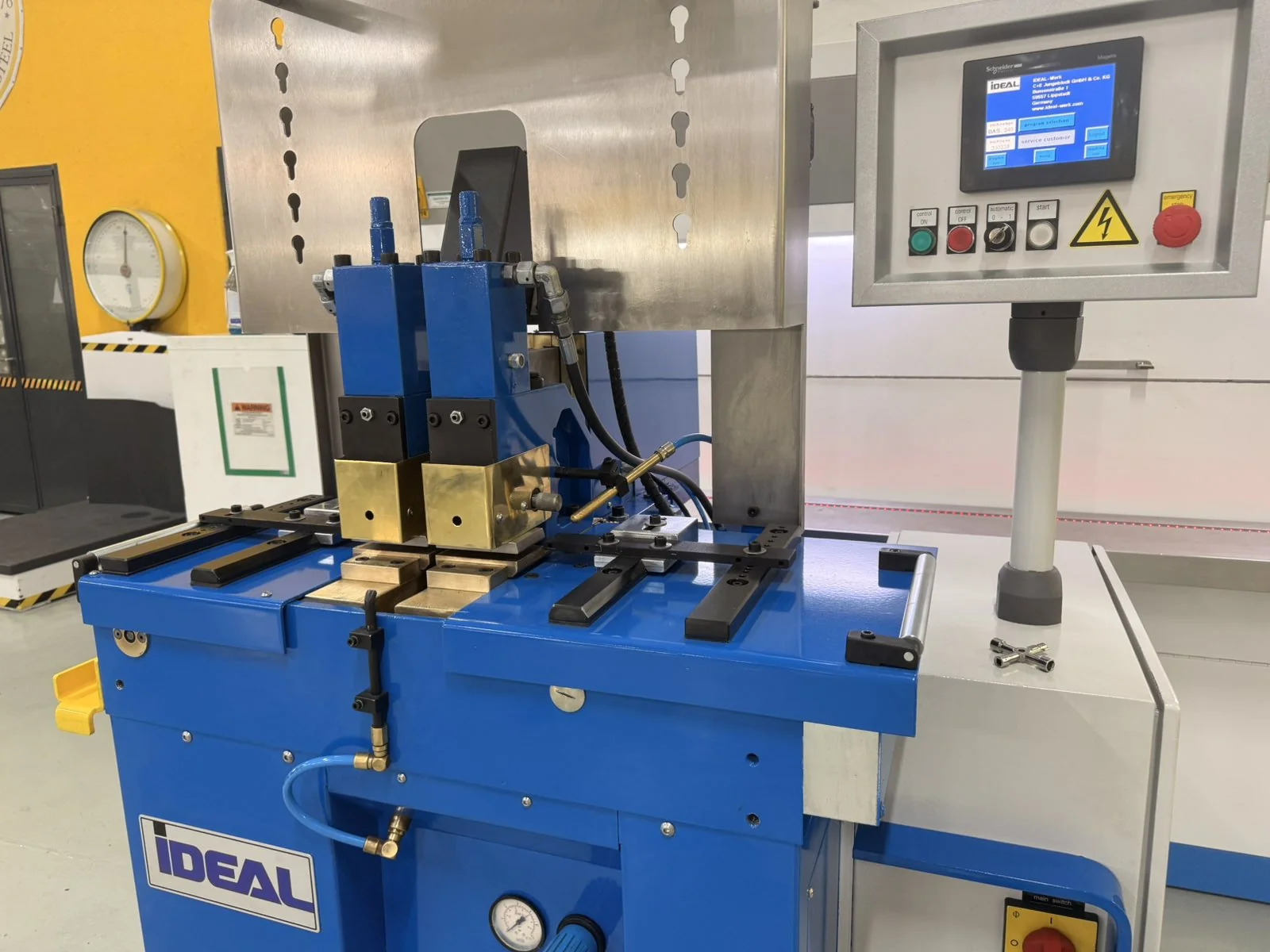

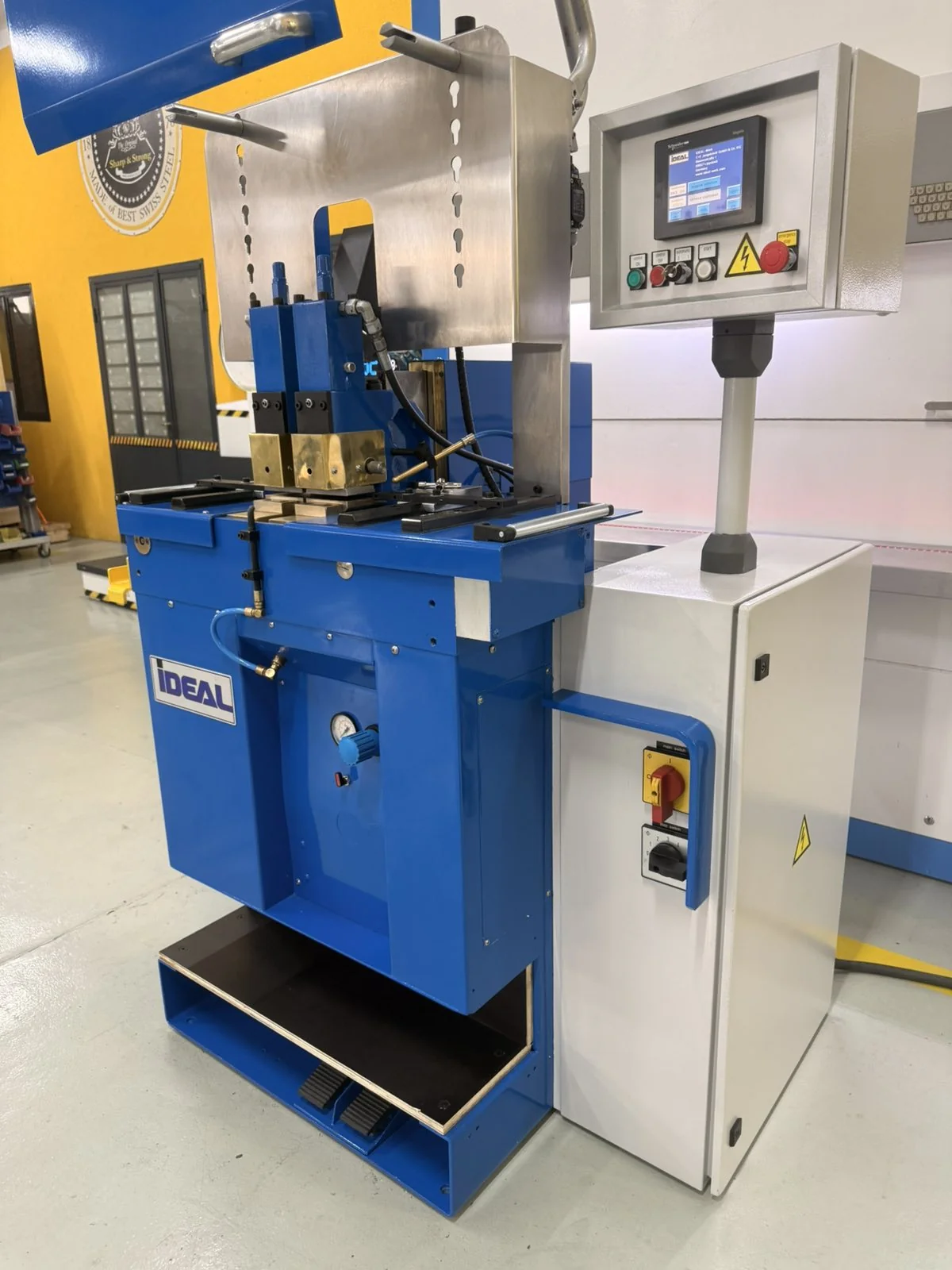

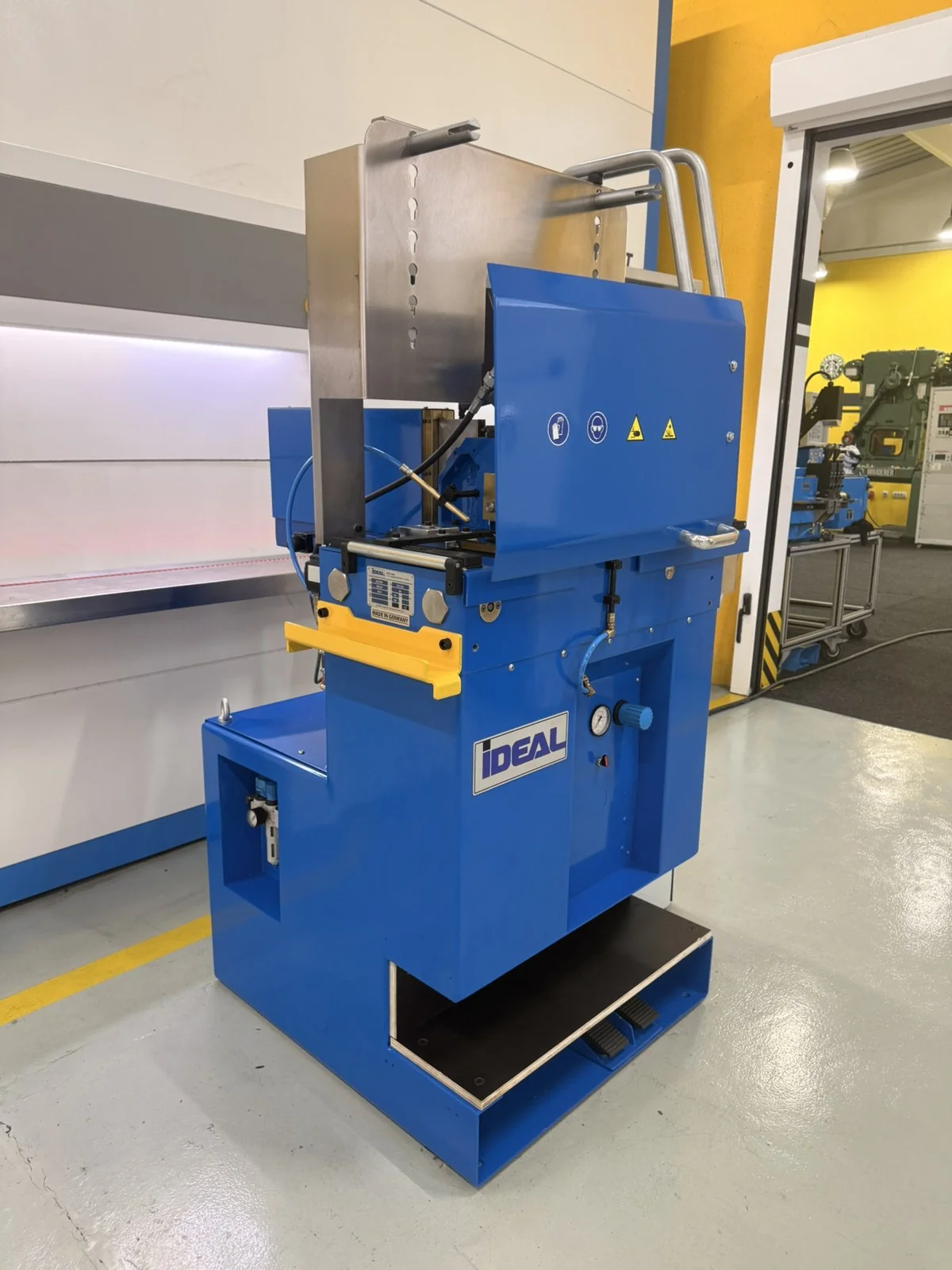

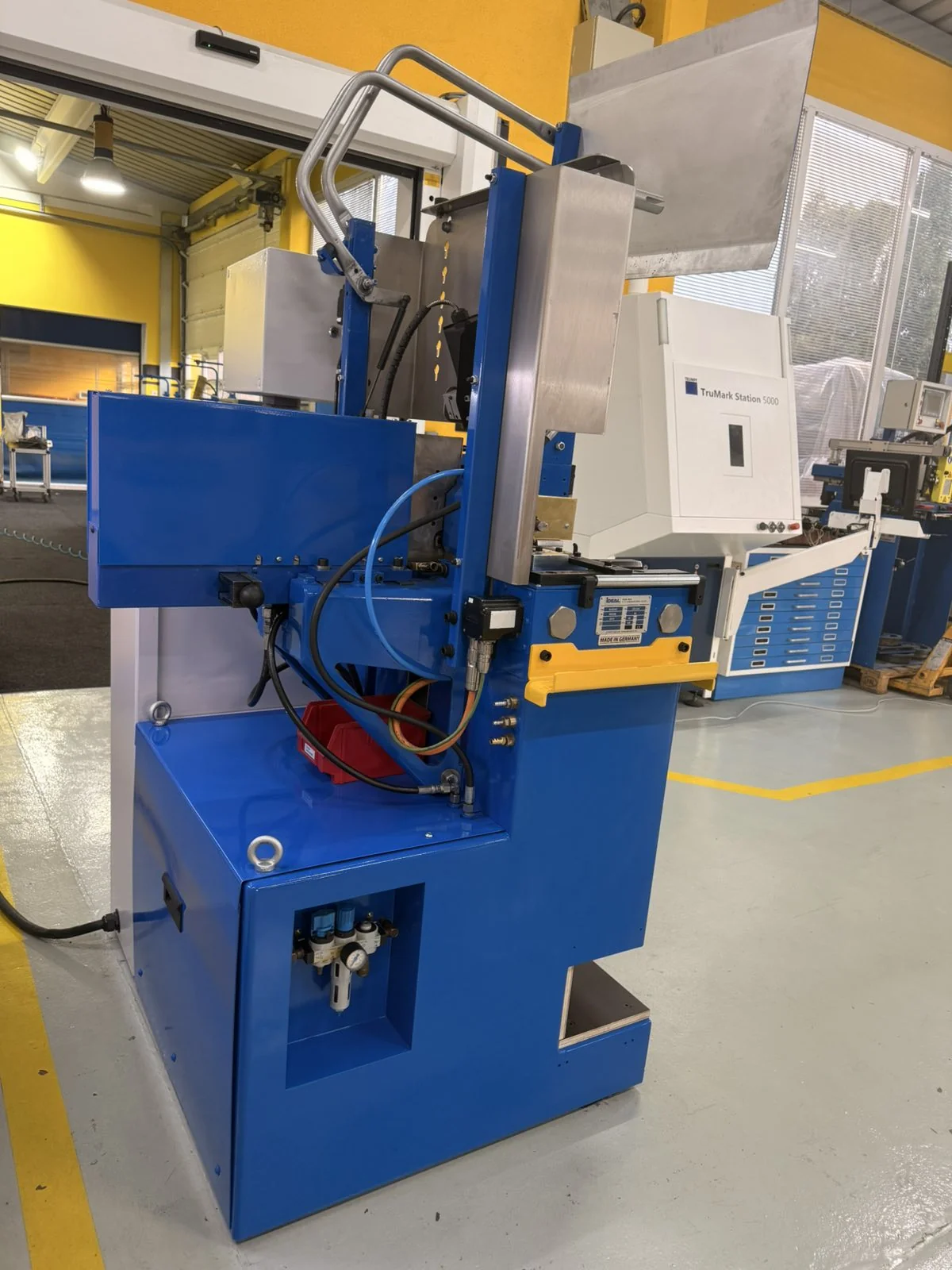

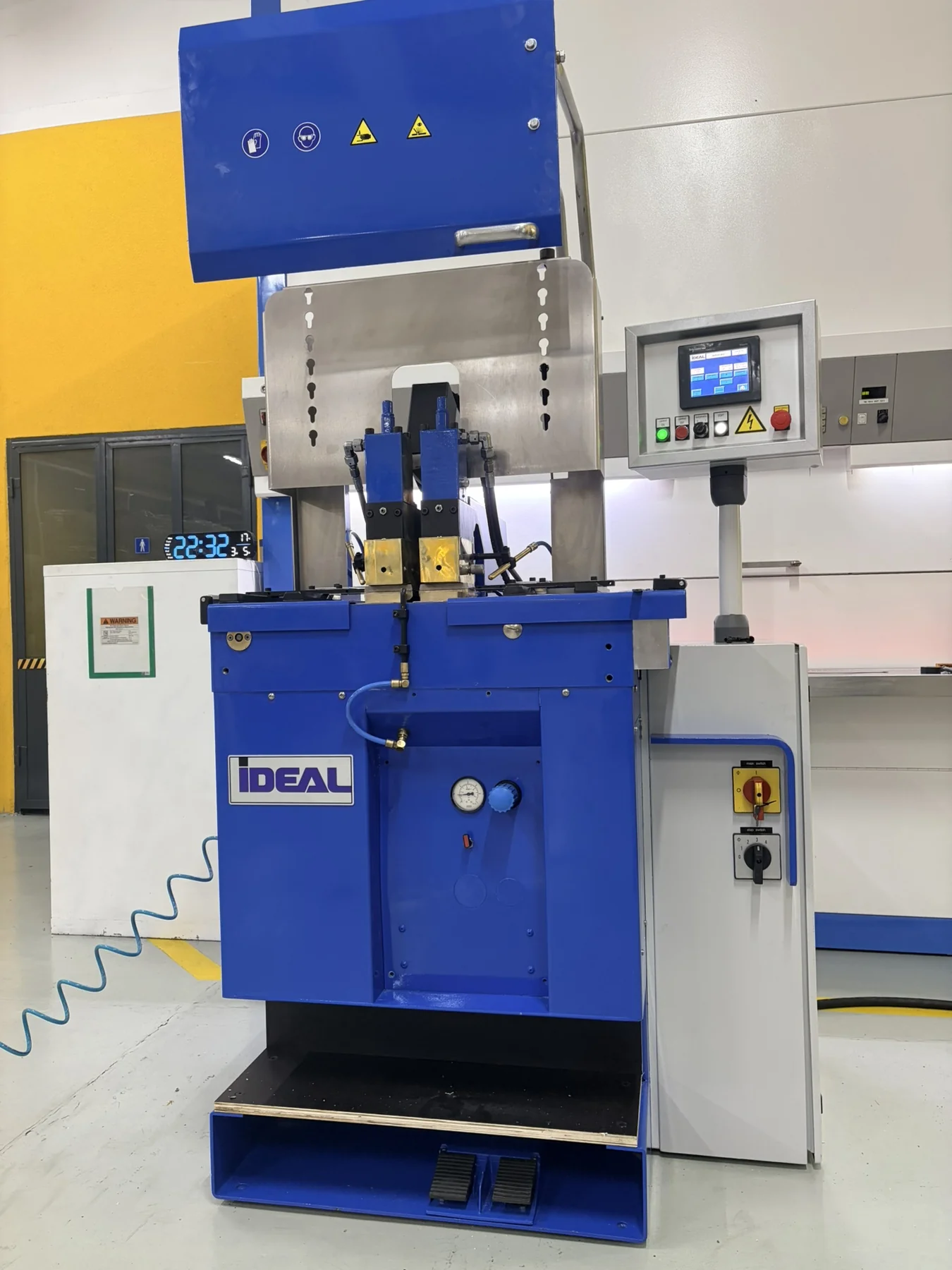

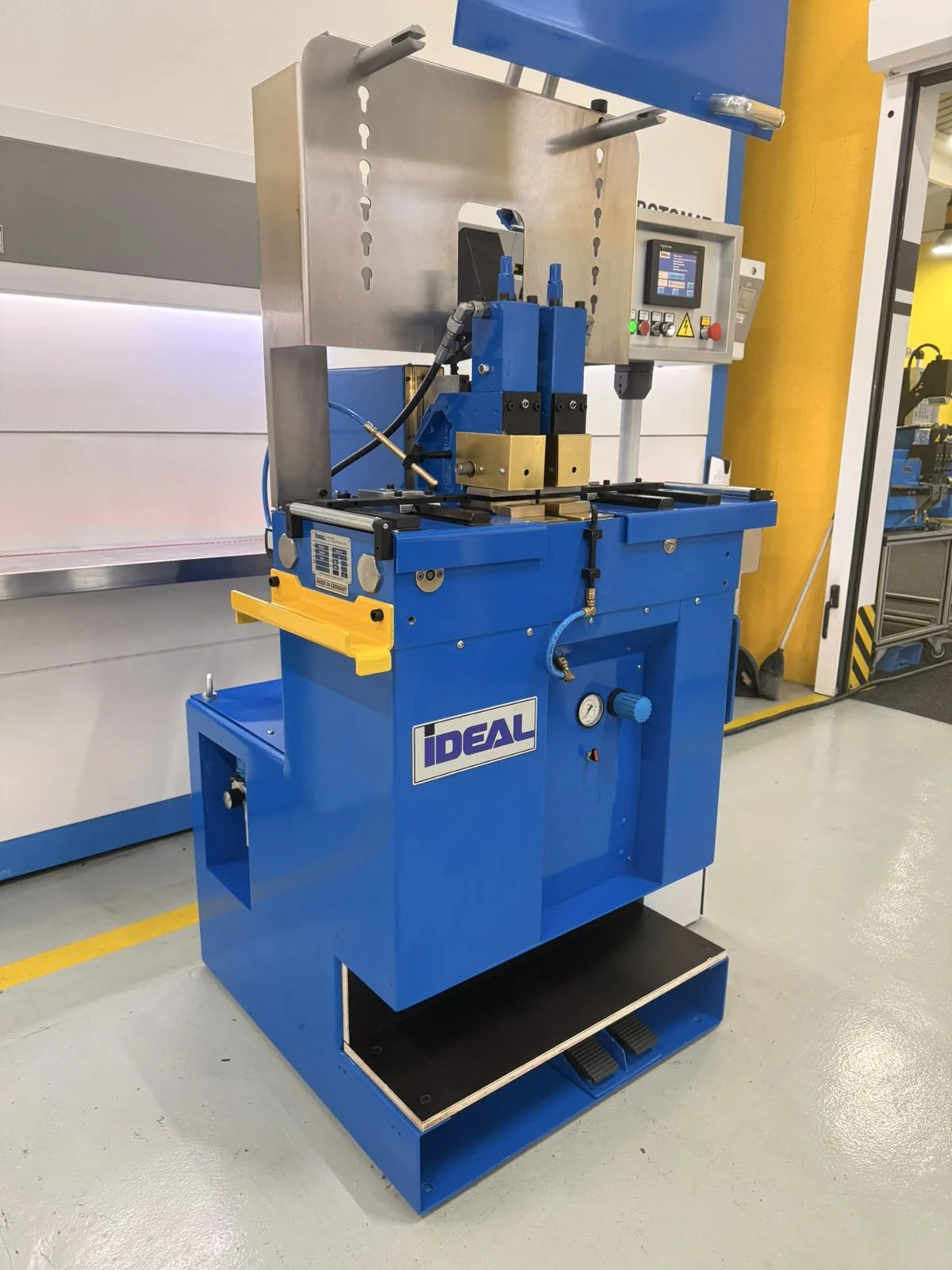

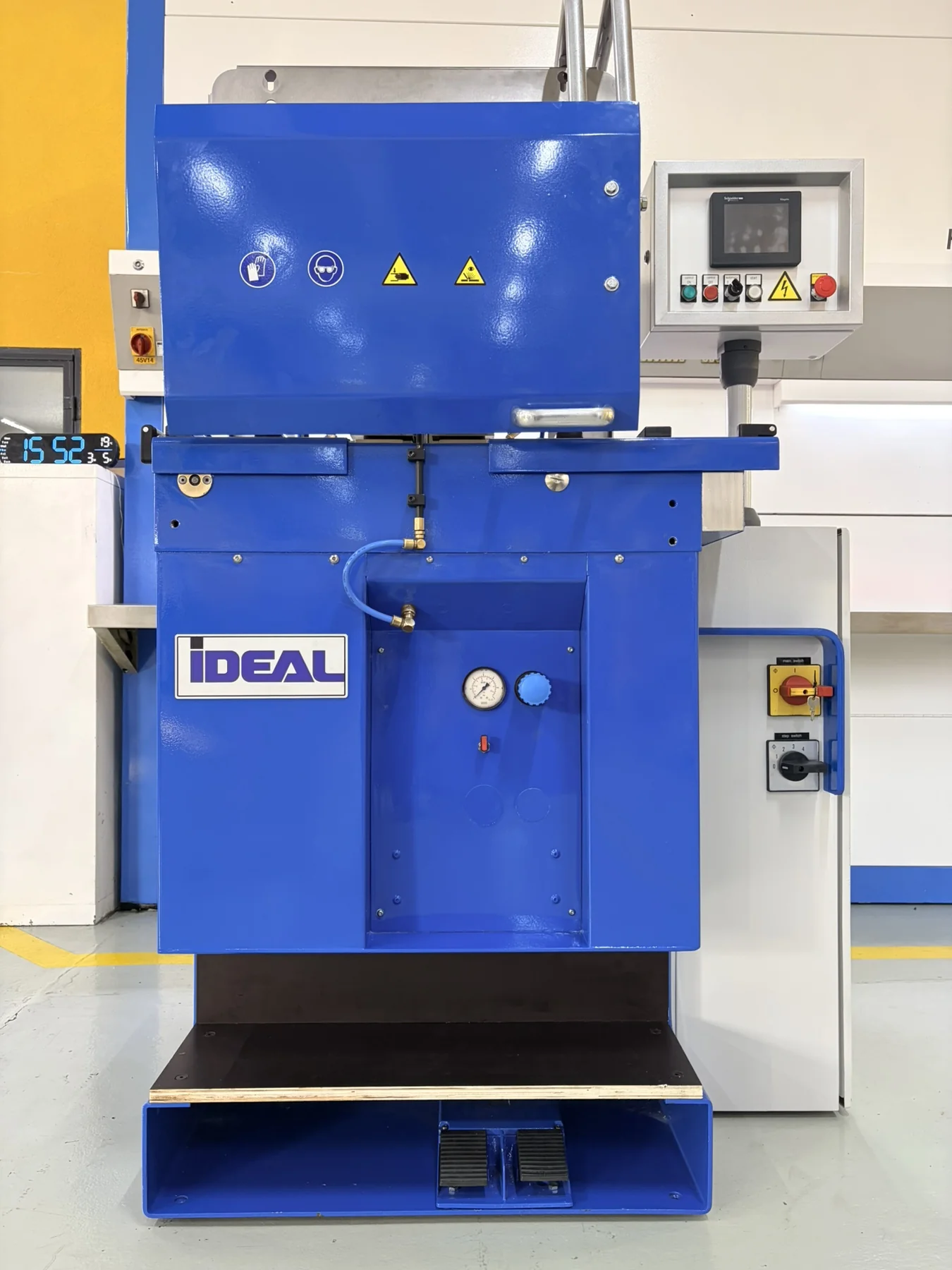

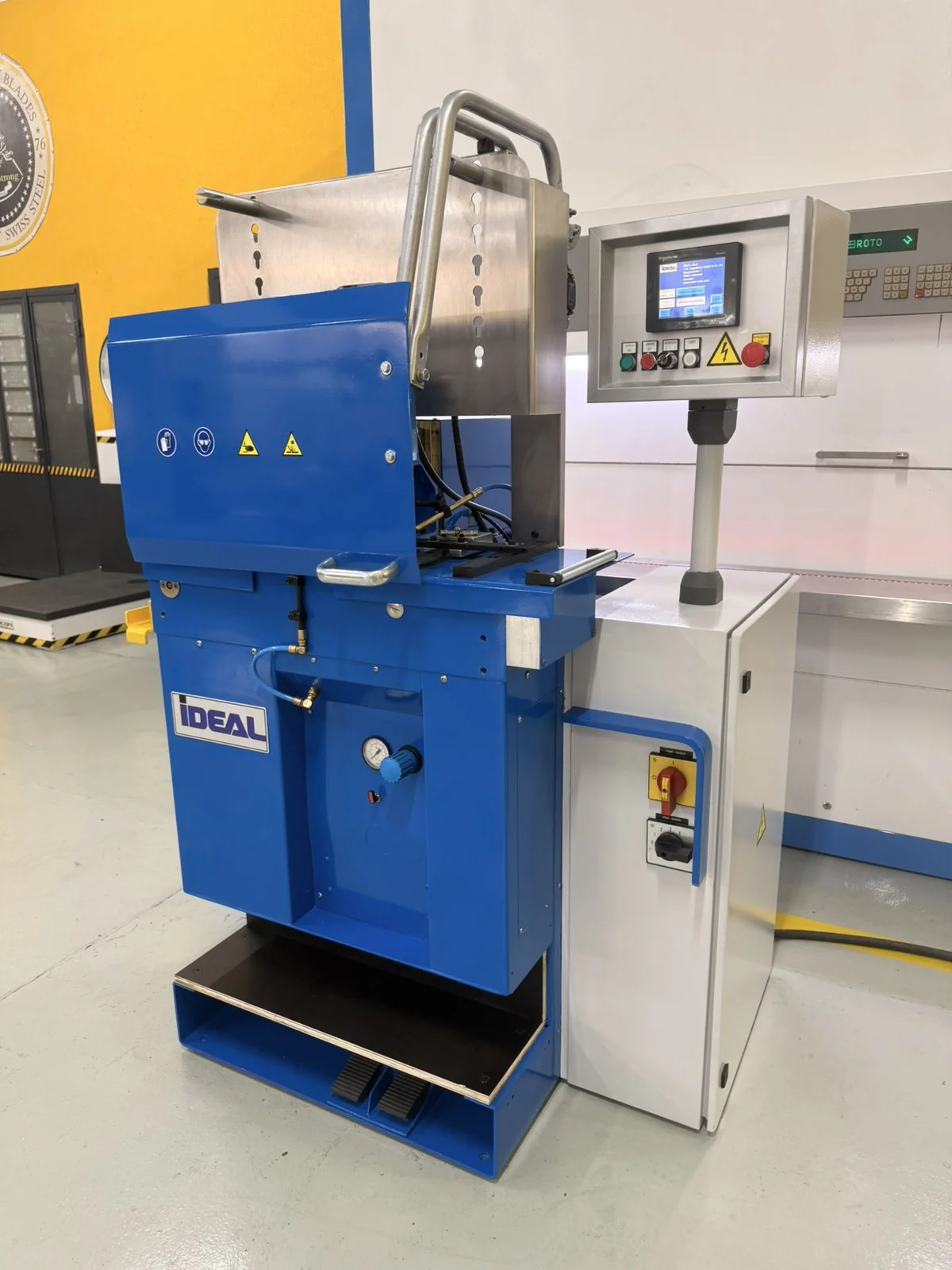

iDEAL BAS 340 Ref. 35326
Band Saw Blade Welding Machine • 2014 • ID: 35326
This machine has been sold. If you are interested in a machine of this type, please contact us.
Technical Specifications

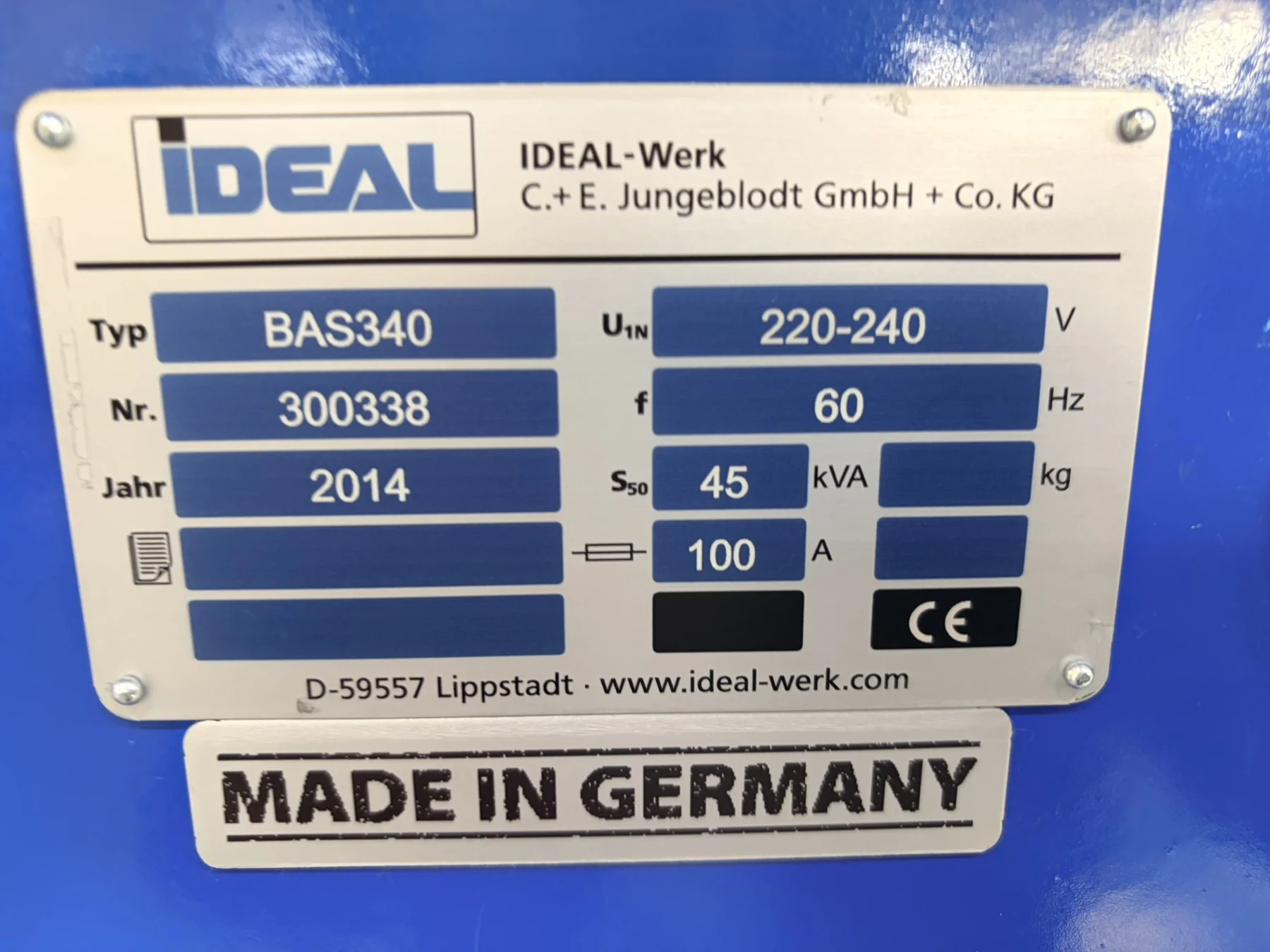

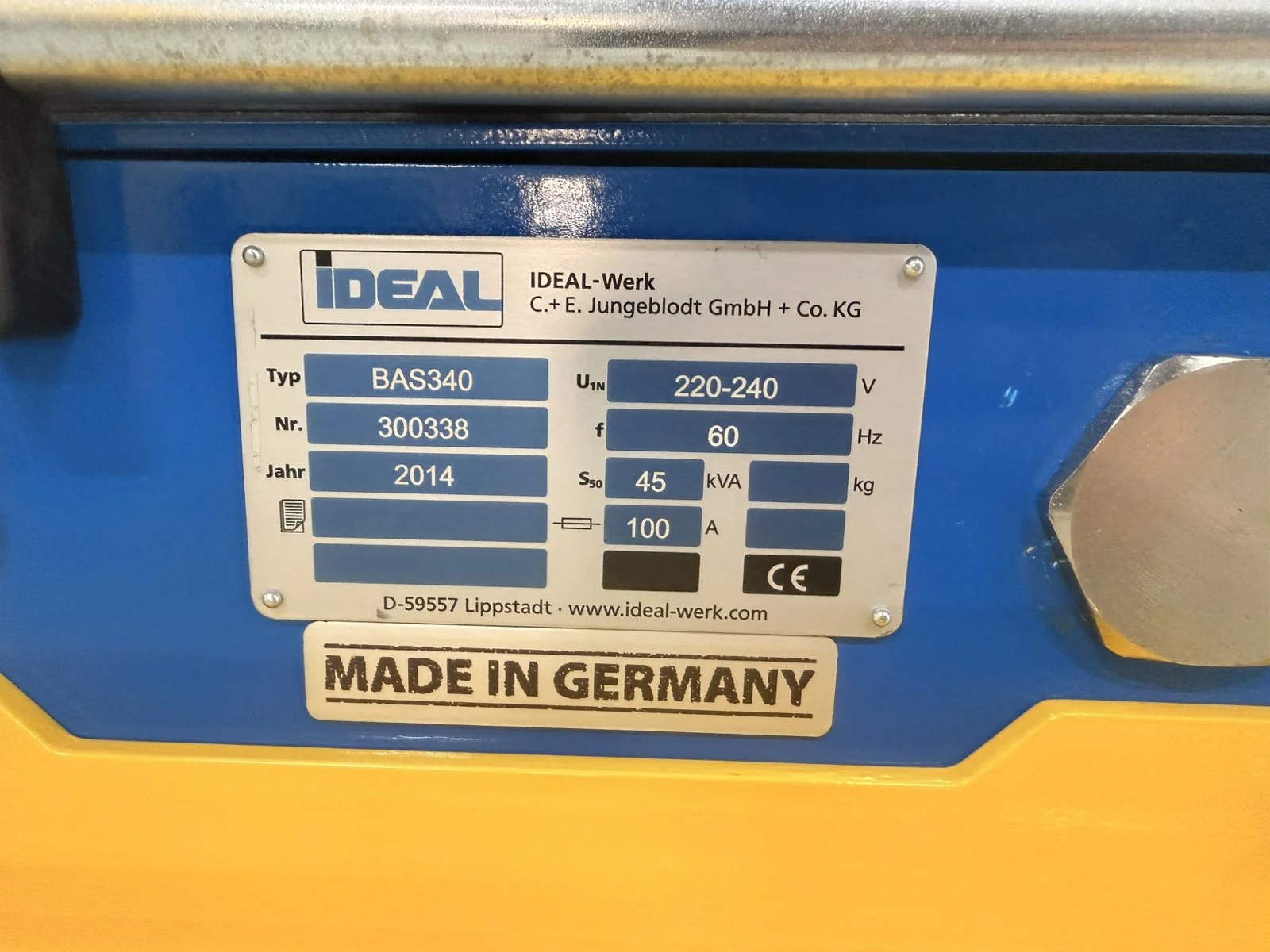

Make and model:iDEAL BAS 340
Year of manufacture:2014
Nominal output (50% duty cycle)45 kVA
Clamping force75 kN
Max. upsetting force26 kN
Min. air pressure6 bar
Air consumption per cycle @ 6 bar42.5 Nl / 57.3 Nl (with deburring)
Cooling water consumption4–5 l/min (20–25°C)
Machine dimensions (W/D/H)1214 × 1107 × 1982 mm
Machine weight900 kg
Control voltage24 V DC
Main voltage:220V 100A 35 mm2 cable cross section
Clamping system:hydraulic
Integrated deburring unit — automatic flash removal after welding for a cleaner joint
4-stage secondary voltage adjustment

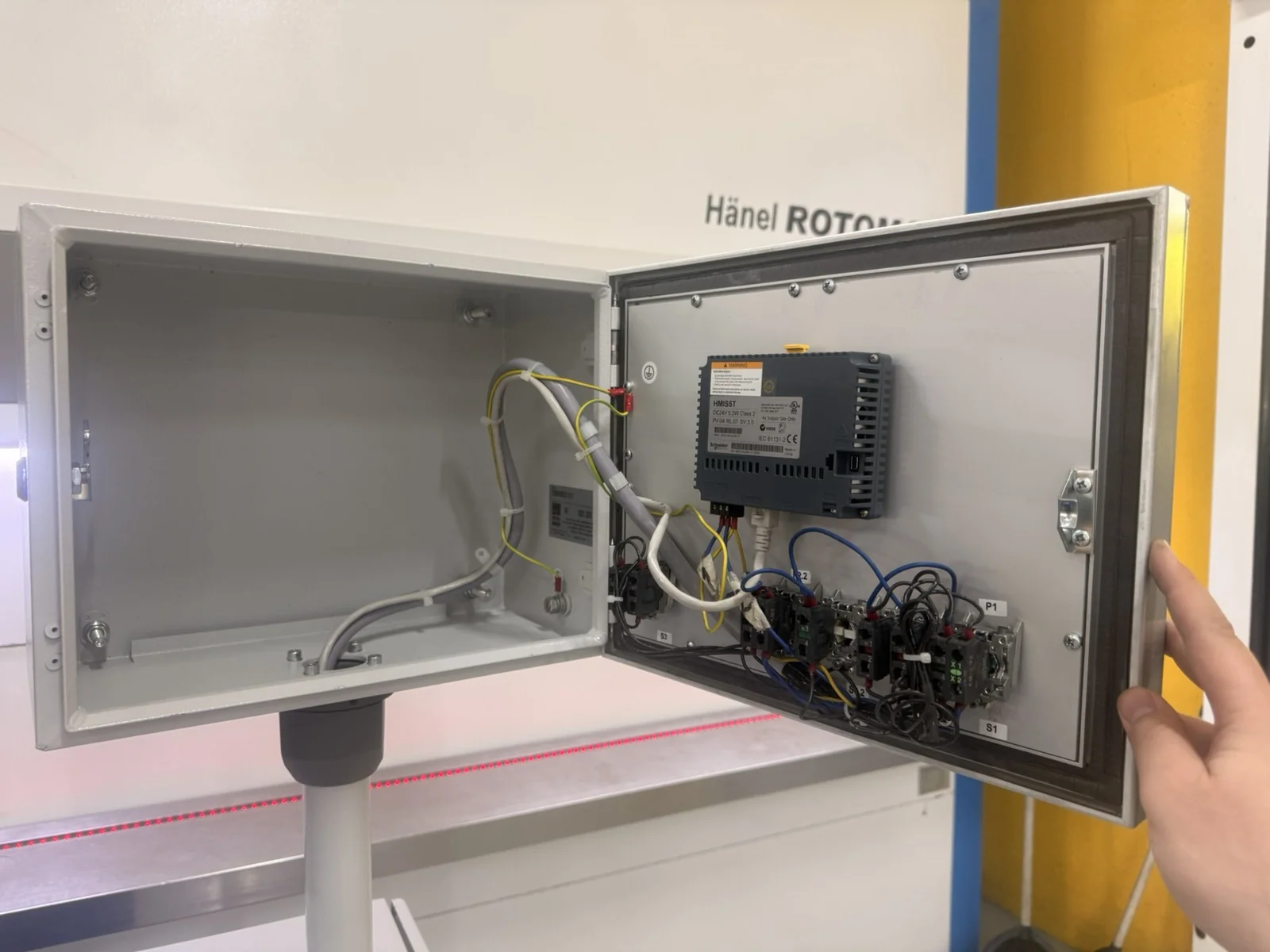

Programmable CNC control panel — repeatable, adjustable welding programs

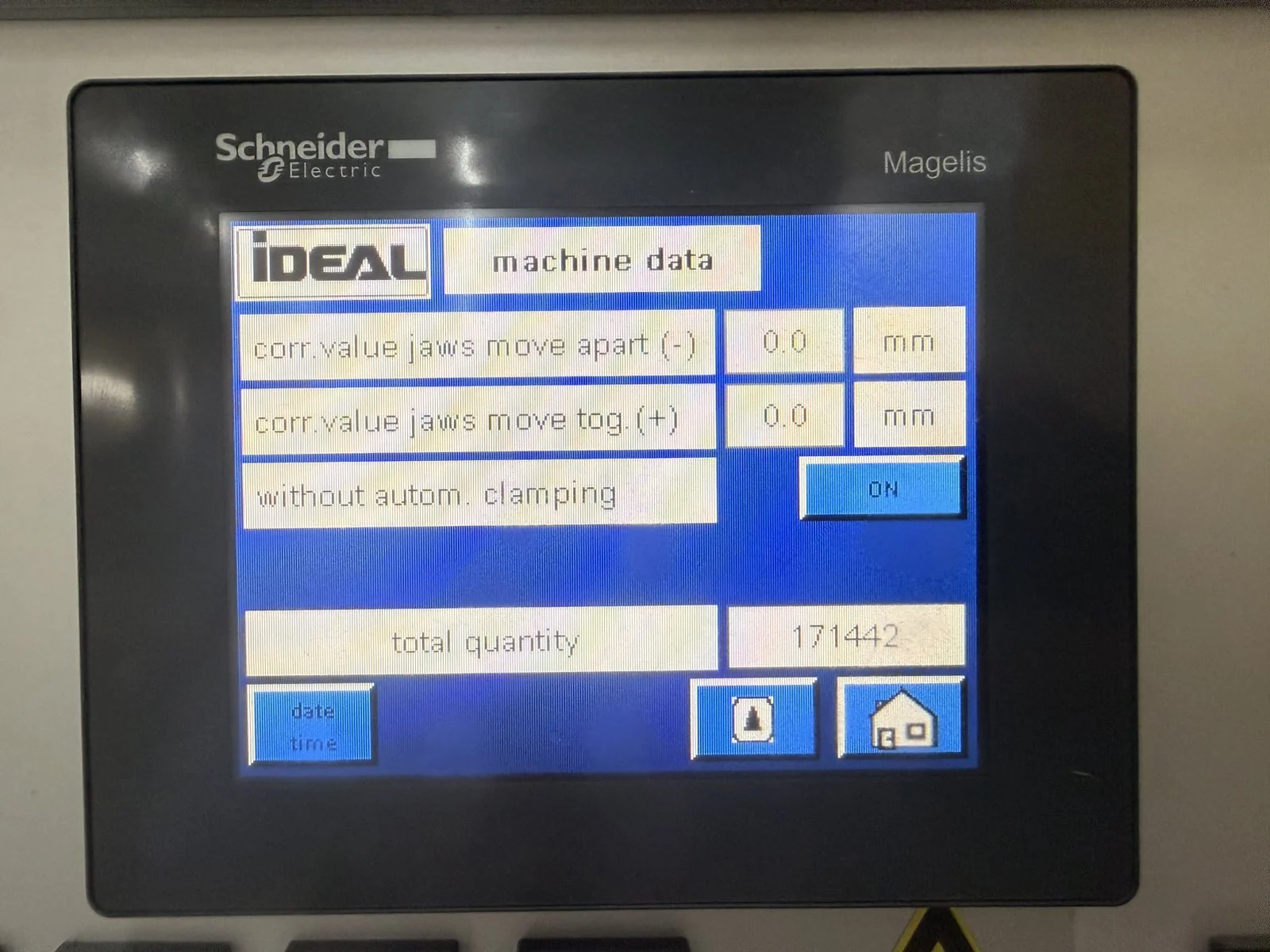

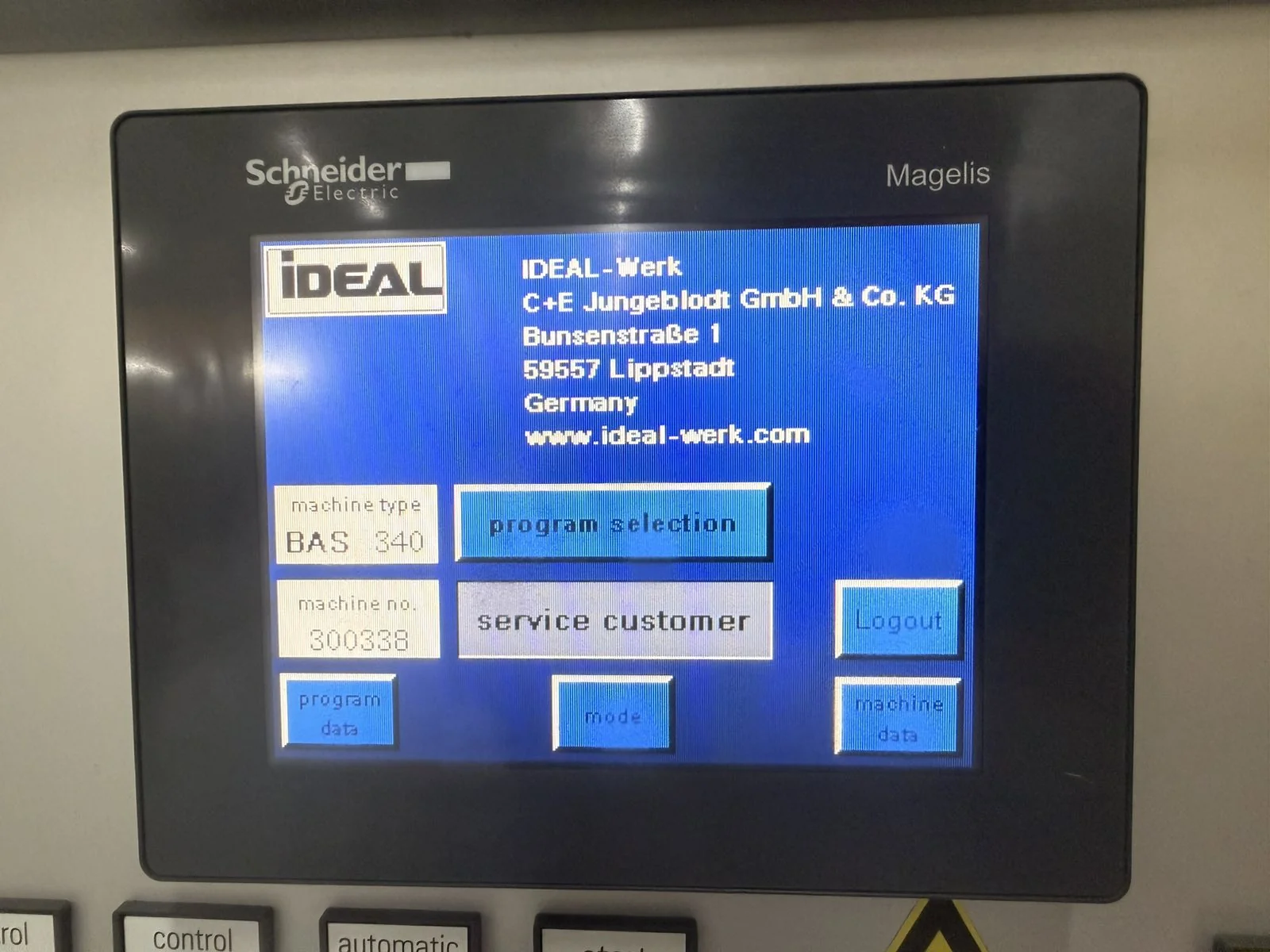

7-inch color touchscreen USB interface with Password protection

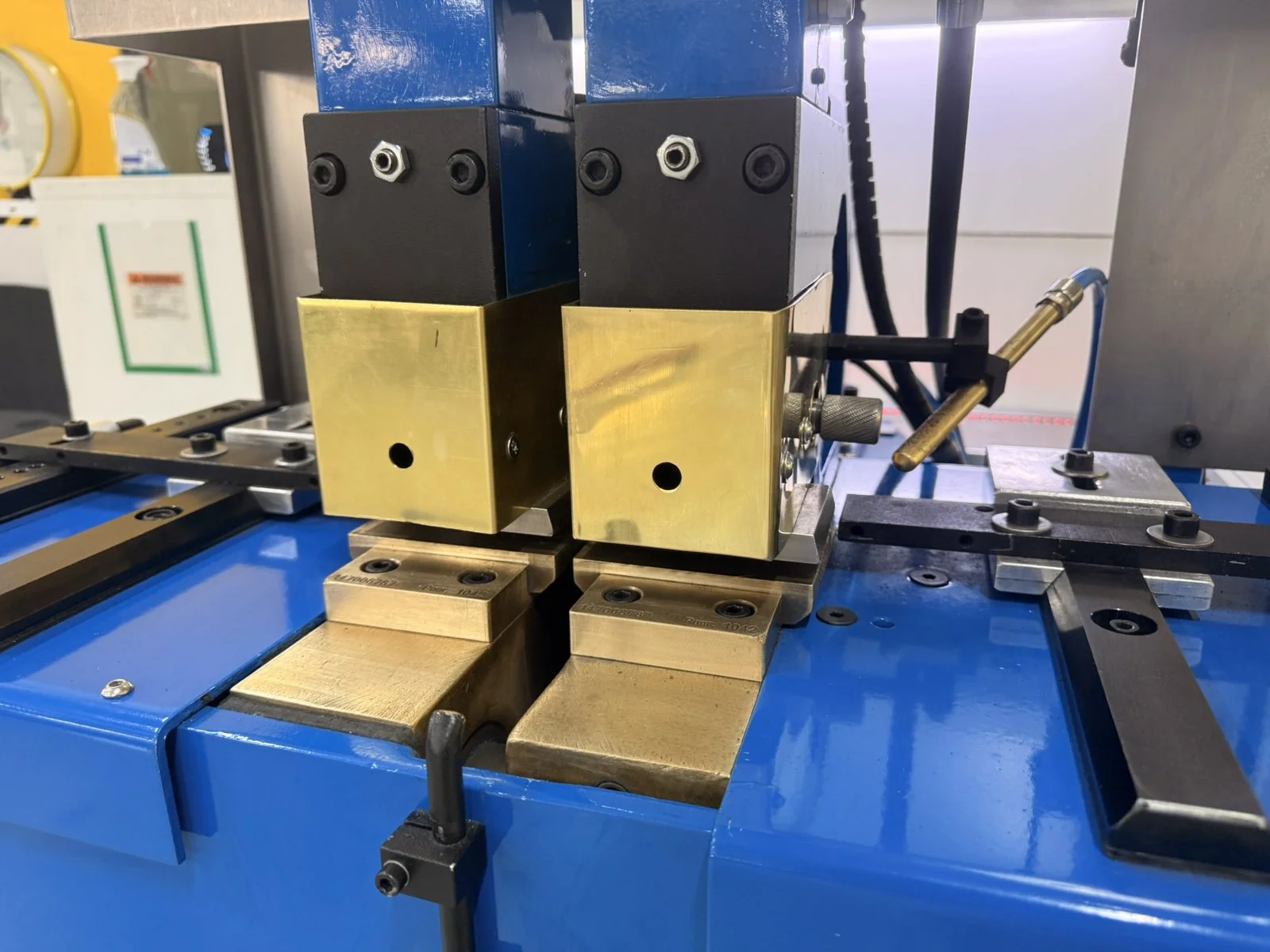

Servomotor-controlled jaw positioning
Spark shield — operator protection during the flash phase
Length stop (left and right) — accurate longitudinal blade alignment
Infrared pyrometer with LED illumination and protection
Graphical annealing process display
Wood saw bands:From 25 × 0.6 mm to 120 × 1.2 mm
Bimetal / tungsten-carbide saw bands:From 25 × 0.6 to 105 × 1.65 mm
Stainless steel saw bands:From 25 × 0.5 mm to 50 × 0.8 mm
Band knives:From 30 × 0.4 to 120 × 1.1 mm
Mild steel strip:up to 250 mm²
Stainless steel strip:up to 150 mm²
CE certified
Made in Germany
