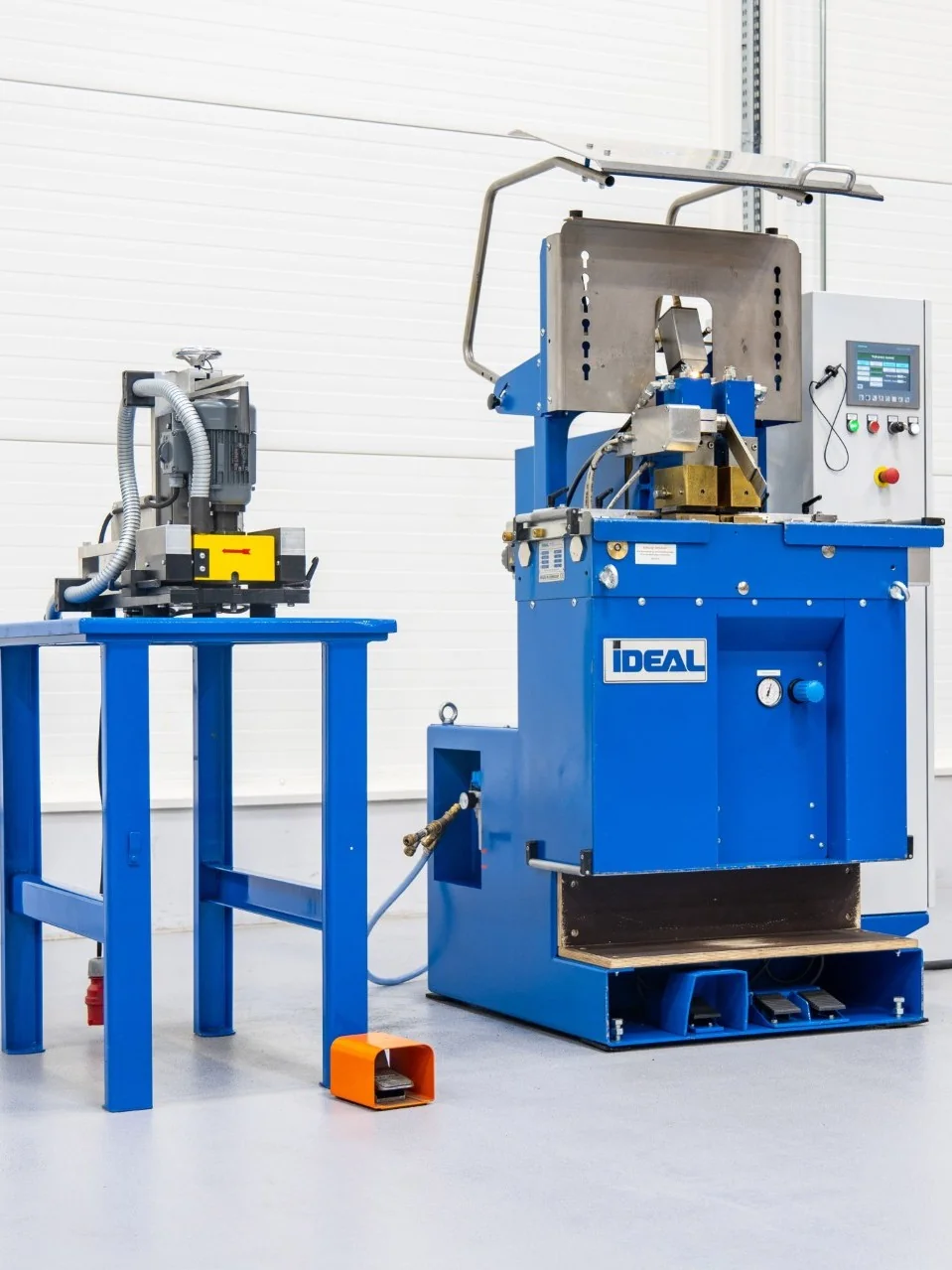

iDEAL BAS 330 Ref. 30325

BAS 330 and SMP 120 for sale together Year of manufacture: 2020 Working hours: 3000h Application range: Wood saw bands: From 15 × 0.6 mm to 100 × 1.1 mm Bimetal / tungsten-carbide saw bands: From 15 × 0.6 to 80 × 1.65 mm Stainless steel saw bands: From 25 × 0.5 mm to 50 × 0.8 mm Band knives: From 25 × 0.4 to 80 × 1.1 mm Mild steel strip: up to 200 mm² Stainless steel strip: up to 100 mm² Clamping and welding parameters: Clamping system: hydraulic Upsetting force: 16 kN Secondary voltage: 6 stages Nominal power: 25.0 kVA (50% duty cycle) Mechanical design: Reinforced machine frame with wear-free jaw guidance Internal pneumatic/hydraulic components Water cooling connection Dimensions (L × D × H): 1214 × 957 × 1982 mm Weight: 800 kg Control system: Central parameter control 99 program memory slots Servomotor-controlled jaw positioning Electronic power cutoff 7-inch color touchscreen USB interface Password protection Automatic annealing position calculation Adjustable welding voltage Electronic piece counter Parameter deviation monitoring with automatic stop Blade start positioning device Hydraulic weld de-burring tool automatic system after welding Annealing unit: GTR thyristor-controlled auto-annealing Temperature range: 300 to 800 °C Infrared pyrometer with LED illumination and protection Graphical annealing process display Setpoints for heating, annealing, and cooling IDEAL SMP 120 – Grinding Machine Application: removal of welding burrs Clamping: pneumatic Max. strip/saw blade width: 120 mm Max. thickness: 2.0 mm
