iDEAL BAS 060 BAS 060-11 Ref. 38426

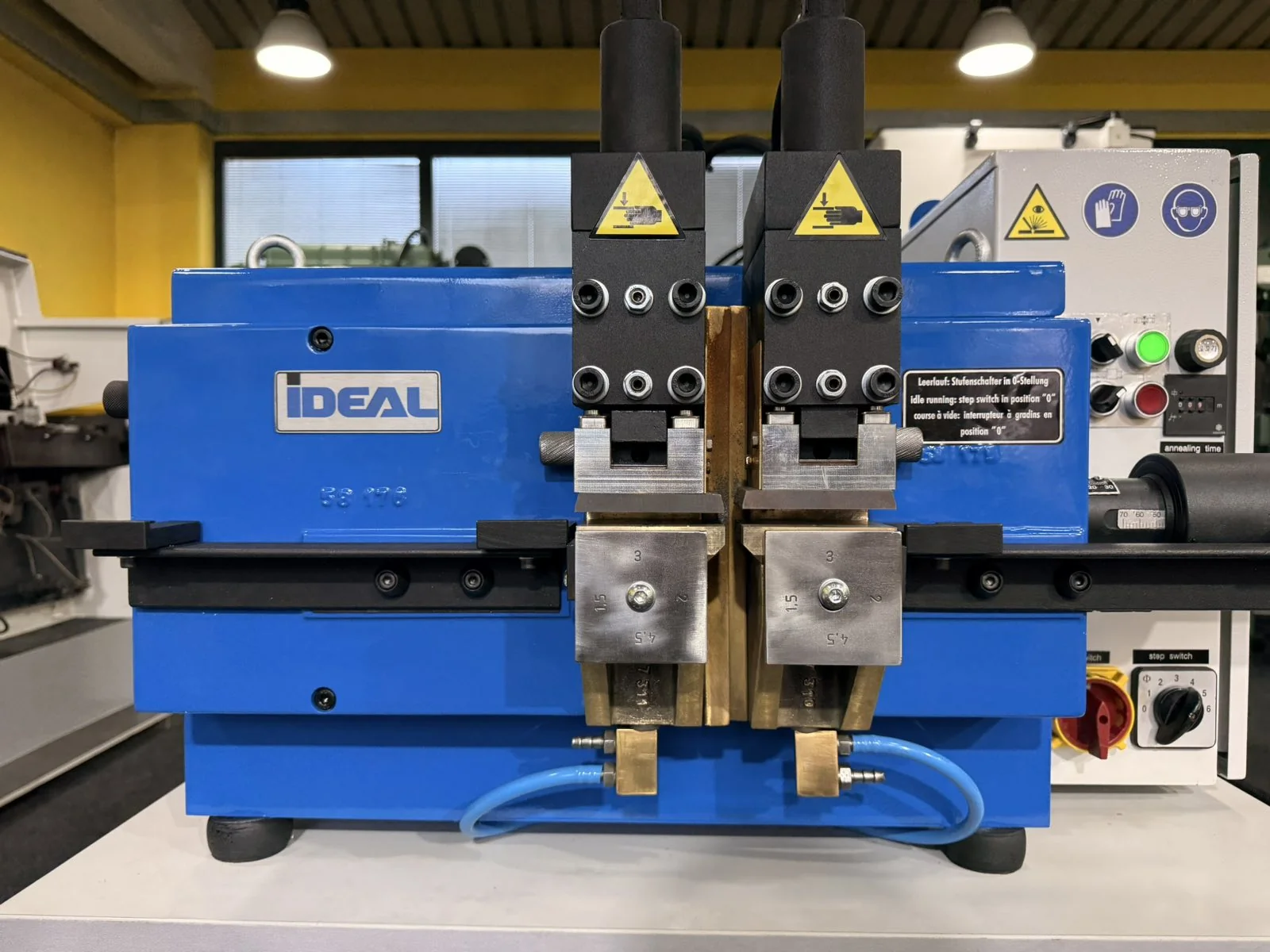

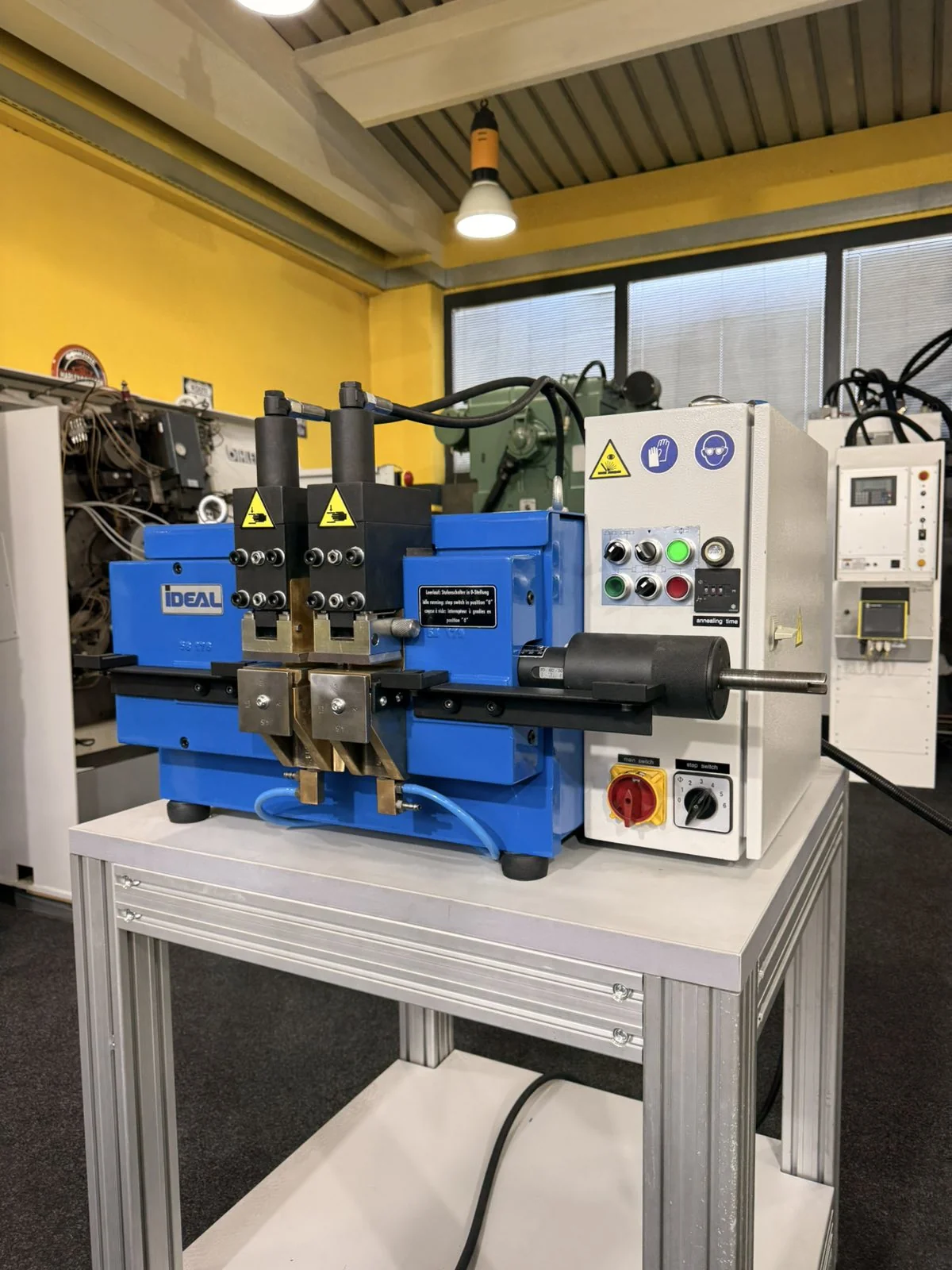

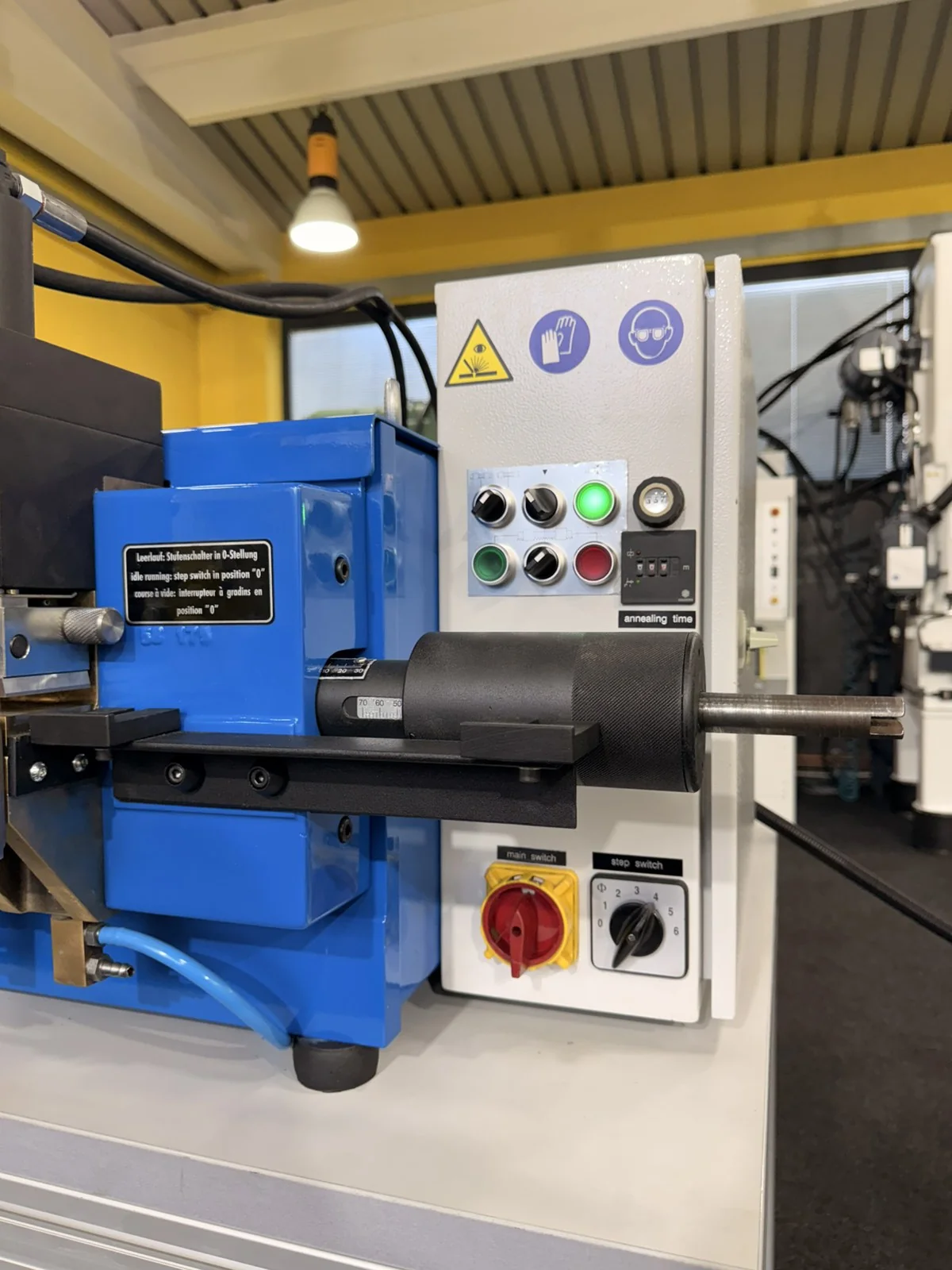

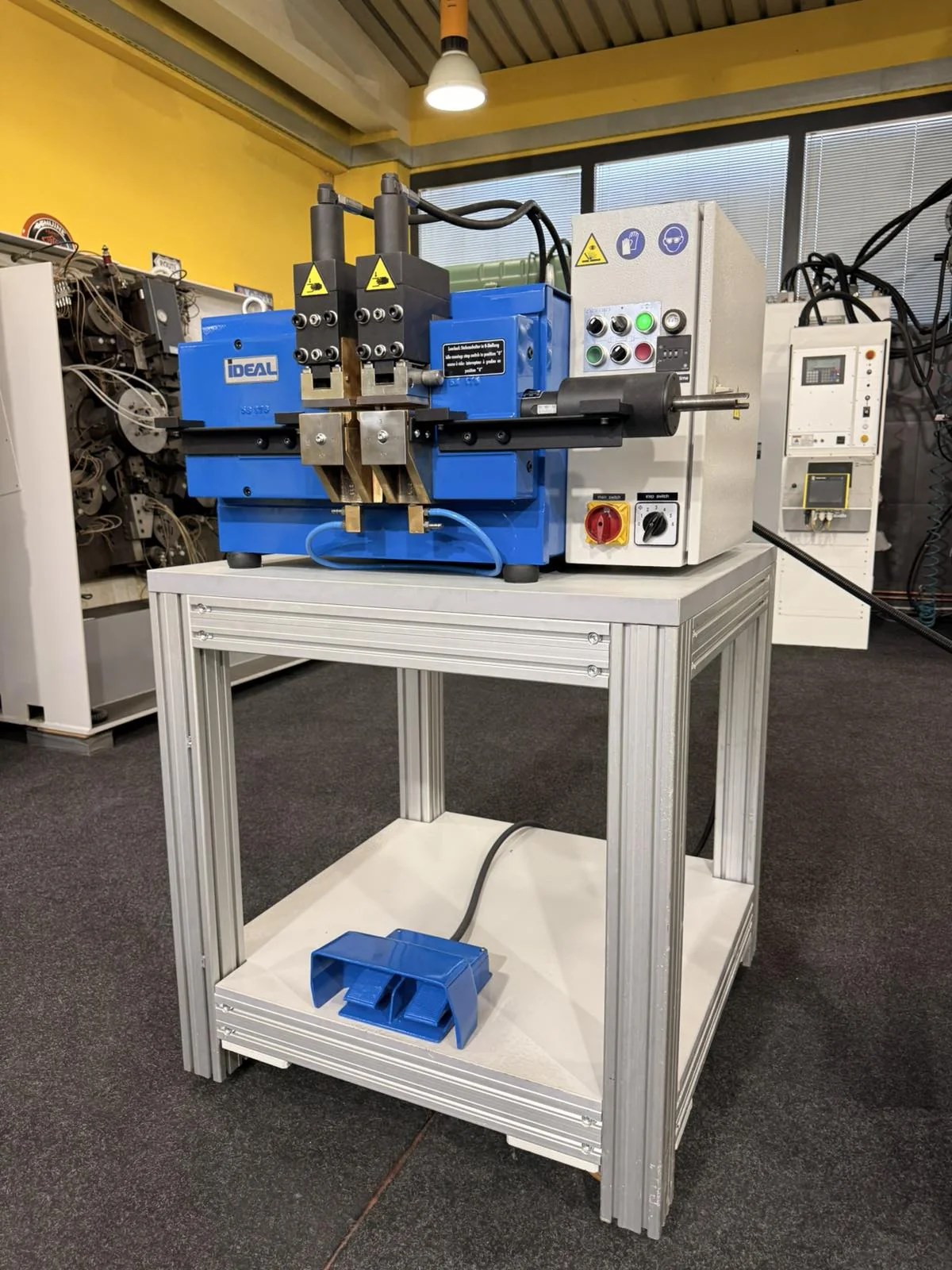

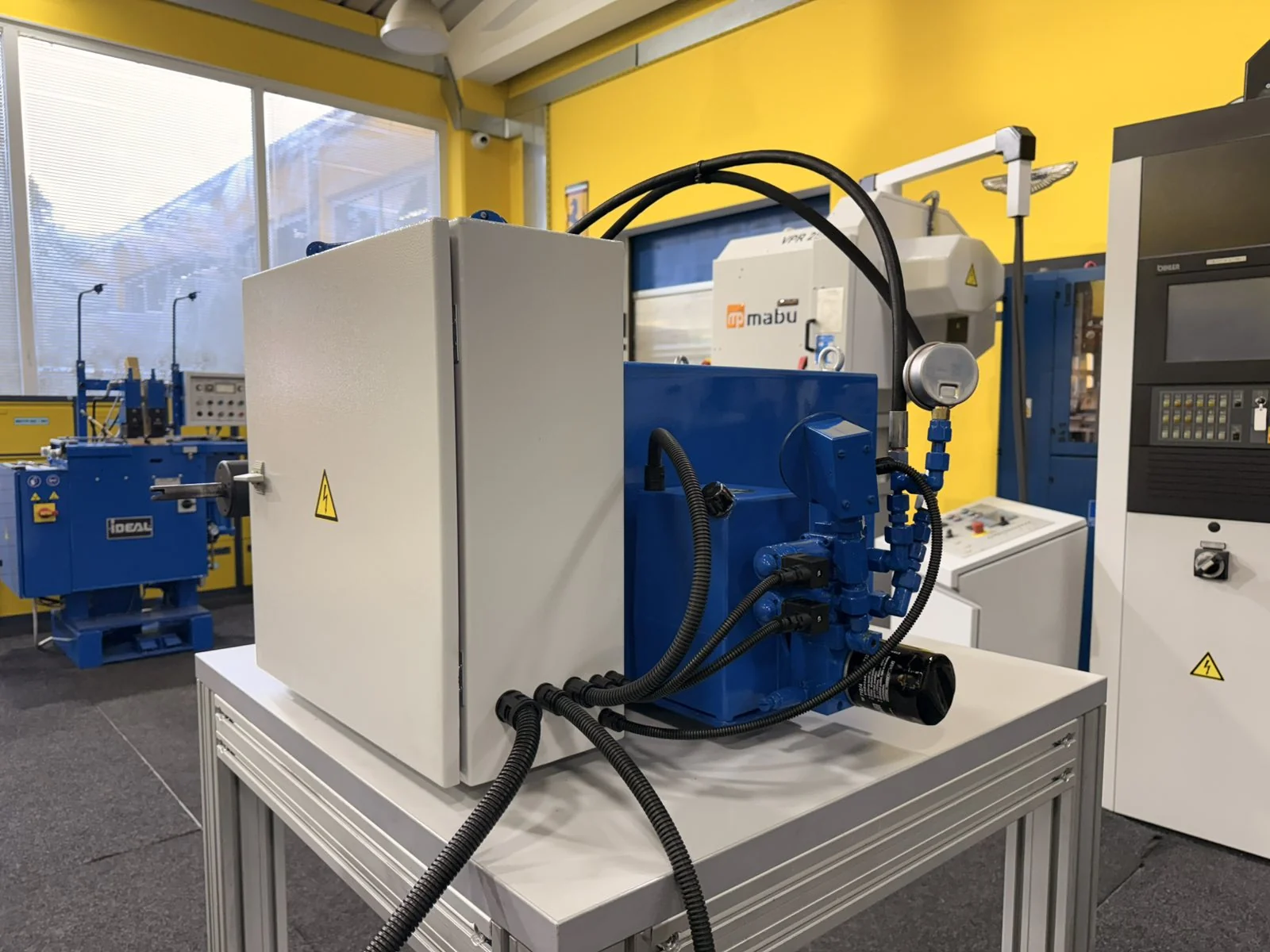

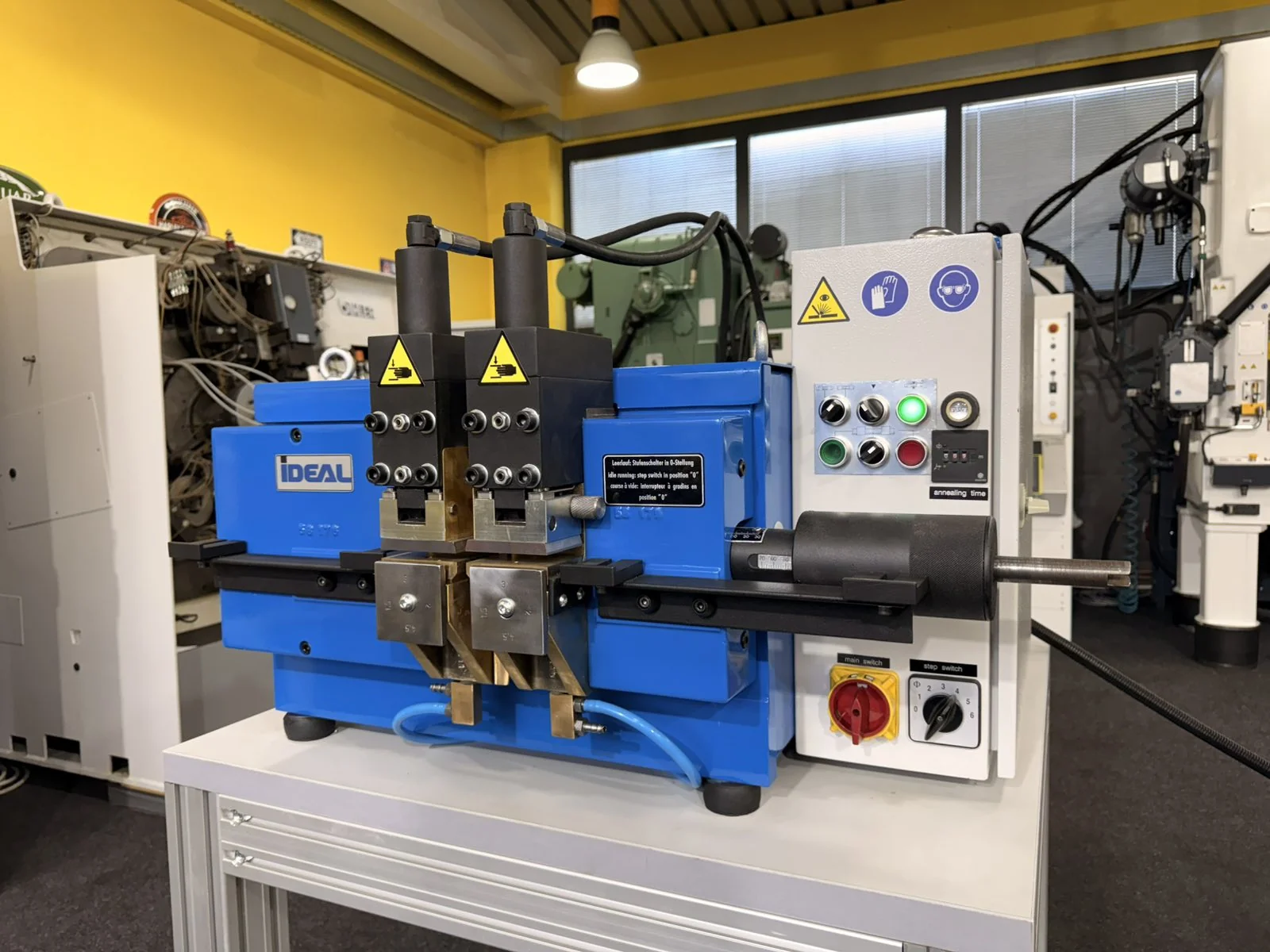

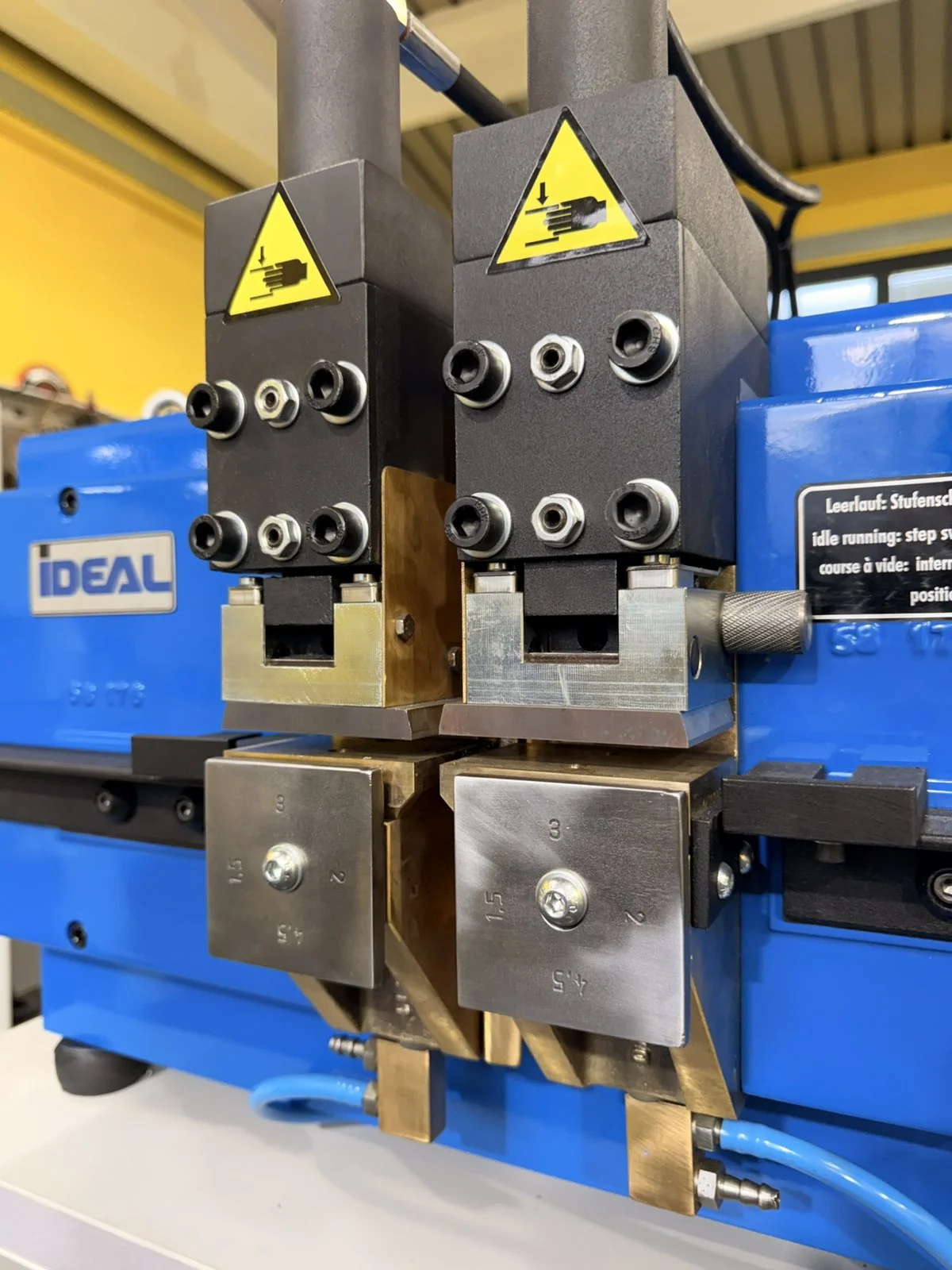

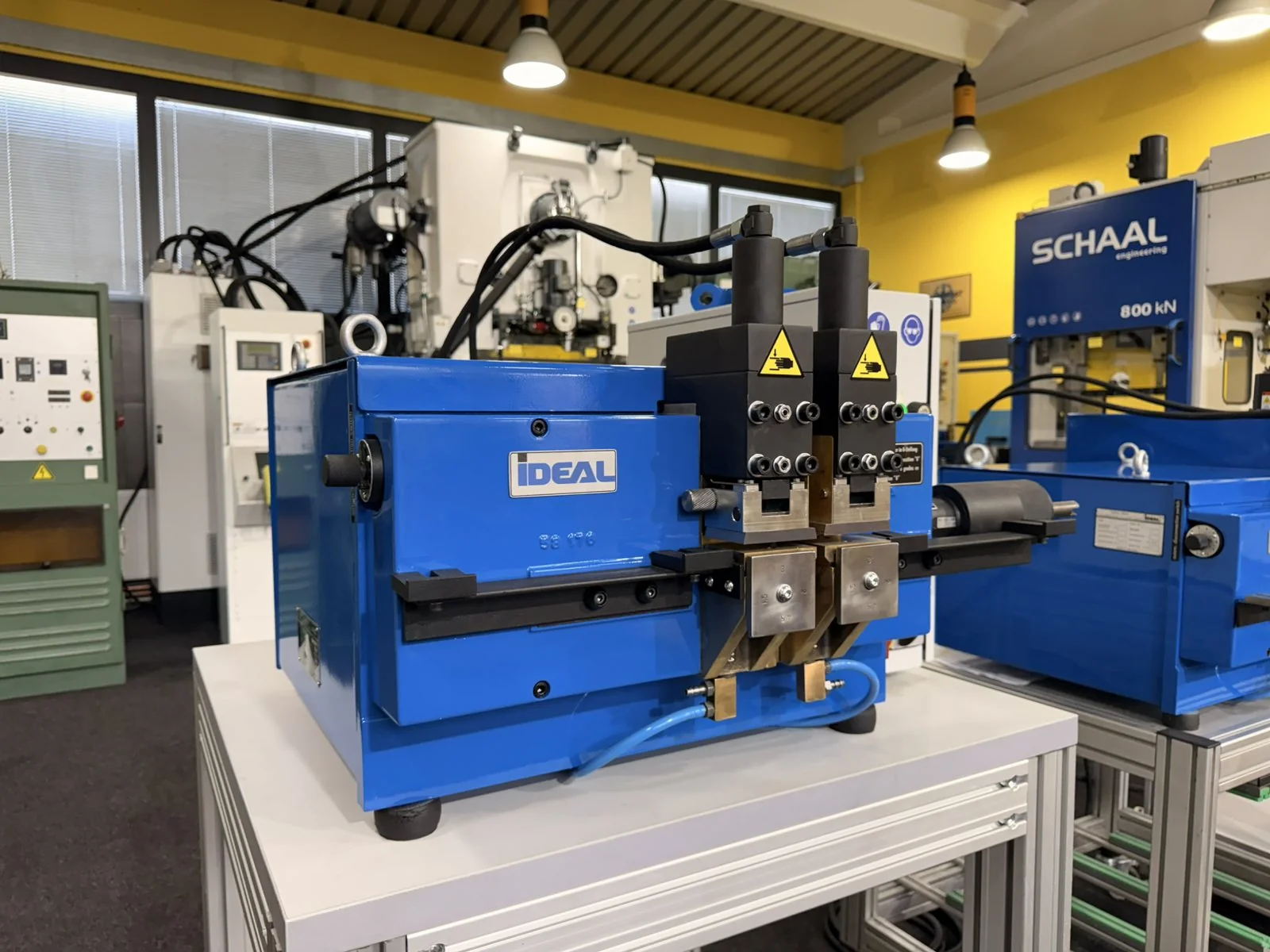

iDEAL BAS 060 is a resistance butt welding machine for band saw blades, made in Germany by iDEAL-Werk C.+E. Jungeblodt GmbH + Co., Lippstadt. Rated power 8 kVA at 50% duty cycle, primary voltage 380 V, 50/60 Hz, secondary voltage 2.5 – 4.2 V, maximum upsetting force 0,5 Mp. Hydraulic clamping (the "-11" version): both clamping jaws are operated hydraulically by foot switch, so the operator keeps both hands free to position the blade. The hydraulic power unit with clamping pressure gauge is mounted on the machine. Welding current is selected with the step switch, flashing speed and annealing time are set on the front control panel, with a Panasonic timer for the annealing cycle. A flexible work light is fitted above the welding zone. Clamping width 60 mm. The machine is used, in working condition and repainted. Electrical cabinet, hydraulics and controls are shown in the photographs.
