iDEAL BAS 050-11 GTR Pyrometer Flash Butt Welder Ref. 35726

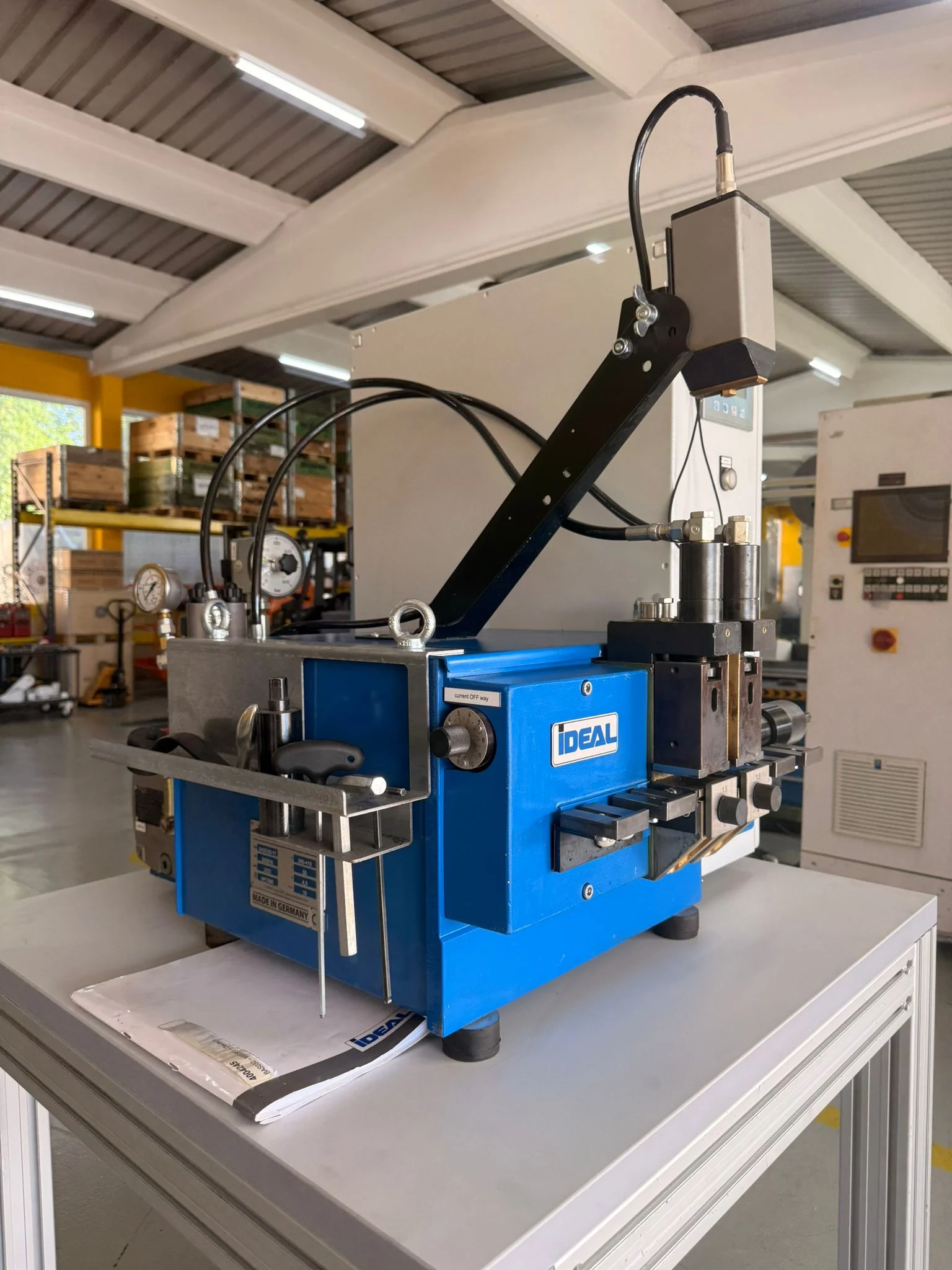

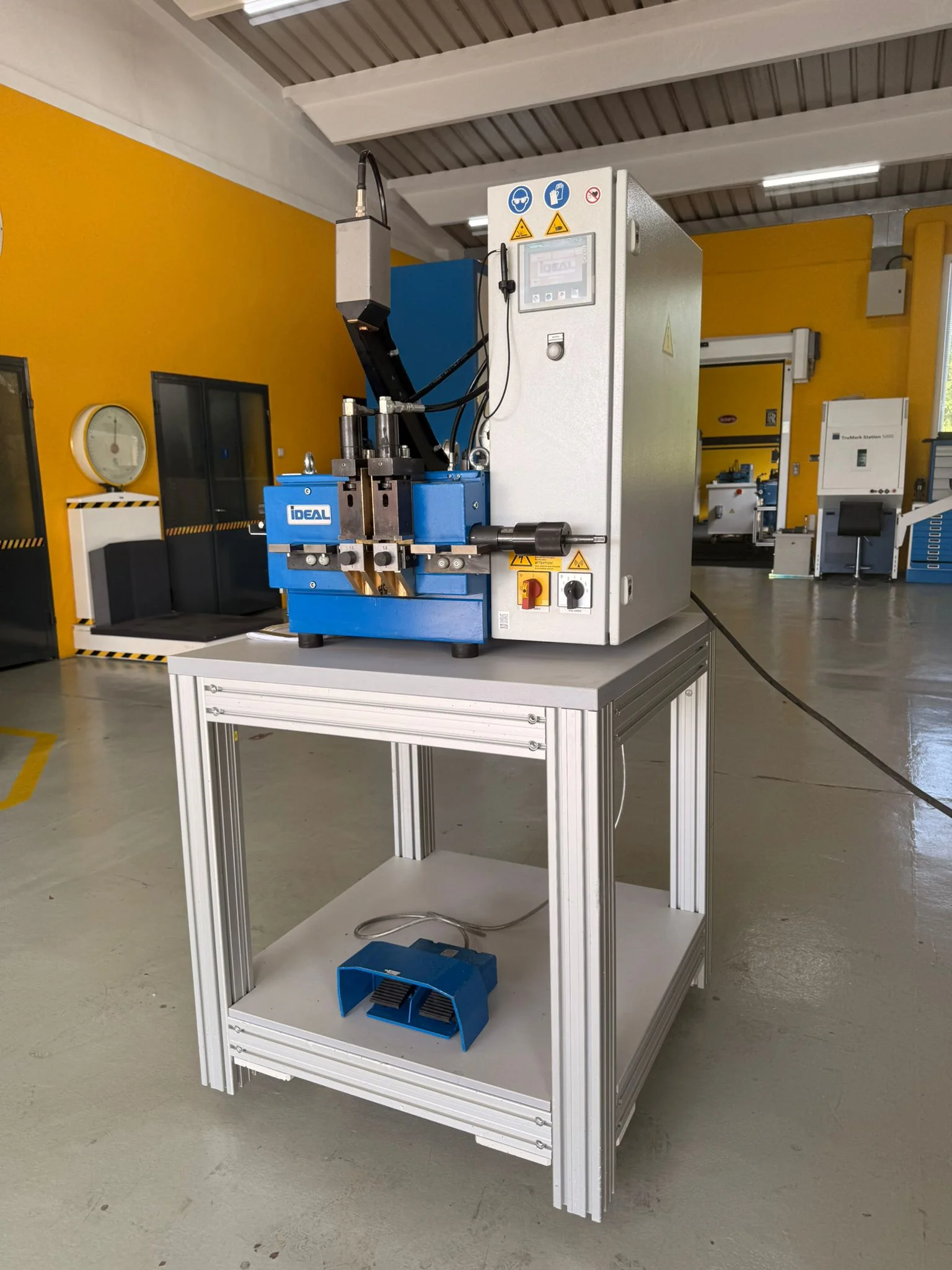

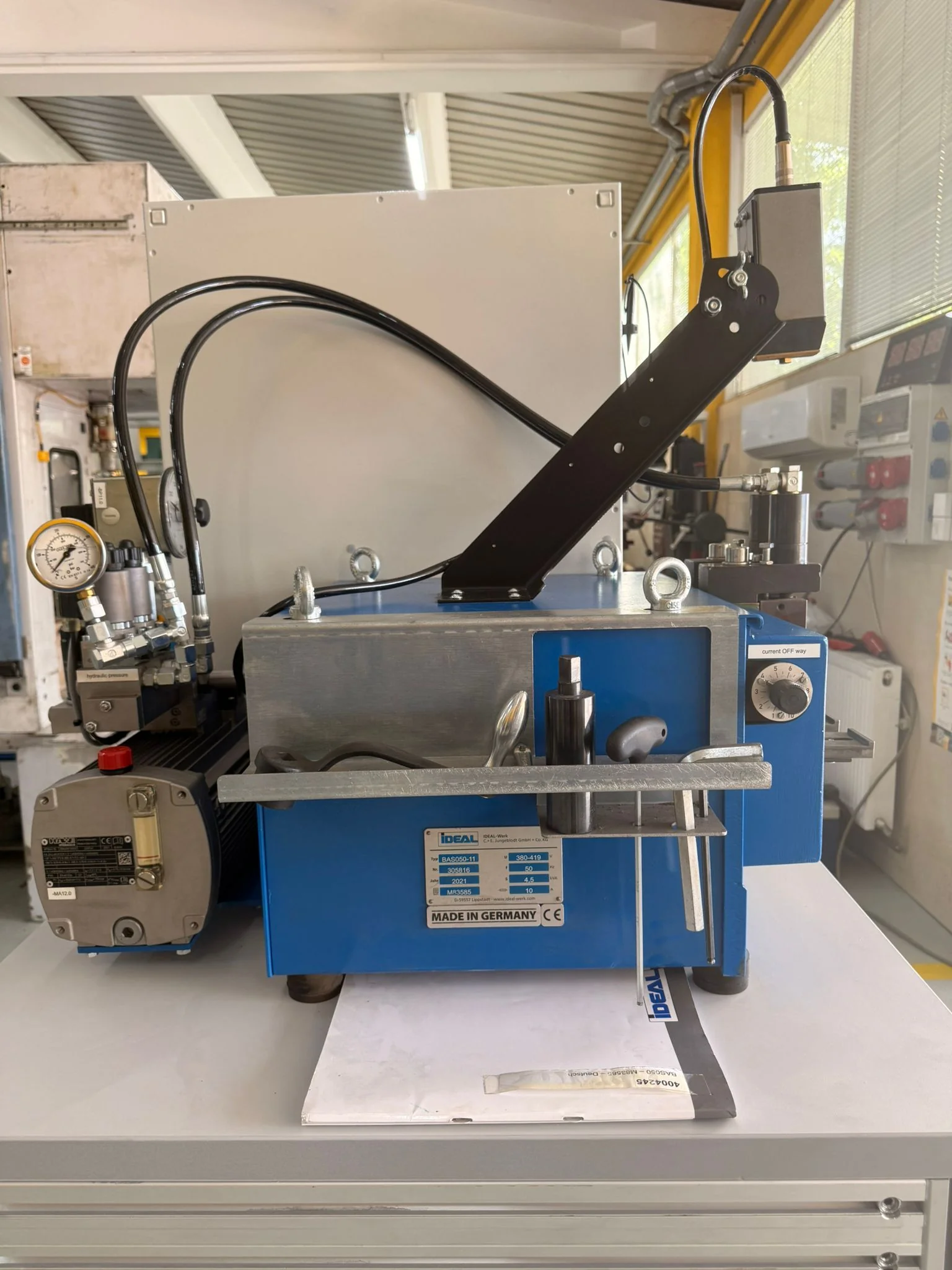

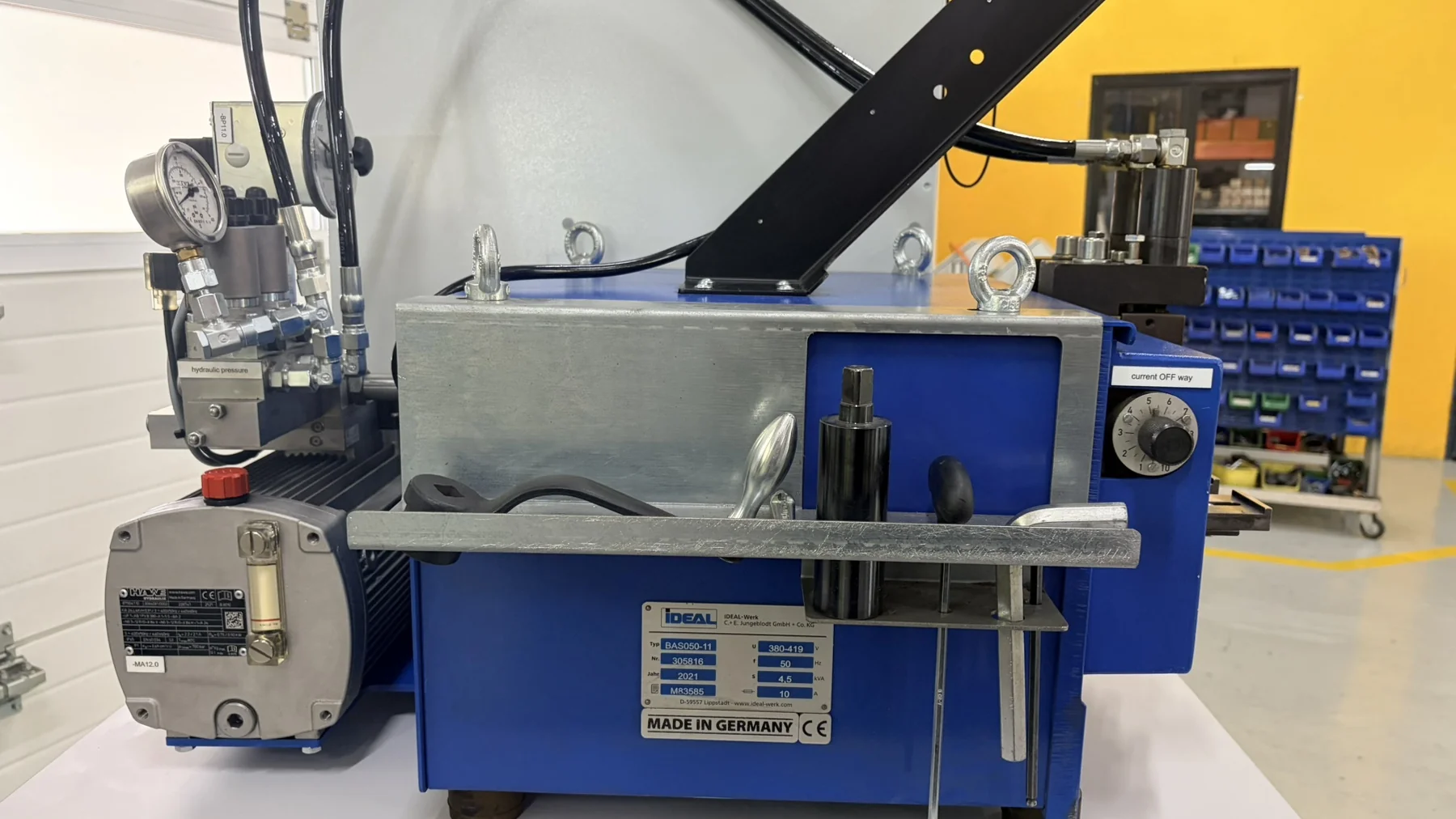

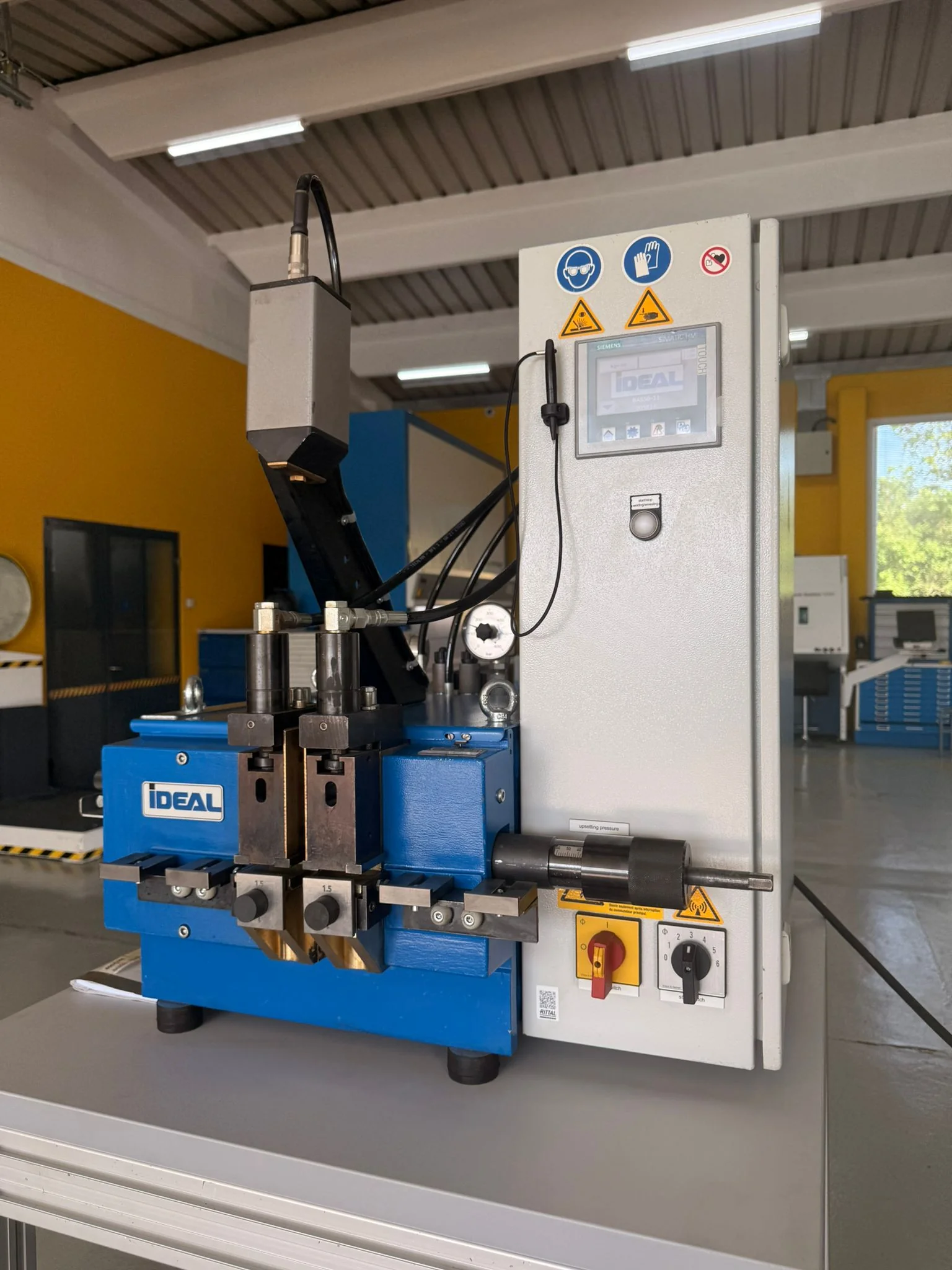

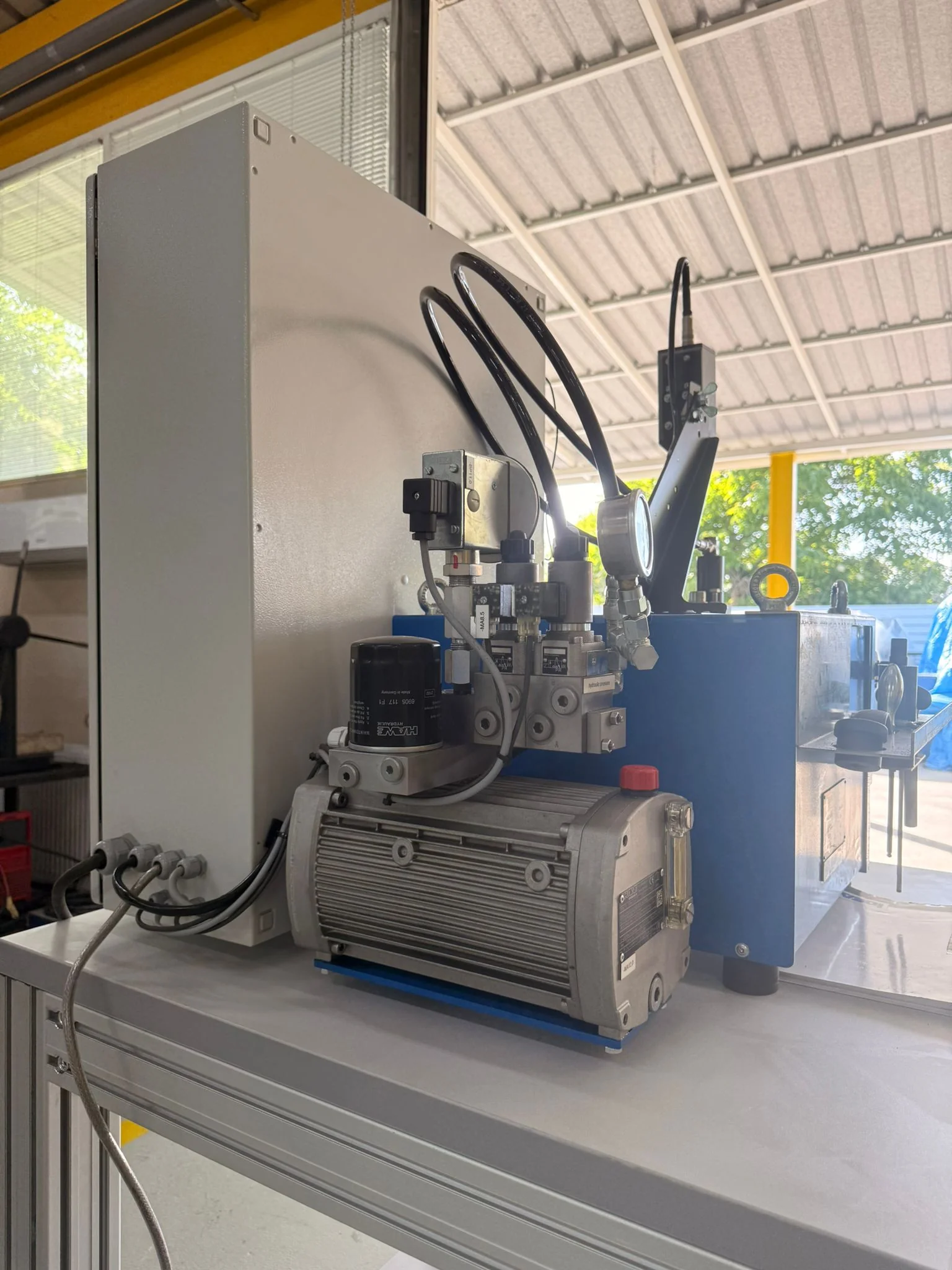

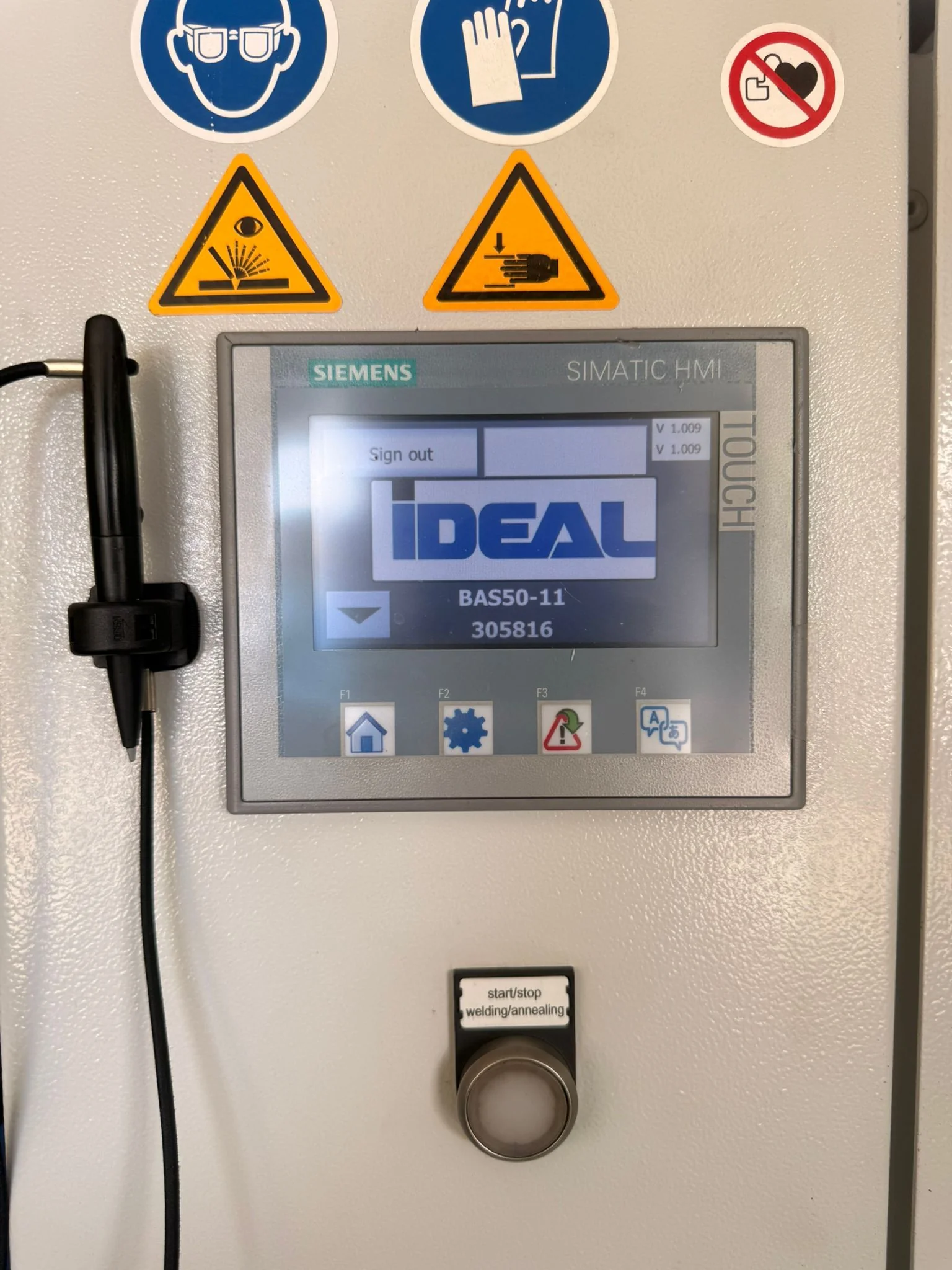

Resistance flash butt welder for band saw blades up to 50 mm wide, covering bi-metal, carbide, wood and stainless steel blades. The welding current is selected in six stages, so thin stainless strip and heavy bi-metal stock can be run on the same machine. After the weld, the automatic sequence moves the machine into the annealing position without the operator repositioning anything. Welding output Nominal power 4.5 kVA at 50% duty cycle, secondary voltage 2.6 - 4.4 V in 6 stages, maximum upsetting force 2.2 kN, connection voltage 380 - 419 V. Clamping Hydraulic on both sides, 10 kN, foot switch operation. Temperature control The integrated GTR pyrometer measures the annealing temperature contactlessly and shows it on the touch panel. The target value is part of the recipe, which removes operator-dependent variables from the weld. Capacity Widest sections are 34x1.1 mm for bi-metal and carbide band saws and 50x1.0 mm for wood saw blades; the remaining blade and strip steel figures are listed in the specification table on this page. Machine weight is approximately 180 kg. Scope of supply Machine, operating tools, operating instructions. iDEAL BAS 050-11, reference number 35726.
