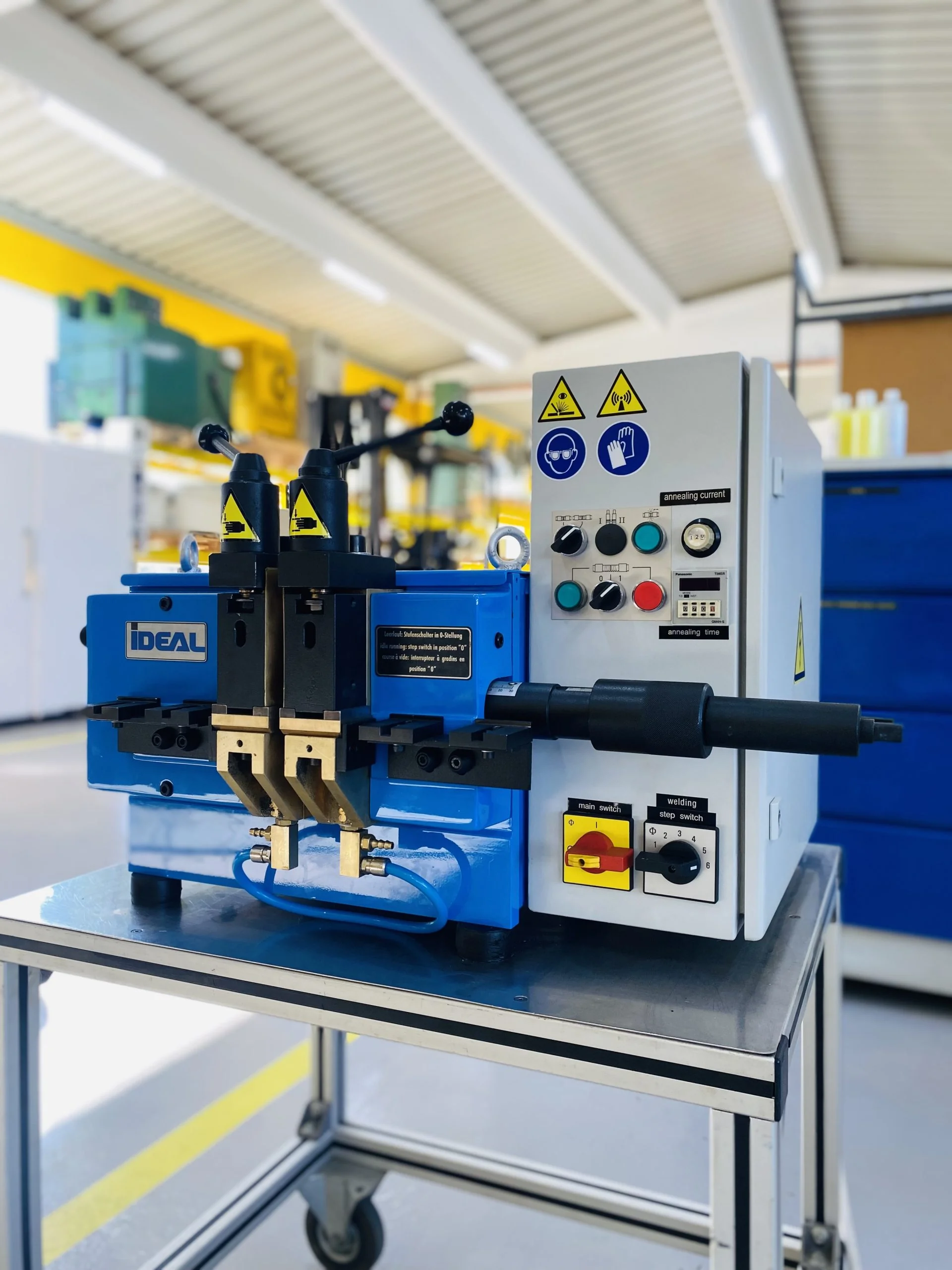

iDEAL BAS 050-01 Ref. 18922

Manually clamped version of the iDEAL band saw blade welder, built in 2014 and fitted with an annealing timer. The jaws are closed by hand rather than hydraulically. Maximum upsetting force is 2,2 [kN] against a clamping force of 10 [kN]. Electrical rating Primary voltage: 380 - 419 [V] / 50 [Hz] Connection rating: 4,5 [kVA] Secondary voltage: 2,6 - 4,4 [V] (in 6 stages) Forces and weight Upsetting force maximum: 2,2 [kN] Clamping force: 10 [kN] Weight: 140 [kg] Welding range Bi-metalic/tungsten carbide band-saws: 6*0.6 - 34*1.1 [mm] Wood saw blades: 6*0.4 - 50*1.0 [mm] Stainless steel saw blades: 6*0.4 - 25*0.5 [mm] Strip blade: 6*0.4 - 30*0.6 [mm] Brand Ideal, type BAS 050-01, reference number 18922.
