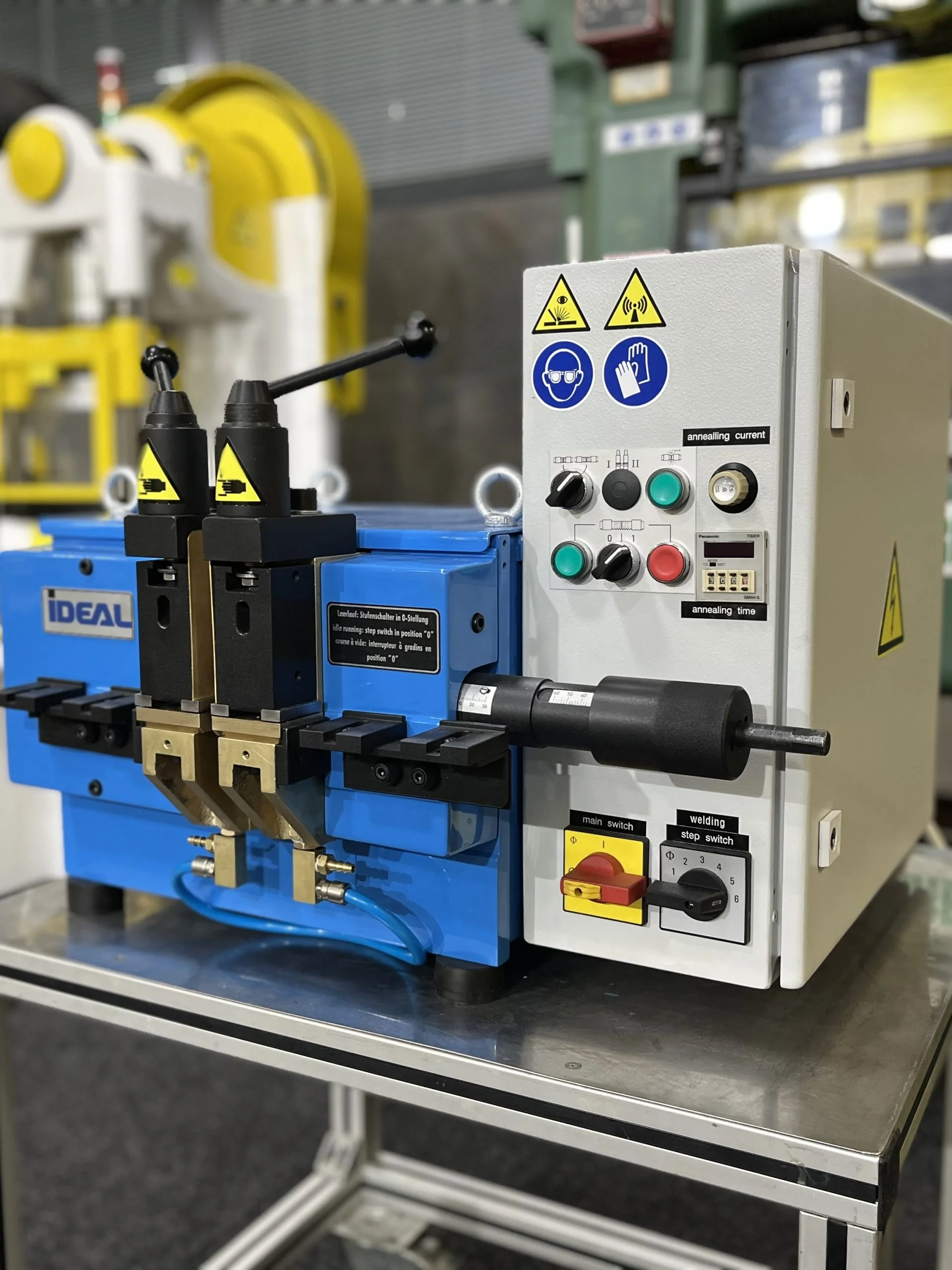

iDEAL BAS 050-01 Ref. 31025

Band saw blade butt welder covering four blade families: bi-metallic and tungsten carbide, wood, stainless steel and strip blade. Clamping is manual and the annealing stage is timed. The machine joins blades for wood or metal and was assessed as being in good working condition. Welding range Bi-metallic and tungsten carbide band-saws are rated 6*0.6 - 34*1.1 [mm] and wood saw blades 6*0.4 - 50*1.0 [mm]. Stainless steel saw blades reach 6*0.4 - 25*0.5 [mm] and strip blade 6*0.4 - 30*0.6 [mm]. Power and forces Primary voltage 380 - 419 [V] / 50 [Hz], connection rating 4,5 [kVA], secondary voltage 2,6 - 4,4 [V] in 6 stages. Upsetting force maximum 2,2 [kN], clamping force 10 [kN]. Weight 140 [kg]. Year of manufacture 2014. Papers Operating instructions and CE certificate. Packing included. iDEAL BAS 050-01, ref. no. 31025.
