HURAS HPR-1500-220 Ref. 36226

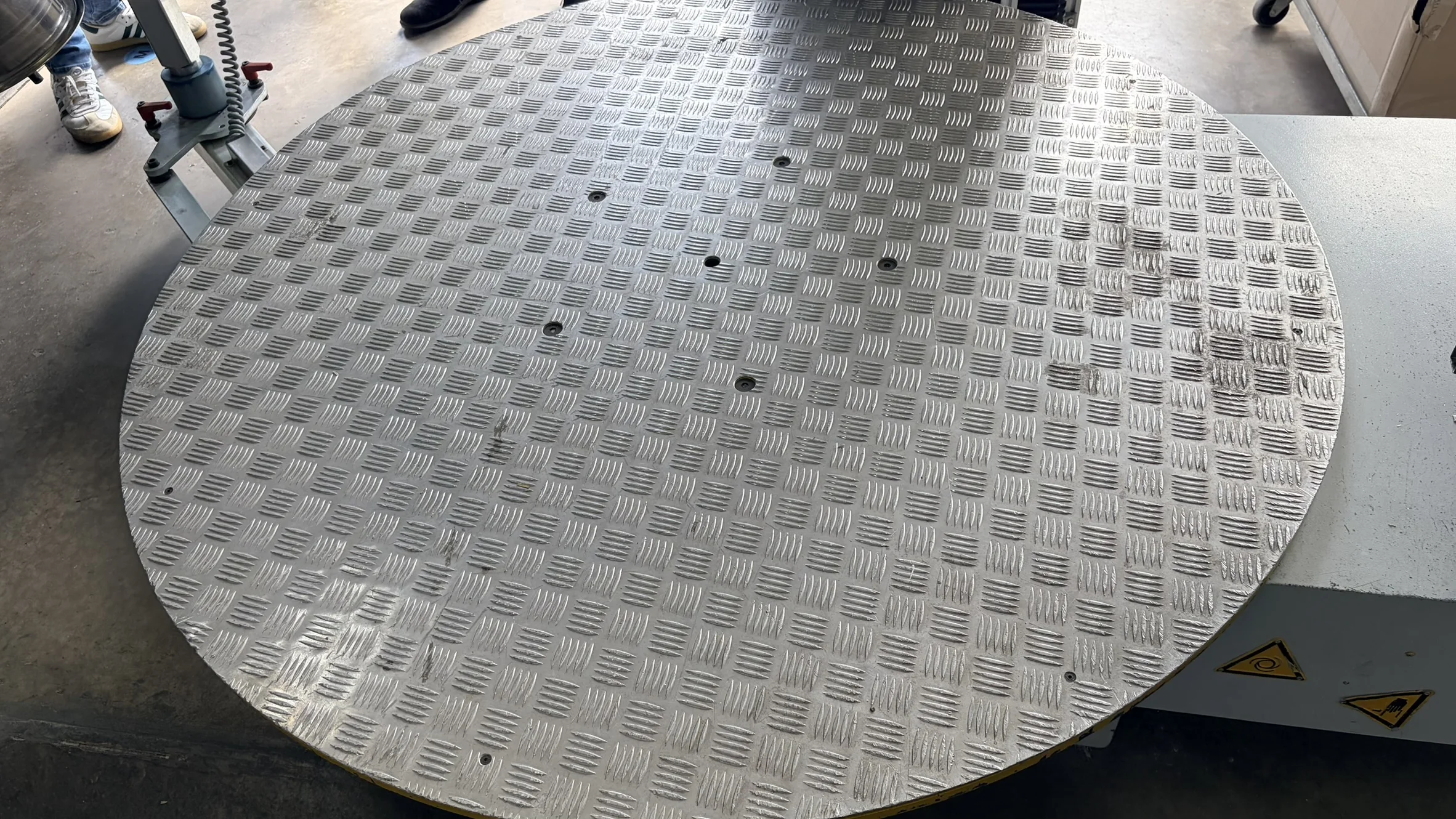

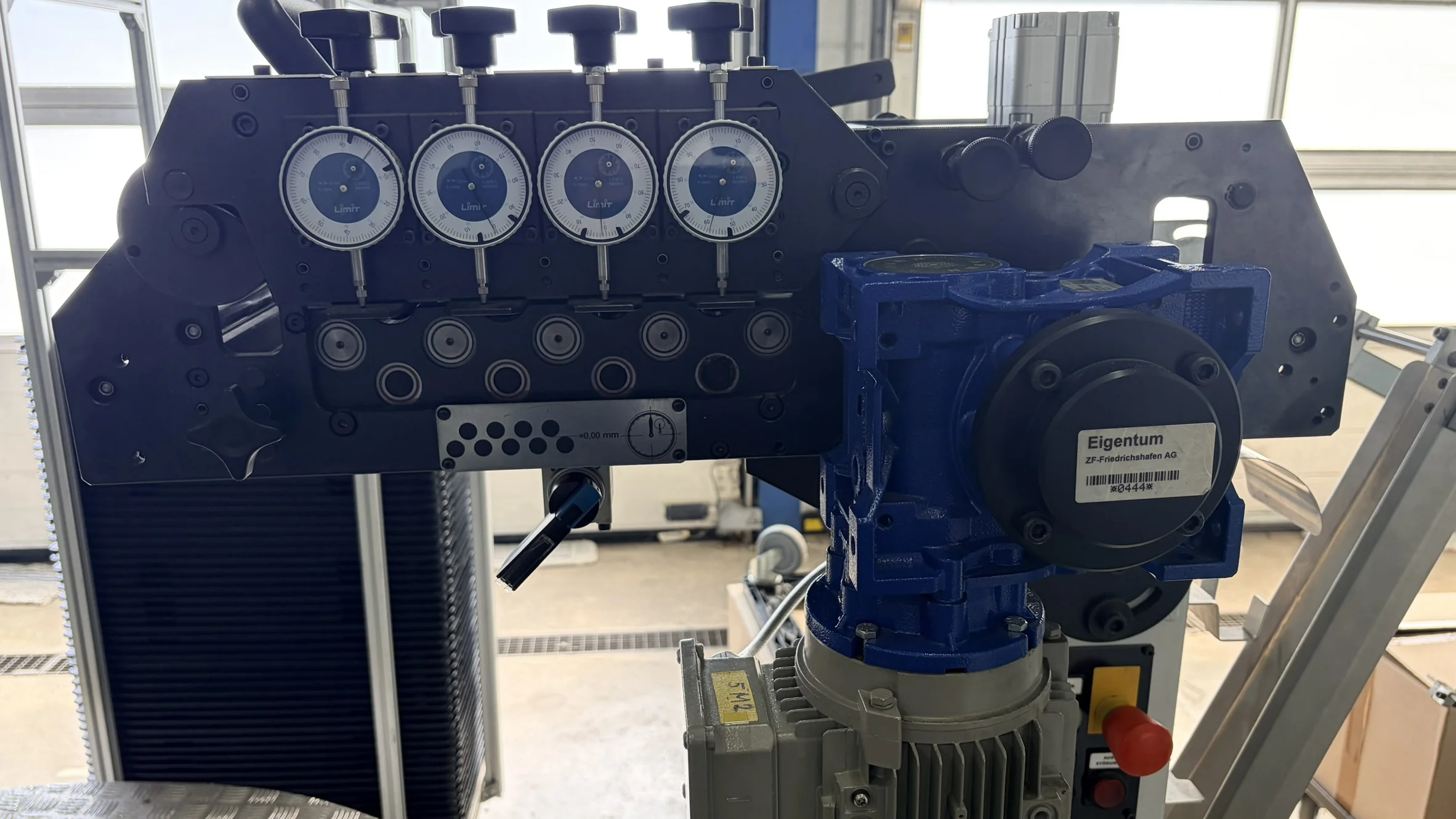

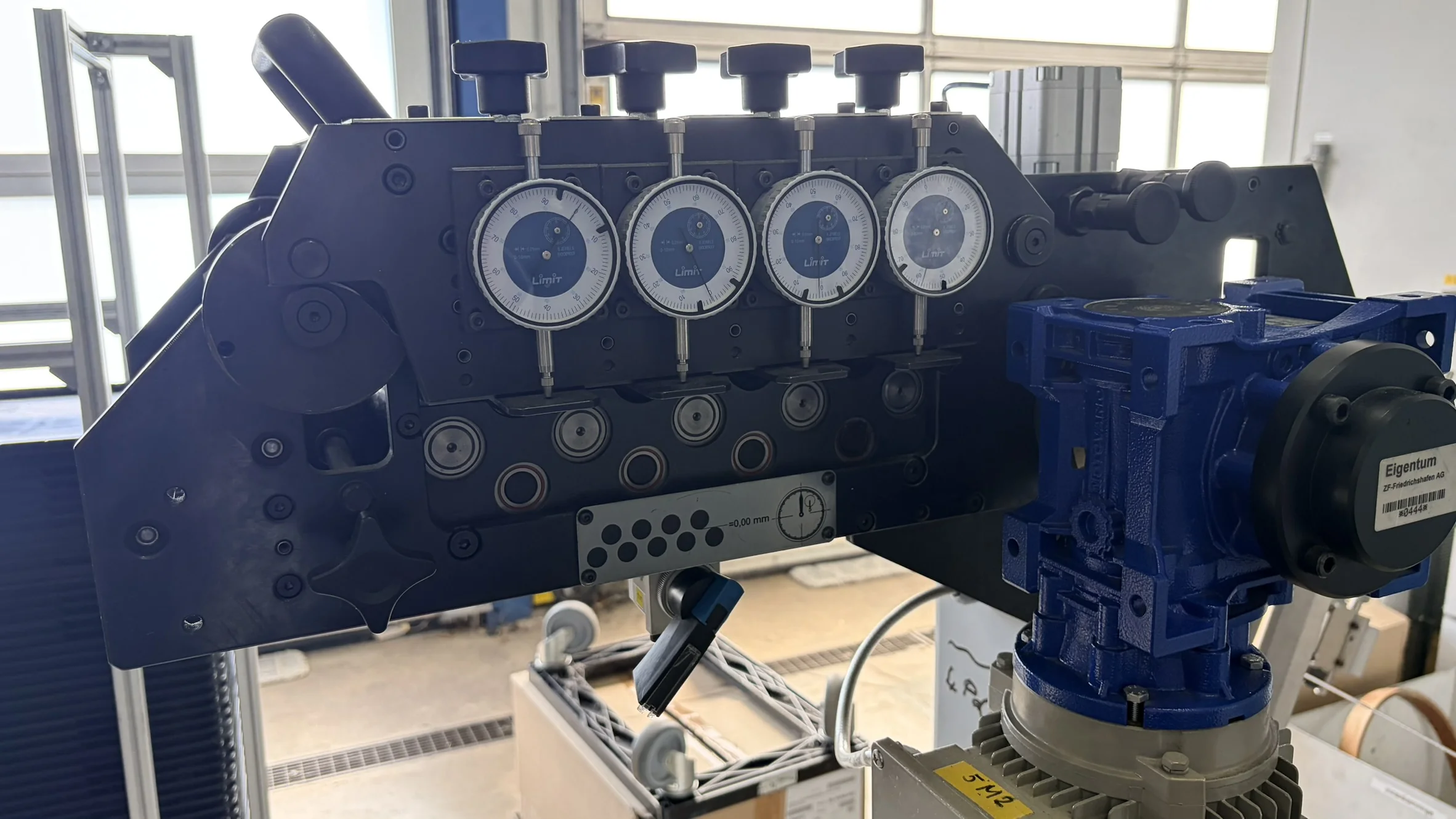

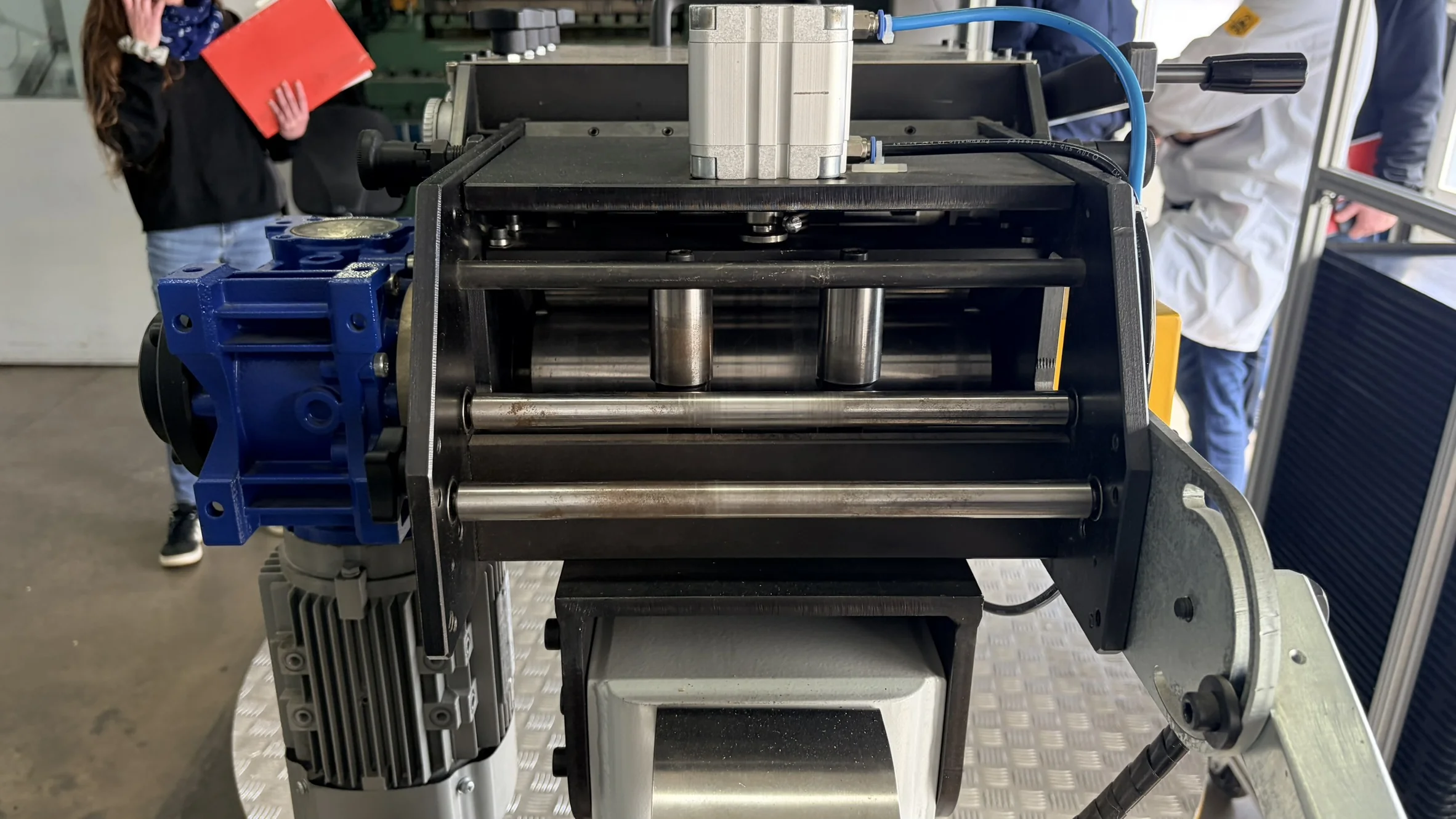

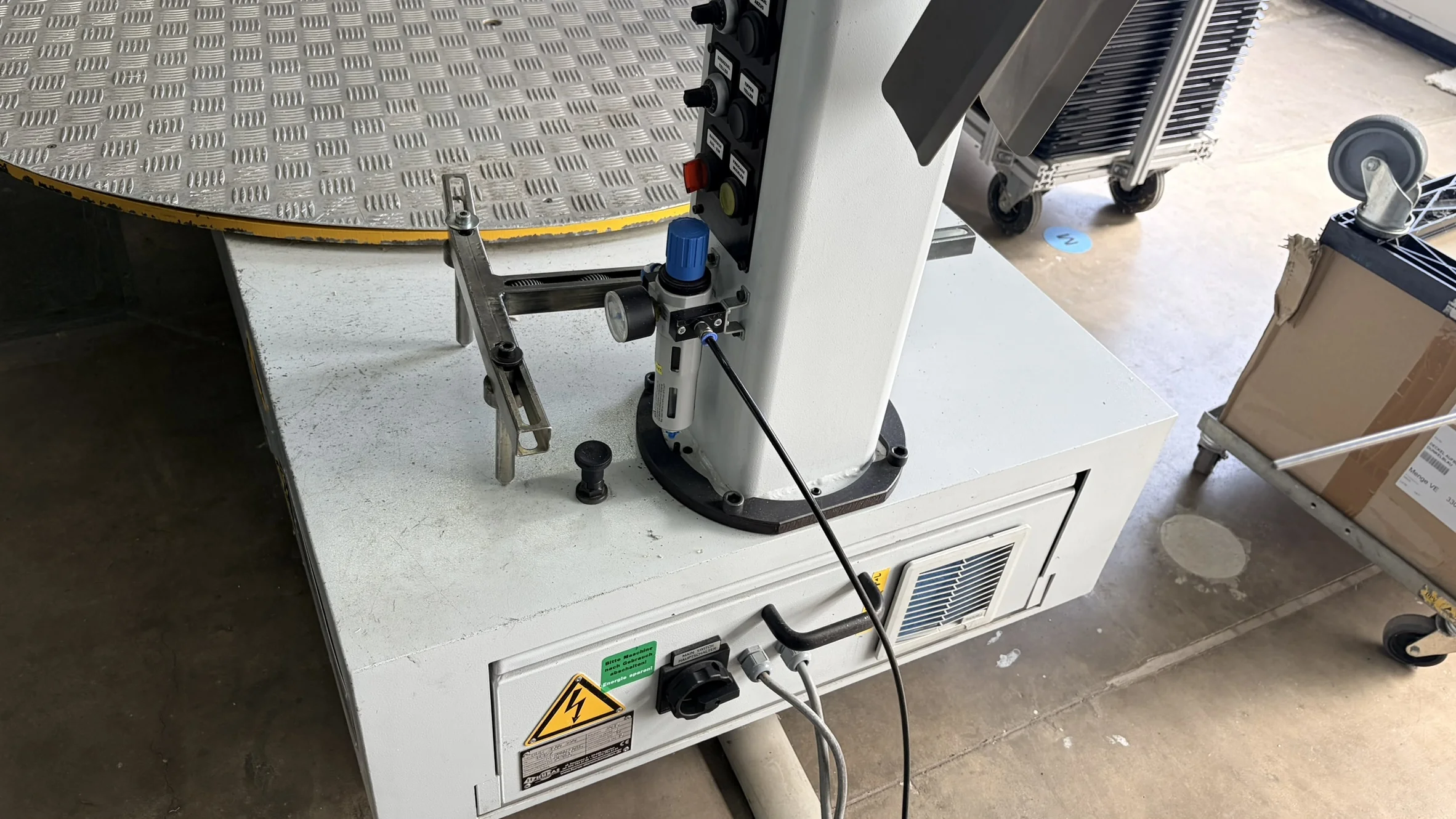

Where coil stock arrives on pallets rather than on mandrels, a decoiler of this type removes the need for a separate coil car and shortens changeover. This 2015 unit unwinds straight off the pallet and passes the strip into its own straightening head, so the material reaching the die is flat and stress-relieved. Turntable: 1500 mm diameter, 3000 kg load capacity, up to 10 rpm, four-point bearing, 2.2 kW inverter-controlled drive, winding direction CW or CCW as selected. Straightener: 9 rolls of 40 mm diameter, 5 lower and 4 upper, all lower rolls driven, 0.75 kW inverter-controlled drive. Material and line: strip up to 220 mm wide and 1.5 mm thick, strip speed 10 m/min at a core diameter of 300 mm, stamping direction left to right. The machine measures 2250 × 1500 × 1700 mm, weighs around 750 kg and is finished in structured RAL 7035 light grey. Remaining data is in the table above. Huras HPR-1500-220, reference number 36226.
