    HURAS HPR-1500-220 Ref. 36126

    Pallet Decoiler with Straightener • 2013 • ID: 36126

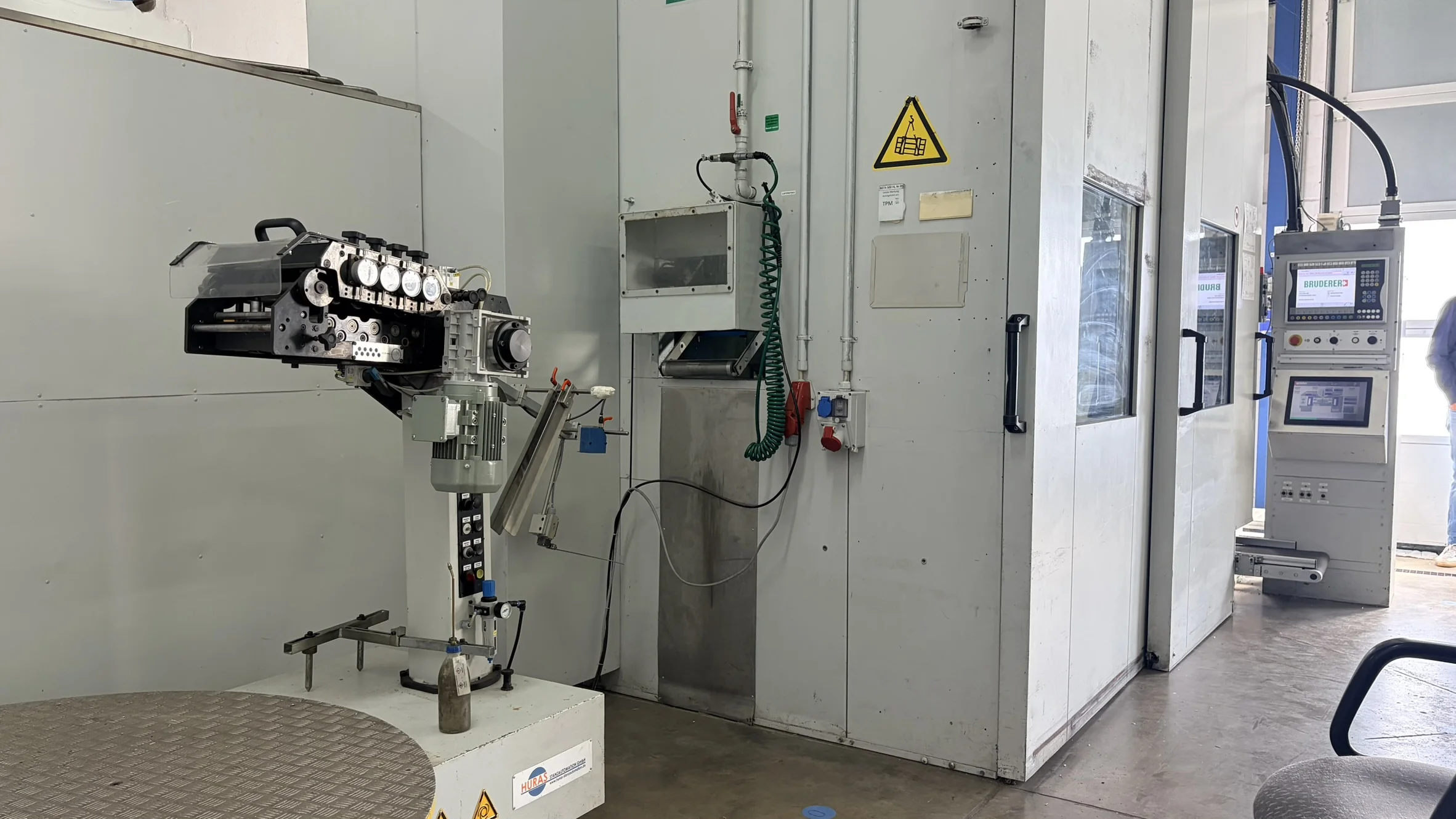

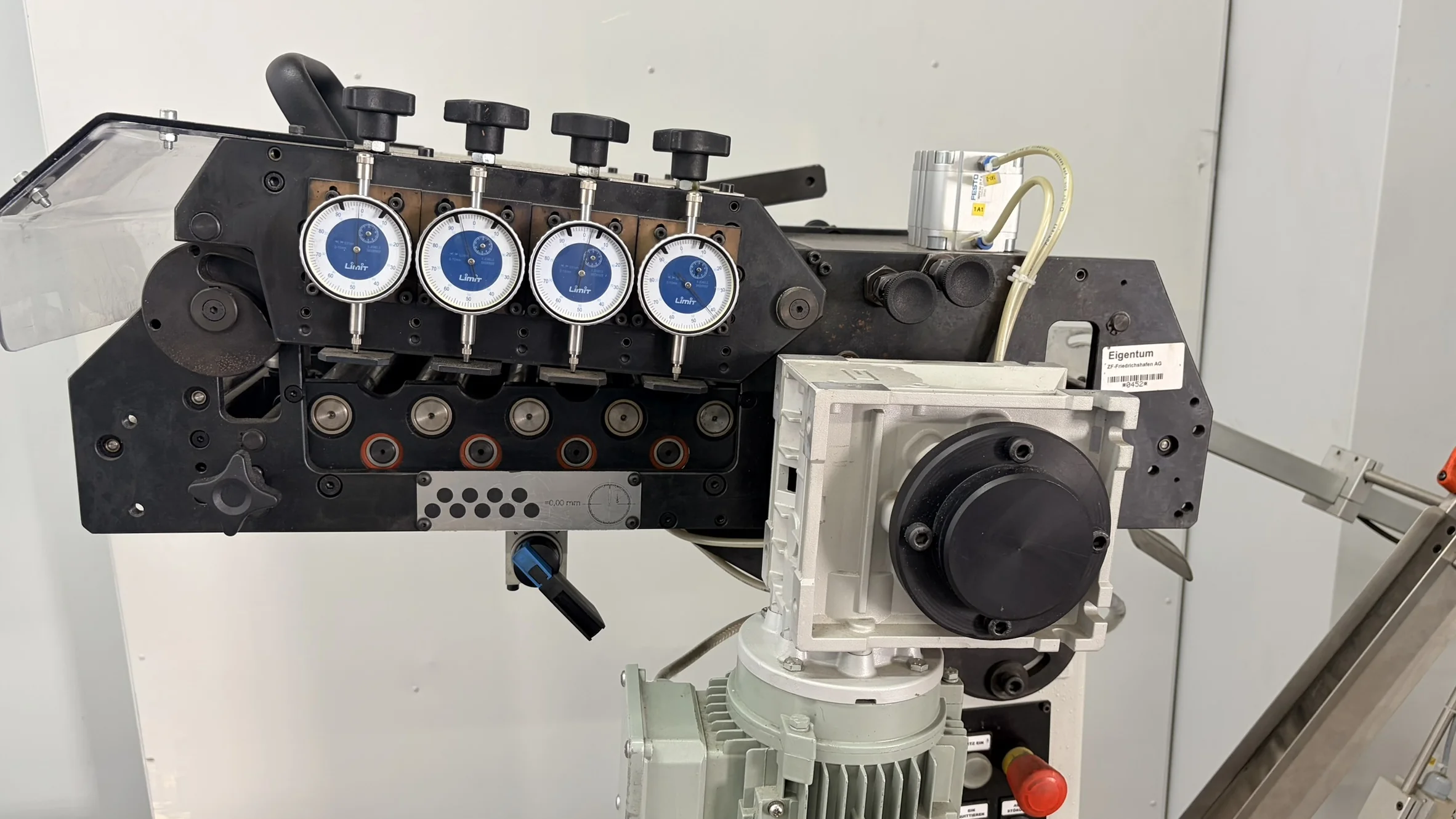

    The straightening head is what makes this unit more than a turntable. Nine rolls of 40 mm diameter, four upper against five driven lower rolls, take the curl out of the strip before it leaves the machine. That head has its own 0.75 kW inverter drive, independent of the table, so pull-off speed and tension can be balanced against the line downstream. Year of manufacture is 2013. Capacity - table 1500 mm diameter, 3000 kg load capacity, max. 10 rpm, four-point bearing; winding CW or CCW, selectable; stamping direction left to right. Material - strip up to 220 mm wide and up to 1.5 mm thick; strip speed 10 m/min at 300 mm core diameter. Installation - 3×400V + N + PE, 50 Hz, 16 A; dimensions 2250 × 1500 × 1700 mm; weight approx. 750 kg; RAL 7035 light grey structured paint finish. Reference number 36126, Huras HPR-1500-220 pallet decoiler with straightener.

    This machine has been sold. If you are interested in a machine of this type, please contact us.

    Contact Us
    Call Us

    Technical Specifications

    Table diameter1500 mm
    Table load capacity3000 kg
    Max. table rotation speed10 rpm
    Strip speed10 m/min (at core Ø 300 mm)
    Stamping directionLeft to right
    Winding directionCW or CCW (selectable)
    Max. strip thickness1.5 mm
    Max. strip width220 mm
    Turntable drive motor2.2 kW, inverter-controlled
    Turntable bearingFour-point bearing
    Straightener head9 rolls (5 lower + 4 upper)
    Roll diameter40 mm
    Lower rollsAll driven
    Straightener drive motor0.75 kW, inverter-controlled

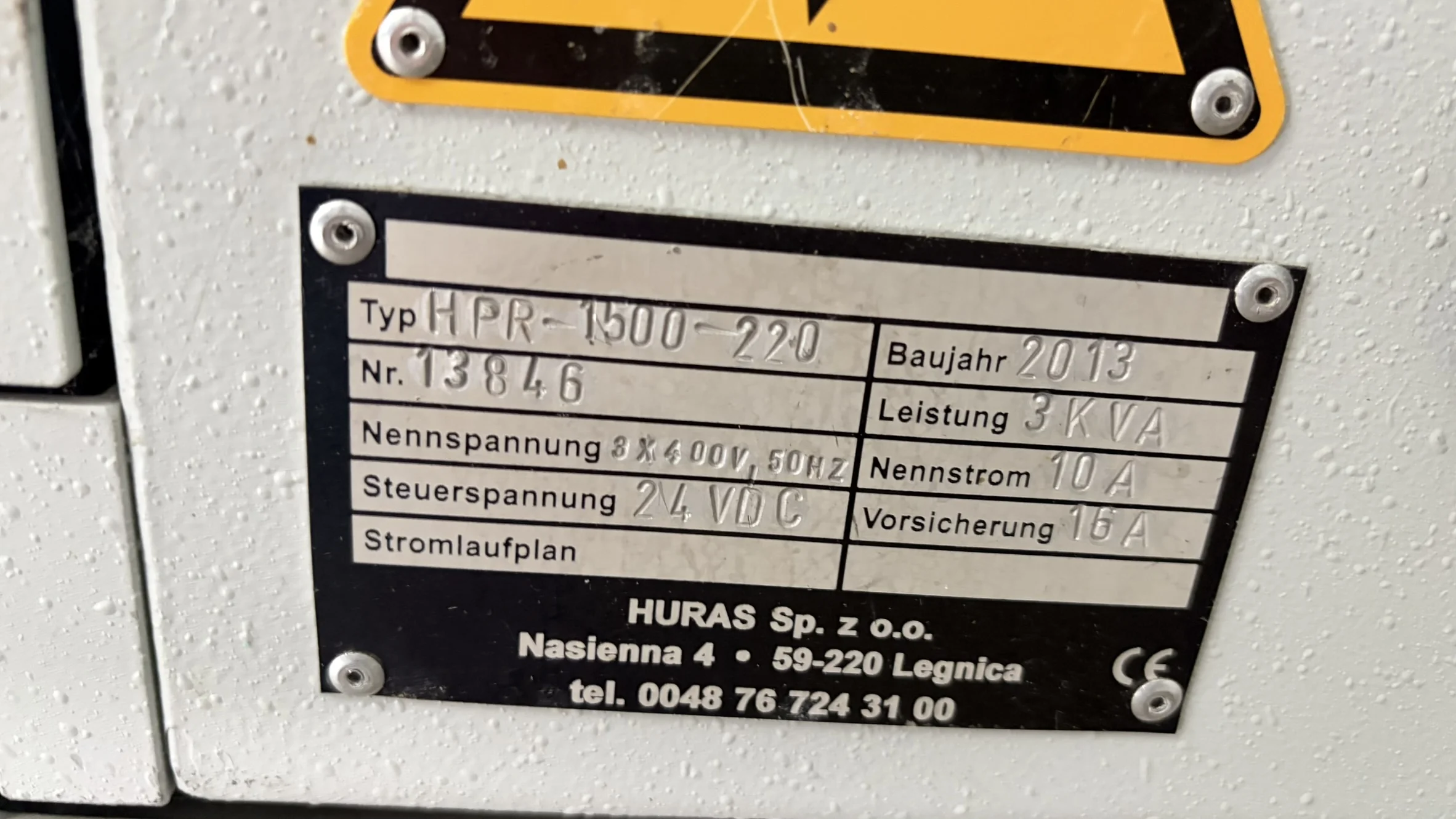

    Electrical connection3×400V + N + PE, 50 Hz, 16 A
    Dimensions (L × W × H)2250 × 1500 × 1700 mm
    Weight~750 kg
    Paint finishRAL 7035 light grey, structured
