    SOPREM Precision Coil Feeding Line Ref. 36326

    2003 • ID: 36326

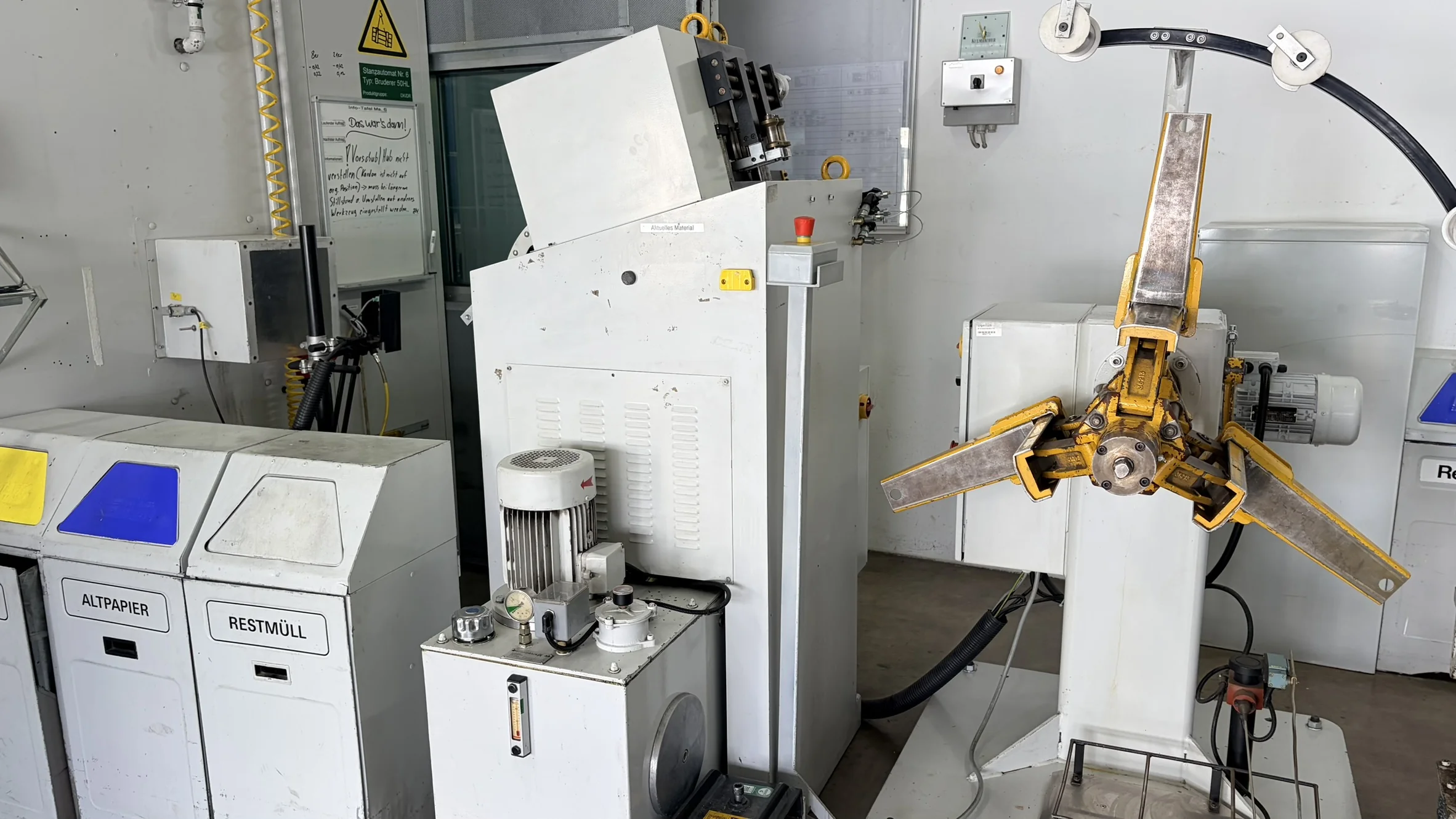

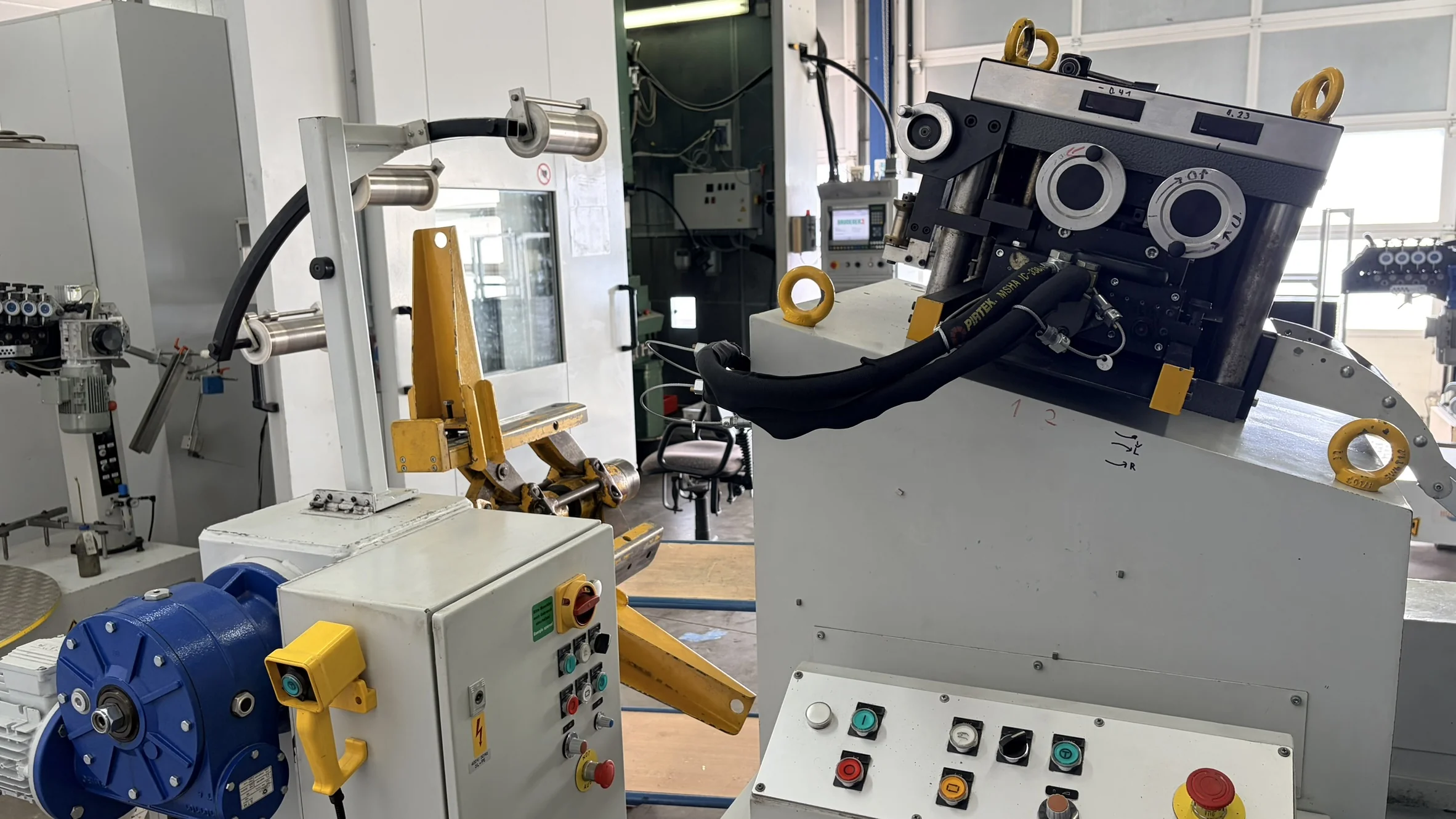

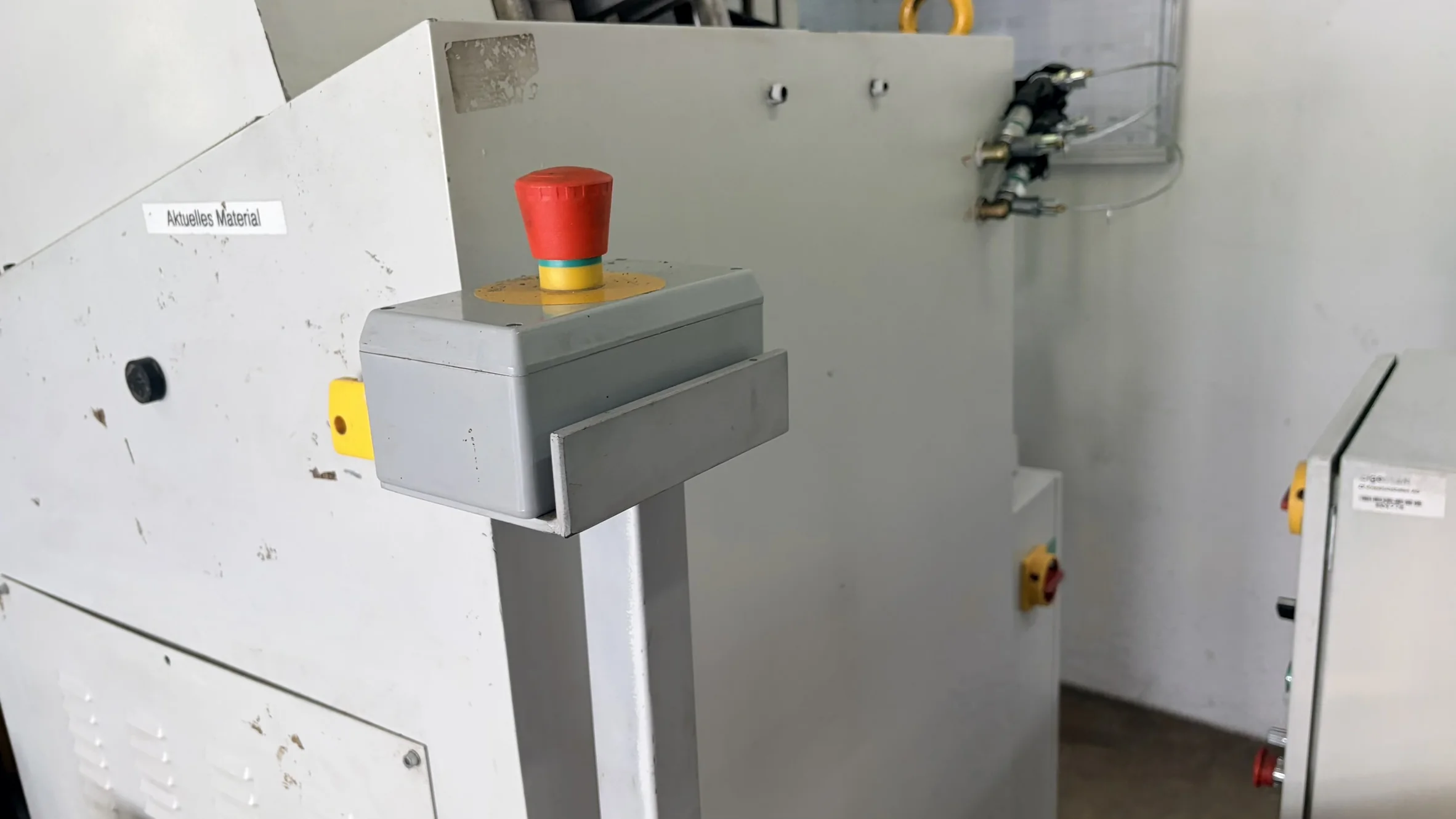

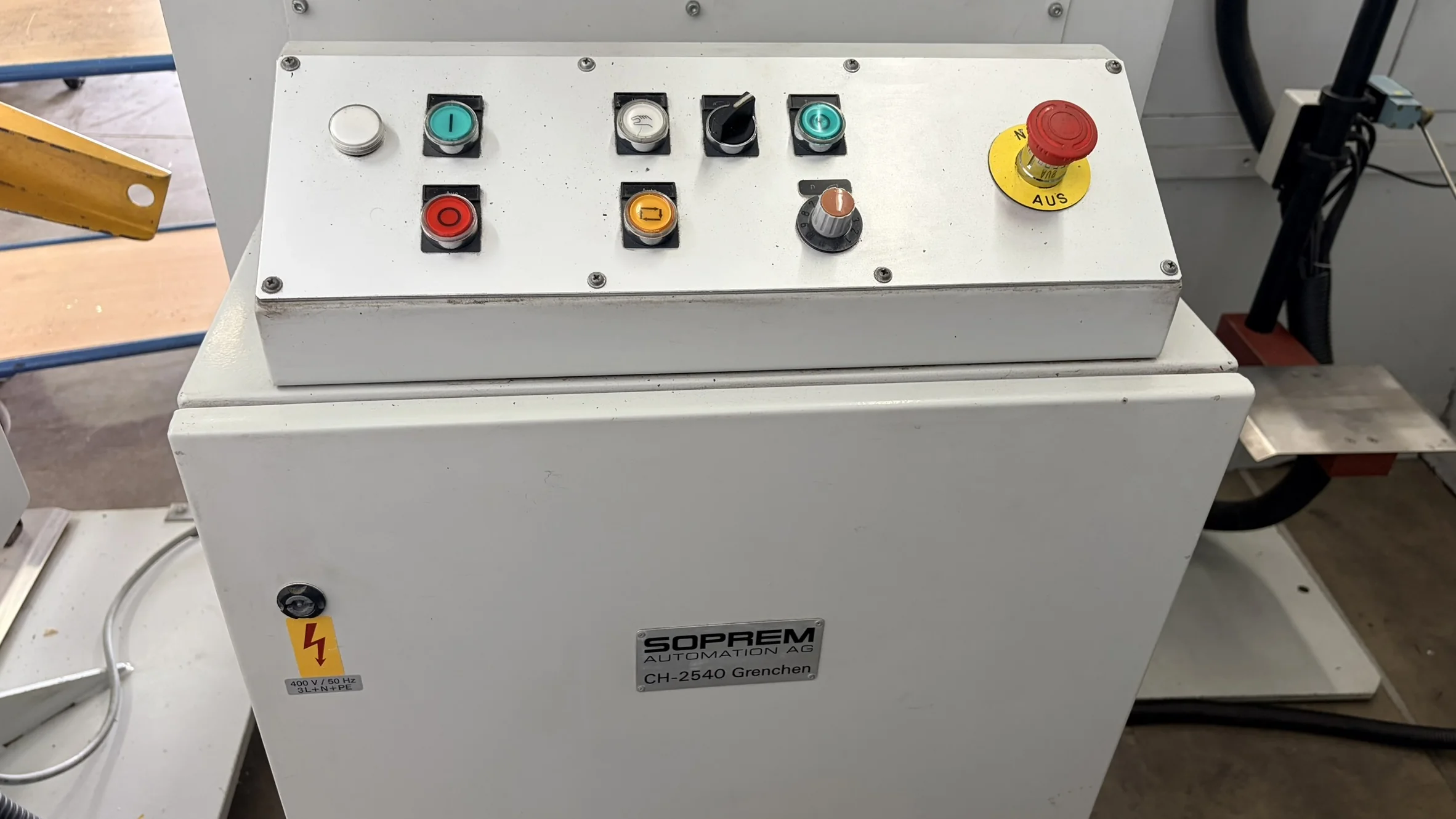

    SOPREM precizna linija za dodavanje trake (odmotač + ispravljač) – 2003. Kompletna usklađena linija za tanku preciznu traku, spremna za povezivanje sa manjom brzom presom za štancanje. Odmotač – tip H1000/1000ZV/10M/LK.LF/N1/G (ser. br. 100103). Maks. težina kotura: 1000 kg. Ø kotura: 1000 mm spolja / 375–520 mm iznutra. Brzina odmotavanja: 2–20 o/min, pogon 1,5 kW. Ispravljač – tip BR19/160/12/U (ser. br. 110103). Kapacitet trake: do 0,5 mm debljine × 160 mm širine. Hidraulički pogonjena precizna jedinica za ispravljanje. Obe jedinice iz 2003 · 400 V / 50 Hz · sinhronizovana linija sa vezom nužnog isključenja ka presi · švajcarska proizvodnja.

    Pozovi

    Tehničke specifikacije

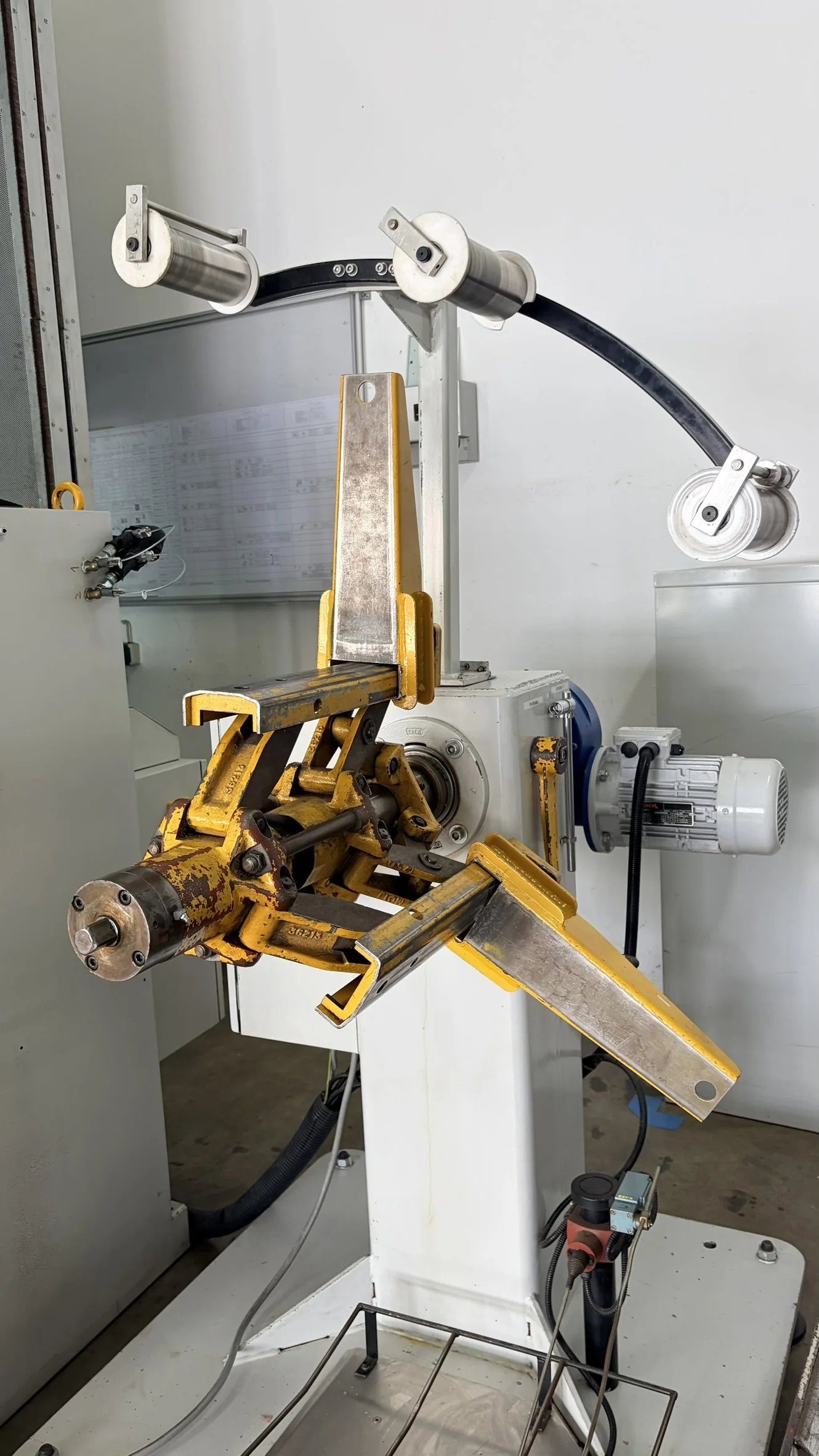

    Decoiler / Coil Reel (Haspel)H1000/1000ZV/10M/LK.LF/N1/G
    Serial No. (nameplate):110103
    Max coil weight:1000 kg
    Coil outer Ø:max 1000 mm
    Coil inner Ø:375–520 mm
    Reel speed:2–20 rpm

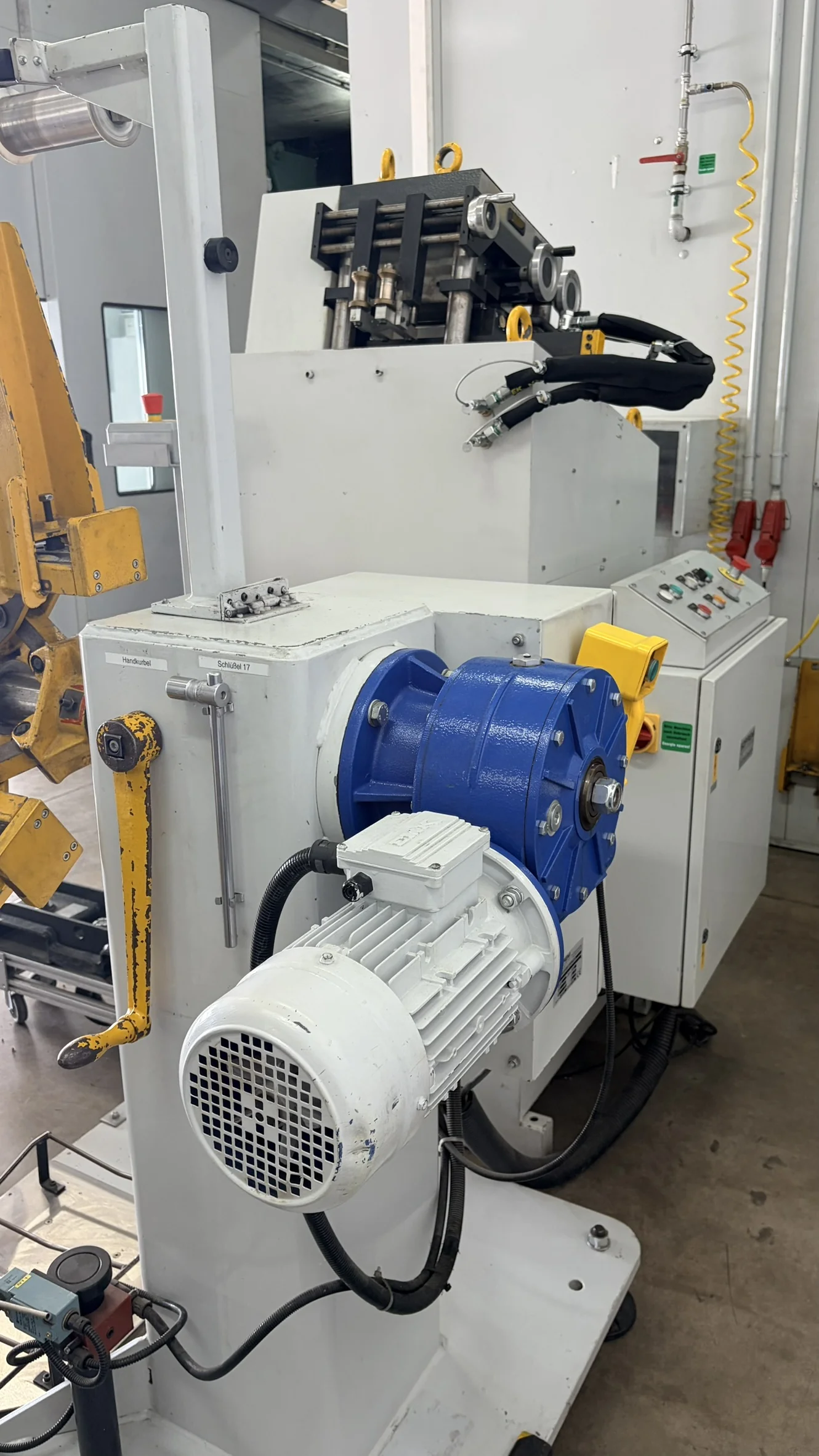

    Motor:KSMV 90L (4), 1.5 kW, 1400 rpm
    Gearbox:RMI 110 FL LCB, ratio i = 70
    Slip clutch:set to 400 Nm

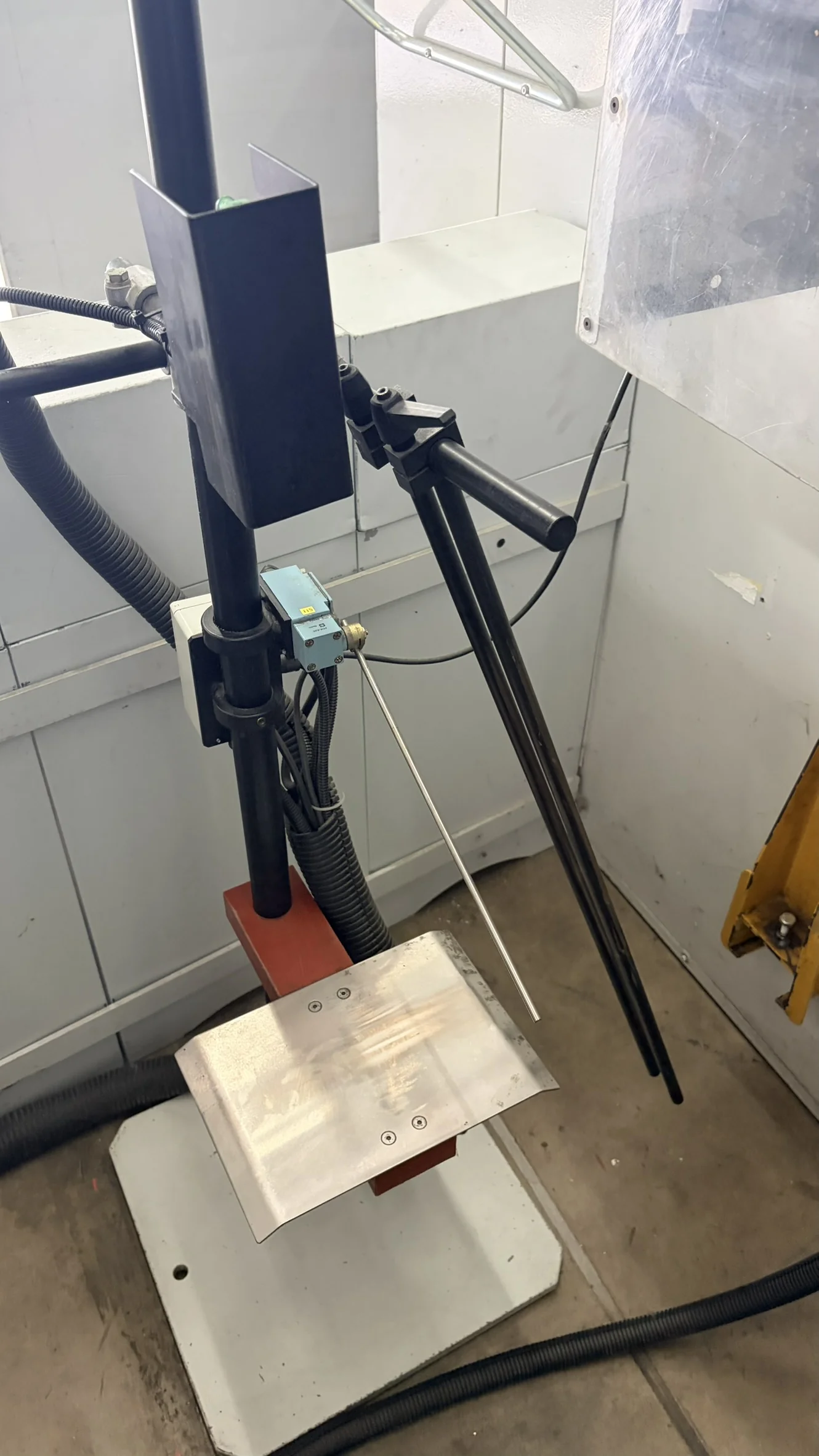

    Strip sensing:floor contact plate (loop control)

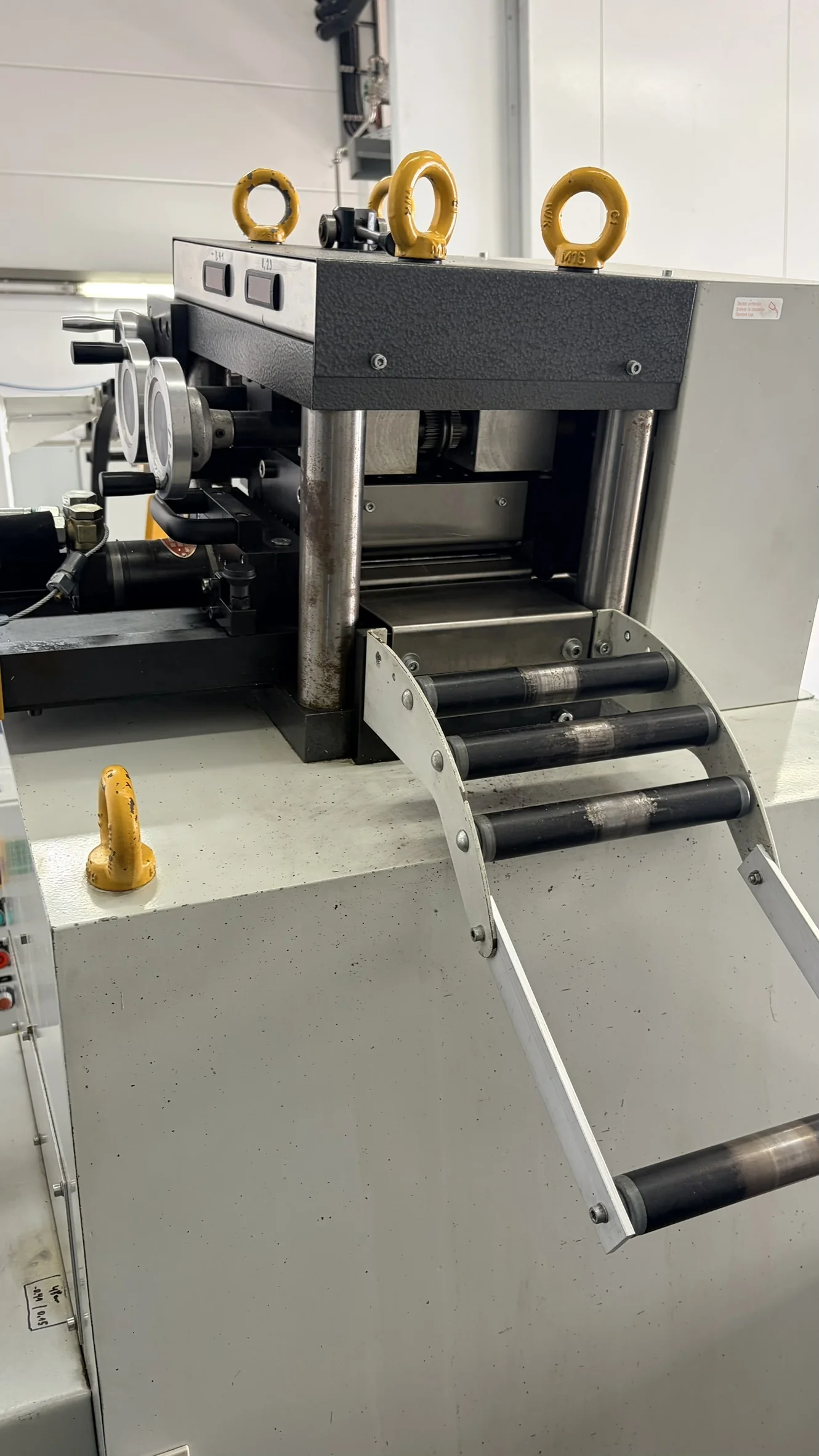

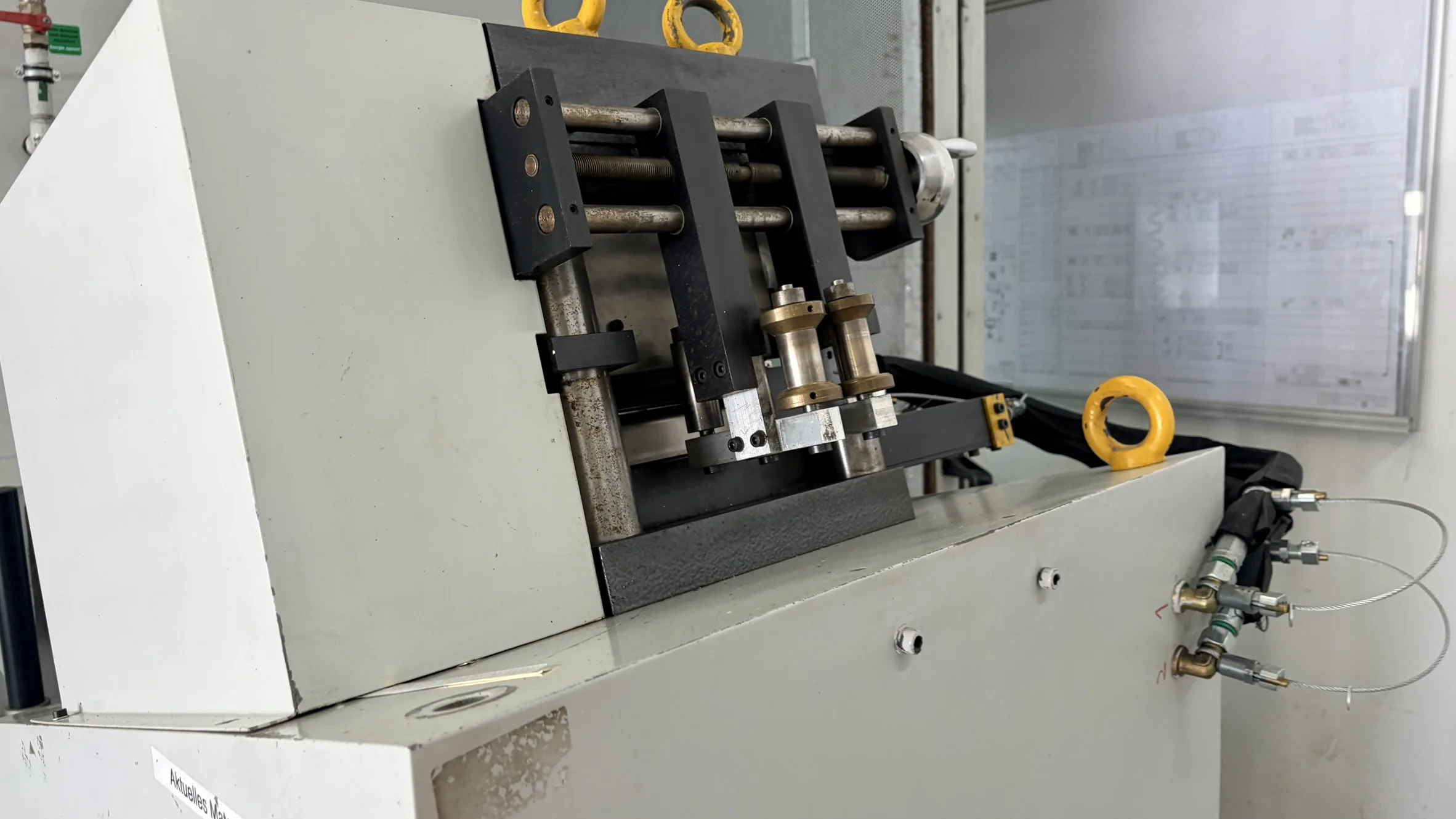

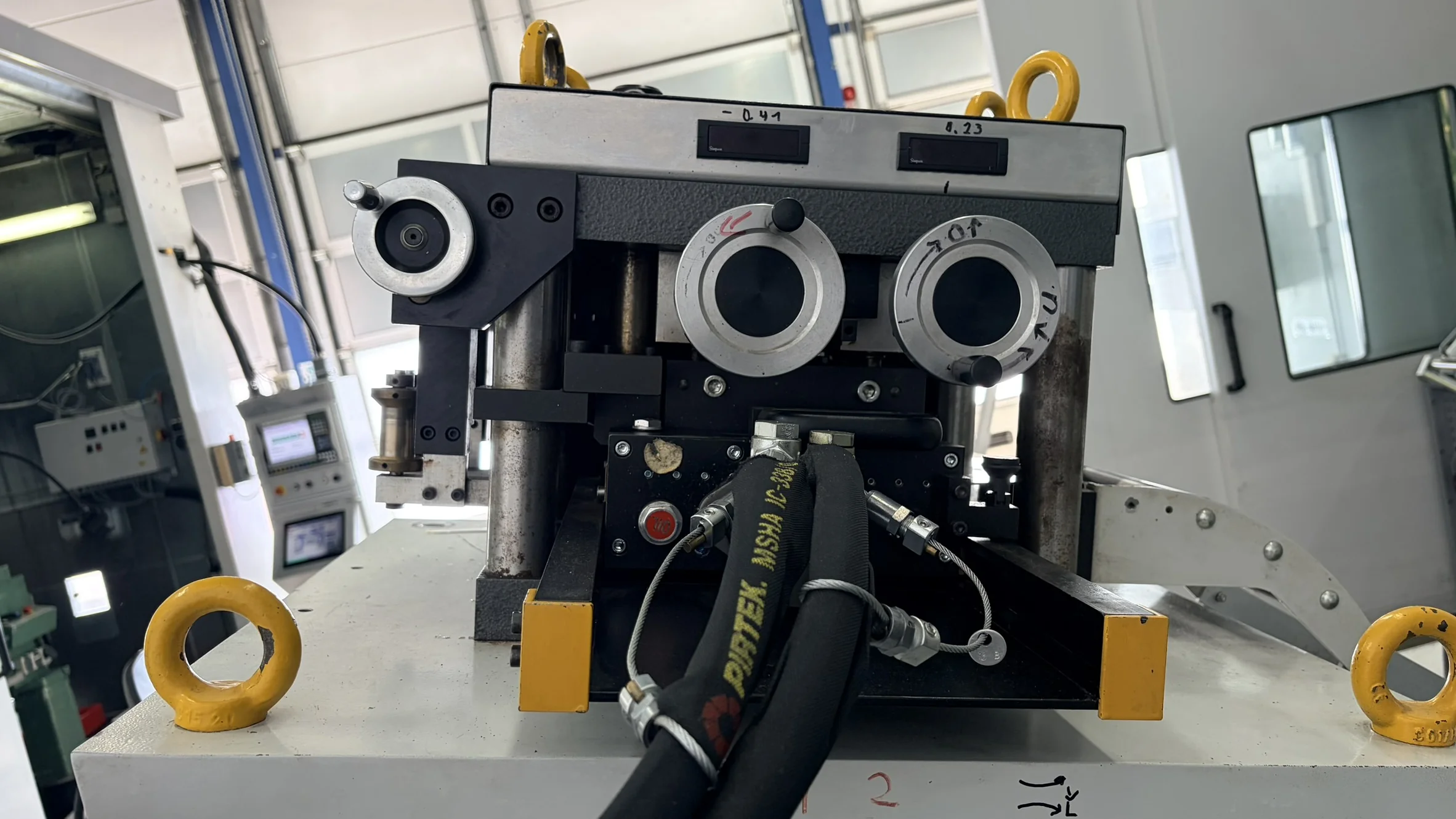

    Precision Band Straightener (Richtwerk)BR19/160/12/U
    Function:straightens coil curvature before the press
    Max strip thickness:0.5 mm
    Max strip width:160 mm
    Drive:hydraulically driven precision straightening unit

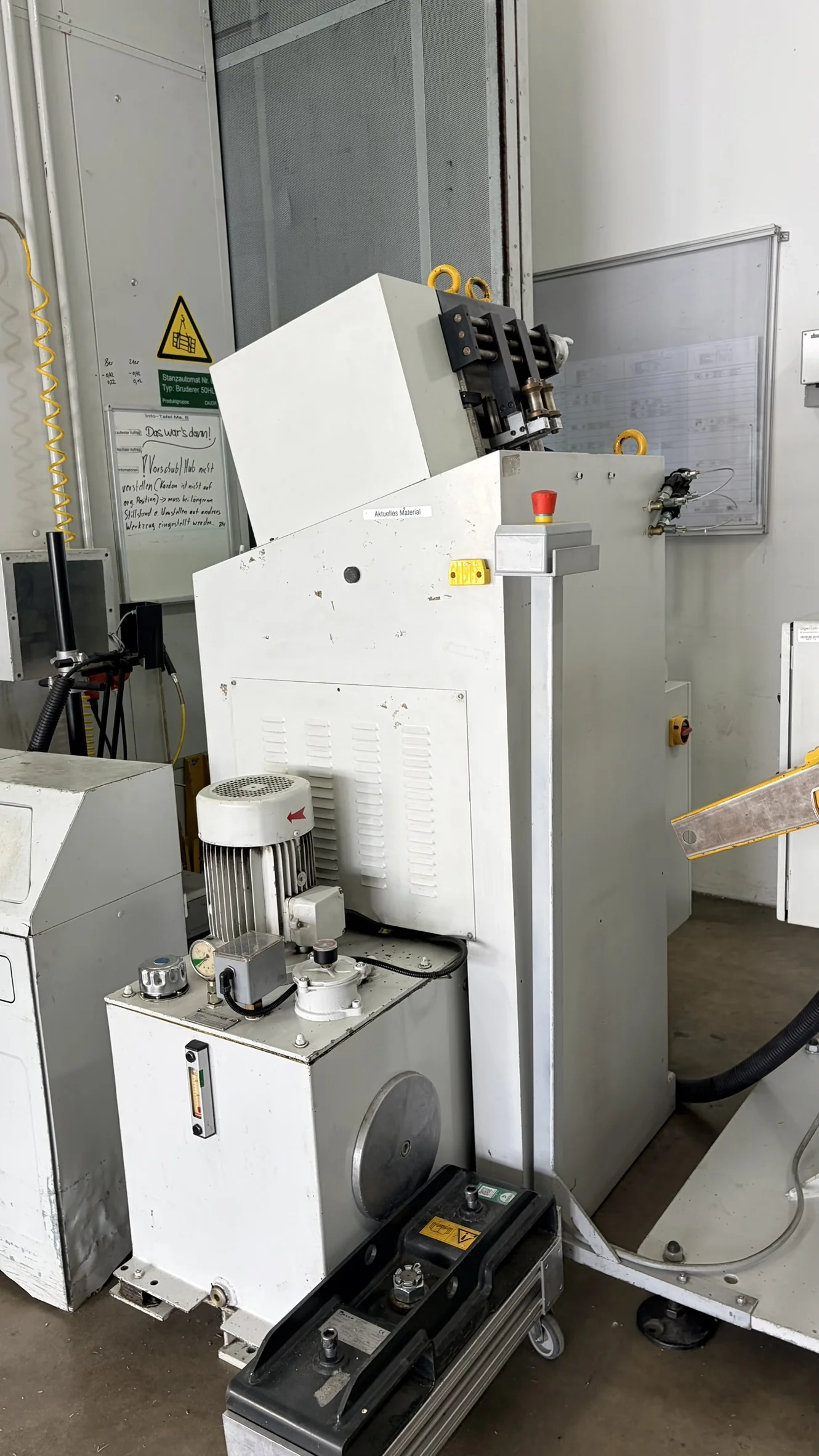

    Hydraulics:~180 L tank, oil per ISO 48 (48 cSt @ 40 °C — e.g. BP SHF 46 Bartran / Mobil DTE 25)

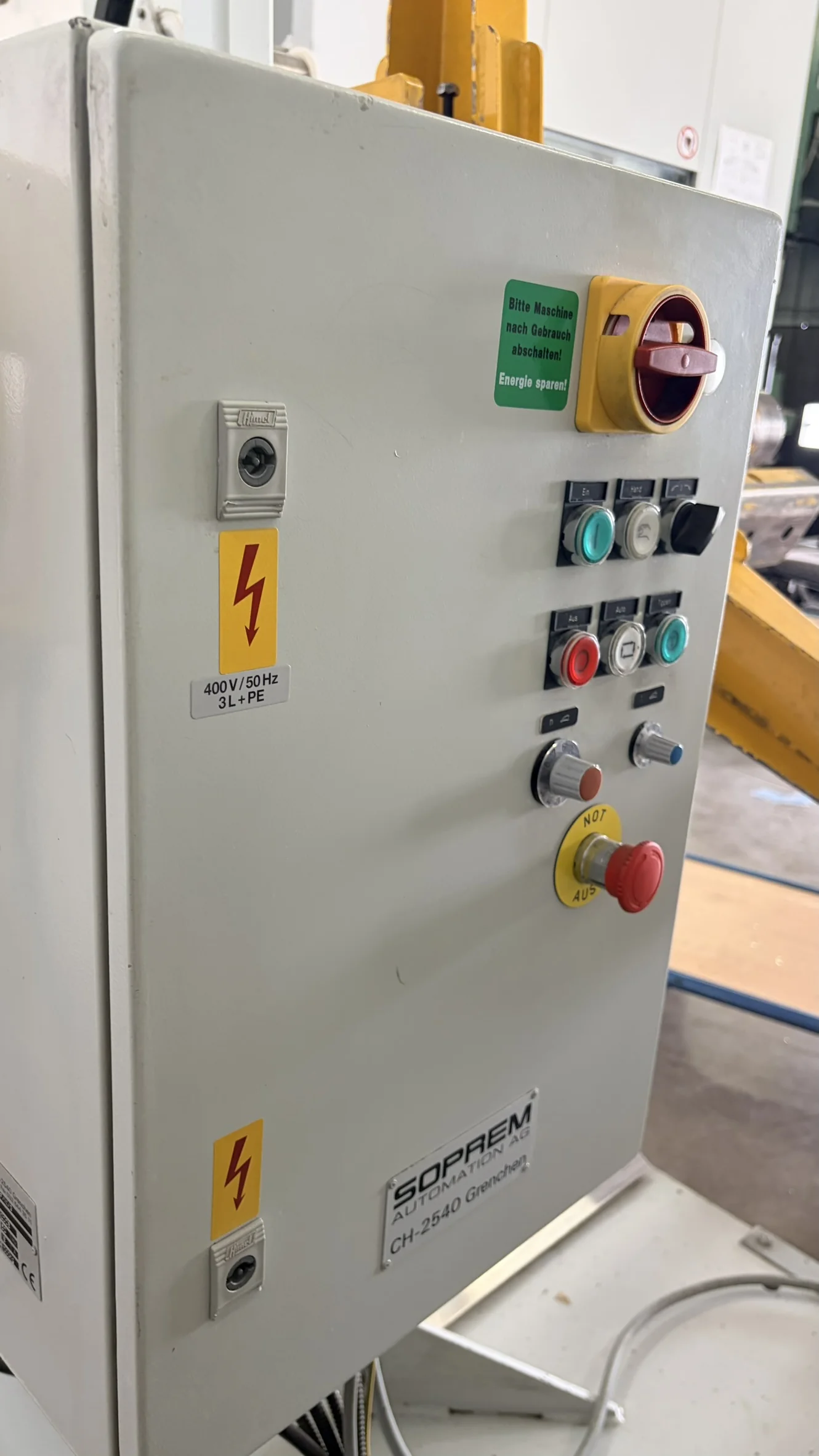

    Electrical Supply400 VAC, 50 Hz, 3-phase + neutral + earth
    Rating:25 A pre-fuse
